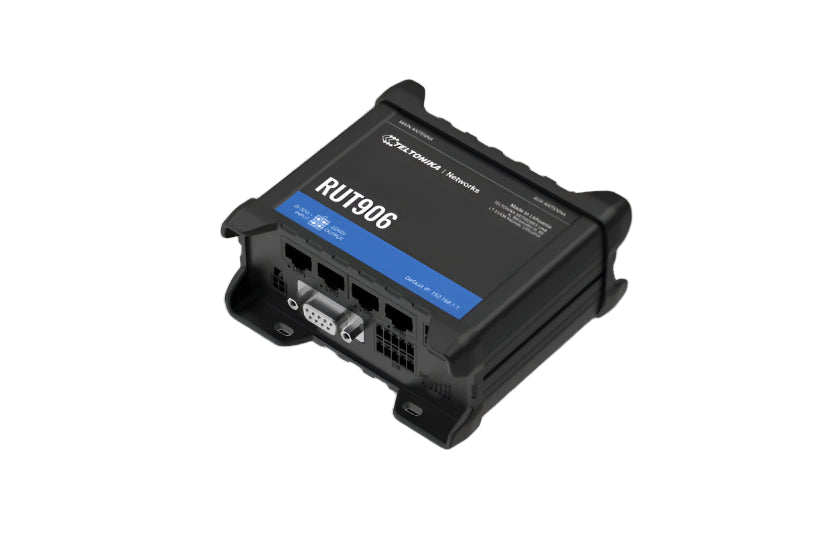

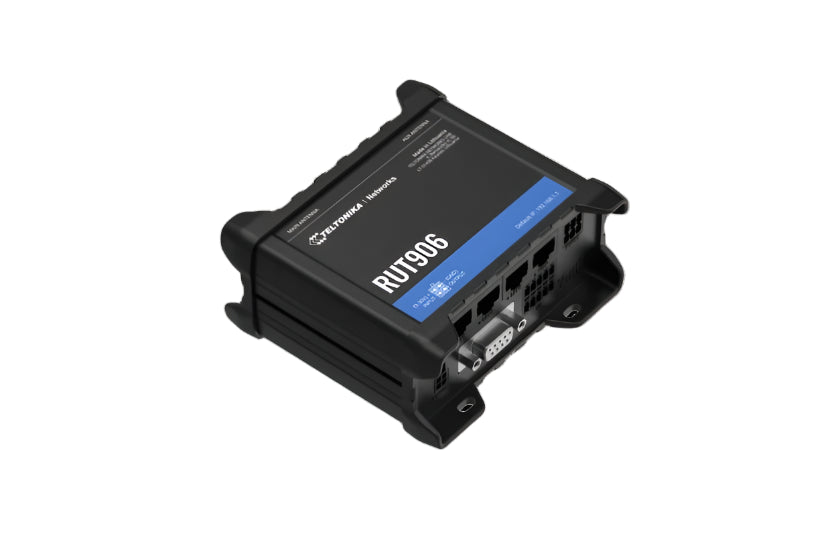

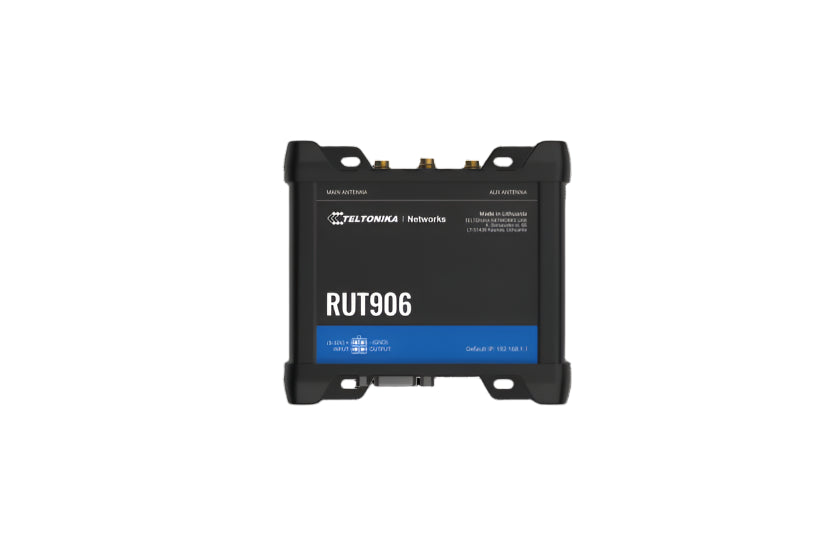

RUT906 - 4G LTE RS232/RS485 Router

SKU: ELC8721

ā‚¹ 24,249.99 ā‚¹ 35,499.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ā± This is a pre-order item. We'll ship it as soon as it's back in stock.
RUT906 - 4G LTE RS232/RS485 Routerā‚¹ 24,249.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Cellular 4G router for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN.Ā

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Category Details
Mobile Module 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
3GPP Release Release 9
SIM Switch 2 SIM cards; auto-switch based on weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List Operator black/white list (by country or separate operators)
Band Management Band lock, used band status display
SIM Idle Protection In dual SIM setups, the inactive SIM remains idle until switched, conserving data usage on the idle card
SIM PIN Code Management Enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN

Ā

Wireless

Category Details
Wireless Mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi Security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID ESSID stealth mode
Wi-Fi Users Up to 100 simultaneous connections
Wireless Connectivity Features Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter Allowlist, blocklist
Wireless QR Code Generator Allows users to join the network automatically by scanning a QR code without needing to input login information
TravelMate Forwards Wi-Fi hotspot landing page to a subsequent connected device

Ā

Ethernet

Category Details
WAN 1 x WAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN 3 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Ā

Network

Category Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers for proper VoIP packet routing
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customization
Firewall status page View all Firewall statistics, rules, and rule counters
Ports management Enable/disable ports, auto-configuration toggle, change transmission speed
Network topology Visual representation of network and connected devices
Hotspot Captive portal, RADIUS authentication (internal/external), SMS authorization, SSO, landing pages, walled garden, user management, customizable themes
DHCP Static/dynamic IP allocation, DHCP relay, configuration, static leases with MAC wildcards
QoS / SQM Traffic prioritization by source, service, protocol, or port; WMM; 802.11e
DDNS >25 supported service providers; manual configuration for others
DNS over HTTPS Enables secure DNS resolution via HTTPS
Network backup Automatic failover options: Wi-Fi WAN, Mobile, VRRP, Wired
Load balancing Balance Internet traffic across multiple WAN connections
SSHFS Mount remote file systems via SSH protocol
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history
Port Mirroring Mirror network traffic on Ethernet ports for monitoring and analysis

Ā

Security

Category Details
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules (via WebUI), unlimited firewall configuration (via CLI), DMZ, NAT, NAT-T, NAT64
Attack prevention DDOS prevention (SYN flood, SSH, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter Blacklist for blocking unwanted websites, Whitelist for specifying allowed sites
Access control Flexible access control for SSH, Web interface, CLI, and Telnet
SSL certificate generation Let's Encrypt and SCEP certificate generation methods

Ā

VPN

Category Details
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB, AES-128-OFB, AES-128-GCM, AES-192-CFB, AES-192-OFB, AES-256-CBC, AES-256-GCM
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without program code changes
DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3, and Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc VPN offering encryption, authentication, and compression in its tunnels, with client and server support

Ā

BACNET

Category Details
Supported Connection Types RS485, TCP
Supported Modes Router

Ā

OPC UA

Category Details
Supported Connection Types TCP
Supported Modes Client, Server

Ā

DNP3

Category Details
Supported Connection Types RS232, RS485, TCP, USB
Supported Modes Station, Outstation

Ā

MODBUS

Category Details
Supported Connection Types RTU (RS232, RS485), TCP, USB
Supported Modes Server, Client
Custom Registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported Data Formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Ā

DATA TO SERVER

Category Details
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
Data to Server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

Ā

MQTT Gateway

Category Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker

Ā

DLMS

Category Details
DLMS Support DLMS - standard protocol for utility meter data exchange
Supported Modes Client
Supported Connection Types RS232, RS485, TCP
COSEM Allows scanning meter COSEM objects for automatic detection and configuration

Ā

API

Category Details
Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: API Documentation

Ā

Monitoring & Management

Category Details
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)

Ā

IoT Platforms

Category Details
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows executing RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service for zero-touch device provisioning to IoT Hubs
AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

Ā

System Characteristics

Category Details
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash

Ā

Firmware / Configuration

Category Details
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Ā

FIRMWARE CUSTOMISATION

Category Details
Operating System RutOS (OpenWrt based Linux OS)
Supported Languages Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development Tools SDK package with build environment provided
GPL Customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clientsā€™ needs
Package Manager The Package Manager is a service used to install additional software on the device

Ā

Location Tracking

Category Details
GNSS GPS (GLONASS, BeiDou, Galileo, and QZSS - under development)
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server Software Supported server software: TAVL, RMS
Geofencing Configurable multiple geofence zones

Ā

Serial

Category Details
RS232 DB9 connector, RS232 (with RTS, CTS flow control), 300 to 115200 baud rate
RS485 RS485 Full Duplex (4 wires) and Half-Duplex (2 wires), 300-230400 baud rate
Serial Functions Console, Serial over IP, Modem

Ā

USB

Category Details
Data Rate USB 2.0
Applications Samba share, USB-to-serial
External Devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage Formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Ā

Input / Output

Category Details
Input 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
Output 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
Events Email, RMS, SMS
I/O Juggler Allows to set certain I/O conditions to initiate event

Ā

SD CARD

Category Details
Physical Size Micro SD (internal)
Applications Samba share, Storage Memory Expansion, DLNA
Capacity Up to 64 GB
Storage Formats FAT32, NTFS, ext2, ext3, ext4

Ā

Power

Category Details
Connector 4-pin industrial DC power socket
Input Voltage Range 9 ā€“ 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (Passive) Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power Consumption < 2 W idle, < 7 W Max

Ā

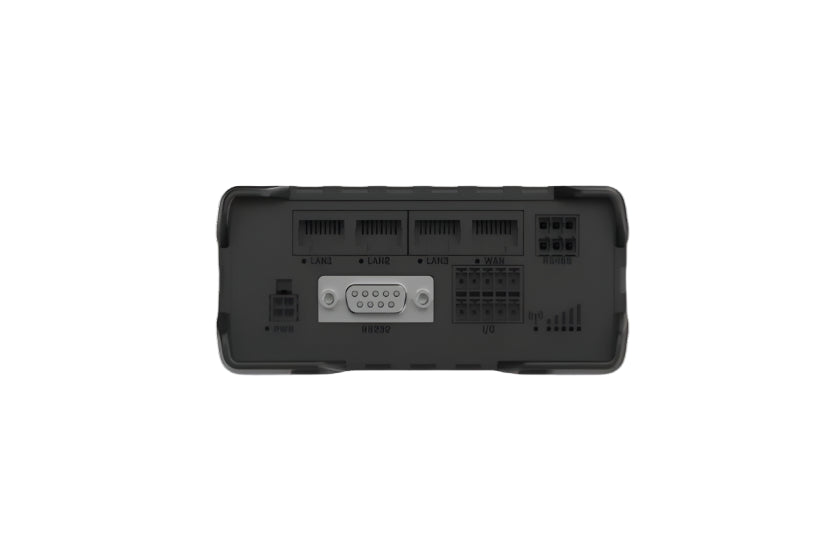

Physical Interfaces

Category Details
Ethernet 4 x RJ45 ports, 10/100 Mbps
I/O's 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector
Status LEDs 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)
Power 1 x 4-pin power connector
Input/Output 1 x 10-pin industrial socket for inputs/outputs

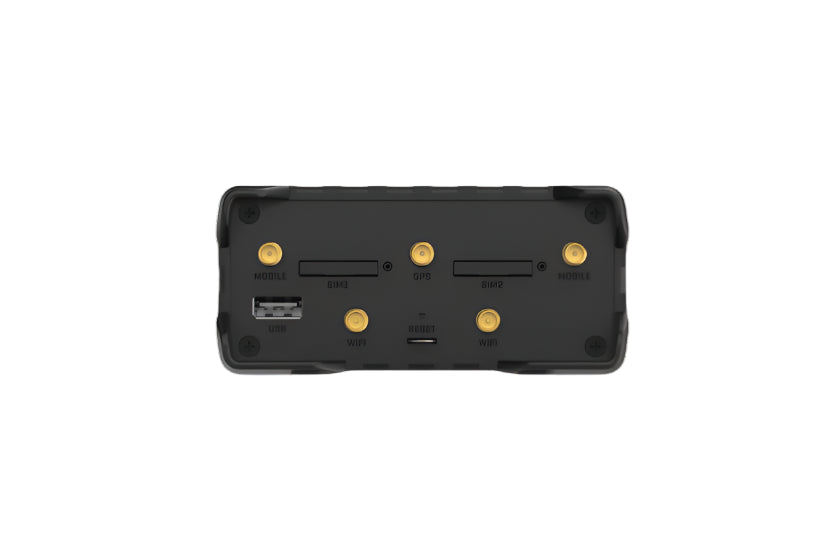

Antennas 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
RS232 1 x DB9 socket
RS485 1 x 6-pin industrial socket
Reset Reboot/User default reset/Factory reset button

Ā

Physical Specification

Category Details
Casing Material Aluminium housing, plastic panels
Dimensions (W x H x D) 109.5 x 50 x 100 mm
Weight 295 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)

Ā

Operating Environment

Category Details
Operating Temperature -40 Ā°C to 75 Ā°C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Ā

Regulatory & Type Approvals

Category Details
Regulatory CE, UKCA, RCM, CB, E-mark

Ā

EMC Emissions & Immunity

Category Details
Standards EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-19 V2.2.0, EN 301 489-52 V1.2.1
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2020
EFT EN 61000-4-4:2012
CS EN 61000-4-6:2014
DIP EN IEC 61000-4-11:2020
CE Standards CE: EN 62311
CB Standards CB: IEC 62368-1:2018

Ā

RF

Category Details
Standards EN 301 908-1, EN 301 908-2, EN 301 908-13, EN 300 328

Ā

Downloads

Manual & Documentation


Links

RUT906 QUICK START GUIDE (EN)
CERTIFICATIONS & APPROVALS
FIRMWARE DOWNLOADS
PRODUCT CHANGE NOTIFICATIONS
SDK DOWNLOADS
GPL DOWNLOADS
RUT906 3D MODELS
What interfaces and connectivity options does the RUT906 provide?
It offers 1 WAN port and 3 LAN ports for Ethernet, 2 SIM slots for dual SIM operation, RS232 DB9, RS485 6 pin block, 2 I O connector blocks, a USB 2.0 port, and 802.11 b g n Wi Fi 4 in AP or STA mode.
Does the router support dual SIM auto failover?
Yes in dual SIM setups the inactive SIM remains idle until switched and the device offers auto failover and SIM idle protection.
What power and installation considerations should I know?
Power input is 9 to 30 VDC with reverse polarity protection and surge protection. It supports passive PoE over spare pairs and can be powered via the LAN1 port.
What management and firmware update options are available?
Firmware updates can be performed via the WebUI and RMS or server based FOTA. Configuration backup and restore and keep settings features are supported.
What wifi and security features are supported?
Wi Fi is 802.11b g n with AP or STA mode and supports up to 100 simultaneous connections. Security options include WPA2 and WPA3 family including enterprise and PSK modes and PMF features.
A
Admin
Welcome to the discussion thread for RUT906 - 4G LTE RS232/RS485 Router
Feel free to ask questions, share tips or report issues.

Discover More In:

Industrial IoT ā†’

Category: View similar items (RUT906)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Cellular 4G router for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN.Ā

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Category Details
Mobile Module 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
3GPP Release Release 9
SIM Switch 2 SIM cards; auto-switch based on weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List Operator black/white list (by country or separate operators)
Band Management Band lock, used band status display
SIM Idle Protection In dual SIM setups, the inactive SIM remains idle until switched, conserving data usage on the idle card
SIM PIN Code Management Enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN

Ā

Wireless

Category Details
Wireless Mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi Security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID ESSID stealth mode
Wi-Fi Users Up to 100 simultaneous connections
Wireless Connectivity Features Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter Allowlist, blocklist
Wireless QR Code Generator Allows users to join the network automatically by scanning a QR code without needing to input login information
TravelMate Forwards Wi-Fi hotspot landing page to a subsequent connected device

Ā

Ethernet

Category Details
WAN 1 x WAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN 3 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Ā

Network

Category Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers for proper VoIP packet routing
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customization
Firewall status page View all Firewall statistics, rules, and rule counters
Ports management Enable/disable ports, auto-configuration toggle, change transmission speed
Network topology Visual representation of network and connected devices
Hotspot Captive portal, RADIUS authentication (internal/external), SMS authorization, SSO, landing pages, walled garden, user management, customizable themes
DHCP Static/dynamic IP allocation, DHCP relay, configuration, static leases with MAC wildcards
QoS / SQM Traffic prioritization by source, service, protocol, or port; WMM; 802.11e
DDNS >25 supported service providers; manual configuration for others
DNS over HTTPS Enables secure DNS resolution via HTTPS
Network backup Automatic failover options: Wi-Fi WAN, Mobile, VRRP, Wired
Load balancing Balance Internet traffic across multiple WAN connections
SSHFS Mount remote file systems via SSH protocol
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history
Port Mirroring Mirror network traffic on Ethernet ports for monitoring and analysis

Ā

Security

Category Details
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules (via WebUI), unlimited firewall configuration (via CLI), DMZ, NAT, NAT-T, NAT64
Attack prevention DDOS prevention (SYN flood, SSH, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter Blacklist for blocking unwanted websites, Whitelist for specifying allowed sites
Access control Flexible access control for SSH, Web interface, CLI, and Telnet
SSL certificate generation Let's Encrypt and SCEP certificate generation methods

Ā

VPN

Category Details
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB, AES-128-OFB, AES-128-GCM, AES-192-CFB, AES-192-OFB, AES-256-CBC, AES-256-GCM
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without program code changes
DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3, and Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc VPN offering encryption, authentication, and compression in its tunnels, with client and server support

Ā

BACNET

Category Details
Supported Connection Types RS485, TCP
Supported Modes Router

Ā

OPC UA

Category Details
Supported Connection Types TCP
Supported Modes Client, Server

Ā

DNP3

Category Details
Supported Connection Types RS232, RS485, TCP, USB
Supported Modes Station, Outstation

Ā

MODBUS

Category Details
Supported Connection Types RTU (RS232, RS485), TCP, USB
Supported Modes Server, Client
Custom Registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported Data Formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Ā

DATA TO SERVER

Category Details
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
Data to Server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

Ā

MQTT Gateway

Category Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker

Ā

DLMS

Category Details
DLMS Support DLMS - standard protocol for utility meter data exchange
Supported Modes Client
Supported Connection Types RS232, RS485, TCP
COSEM Allows scanning meter COSEM objects for automatic detection and configuration

Ā

API

Category Details
Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: API Documentation

Ā

Monitoring & Management

Category Details
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)

Ā

IoT Platforms

Category Details
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows executing RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service for zero-touch device provisioning to IoT Hubs
AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

Ā

System Characteristics

Category Details
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash

Ā

Firmware / Configuration

Category Details
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Ā

FIRMWARE CUSTOMISATION

Category Details
Operating System RutOS (OpenWrt based Linux OS)
Supported Languages Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development Tools SDK package with build environment provided
GPL Customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clientsā€™ needs
Package Manager The Package Manager is a service used to install additional software on the device

Ā

Location Tracking

Category Details
GNSS GPS (GLONASS, BeiDou, Galileo, and QZSS - under development)
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server Software Supported server software: TAVL, RMS
Geofencing Configurable multiple geofence zones

Ā

Serial

Category Details
RS232 DB9 connector, RS232 (with RTS, CTS flow control), 300 to 115200 baud rate
RS485 RS485 Full Duplex (4 wires) and Half-Duplex (2 wires), 300-230400 baud rate
Serial Functions Console, Serial over IP, Modem

Ā

USB

Category Details
Data Rate USB 2.0
Applications Samba share, USB-to-serial
External Devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage Formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Ā

Input / Output

Category Details
Input 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
Output 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
Events Email, RMS, SMS
I/O Juggler Allows to set certain I/O conditions to initiate event

Ā

SD CARD

Category Details
Physical Size Micro SD (internal)
Applications Samba share, Storage Memory Expansion, DLNA
Capacity Up to 64 GB
Storage Formats FAT32, NTFS, ext2, ext3, ext4

Ā

Power

Category Details
Connector 4-pin industrial DC power socket
Input Voltage Range 9 ā€“ 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (Passive) Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power Consumption < 2 W idle, < 7 W Max

Ā

Physical Interfaces

Category Details
Ethernet 4 x RJ45 ports, 10/100 Mbps
I/O's 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector
Status LEDs 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)
Power 1 x 4-pin power connector
Input/Output 1 x 10-pin industrial socket for inputs/outputs
Antennas 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
RS232 1 x DB9 socket
RS485 1 x 6-pin industrial socket
Reset Reboot/User default reset/Factory reset button

Ā

Physical Specification

Category Details
Casing Material Aluminium housing, plastic panels
Dimensions (W x H x D) 109.5 x 50 x 100 mm
Weight 295 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)

Ā

Operating Environment

Category Details
Operating Temperature -40 Ā°C to 75 Ā°C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Ā

Regulatory & Type Approvals

Category Details
Regulatory CE, UKCA, RCM, CB, E-mark

Ā

EMC Emissions & Immunity

Category Details
Standards EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-19 V2.2.0, EN 301 489-52 V1.2.1
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2020
EFT EN 61000-4-4:2012
CS EN 61000-4-6:2014
DIP EN IEC 61000-4-11:2020
CE Standards CE: EN 62311
CB Standards CB: IEC 62368-1:2018

Ā

RF

Category Details
Standards EN 301 908-1, EN 301 908-2, EN 301 908-13, EN 300 328

Ā

Downloads

Manual & Documentation


Links

RUT906 QUICK START GUIDE (EN)
CERTIFICATIONS & APPROVALS
FIRMWARE DOWNLOADS
PRODUCT CHANGE NOTIFICATIONS
SDK DOWNLOADS
GPL DOWNLOADS
RUT906 3D MODELS
FAQ
What interfaces and connectivity options does the RUT906 provide?
It offers 1 WAN port and 3 LAN ports for Ethernet, 2 SIM slots for dual SIM operation, RS232 DB9, RS485 6 pin block, 2 I O connector blocks, a USB 2.0 port, and 802.11 b g n Wi Fi 4 in AP or STA mode.
Does the router support dual SIM auto failover?
Yes in dual SIM setups the inactive SIM remains idle until switched and the device offers auto failover and SIM idle protection.
What power and installation considerations should I know?
Power input is 9 to 30 VDC with reverse polarity protection and surge protection. It supports passive PoE over spare pairs and can be powered via the LAN1 port.
What management and firmware update options are available?
Firmware updates can be performed via the WebUI and RMS or server based FOTA. Configuration backup and restore and keep settings features are supported.
What wifi and security features are supported?
Wi Fi is 802.11b g n with AP or STA mode and supports up to 100 simultaneous connections. Security options include WPA2 and WPA3 family including enterprise and PSK modes and PMF features.
Reviews
Forum
A
Admin
Welcome to the discussion thread for RUT906 - 4G LTE RS232/RS485 Router
Feel free to ask questions, share tips or report issues.
Similar Products

Discover More In:

Industrial IoT ā†’

Category: View similar items (RUT906)

Bulk Order

Fill out the form below and our team will get back to you with bulk pricing.

Custom Requirements?

Meet with our team

Related products

Related products

0106-14

Waldom Electonics

0106-14

ā‚¹ 2,623.53
