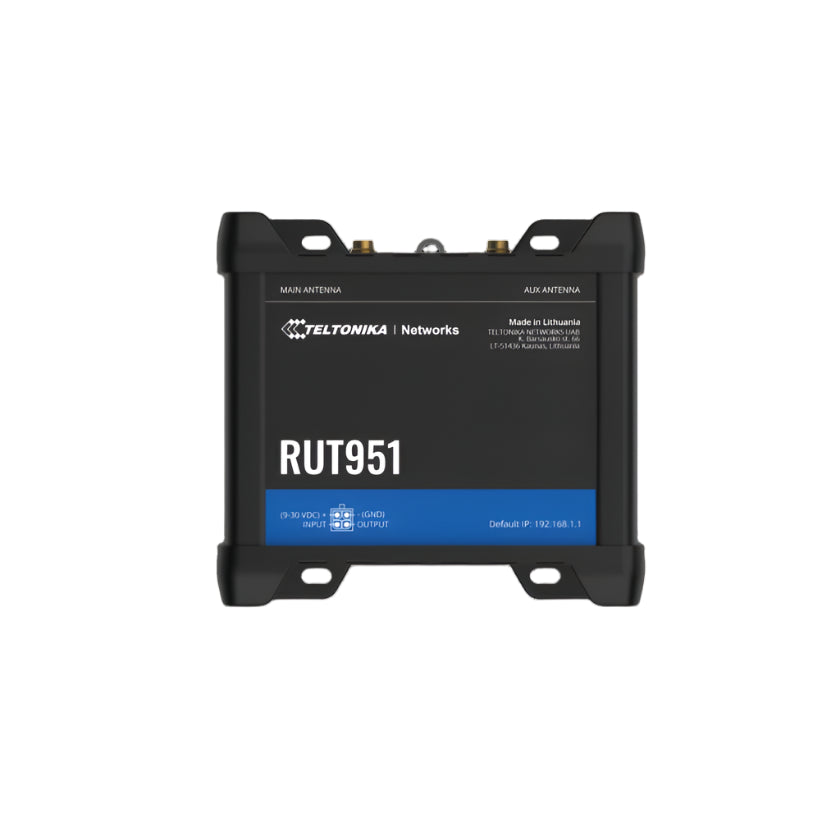

RUT951 - Industrial Cellular Router

Name: RUT951 - Industrial Cellular Router
Brand: Teltonika Networks
SKU: ELC8718
Price: 21599.99 INR
Availability: InStock

SKU: ELC8718

₹ 21,599.99

₹ 21,599.99 ~~₹ 43,199.99~~

Sale Sold out

/

Tax included. Shipping calculated at checkout.

Looking for Bulk?

This is a pre order item. We will ship it when it comes in stock.

Quantity must be 1 or more

Description

RUT951 features dual-SIM cellular connectivity combined with Wi-Fi and four Ethernet interfaces to meet the needs of the most varied IoT scenarios. Powered by RutOS, this router offers advanced customization options, automation features, and top-level security for your solution.

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Category	Details
Mobile Module	4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
3GPP Release	Release 10/11 depending on the hardware version
SIM Switch	2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status	IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD	Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List	Operator black/white list (by country or separate operators)
Multiple PDN	Possibility to use different PDNs for multiple network access and services
Band Management	Band lock, Used band status display
SIM PIN Code Management	SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN	Auto APN
Bridge	Direct connection (bridge) between mobile ISP and device on LAN
Passthrough	Router assigns its mobile WAN IP address to another device on LAN

Wireless

Category	Details
Wireless Mode	802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi Security	WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID	SSID stealth mode and access control based on MAC address
Wi-Fi Users	Up to 100 simultaneous connections
Wireless Connectivity Features	Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter	Allowlist, blocklist
Wireless QR Code Generator	Once scanned, a user will automatically enter your network without needing to input login information
TravelMate	Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

Category	Details
WAN	1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN	3 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network

Category	Details
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support	H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forward, traffic rules, custom rules, TTL target customisation
Firewall Status Page	View all your Firewall statistics, rules, and rule counters
Ports Management	View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and more
Network Topology	Visual representation of your network, showing which devices are connected to which other devices
Hotspot	Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes, optionality to upload/download customised hotspot themes
DHCP	Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / SQM	Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS	Supported by over 25 service providers, others can be configured manually
DNS Over HTTPS	DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network Backup	Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load Balancing	Balance Internet traffic over multiple WAN connections
SSHFS	Possibility to mount remote file system via SSH protocol
Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history
Port Mirroring	Mirroring network traffic on Ethernet ports for monitoring and analysis

Security

Category	Details
Authentication	Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall	Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention	DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN	Port and tag-based VLAN separation
Mobile Quota Control	Mobile data limit, customizable period, start time, warning limit, phone number
WEB Filter	Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access Control	Flexible access control of SSH, Web interface, CLI, and Telnet
SSL Certificate Generation	Let's Encrypt and SCEP certificate generation methods

VPN Features

Protocol	Details
OpenVPN	Supports multiple clients and server instances running simultaneously; offers 27 encryption methods.
OpenVPN Encryption	Encryption methods include DES-CBC 64, RC2-CBC 128, AES-128-CBC, AES-256-GCM 256, and more, supporting bit lengths of 40 to 256 for enhanced security.
IPsec	Includes XFRM, IKEv1, and IKEv2 with 14 encryption methods (e.g., 3DES, DES, AES128, AES256, AES128GCM16).
GRE	GRE tunnels supported, including GRE over IPsec.
PPTP / L2TP	Both Client and Server modes supported, along with L2TPv3 and L2TP over IPsec.
Stunnel	Adds TLS encryption functionality to existing clients and servers without modifying the program's code.
DMVPN	Supports Dynamic Multipoint VPN with Phase 2, Phase 3, and Dual Hub configurations for scalable IPsec VPNs.
SSTP	Secure Socket Tunneling Protocol (SSTP) client instance supported.
ZeroTier	ZeroTier VPN client support for secure, simple, and scalable VPN setups.
WireGuard	Supports WireGuard VPN as both client and server, known for its high-speed and modern cryptographic protocols.
Tinc	Tinc VPN provides encryption, authentication, and compression in tunnels, with both client and server functionality.

OPC UA Features

Feature	Details
Supported Modes	Client, Server
Supported Connection	TCP

MODBUS Features

Feature	Details
Supported Modes	Server, Client
Supported Connection	TCP
Custom Registers	MODBUS TCP custom register block requests to read/write files within the router, extending MODBUS TCP Client functionality.
Supported Data Formats	8-bit: INT, UINT 16-bit: INT, UINT (MSB or LSB first) 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data to Server Features

Feature	Details
Supported Protocols	HTTP(S), MQTT, Azure MQTT, Kinesis
Functionality	Extract parameters from various sources and protocols to send consolidated data to a single server.
Customization	Support for custom LUA scripting, enabling scripts to leverage the router's Data to Server feature for automation and flexibility.

MQTT Gateway Features

Feature	Details
Modbus MQTT Gateway	Enables communication with a MODBUS Server through an MQTT broker.
Functionality	- Send commands to the MODBUS Server. - Receive data from the MODBUS Server via MQTT.

DNP3 Protocol Features

Feature	Details
Supported Modes	Station, Outstation
Supported Connection	TCP

DLMS Protocol Features

Feature	Details
DLMS Support	DLMS - standard protocol for utility meter data exchange
Supported Modes	Client
Supported Connection Types	TCP
COSEM	Allows scanning meter COSEM objects for automatic detection and configuration

API Features

Feature	Details
Teltonika Networks Web API (beta) support	Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to documentation

Monitoring & Management

Feature	Details
WEB UI	HTTP/HTTPS, provides status, configuration, firmware update, CLI, troubleshoot, event log servers, notifications, system and kernel logs, internet status.
FOTA	Firmware update from server, automatic notifications for updates.
SSH	Secure SSH (v1, v2) access for remote management.
SMS	SMS status and configuration; send/read SMS via HTTP POST/GET.
Call	Allows mobile data on/off, reboot, status checks, output control, answer/hang-up calls, Wi-Fi control.
TR-069	Compatibility with ACS providers like OpenACS, EasyCwmp, LibreACS, GenieACS, FreeACS, and others.
MQTT	MQTT Broker and publisher for remote monitoring and data exchange.
SNMP	Supports SNMP (v1, v2, v3), SNMP Trap with brute force protection.
JSON-RPC	Management API over HTTP/HTTPS for advanced device management.
RMS	Teltonika Remote Management System for centralized management and monitoring.

IoT Platforms

Platform	Details
ThingWorx	Monitors WAN Type, WAN IP, Mobile Operator, Signal Strength, Network Type.
Cumulocity - Cloud of Things	Allows monitoring of device details (Model, Revision, Serial Number), WAN info, signal strength, and more. Offers reboot and firmware actions.
Azure IoT Hub	Configurable with Data to Server to send parameters to the cloud. Offers Direct method support and Plug and Play integration for zero-touch provisioning.
AWS IoT Core	Interacts with AWS cloud platform, supports calling the device's API using AWS Jobs functionality.

System Characteristics

Component	Specification
CPU	Mediatek, 580 MHz, MIPS 24KEc
RAM	128 MB, DDR2
FLASH Storage	16 MB, SPI Flash

Firmware / Configuration

Feature	Description
WEB UI	Update firmware from file, check firmware on server, configuration profiles, configuration backup
FOTA	Update firmware
RMS	Update firmware/configuration for multiple devices at once
Keep Settings	Update firmware without losing current configuration
Factory Settings Reset	Restores all system settings to default manufacturer's configuration (including IP, PIN, and user data)

Firmware Customisation

Component	Specification
Operating System	RutOS (OpenWrt based Linux OS)
Supported Languages	Busybox shell, Lua, C, C++
Development Tools	SDK package with build environment provided
GPL Customisation	Customize branded firmware and web page (colors, logos, etc.) to fit your or client needs
Package Manager	Service used to install additional software on the device

Input / Output

Component	Specification
Input	1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output	1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events	Email, RMS, SMS
I/O Juggler	Allows setting certain I/O conditions to initiate events

Power

Component	Specification
Connector	4-pin industrial DC power socket
Input Voltage Range	9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (Passive)	Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at, and 802.3bt standards, Mode B, 9 - 30 VDC
Power Consumption	< 2 W idle, < 7 W Max

Physical Interfaces

Component	Specification
Ethernet	4 x RJ45 ports, 10/100 Mbps
I/O’s	1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs	1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
SIM	2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required)
Antennas	2 x SMA for LTE, 2 x RP-SMA for Wi-Fi antenna connectors
Reset	Reboot/User default reset/Factory reset button

Physical Specification

Component	Specification
Casing Material	Aluminium housing, plastic panels
Dimensions (W x H x D)	110 x 50 x 100 mm
Weight	287 g
Mounting Options	DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Component	Specification
Operating Temperature	-40 °C to 75 °C
Operating Humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30

Regulatory & Type Approvals

Category	Specification
Regulatory	CE, UKCA, ANRT, Kenya, CITC, ICASA, FCC, IC, PTCRB, RCM, Giteki, ECE R118, E-mark, CB, UL/CSA Safety, RoHS, REACH, C1D2
Operator	AT&T, Verizon, T-Mobile

EMC Emissions & Immunity Standards

Category	Standard
Emissions Standards	EN 55032:2015 + A11:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-52 V1.2.1
Electrostatic Discharge (ESD)	EN 61000-4-2:2009
Radiated Immunity	EN 61000-4-3:2020
Electrical Fast Transients (EFT)	EN 61000-4-4:2012
Surge Immunity (AC Mains Power)	EN 61000-4-5:2014 + A1:2017
Conducted Susceptibility (CS)	EN 61000-4-6:2014
Dips, Short Interruptions (DIP)	EN 61000-4-11:2020

RF Standards

Component	Specification
Standards	EN 300 328 V2.2.2
	EN 301 511 V12.5.1
	EN 301 908-1 V15.2.1
	EN 301 908-2 V13.1.1
	EN 301 908-13 V13.2.1

Safety Standards

Category	Specification
CE	EN IEC 62368-1:2020 + A11:2020
	EN IEC 62311:2020
	EN 50665:2017
RCM	AS/NZS 62368.1:2022
CB	IEC 62368-1:2018
UL/CSA Safety	UL 62368-1 (3rd Ed., Rev. December 13, 2019)
	C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

Safety (Ordinary Locations)

Category	Specification
CE	EN IEC 62368-1:2020 + A11:2020
	EN IEC 62311:2020
	EN 50665:2017
RCM	AS/NZS 62368.1:2022
CB	IEC 62368-1:2018
UL/CSA Safety	UL 62368-1 (3rd Ed., Rev. December 13, 2019)
	C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

Safety (Hazardous Locations)

Category	Specification
UL/CSA Safety	UL 121201, 9th Ed., Rev. April 1, 2021
	CAN/CSA C22.2 No. 213, 3rd Ed. April 2021

Hazardous Environments

Category	Specification
Classification	Class I, Division 2, Groups A, B, C, D
	Class I, Zone 2, Group IIC
Temperature Range	-40°C ≤ Ta ≤ 75°C
Ingress Protection	T4, IP30
