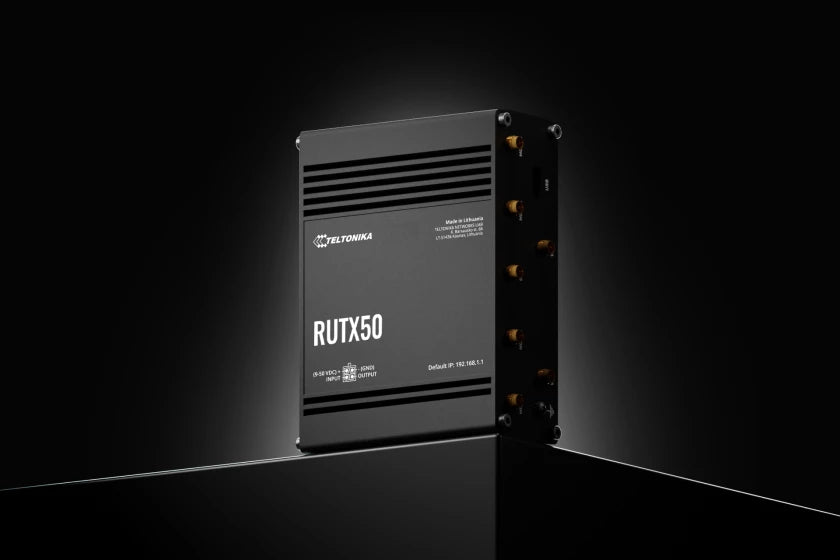

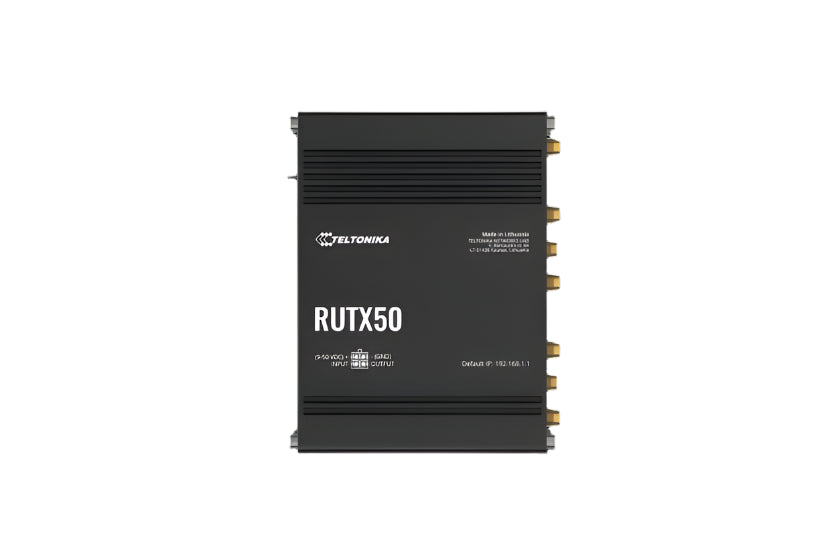

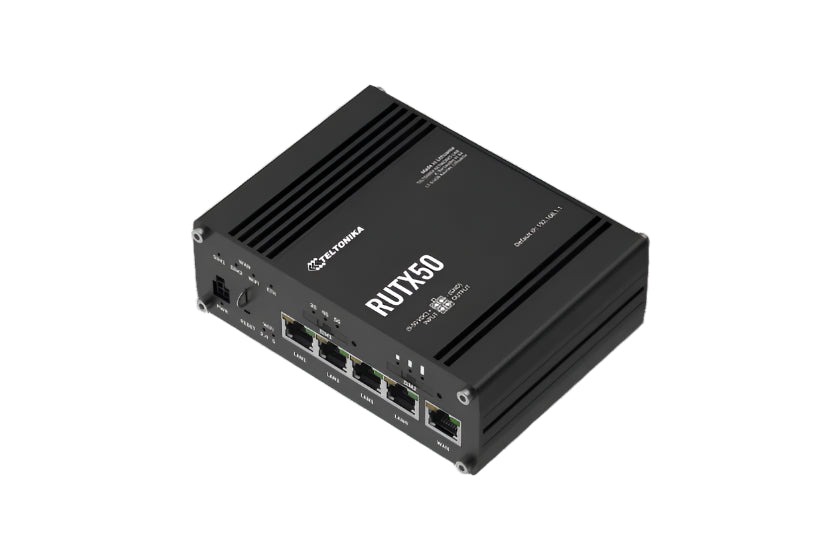

RUTX50 is a dual-SIM multi-network router offering 5G mobile communication for high-speed and data-heavy applications. Together with 5x Gigabit Ethernet ports and dual-band Wi-Fi, it provides data connection redundancy with auto-failover. Backward compatibility and multiple interfaces allow for long-term expandability and upgrading options.
*Standard package contents may differ based on standard order codes.
| Feature | Details |
|---|---|
| Mobile Module | 5G Sub-6GHz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G LTE Cat 20 up to 2.0 Gbps DL/200M Mbps UL; 3G up to 42 DL/5.76 UL Mbps |
| 3GPP Release | Release 15/16 depending on hardware version |
| SIM Switch | Auto-switch in cases of weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC |
| SMS | Send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Black/White List | Operator black/white list by country or separate operators |
| Multiple PDN | Use of different PDNs for multiple network access and services |
| Band Management | Band lock, Used band status display |
| SIM Idle Protection | Keeps idle SIMs from using data until switched to active SIM |
| SIM PIN Code Management | Manage SIM PIN code settings (set, change, disable) |
| APN | Auto APN configuration |
| Bridge | Direct connection (bridge) between mobile ISP and LAN device |
| Passthrough | Router assigns its mobile WAN IP to another device on LAN |
| Framed Routing | Support for IP network behind 5G UE |
| Feature | Details |
|---|---|
| Wireless Mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, AP, STA |
| Wi-Fi Security | WPA2-Enterprise, WPA2-PSK, WPA-EAP, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, Auto-cipher modes, EAP-TLS with PKCS#12 certificates, 802.11w PMF |
| SSID/ESSID | ESSID stealth mode |
| Wi-Fi Users | Up to 150 simultaneous connections |
| Wireless Connectivity | Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) |
| Wireless MAC Filter | Allowlist, blocklist |
| Wireless QR Code Generator | Auto-login to network by scanning QR code |
| TravelMate | Forward Wi-Fi hotspot landing page to subsequent connected devices |
| Feature | Details |
|---|---|
| WAN | 1 x WAN port 10/100/1000 Mbps, auto MDI/MDIX crossover |
| LAN | 4 x LAN ports, 10/100/1000 Mbps, auto MDI/MDIX crossover |
| Feature | Details |
|---|---|
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN |
| VoIP Passthrough Support | H.323 and SIP-alg protocol NAT helpers |
| Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules, TTL target customization |
| Firewall Status Page | View firewall statistics, rules, and rule counters |
| Ports Management | Manage device ports, enable/disable ports, change transmission speed |
| Network Topology | Visual representation of connected devices |
| Hotspot | Captive portal, Radius server, SMS auth, SSO auth, user management, 9 default themes with custom uploads |
| DHCP | Static/dynamic IP allocation, DHCP relay, static leases, status |
| QoS / SQM | Traffic priority, WMM, 802.11e |
| DDNS | >25 service providers supported, manual configuration for others |
| DNS over HTTPS | Secure DNS resolution via HTTPS |
| Network Backup | Wi-Fi WAN, Mobile, VRRP, Wired failover |
| Load Balancing | Balance Internet traffic over multiple WAN connections |
| SSHFS | Mount remote file system via SSH |
| VRF Support | Initial support for virtual routing and forwarding (VRF) |
| Feature | Details |
|---|---|
| Real-Time Monitoring | Monitor traffic usage, wireless signal, history |
| Feature | Details |
|---|---|
| 802.1x | Port-based network access control client |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator |
| Firewall | Preconfigured firewall rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
| Attack Prevention | DDOS prevention (SYN flood, SSH, HTTP/HTTPS attack), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port and tag-based VLAN separation |
| Mobile Quota Control | Mobile data limit with customizable period, start time, warning limit, phone number |
| WEB Filter | Blacklist for blocking unwanted websites, Whitelist for allowed sites only |
| Access Control | Flexible access control for SSH, Web interface, CLI, and Telnet |
| SSL Certificate Generation | Let's Encrypt and SCEP certificate generation methods |
| Feature | Details |
|---|---|
| OpenVPN | Multiple clients and servers can run simultaneously, 27 encryption methods |
| OpenVPN Encryption | DES-CBC 64, AES-256-GCM 256, RC2-128, AES-128-CBC, AES-192-GCM 192, etc. |
| IPsec | XFRM, IKEv1, IKEv2 with 14 encryption methods (AES128, AES256, 3DES, etc.) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP, L2TP | Client/Server instances, L2TPv3, L2TP over IPsec support |
| Stunnel | TLS encryption functionality to existing clients and servers without changes |
| DMVPN | Scalable IPsec VPNs with Phase 2, Phase 3, Dual Hub support |
| SSTP | SSTP client instance support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client and server support |
| Tinc | Encryption, authentication, and compression in tunnels, client and server support |
| Tailscale | Speed, stability, and simplicity with WireGuard encryption for point-to-point connections |
| Feature | Details |
|---|---|
| Supported Modes | Client, Server |
| Supported Connection Types | TCP |
| Feature | Details |
|---|---|
| Supported Modes | Server, Client |
| Supported Connection Types | TCP, USB |
| Custom Registers | MODBUS TCP custom register block requests, read/write to a file inside the router to extend MODBUS TCP Client functionality |
| Supported Data Formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
| Feature | Details |
|---|---|
| Protocol | HTTP(S), MQTT, Azure MQTT, Kinesis |
| Data to Server | Extract parameters from multiple sources and protocols and send to a single server; Custom LUA scripting for extended functionality |
| Feature | Details |
|---|---|
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through MQTT broker |
| Feature | Details |
|---|---|
| Supported Modes | Station, Outstation |
| Supported Connection | TCP, USB |
| Feature | Details |
|---|---|
| DLMS Support | Standard protocol for utility meter data exchange |
| Supported Modes | Client |
| Supported Connection Types | TCP, USB |
| Feature | Details |
|---|---|
| COSEM | Allows scanning meter COSEM objects for automatic detection and configuration |
| Feature | Details |
|---|---|
| Teltonika Networks Web API (Beta) support | Expand your device’s possibilities using configurable API endpoints to retrieve or change data. For more details, visit the documentation: Teltonika Networks Web API |
| Feature | Details |
|---|---|
| WEB UI | HTTP/HTTPS support, status, configuration, firmware update, CLI, troubleshooting, multiple event log servers, firmware update availability notifications, system, kernel, and event logs, Internet status |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, configuration, send/read SMS via HTTP POST/GET |
| Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, Brute force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| RMS | Teltonika Remote Management System (RMS) |
| Platform | Features |
|---|---|
| ThingWorx | Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity - Cloud of Things | Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Supports reboot and firmware upgrade actions |
| Azure IoT Hub | Configured with Data to Server to send available parameters to the cloud. Supports Direct method for executing RutOS API calls on the IoT Hub. Also supports Plug and Play integration with Device Provisioning Service for zero-touch device provisioning |
| AWS IoT Core | Utility to interact with the AWS cloud platform. Supports Jobs functionality: Call the device's API using AWS Jobs |
| Feature | Details |
|---|---|
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB (100 MB available for userspace) |
| FLASH Storage | 256 MB (80 MB available for userspace) |
| Feature | Details |
|---|---|
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep Settings | Update FW without losing current configuration |
| Factory Settings Reset | Full factory reset restores all system settings (IP, PIN, user data) to default |
| Feature | Details |
|---|---|
| Operating System | RutOS (OpenWrt based Linux OS) |
| Supported Languages | Busybox shell, Lua, C, C++, Python, Java in Package Manager |
| Development Tools | SDK package with build environment provided |
| GPL Customization | Customize firmware and web page by changing colours, logos, and other elements |
| Package Manager | Service used to install additional software on the device |
| Feature | Details |
|---|---|
| GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
| NMEA | NMEA 0183 |
| NTRIP | NTRIP protocol (Networked Transport of RTCM via Internet Protocol) |
| Server Software | Supported server software: TAVL, RMS |
| Geofencing | Configurable multiple geofence zones |
| Feature | Details |
|---|---|
| Data Rate | USB 2.0 |
| Applications | Samba share, USB-to-serial |
| External Devices | Connect external HDD, flash drive, modem, printer, USB-serial adapter |
| Storage Formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
| Feature | Details |
|---|---|
| Input | 1 x Digital Input (0-6 V detected as logic low, 8-30 V detected as logic high) |
| Output | 1 x Digital Output (Open collector output, max output 30 V, 300 mA) |
| Events | Email, RMS, SMS |
| I/O Juggler | Allows setting certain I/O conditions to initiate events |
| Feature | Details |
|---|---|
| Connector | 4-pin industrial DC power socket |
| Input Voltage Range | 9–50 VDC, reverse polarity protection, surge protection >51 VDC 10us max |
| PoE (Passive) | Power via LAN1 port, not compatible with IEEE 802.3af/at/bt standards, Mode B, 9–50 VDC |
| Power Consumption | Idle: <4W, Max: 18W |
| Feature | Details |
|---|---|

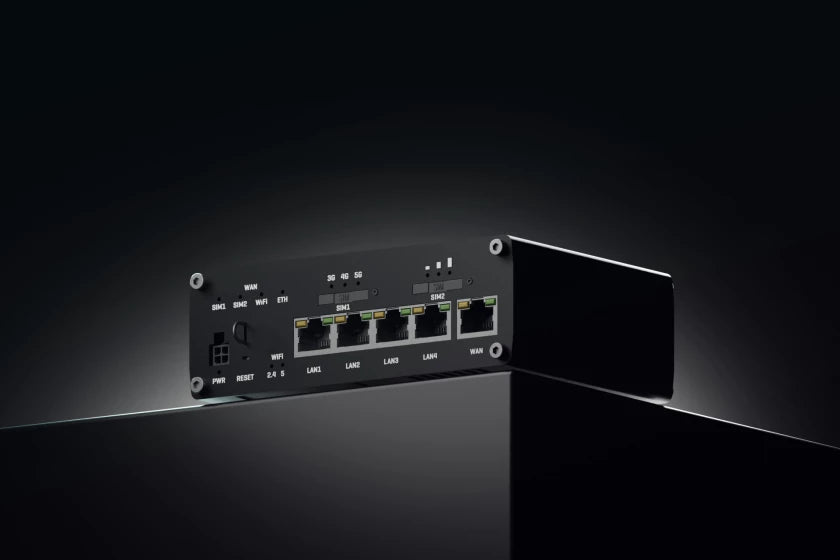

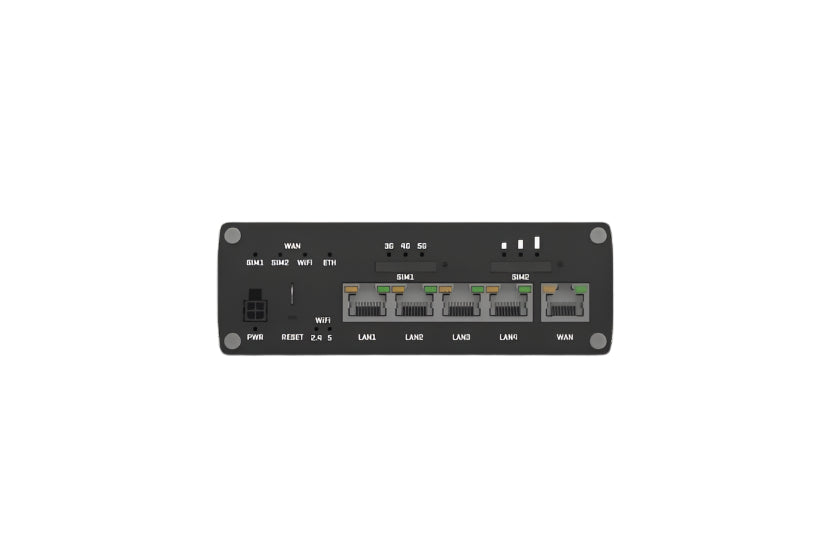

| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| I/O’s | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status, 1 x Power, 2 x 2.4G and 5G Wi-Fi |
| SIM | 2 x SIM slots (Mini SIM – 2FF), 1.8V/3V |
| Power | 1 x 4-pin power connector |

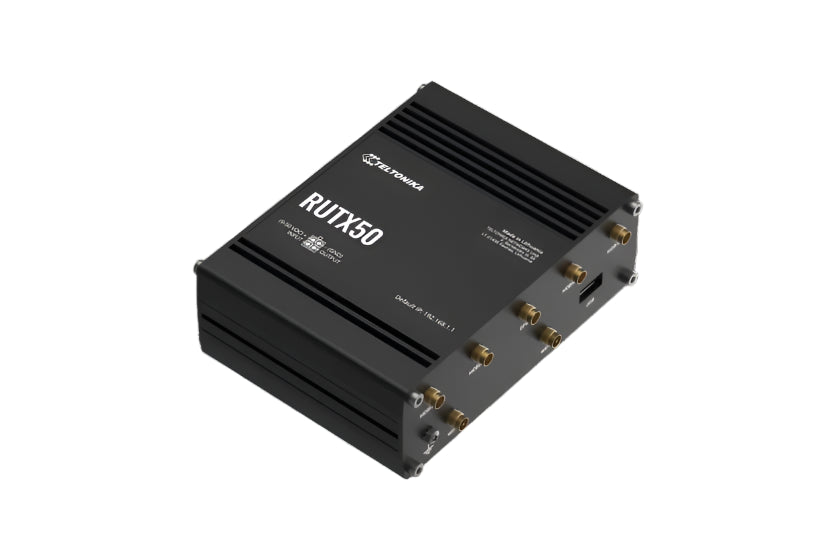

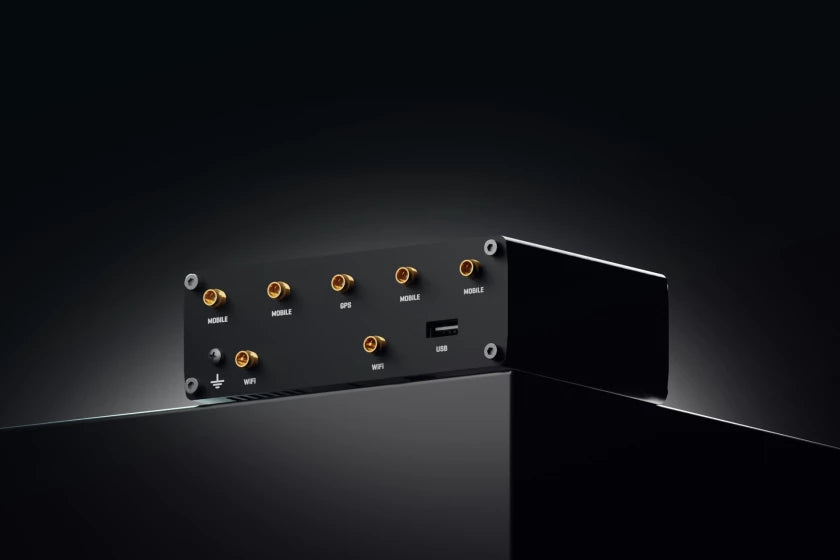

| Antennas | 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
| USB | 1 x USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
| Other | 1 x Grounding screw |
| Feature | Details |
|---|---|
| Casing Material | Aluminium housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 533 g |
| Mounting Options | DIN rail, wall mount, flat surface (requires additional kit) |
| Feature | Details |
|---|---|
| Operating Temperature | -40°C to 75°C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Feature | Details |
|---|---|
| Regulatory | CE, UKCA, RCM, IMDA, CB, E-mark, SIRIM, ETSI EN 303 645, SDPPI (POSTEL) |
| Operator | NOS (Portugal) |
| Standard | Details |
|---|---|
| Emissions | EN 55032:2015 + A11:2021 + A1:2020 |
| EN 55035:2017 + A11:2020 | |
| EN IEC 61000-3-2:2019 + A1:2021 | |
| EN 61000-3-3:2013 + A1:2019 + A2:2021 | |
| EN 301 489-1 V2.2.3 | |
| EN 301 489-3 V2.1.1 | |
| EN 301 489-17 V3.2.4 | |
| EN 301 489-19 V2.2.1 | |
| EN 301 489-52 V1.2.1 | |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2020 |
| EFT | EN 61000-4-4:2012 |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 + A1:2017 |
| CS | EN 61000-4-6:2014 |
| DIP | EN IEC 61000-4-11:2020 |
| Standard | Details |
|---|---|
| EN 300 328 V2.2.2 | |
| EN 300 440 V2.2.1 | |
| EN 301 893 V2.1.1 | |
| EN 301 908-1 V13.1.1 | |
| EN 301 908-2 V13.1.1 | |
| EN 301 908-13 V13.1.1 | |
| EN 301 908-25 V15.1.1_15.0.6 | |
| EN 303 413 V1.2.1 |
| Standard | Details |
|---|---|
| CE | EN IEC 62368-1:2020 + A11:2020, EN 62311:2020 |
| RCM | AS/NZS 62368.1:2022 |
| CB | IEC 62368-1:2018 |
No reviews yet. Be the first to share your experience!
Discover More In:
Category: View similar items (RUTX50)
Fill out the form below and our team will get back to you with bulk pricing.
RUTX50 is a dual-SIM multi-network router offering 5G mobile communication for high-speed and data-heavy applications. Together with 5x Gigabit Ethernet ports and dual-band Wi-Fi, it provides data connection redundancy with auto-failover. Backward compatibility and multiple interfaces allow for long-term expandability and upgrading options.
*Standard package contents may differ based on standard order codes.
| Feature | Details |
|---|---|
| Mobile Module | 5G Sub-6GHz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G LTE Cat 20 up to 2.0 Gbps DL/200M Mbps UL; 3G up to 42 DL/5.76 UL Mbps |
| 3GPP Release | Release 15/16 depending on hardware version |
| SIM Switch | Auto-switch in cases of weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC |
| SMS | Send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Black/White List | Operator black/white list by country or separate operators |
| Multiple PDN | Use of different PDNs for multiple network access and services |
| Band Management | Band lock, Used band status display |
| SIM Idle Protection | Keeps idle SIMs from using data until switched to active SIM |
| SIM PIN Code Management | Manage SIM PIN code settings (set, change, disable) |
| APN | Auto APN configuration |
| Bridge | Direct connection (bridge) between mobile ISP and LAN device |
| Passthrough | Router assigns its mobile WAN IP to another device on LAN |
| Framed Routing | Support for IP network behind 5G UE |
| Feature | Details |
|---|---|
| Wireless Mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, AP, STA |
| Wi-Fi Security | WPA2-Enterprise, WPA2-PSK, WPA-EAP, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, Auto-cipher modes, EAP-TLS with PKCS#12 certificates, 802.11w PMF |
| SSID/ESSID | ESSID stealth mode |
| Wi-Fi Users | Up to 150 simultaneous connections |
| Wireless Connectivity | Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) |
| Wireless MAC Filter | Allowlist, blocklist |
| Wireless QR Code Generator | Auto-login to network by scanning QR code |
| TravelMate | Forward Wi-Fi hotspot landing page to subsequent connected devices |
| Feature | Details |
|---|---|
| WAN | 1 x WAN port 10/100/1000 Mbps, auto MDI/MDIX crossover |
| LAN | 4 x LAN ports, 10/100/1000 Mbps, auto MDI/MDIX crossover |
| Feature | Details |
|---|---|
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN |
| VoIP Passthrough Support | H.323 and SIP-alg protocol NAT helpers |
| Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules, TTL target customization |
| Firewall Status Page | View firewall statistics, rules, and rule counters |
| Ports Management | Manage device ports, enable/disable ports, change transmission speed |
| Network Topology | Visual representation of connected devices |
| Hotspot | Captive portal, Radius server, SMS auth, SSO auth, user management, 9 default themes with custom uploads |
| DHCP | Static/dynamic IP allocation, DHCP relay, static leases, status |
| QoS / SQM | Traffic priority, WMM, 802.11e |
| DDNS | >25 service providers supported, manual configuration for others |
| DNS over HTTPS | Secure DNS resolution via HTTPS |
| Network Backup | Wi-Fi WAN, Mobile, VRRP, Wired failover |
| Load Balancing | Balance Internet traffic over multiple WAN connections |
| SSHFS | Mount remote file system via SSH |
| VRF Support | Initial support for virtual routing and forwarding (VRF) |
| Feature | Details |
|---|---|
| Real-Time Monitoring | Monitor traffic usage, wireless signal, history |
| Feature | Details |
|---|---|
| 802.1x | Port-based network access control client |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator |
| Firewall | Preconfigured firewall rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
| Attack Prevention | DDOS prevention (SYN flood, SSH, HTTP/HTTPS attack), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port and tag-based VLAN separation |
| Mobile Quota Control | Mobile data limit with customizable period, start time, warning limit, phone number |
| WEB Filter | Blacklist for blocking unwanted websites, Whitelist for allowed sites only |
| Access Control | Flexible access control for SSH, Web interface, CLI, and Telnet |
| SSL Certificate Generation | Let's Encrypt and SCEP certificate generation methods |
| Feature | Details |
|---|---|
| OpenVPN | Multiple clients and servers can run simultaneously, 27 encryption methods |
| OpenVPN Encryption | DES-CBC 64, AES-256-GCM 256, RC2-128, AES-128-CBC, AES-192-GCM 192, etc. |
| IPsec | XFRM, IKEv1, IKEv2 with 14 encryption methods (AES128, AES256, 3DES, etc.) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP, L2TP | Client/Server instances, L2TPv3, L2TP over IPsec support |
| Stunnel | TLS encryption functionality to existing clients and servers without changes |
| DMVPN | Scalable IPsec VPNs with Phase 2, Phase 3, Dual Hub support |
| SSTP | SSTP client instance support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client and server support |
| Tinc | Encryption, authentication, and compression in tunnels, client and server support |
| Tailscale | Speed, stability, and simplicity with WireGuard encryption for point-to-point connections |
| Feature | Details |
|---|---|
| Supported Modes | Client, Server |
| Supported Connection Types | TCP |
| Feature | Details |
|---|---|
| Supported Modes | Server, Client |
| Supported Connection Types | TCP, USB |
| Custom Registers | MODBUS TCP custom register block requests, read/write to a file inside the router to extend MODBUS TCP Client functionality |
| Supported Data Formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
| Feature | Details |
|---|---|
| Protocol | HTTP(S), MQTT, Azure MQTT, Kinesis |
| Data to Server | Extract parameters from multiple sources and protocols and send to a single server; Custom LUA scripting for extended functionality |
| Feature | Details |
|---|---|
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through MQTT broker |
| Feature | Details |
|---|---|
| Supported Modes | Station, Outstation |
| Supported Connection | TCP, USB |
| Feature | Details |
|---|---|
| DLMS Support | Standard protocol for utility meter data exchange |
| Supported Modes | Client |
| Supported Connection Types | TCP, USB |
| Feature | Details |
|---|---|
| COSEM | Allows scanning meter COSEM objects for automatic detection and configuration |
| Feature | Details |
|---|---|
| Teltonika Networks Web API (Beta) support | Expand your device’s possibilities using configurable API endpoints to retrieve or change data. For more details, visit the documentation: Teltonika Networks Web API |
| Feature | Details |
|---|---|
| WEB UI | HTTP/HTTPS support, status, configuration, firmware update, CLI, troubleshooting, multiple event log servers, firmware update availability notifications, system, kernel, and event logs, Internet status |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, configuration, send/read SMS via HTTP POST/GET |
| Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, Brute force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| RMS | Teltonika Remote Management System (RMS) |
| Platform | Features |
|---|---|
| ThingWorx | Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity - Cloud of Things | Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Supports reboot and firmware upgrade actions |
| Azure IoT Hub | Configured with Data to Server to send available parameters to the cloud. Supports Direct method for executing RutOS API calls on the IoT Hub. Also supports Plug and Play integration with Device Provisioning Service for zero-touch device provisioning |
| AWS IoT Core | Utility to interact with the AWS cloud platform. Supports Jobs functionality: Call the device's API using AWS Jobs |
| Feature | Details |
|---|---|
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB (100 MB available for userspace) |
| FLASH Storage | 256 MB (80 MB available for userspace) |
| Feature | Details |
|---|---|
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep Settings | Update FW without losing current configuration |
| Factory Settings Reset | Full factory reset restores all system settings (IP, PIN, user data) to default |
| Feature | Details |
|---|---|
| Operating System | RutOS (OpenWrt based Linux OS) |
| Supported Languages | Busybox shell, Lua, C, C++, Python, Java in Package Manager |
| Development Tools | SDK package with build environment provided |
| GPL Customization | Customize firmware and web page by changing colours, logos, and other elements |
| Package Manager | Service used to install additional software on the device |
| Feature | Details |
|---|---|
| GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
| NMEA | NMEA 0183 |
| NTRIP | NTRIP protocol (Networked Transport of RTCM via Internet Protocol) |
| Server Software | Supported server software: TAVL, RMS |
| Geofencing | Configurable multiple geofence zones |
| Feature | Details |
|---|---|
| Data Rate | USB 2.0 |
| Applications | Samba share, USB-to-serial |
| External Devices | Connect external HDD, flash drive, modem, printer, USB-serial adapter |
| Storage Formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
| Feature | Details |
|---|---|
| Input | 1 x Digital Input (0-6 V detected as logic low, 8-30 V detected as logic high) |
| Output | 1 x Digital Output (Open collector output, max output 30 V, 300 mA) |
| Events | Email, RMS, SMS |
| I/O Juggler | Allows setting certain I/O conditions to initiate events |
| Feature | Details |
|---|---|
| Connector | 4-pin industrial DC power socket |
| Input Voltage Range | 9–50 VDC, reverse polarity protection, surge protection >51 VDC 10us max |
| PoE (Passive) | Power via LAN1 port, not compatible with IEEE 802.3af/at/bt standards, Mode B, 9–50 VDC |
| Power Consumption | Idle: <4W, Max: 18W |
| Feature | Details |
|---|---|
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| I/O’s | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status, 1 x Power, 2 x 2.4G and 5G Wi-Fi |
| SIM | 2 x SIM slots (Mini SIM – 2FF), 1.8V/3V |
| Power | 1 x 4-pin power connector |
| Antennas | 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
| USB | 1 x USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
| Other | 1 x Grounding screw |
| Feature | Details |
|---|---|
| Casing Material | Aluminium housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 533 g |
| Mounting Options | DIN rail, wall mount, flat surface (requires additional kit) |
| Feature | Details |
|---|---|
| Operating Temperature | -40°C to 75°C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Feature | Details |
|---|---|
| Regulatory | CE, UKCA, RCM, IMDA, CB, E-mark, SIRIM, ETSI EN 303 645, SDPPI (POSTEL) |
| Operator | NOS (Portugal) |
| Standard | Details |
|---|---|
| Emissions | EN 55032:2015 + A11:2021 + A1:2020 |
| EN 55035:2017 + A11:2020 | |
| EN IEC 61000-3-2:2019 + A1:2021 | |
| EN 61000-3-3:2013 + A1:2019 + A2:2021 | |
| EN 301 489-1 V2.2.3 | |
| EN 301 489-3 V2.1.1 | |
| EN 301 489-17 V3.2.4 | |
| EN 301 489-19 V2.2.1 | |
| EN 301 489-52 V1.2.1 | |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2020 |
| EFT | EN 61000-4-4:2012 |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 + A1:2017 |
| CS | EN 61000-4-6:2014 |
| DIP | EN IEC 61000-4-11:2020 |
| Standard | Details |
|---|---|
| EN 300 328 V2.2.2 | |
| EN 300 440 V2.2.1 | |
| EN 301 893 V2.1.1 | |
| EN 301 908-1 V13.1.1 | |
| EN 301 908-2 V13.1.1 | |
| EN 301 908-13 V13.1.1 | |
| EN 301 908-25 V15.1.1_15.0.6 | |
| EN 303 413 V1.2.1 |
| Standard | Details |
|---|---|
| CE | EN IEC 62368-1:2020 + A11:2020, EN 62311:2020 |
| RCM | AS/NZS 62368.1:2022 |
| CB | IEC 62368-1:2018 |
No reviews yet. Be the first to share your experience!
Discover More In:
Category: View similar items (RUTX50)
Fill out the form below and our team will get back to you with bulk pricing.
Custom Requirements?
Related products
