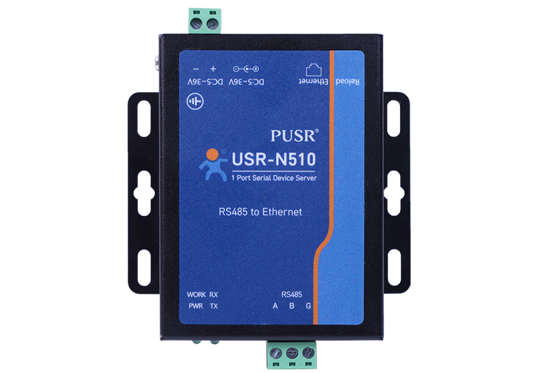

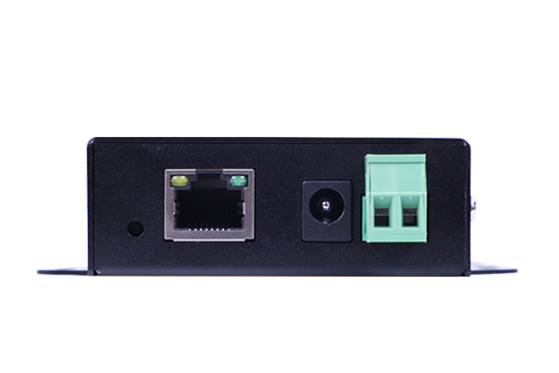

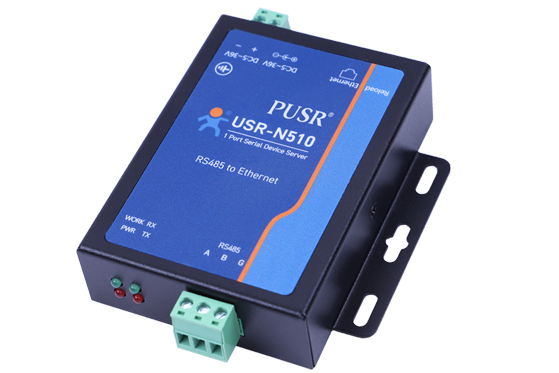

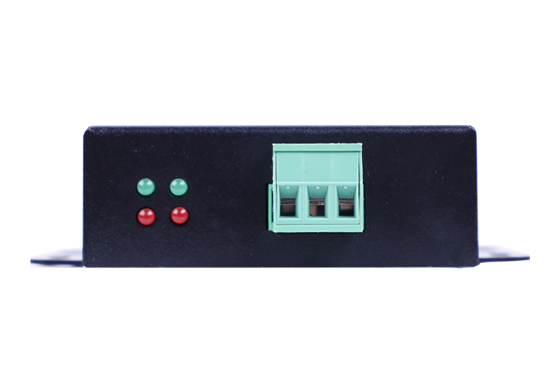

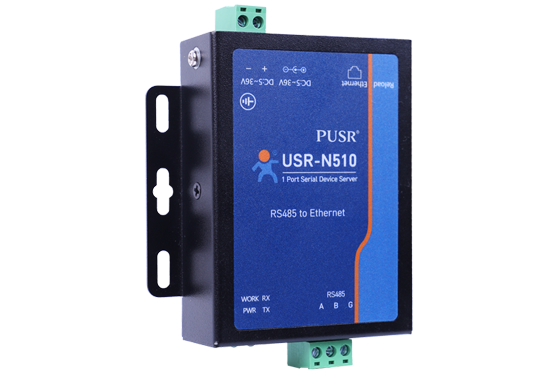

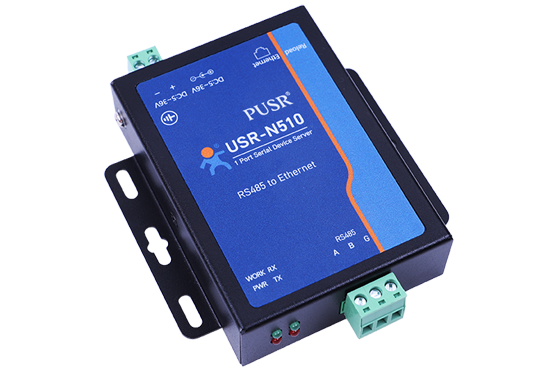

1 port Serial Port to Ethernet Adapter USR-N510-H7-4 can realize bi-directional transparent transmission between RS485 and network. Supports modbus RTU to TCP, Modbus Polling.
Ā
MQTT 3.1 and 3.1.1 both supported,features SSL/TLS security,Ā supports maximum 16 topics publication simultaneously, 16Ā topics subscription simultaneously.
Ā
Supports SSL/TLS encryption in TCP client, HTTP client and MQTT operation modesĀ Supports two-way certificates authentication
Ā
N510 actively execute data collection and internal calculate,then transmitsĀ to cloud platform by customized Json format. Edge computing gatewaysĀ can effectively relieve the pressure on the server.
Ā
Transfer between modbus RTU and modbus TCP protocol, Support modbus multi-host polling, Support up to 128 data points for data collection, support modbus address mapping.
Ā
Ā
Master chip adopts ST crotex-M7 core, the main frequencyĀ is up to 400Mhz, fast processing speed,Ā high stable and reliable performance
Ā
Ā
Wide input voltage DC 5-36V,Ā with reverse polarity protection
Ā
Ā
N510 supports TCP Client, TCP Server, UDP Client, UDP Server, Httpd Client etc. operation modes
Ā
Ā
The N5X0 series enables instant networking of serial devices and can be deployedĀ in a variety of commercial applications and industrial process automationĀ environments that require serial-to-Ethernet connectivity. These include POS,Ā access control, SCADA systems, environment monitoring, sensor monitoring,Ā device management, remote site management, and more.
Ā
| System Information | |
| Processor | ST Cortex-M7 |
| Basic Frequency | 400MHz |
| Flash | 128K+4M byte |
| Ethernet | |
| Port Number | 1 |
| Interface Standard | 8 pin RJ45 |
| Rate | 10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection |
| Protection | 2KV electromagnetism isolation, shell insulation blocking |
| Network Protocol | IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP, Web socket, Httpd client |
| Receive Buffer | Max 16k bytes buffer |
| Serial | |
| Port Number | 1 |
| Interface Standard | RS-485: 2 wire (A+,B-) Half-Duplex |
| Data Bits | 7,8 |
| Stop Bit | 1,2 |
| Check Bit | Even, Odd |
| Baud Rate | 600bps ~ 921600Mbps |
| Flow Control | XON/XOFF |
| Buffer | Send and receive 4k bytes respectively |
| Protection | RS-485: anti-static 2KV,lightning protection |
| RS-485 Pull-up and Pull-Down Resistor | 2.2 KĪ© |
| Software | |
| Virtual Serial USR-VCOMļ¼ | Windows 2000 or higher(32 bit/64 bit) |
| Configuration | Built-in webpage, computer set-up software, serial command |
| Basic Parameter | |
| Size | 88 x 81 x 24 mm |
| Operating Temp. | -40 ~ 85Ā°C (industry) |
| Storage Temp. | -40 ~ 85Ā°C, 5 ~ 95% RH (no condensation) |
| Input Voltage | DC 5 ~ 36V |
| Working Current | 53mA @ 12V |
| Power | <1W |
| More | |
| Certificate | CE,FCC,ROHS |
| Warranty | 2 years |
Ā
| Documents | Download |
| Utilities | Download |
| Certificate | Download |
Ā
1x USR-N510
