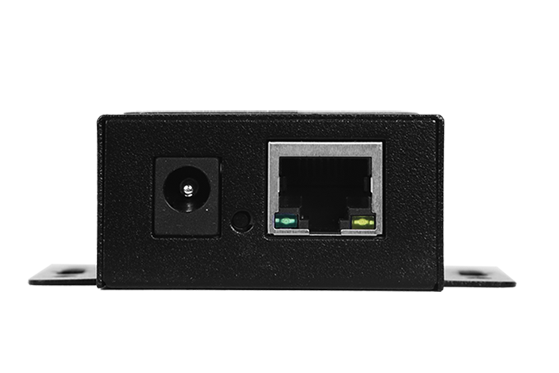

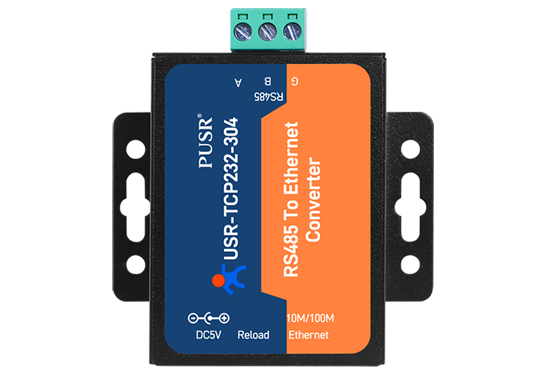

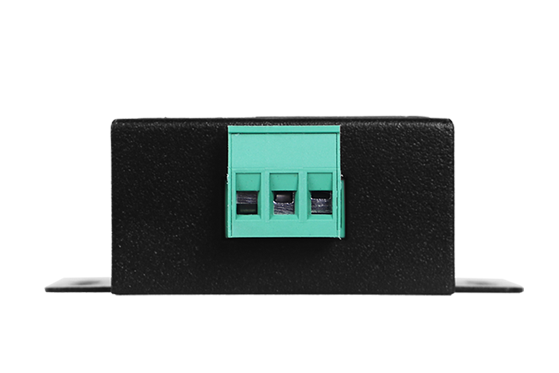

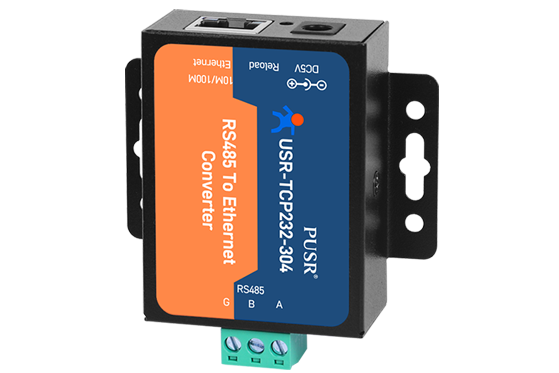

Serial to Ethernet - USR-TCP232-304

SKU: ELC8532

Regular price ₹ 1,949.99
Sale price ₹ 1,949.99 Regular price
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

USR-TCP232-304

1-port RS485 to Ethernet Converters

1-port RS485 to Ethernet converters USR-TCP232-304 can transmit data transparently between TCP/IP and RS485. RS485 to Ethernet converters USR-TCP232-304 are widespread required in industrial automation. Simple configuration and easy to use.





Ordering Guide




Serial to Ethernet,
Bidirectional Transparent Data Transmission



One More Thing, Modbus Gateway

Connect to PLC, SCADA system or user’s
private server to achieve local or remote motoring.

Multi-Host Modbus Polling
Modbus RTU to Modbus TCP





Multiple User Scenarios

Multi-user Access



Multi-device Management



Virtual-COM Software

This feature can infinitely extend the serial cable,
allowing communication to no longer
be limited by distance.



Point-to-Point Communication

Using this method, it is possible to achieve
data communication between two serial devices.



Additional Features

Heartbeat Packet

Server can detect abnormal disconnection from the client
using this feature (304 as an TCP client)



Customized RFC2217

Users can dynamically modify the baud rate, stop bit,
data bits and parity bits of the TCP232-304 by sending
PUSR customized protocol over the network.



Registration Packet

The server can identify different clients by using
registration packets.



High Reliability Design





Applications

Intelligent Transportation

By connecting the traffic lights to serial device server, the control center can collect and process traffic data on-site through Ethernet,
and the collected data can also provide accurate quantitative basis for traffic command and dispatch and city traffic rules.



Unattended Weighing

Connecting the serial server to the gate, it is convenient for the control center to remotely control the gate switch through Ethernet.
Multiple serial servers can be used to connect other serial cameras, weighing instruments, LED displays, FID card readers,
vehicle induction coils, ticket printers and other peripherals, enriching more application scenarios.



Product Details



Shipping List





PARAMETER

Feature USR-TCP232-302 USR-TCP232-304 USR-TCP232-306
Processor ARM Cortex-M0, 48MHz ARM Cortex-M0, 48MHz ARM Cortex-M0, 48MHz
Power Input DC: 5.0~7.0 V, Connector: DC 5.5*2.1 mm DC: 5.0~7.0 V, Connector: DC 5.5*2.1 mm DC: 5.0~36.0 V, Connector: 5.5*2.1 mm & 2 pin terminal block
Consumption 150mA@5V 150mA@5V 116mA@5V, 53mA@12V
Ethernet Port 1 x RJ45, 10/100Mbps, auto MDI/MDIX 1 x RJ45, 10/100Mbps, auto MDI/MDIX 1 x RJ45, 10/100Mbps, auto MDI/MDIX
Serial Port RS232 RS485 RS232/485/422 (Not work at the same time)
Baud Rate 600~230.4 Kbps 600~230.4 Kbps 600~230.4 Kbps
Data Bits 5, 6, 7, 8 5, 6, 7, 8 5, 6, 7, 8
Stop Bit 1, 2 1, 2 1, 2
Parity Bit None, Odd, Even, Mark, Space None, Odd, Even, Mark, Space None, Odd, Even, Mark, Space
Serial Packeting Packeting Time: Four-byte sending time, Packeting Length: 400 Bytes Packeting Time: Four-byte sending time, Packeting Length: 400 Bytes Packeting Time: Four-byte sending time, Packeting Length: 400 Bytes
Serial Packet Cache Receive: 2KBytes Receive: 2KBytes Receive: 2KBytes
Reload Button
Dimension (L*W*H) 66.3*70.0*25.0 mm 73.2*70.0*25.0 mm 98.0×86.0×25.0 mm
Installation Wall Mounting Wall Mounting Wall Mounting
Operating Temp -25~75℃ -25~75℃ -25~75℃
Storage Temp -40~105℃ -40~105℃ -40~105℃
Operating Humidity 5%~95% RH (non-condensing) 5%~95% RH (non-condensing) 5%~95% RH (non-condensing)
Storage Humidity 5%~95% RH (non-condensing) 5%~95% RH (non-condensing) 5%~95% RH (non-condensing)
Indicators None None PWR, WORK, LINK, TX, RX
Network Protocol IP, TCP/UDP, DHCP, RCMP, HTTP, IPv4, DNS IP, TCP/UDP, DHCP, RCMP, HTTP, IPv4, DNS IP, TCP/UDP, DHCP, RCMP, HTTP, IPv4, DNS
IP Mode DHCP, STATIC IP DHCP, STATIC IP DHCP, STATIC IP
DNS Service
Config Method AT Command, Built-in webpage, Config Software, Config Protocol AT Command, Built-in webpage, Config Software, Config Protocol AT Command, Built-in webpage, Config Software, Config Protocol
Work Mode TCP Server/TCP Client/UDP Server/UDP Client/Httpd Client TCP Server/TCP Client/UDP Server/UDP Client/Httpd Client TCP Server/TCP Client/UDP Server/UDP Client/Httpd Client
Modbus Gateway Modbus RTU to Modbus TCP, Multi-host Modbus Polling Modbus RTU to Modbus TCP, Multi-host Modbus Polling Modbus RTU to Modbus TCP, Multi-host Modbus Polling
User-Defined Webpage
TCP Server 16 clients 16 clients 16 clients
Network Packet Cache Send: 6K Bytes, receive: 4K Bytes Send: 6K Bytes, receive: 4K Bytes Send: 6K Bytes, Receive: 4K Bytes
Additional Features RFC2217 Similar, Heartbeat Packet, Registration Packet, Index, No Data Restart RFC2217 Similar, Heartbeat Packet, Registration Packet, Index, No Data Restart RFC2217 Similar, Heartbeat Packet, Registration Packet, Index, No Data Restart
EMC Level IEC61000, Level 3 (Surge, ESD, EFT) IEC61000, Level 3 (Surge, ESD, EFT) IEC61000, Level 3 (Surge, ESD, EFT)
Certificate CE CE CE





DOWNLOAD

Documents

[User Manual] USR-TCP232-304-User-Manual_V1.0.3.01 Download >>
[User Manual] USR-TCP232-302/304/306_User-Manual Download >>
[Specification] USR-TCP232-302-304-306-spec-V1.0.0 Download >>
[Datasheet] USR-TCP232-304 Datasheet Download >>
[Certificate] ROHS2.0-Certificates-For-Serial-Ethernet Download >>
[Certificate] M0 Series CE FCC ROHS WEEE Certificate 302/304/306/T2/S2 Download >>
[CE Certificate] USR-TCP232-30X-CE-Certificate Download >>
[CE Certificates] CE-certificates-serial-to-ethernet-module Download >>
[AT Command] USR-M0-AT-Command-Set_V1.0.1 USR-TCP232-302/304/306/S2/T2 Download >>



Utilities

[Setup Software] USR-M0 V2.2.6.1.exe Download >>
[PC Test Software] USR-TCP232-Test-V1.3 Download >>
[Virtual COM Software]USR-VCOM_V5.0.4_Setup Download >>



Development Files

[Socket Demo] Socket_Demo.zip Download >>
[Built-in Webpage] USR-TCP232-304 Software_of_upgrading_built-in_webpage Download >>
[Built-in Webpage Source Code] built-in_webpage_source_code(V4020) Download >>
