On board two power supply interface VCC5 5 V VCC4 interface 3.5 power supply. 4.5 V optional power supply of envelope that (default) and control to start
On board SMA (default) and IPXmini antenna interface SIM900A reserved interface reset?

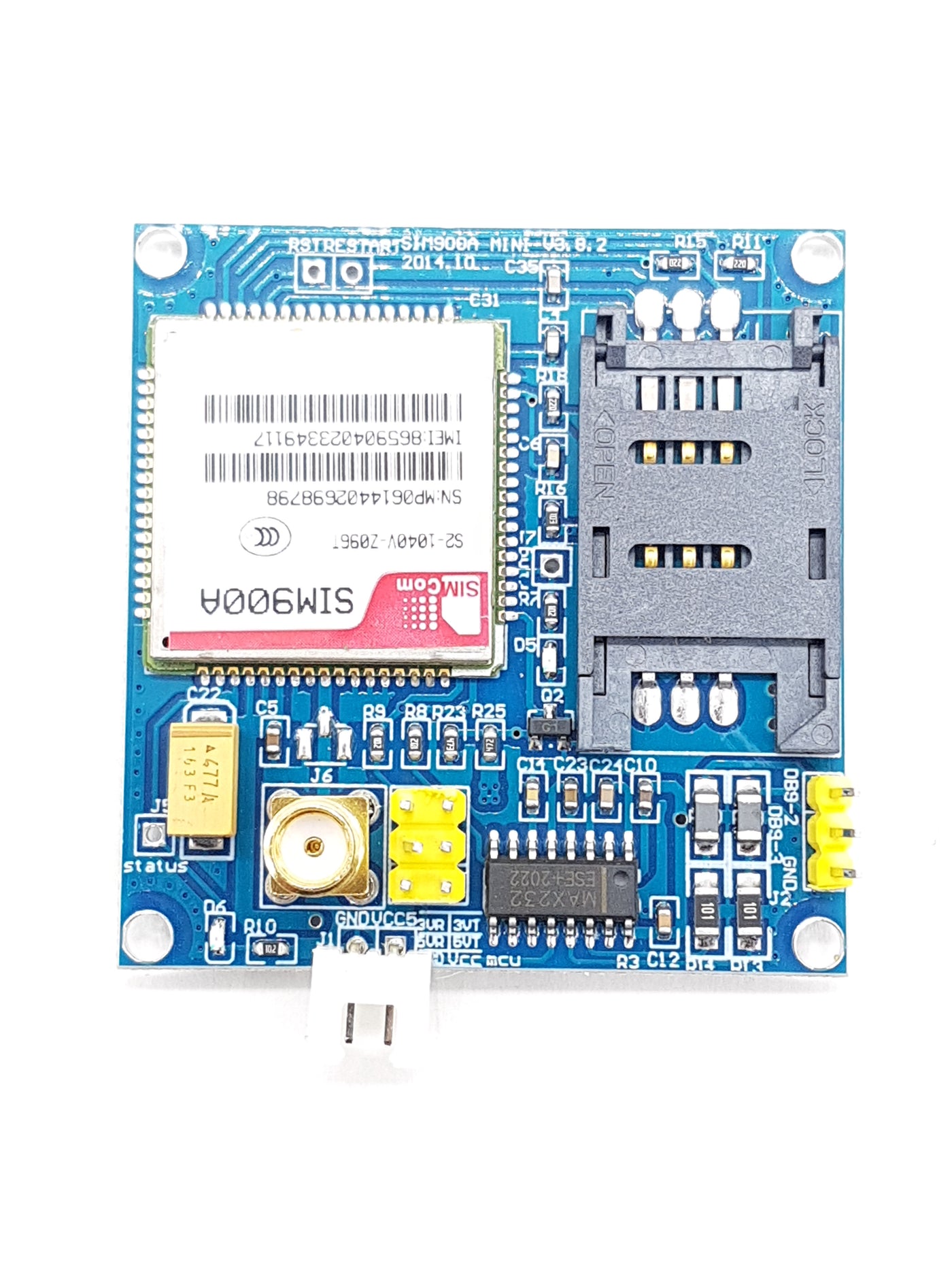

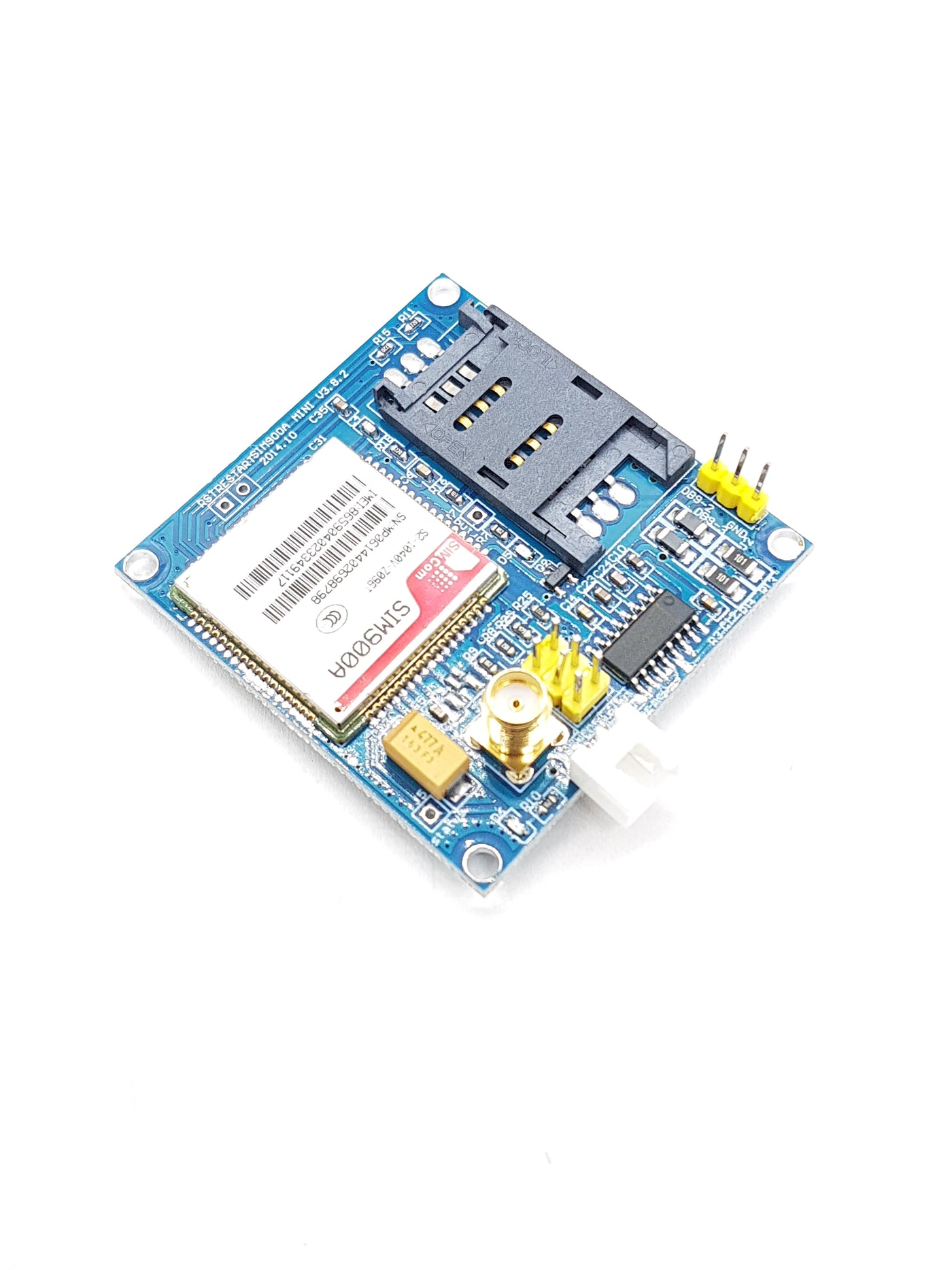

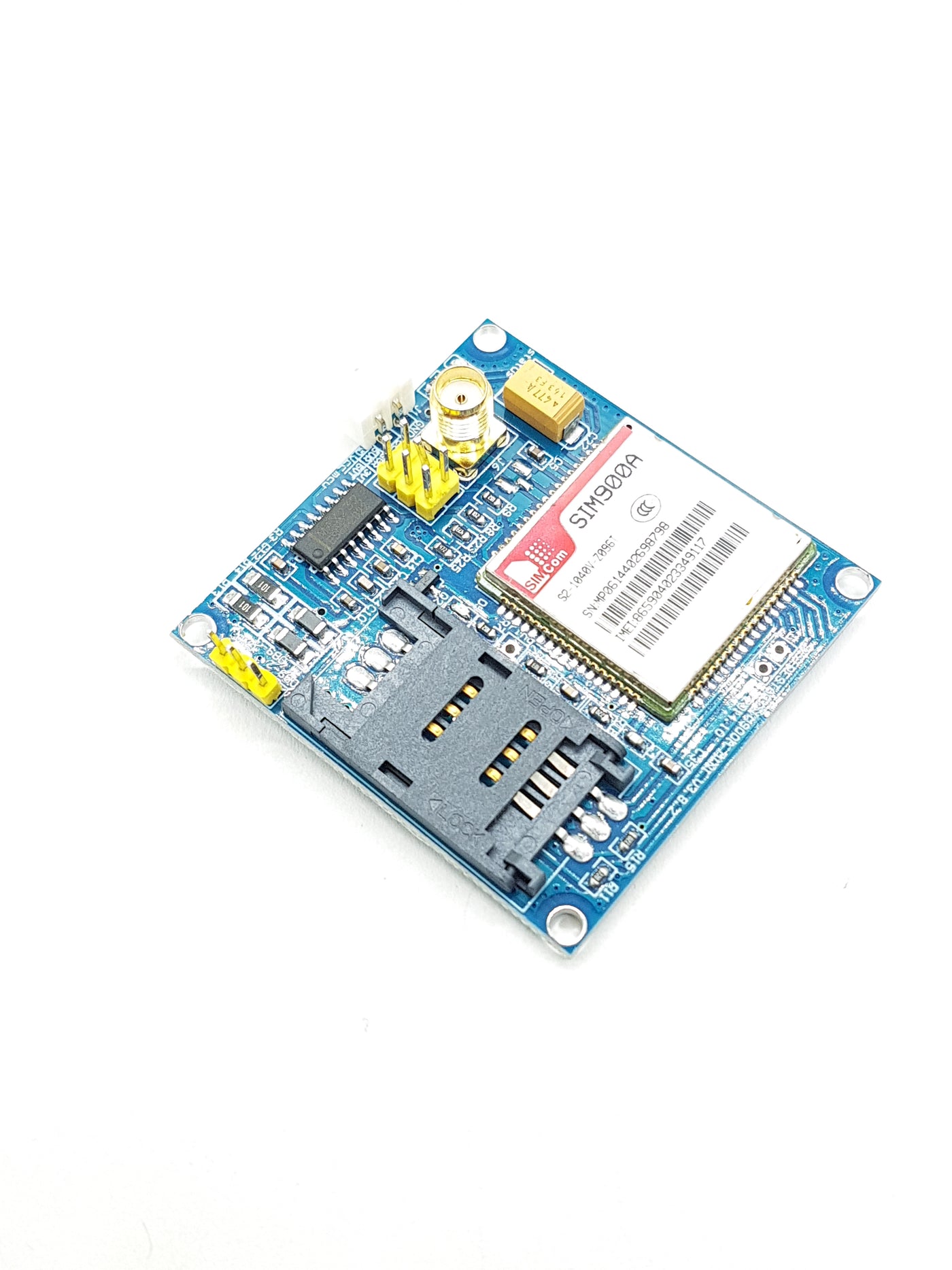

The size of the module is 49 * 50, all the new and original device.
The computer can provide the power supply of the USB debugging module of the computer,
A large amount of data under the recommended current condition more than 1 A.
Dozens of waiting MA data can be configured to provide
Rest, rest of 10 ma of low power. Support 2, 3.4G mobile phone card.
Serial port circuit: compatible with 3.3 V single-chip microcomputer
Microcomputer with single chip TTL serial port support3.3 and 5 V.
The circuit SIM card to increase the SMF05C ESD chip
Antenna circuit: guarantees a short and straight, to guarantee the strength of the signal.
PCB screen printing brand: each interface, practical development twice,
The SIM900 / hardware is completely still in the design when the manual design
Two power supply interface: VCC5 5 V DC above 1A!
The power supply of the 5 V computer can be the first USB in the computer.
Largest DC long data circuit recommended 5V1A.
VCC4 3.5. 4.5 V Ibid power supply suitable for lithium battery
Control Pin all cables.
A TTL level, compatible with 3.3 V and 5 V.

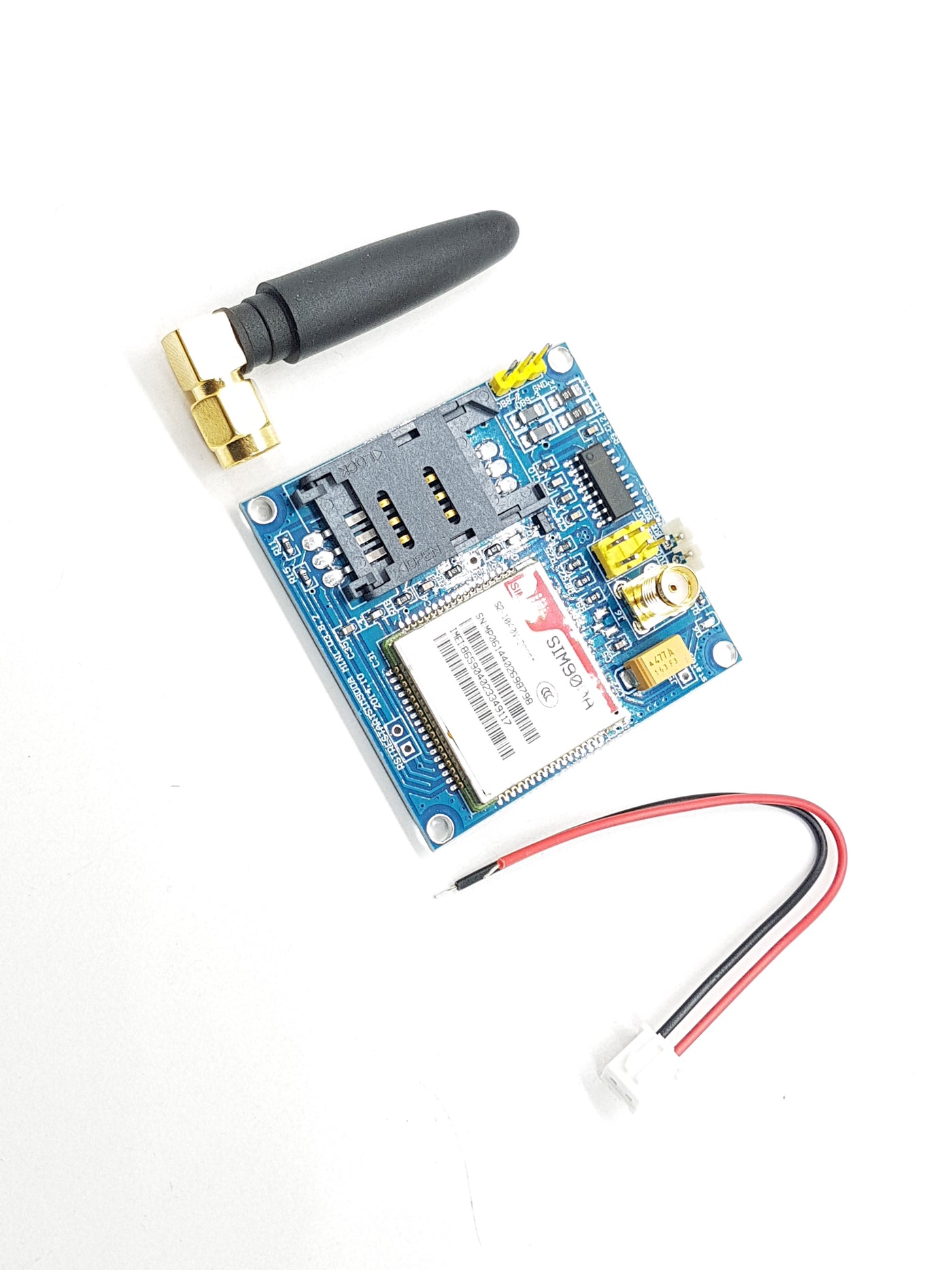

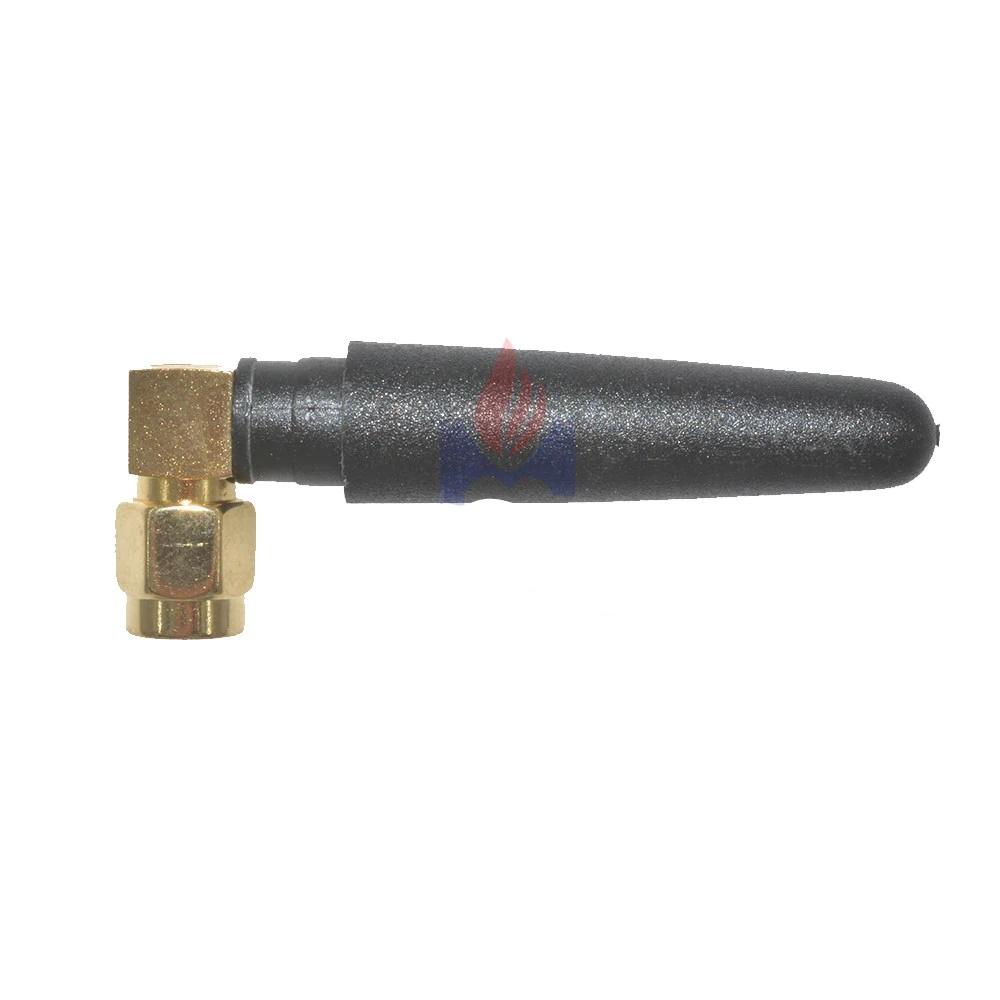

The interface of two antennas, the straight head SMA predetermined, the connector for the IPXmini antenna.
A form of speech interface, the way it exchanges the microphone.
The control interface of each pin Description:
GND-GNDSIMR SIM900A RXD TTL level
It can not be directly connected to the 232 levelSIMT SIM900A TXD TTL level
It can not be connected directly to the 232 levelRST-SIM900A reset
Active lowVCC_MCU when the SIM900A module and 5V level TTL communication
This pin is connected to DC 5 V;
When the communication level of SIM900A and 3.3V TTL ...
This pin is connected to DC 3.3 V.
VCC5 ---- DC 5 V input?
VCC4 ------ DC3.5--4.5 input
Integrated resources: serial port circuit (with protection)
