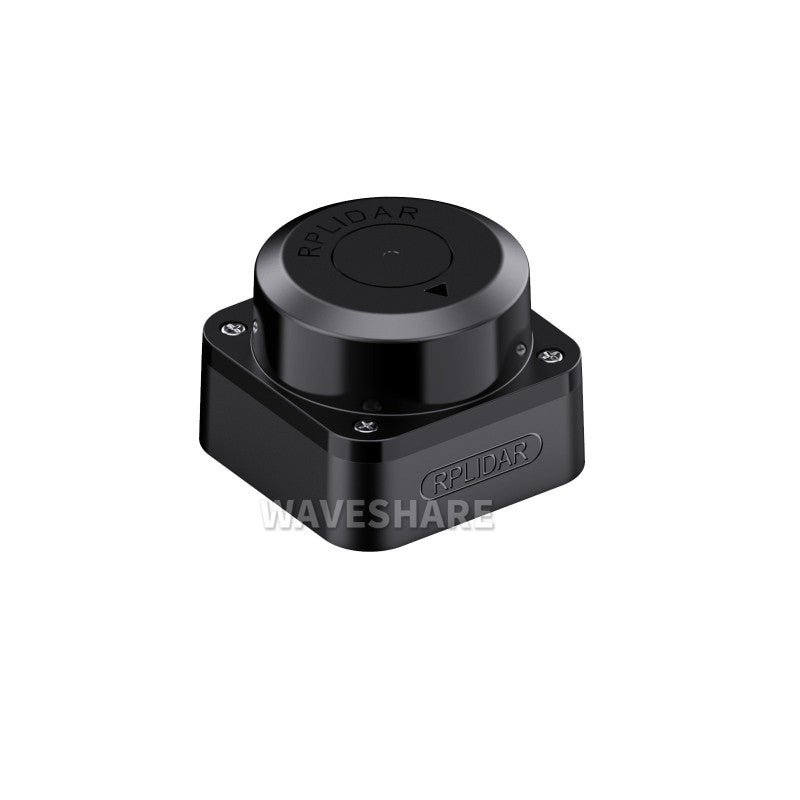

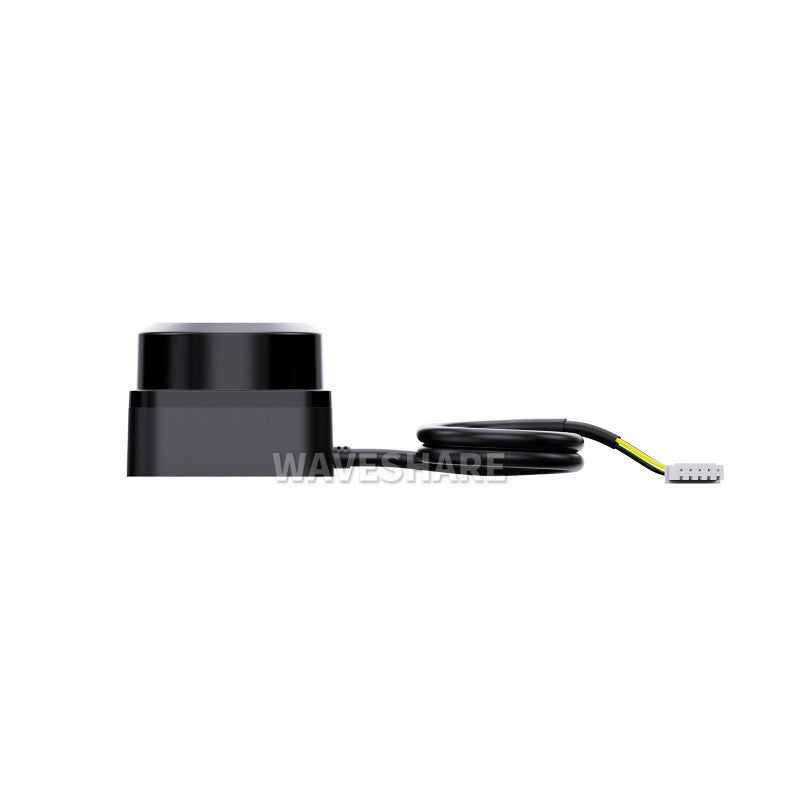

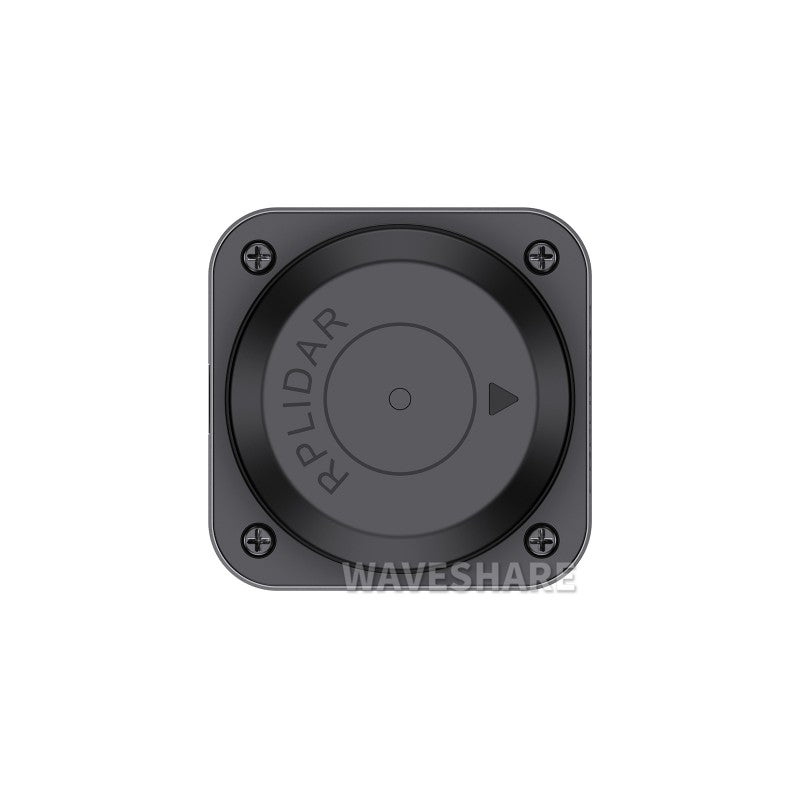

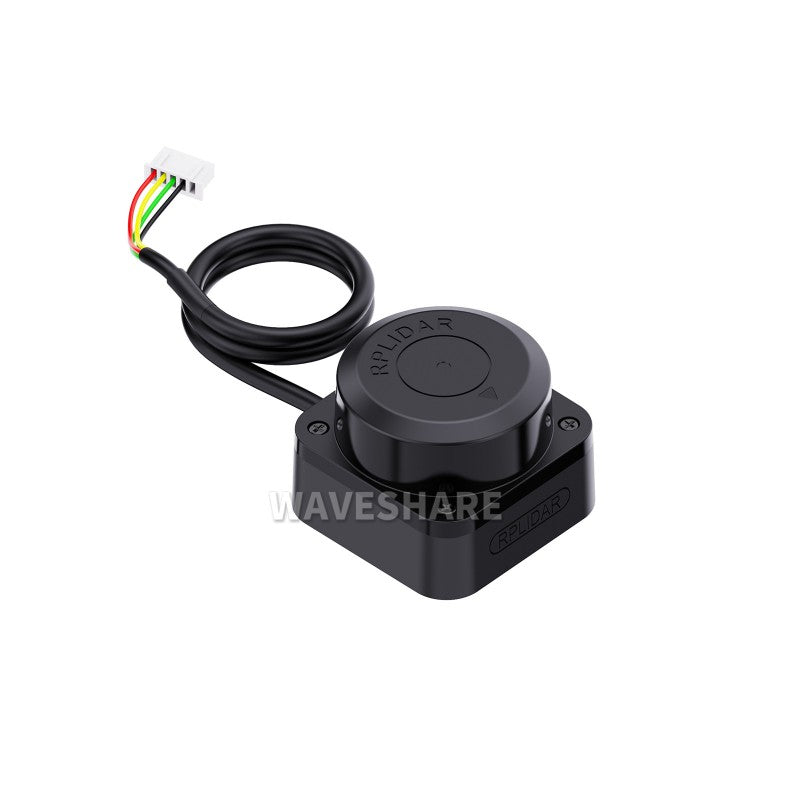

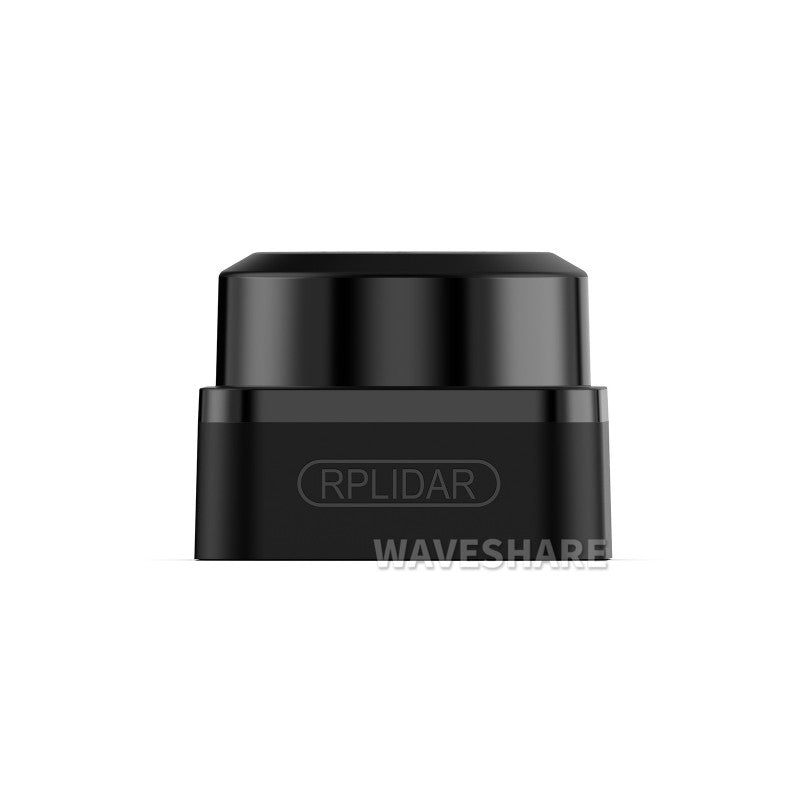

Slamtec RPLIDAR C1 Laser Ranging Sensor
RPLIDAR C1
360°Laser Ranging Lidar
New Generation Fusion-Type LIDAR, High Definition & High Performance
Specifications
RANGING DISTANCE
0.05~12.00m (white object, 70% reflectivity) 0.05~6.00m (black object, 10% reflectivity)
RANGING ACCURACY
±30mm
SCANNING FREQUENCY
8~12Hz (Typ 10Hz)
SCANNING ANGLE
360°
RANGING FREQUENCY
5000Hz
RANGING RESOLUTION
15mm
ANGULAR RESOLUTION
0.72°
WAVELENGTH
905nm
COMMUNICATION INTERFACE
UART, TTL
POWER SUPPLY
5V
POWER CONSUMPTION
1.15W
OPERATING CURRENT
230mA
WEIGHT
110g
OPERATING TEMPERATURE
-10 ~ 40°C
DIMENSIONS (L × W × H)
55.6×55.6×41.3mm
Millimeter-Level High Definition
Integrates the technical advantages accumulated in triangulation and DTOF ranging for many years, enabling RPLIDAR C1 to meet the requirements of robot positioning, mapping, and navigation in terms of ranging accuracy, distance measurement, anti-interference, and anti-adhesion performance
Enhanced Perception But Not Limited To Flat Surfaces
With New Generation Fusion-Type Ranging Technology, RPLIDAR C1 Not Only Provides Position Information Data But Also Offers Additional Output Reflectivity Data And 2.5D Multidimensional Information
12m Radius Ranging Easy To Handle Various Objects Ranging
The Ranging Radius Can Reach Up To 12 Meters And With A Low Blind Range Of Only 0.05 Meters. Easily Achieves Scanning And Ranging At Various Distances, And Realizes Obstacle Avoidance
Laser Safety FDA Class 1
To ensure the safety of humans and pets, a low power infrared laser emitter is used as the light source and is driven by modulated pulses, the laser completes the emitting action in a very short period of time, complying with the FDA Class 1 human eye safety rating
Compact In Size And Easy To Integrate
Small In Size, Features High Performance, With Low Noise And Vibration, Can Be Easily Integrated Into Various Applications To Provide More Possibilities
Rich Technical Documentation Support
Datasheet, User Manual, Application Manual, Protocol Specification
SDK & Demo Support
Provides SDK Development Packages That Can Run On Different Platforms, Supports ROS And ROS2 Operating Systems, Helping Users To Develop And Integrate Across Various Operating Systems And Architectures
Outline Dimensions
Resources
Packing List
Weight: 0.18 kg
RPLIDAR C1 x1
Adapter x1
USB Type A to Micro USB cable x1
