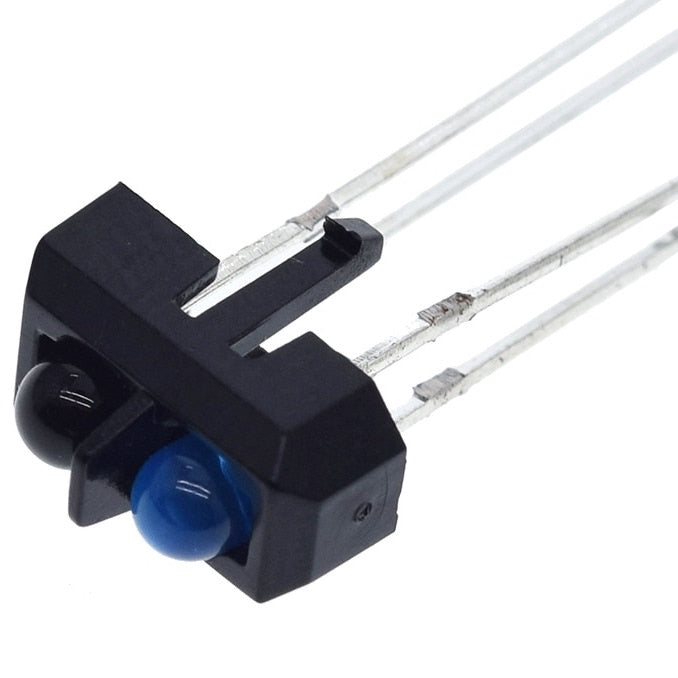

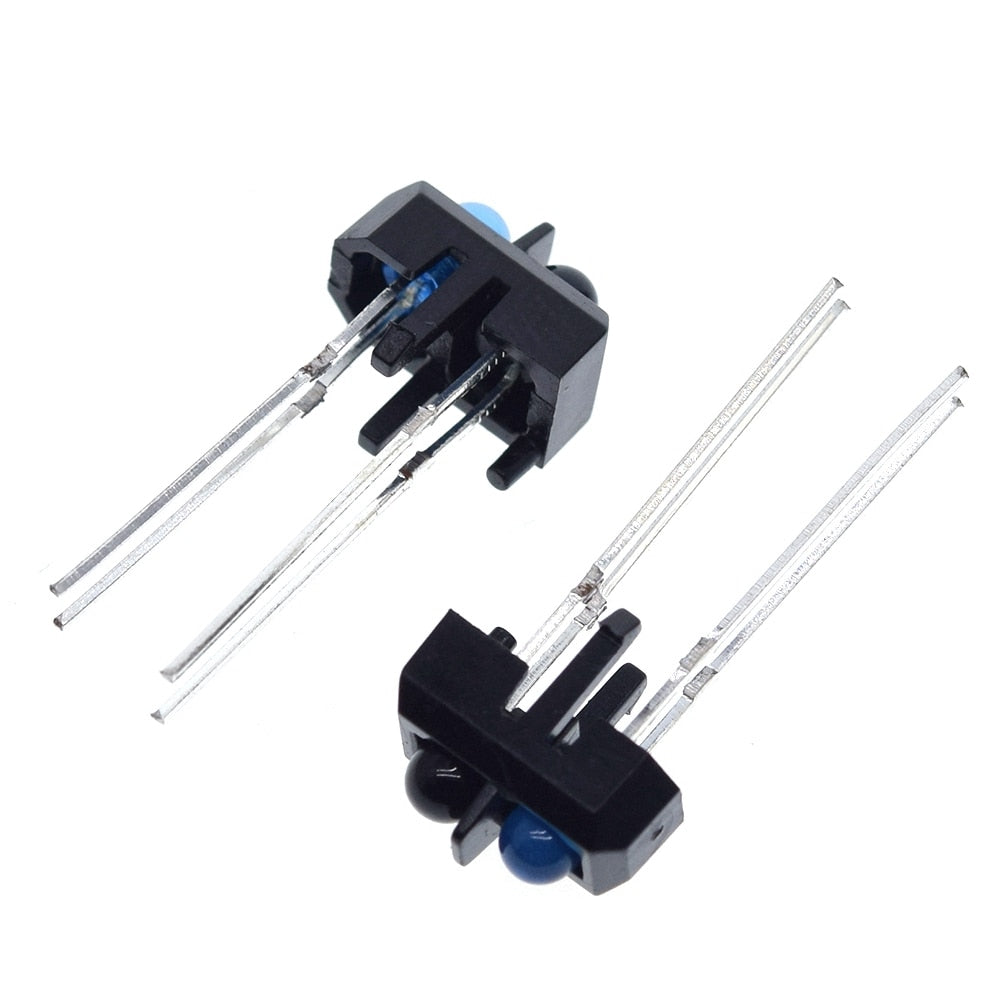

TCRT5000L Reflective Optical Sensor with Transistor Output (Pack of 2)
The TCRT5000L are reflective sensors which include an infrared emitter and phototransistor in a leaded package which blocks visible light. The package includes two mounting clips.
Package type: leaded
Detector type: phototransistor
Dimensions(LxWxHinmm):10.2x5.8x7
Peak operating distance: 2.5 mm
Operating range within >20% relative collector current: 0.2 mm to 15 mm
Typical output current under test: IC = 1 mA
Daylight blocking filter
Emitter wavelength: 950 nm
Specifications
Model
TCRT5000
Operating Voltage Range
3.6~5 VDC
Average Current Consumption (mA)
60
Distance Measuring Range
0.591" (15mm);
Output Type
Phototransistor
Weight (gm)
8
Working Temperature Range
-25~85ºC
Color
Black + blue
Material
Plastic + iron
Detecting method
Reflective
Transistor Properties
Collector-Emitter: Voltage: 70V;
Shipment Weight
0.085 kg
Shipment Dimensions
4 × 3 × 1 cm
Resources
Datasheet
Sample Code
Tutorial
VIDEO
VIDEO
