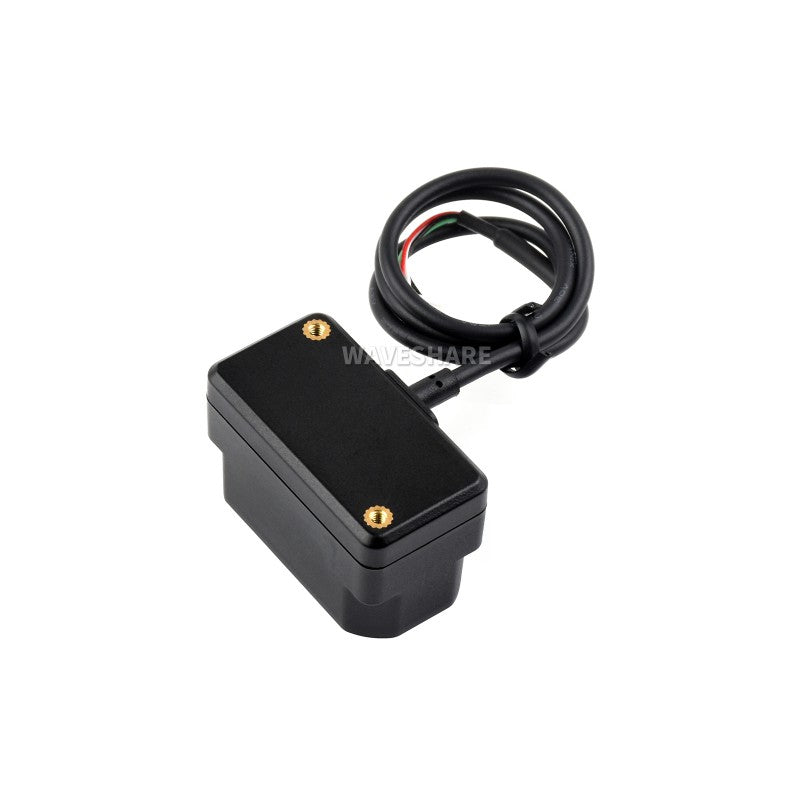

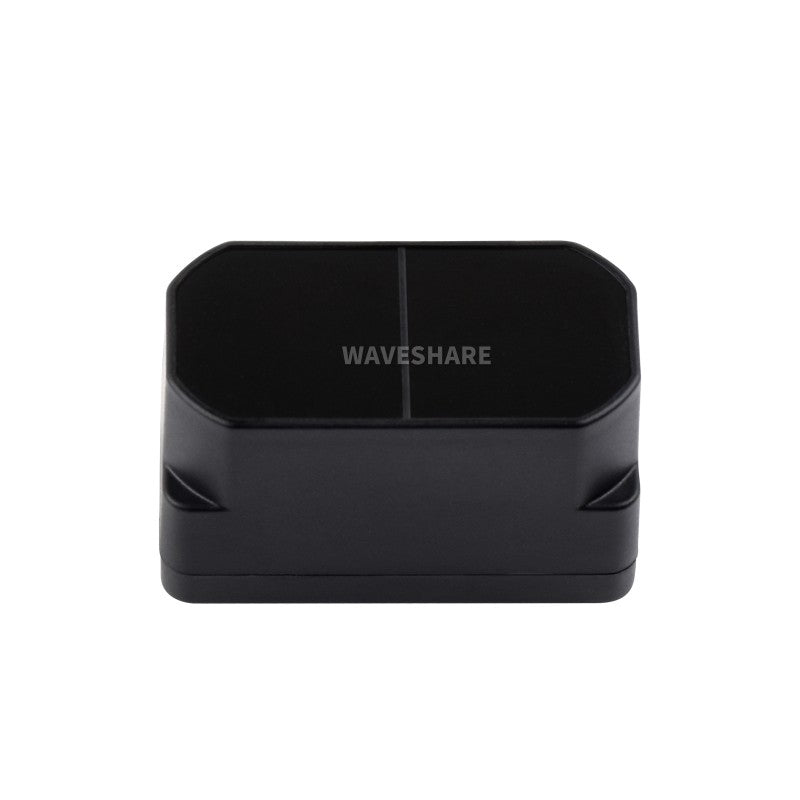

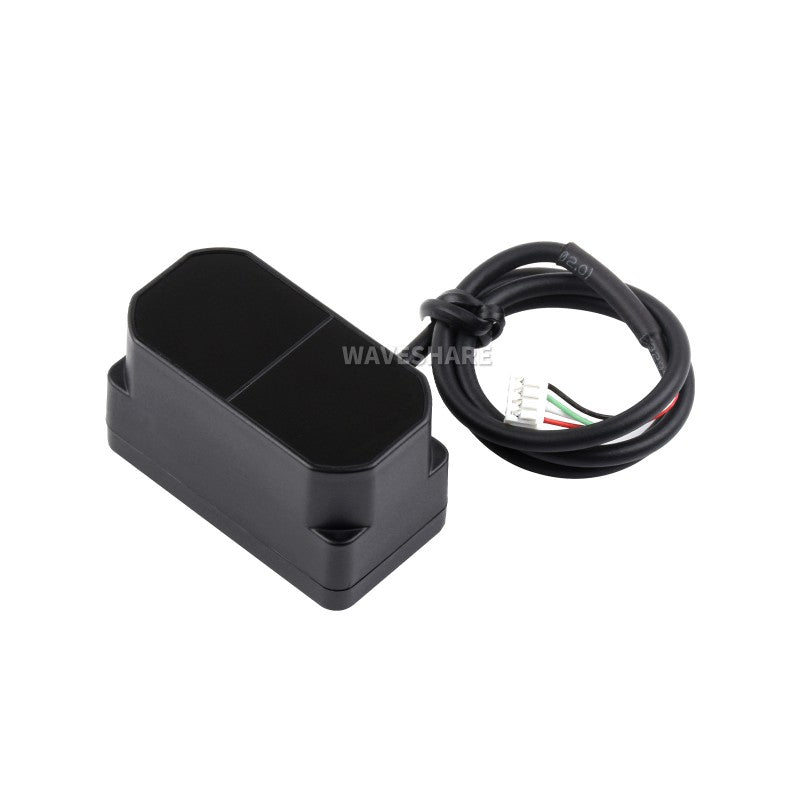

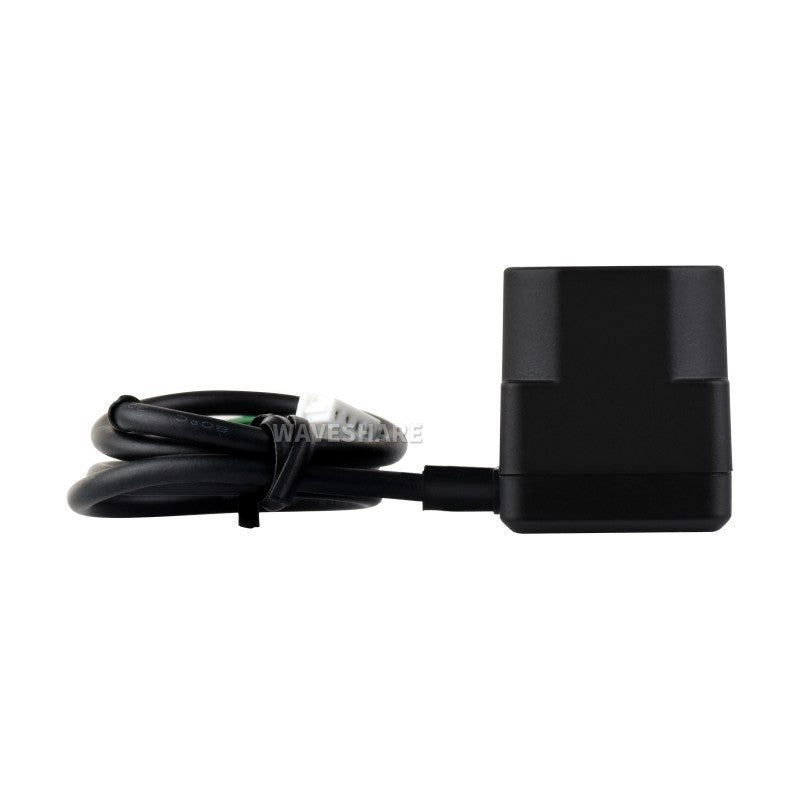

TFmini-Plus Lidar Ranging Sensor

12m Ranging Distance | IP65 Protection | High Frame Rate | Small Blind Zone | High Accuracy

Specifications

PERFORMANCE
Ranging distance	0.1~12.0m @90% reflectivity (Indoor 0klux) 0.1~4.0m @10% reflectivity (Indoor 0klux) 0.1~12.0m @90% reflectivity (Outdoor 70klux) 0.1~4.0m @10% reflectivity (Outdoor 70klux)	Accuracy	±5cm@(0.1~5m) ±1%@(5~12m)
Frame rate	UART: 1~1000Hz (adjustable, default 100Hz) I2C: 1~100Hz (adjustable)	Repeatability	1σ： <3cm (@100Hz UART) 1σ： <4cm (@100Hz I2C)
Distance resolution	1cm	Ambient light tolerance	70klux
Operating temperature	-20~60℃	Protection level	IP65
OPTICAL PARAMETERS
Light source	LED	Central wavelength	850nm
Eye safety	Exemption level (EN62471)	Field of view	3.6°
ELECTRICAL PARAMETERS
Power supply	5V±0.5V	Average current	≤110mA
Power	550mW（low power consumption mode: <100mW）	Peak current	140mA
Communication level	LVTTL (3.3V)	Communication interface	UART, I2C, I/O
OTHERS
Dimension	35.0 × 18.5 × 21.0mm	Case material	ABS/PC
Storage temperature	-20~75℃	Weight	12g±1g
Cable length	30cm

High Protection And High Frame Rate

Apart from the three major advantages of TFmini: low cost, small size, and low power consumption, the TFmini Plus further improves its overall performance, enhances the output frame rate, data stability and accuracy, also reduces the ranging blind zone, and adds IP65 protection.

Powerful Adaptability

Built-In Multiple Adaptive Algorithms, Multiple Adjustable Configurations And Parameters, Features Excellent Ranging Performance In Complex Environments And Can Meet More Application Requirements

High Performance, Small Size

Adopts A Simple And Compact Structural Design, With Excellent Performance, Suitable For Various Intelligent Applications.

Safer And More Stable

Adopts IP65 Protection Level And Has Passed UAV-Grade Vibration Test,
Suitable For Industrial Application Environments

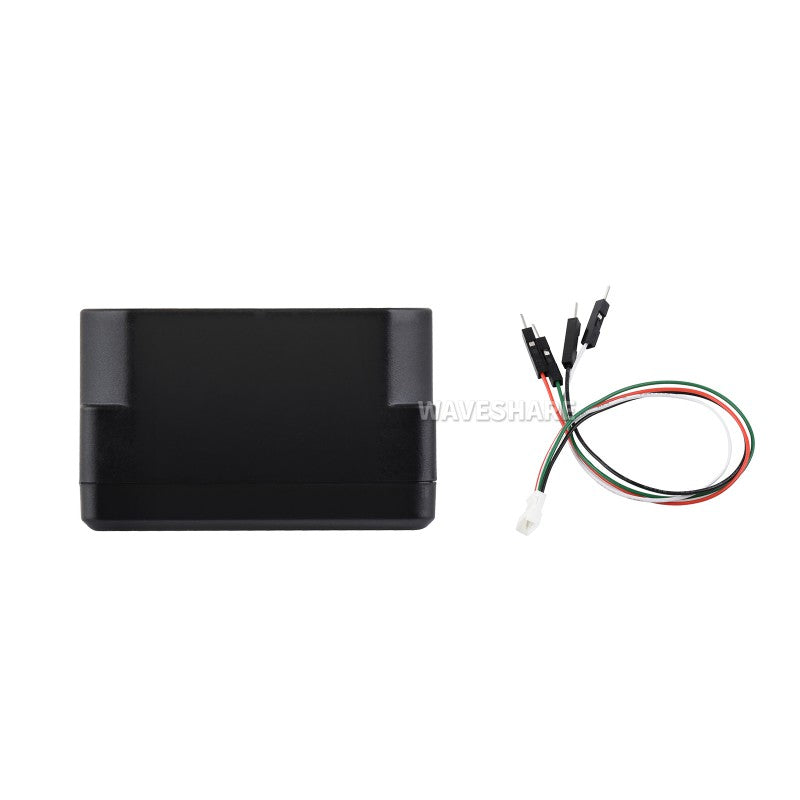

Supports UART And I2C Interfaces

For Use With Controller Boards Like Raspberry Pi/Raspberry Pi Pico/ESP32/Arduino

NUMBER	COLOR	FUNCTION	DESCRIPTION
1	Red	+5V	power input
2	White	RXD/SDA	UART RX / I2C data
3	Green	TXD/SCL	UART TX / I2C clock
4	Black	GND	ground

Applications

Dimensions

Resources

WIKI: www.waveshare.com/wiki/TFmini_Plus_LiDAR_Range_Sensor

Package Content:

Weight: 0.024 kg

TFmini Plus LiDAR Range Sensor x1

What interfaces does the device support and how do I connect it?

It supports UART and I2C interfaces with LVTTL 3.3V logic. The four pin connections are Red +5V, White RXD/SDA, Green TXD/SCL, and Black GND for use with boards like Raspberry Pi, Arduino, or ESP32.

What is the measurement range and accuracy?

Ranging distance is 0.1 to 12.0 m for 90 percent reflectivity indoors or outdoors, and 0.1 to 4.0 m for 10 percent reflectivity. Accuracy is 5 cm from 0.1 to 5 m and 1 percent from 5 to 12 m.

What is the protection rating and operating conditions?

The device has IP65 protection and operates from -20 to 60 degrees Celsius. Ambient light tolerance is up to 70klux.

What are the power requirements and consumption?

It uses 5V plus or minus 0.5V supply; average current is up to 110 mA, about 550 mW. In low power mode it consumes less than 100 mW and peak current is 140 mA.

Is it suitable for development boards and what features support integration?

It offers high frame rate with UART 1 to 1000 Hz and I2C 1 to 100 Hz, is compact and light, and supports boards such as Raspberry Pi, Raspberry Pi Pico, ESP32 and Arduino.
