TSW101 - Automotive POE+ Switch

SKU: ELC8748

₹ 13,499.99 ₹ 19,799.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
⏱ This is a pre-order item. We'll ship it as soon as it's back in stock.
TSW101 - Automotive POE+ Switch₹ 13,499.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

The TSW101 is a plug-and-play automotive switch dedicated to in-vehicle applications. Featuring five Gigabit Ethernet ports, including four with PoE+ support, the TSW101 can power your end devices while connecting them to the Internet. This automotive switch can be powered by 12 V or 24 V car battery, requiring no additional PSU.

Standard package*

  • TSW101
  • QSG (Quick Start Guide)
  • Packaging box

*Standard package contents may differ based on standard order codes.

Features

Ethernet Specifications

Specification Details
Ethernet Ports 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 Series Standards 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Maximum Ethernet Cable Length 100 m

PoE OUT Specifications

Specification Details
PoE Ports Port 1-4
PoE Max Power per Port (at PSE) 30 W
Total PoE Power Budget (at PSE) 60 W
PoE Standards 802.3af and 802.3at Alternative A

Performance Specifications

Specification Details
Bandwidth (Non-blocking) 10 Gbps
Packet Buffer 128 KB
MAC Address Table Size 2K entries
Jumbo Frame Support 9216 bytes



Power Specifications

Specification Details
Connector 2-pin industrial DC power socket
Input Voltage Range 9 – 30 VDC
PoE-out Input Voltage Range 9 – 30 VDC
Power Consumption Idle: 0.64 W / Max: 2.31 W / PoE Max: 62.3 W
PSU 12 V or 24 V car battery-powered. No additional PSU required.

Physical Interfaces

Interface Details

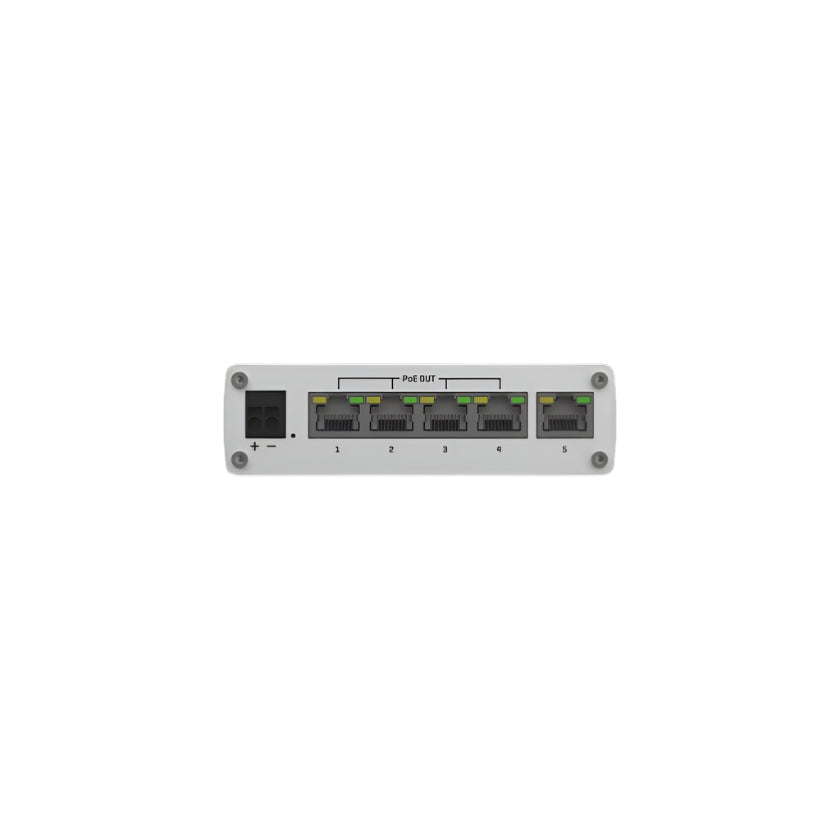

Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs 1 x Power LED, 10 x ETH status LEDs
Power 1 x 2-pin industrial DC power socket

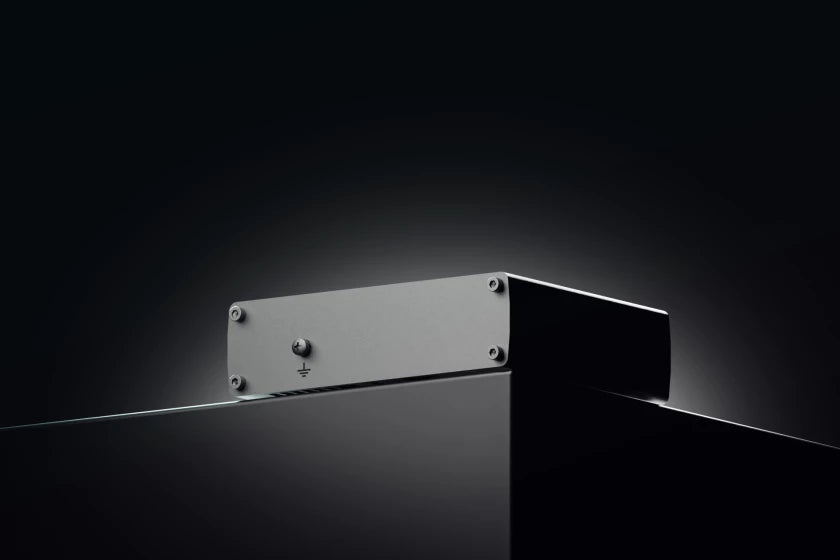

Other 1 x Grounding screw

Physical Specification

Specification Details

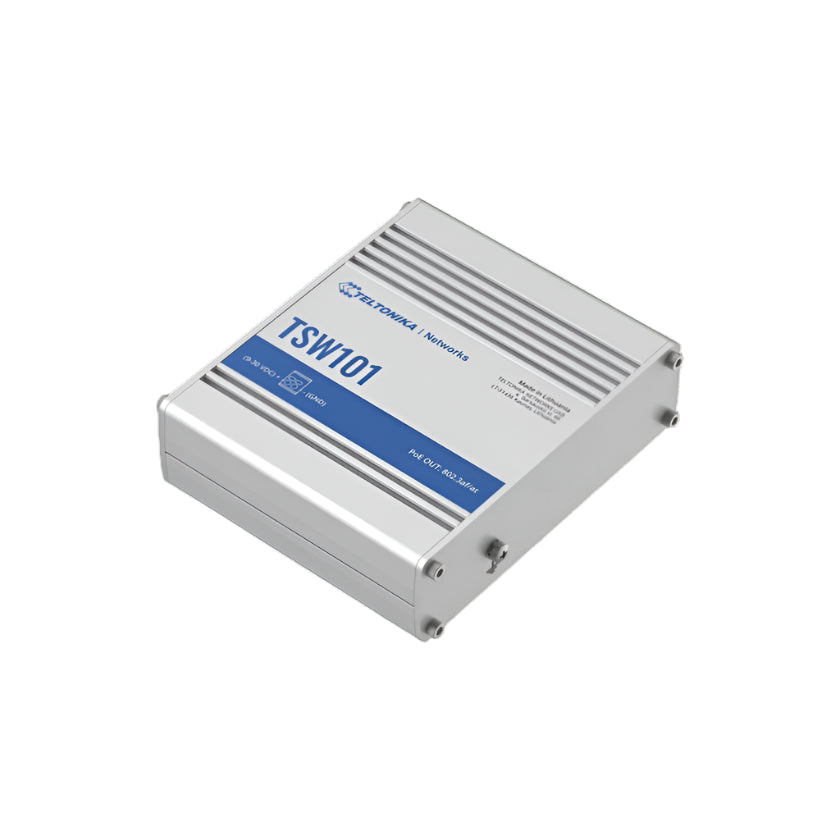

Casing Material Aluminium housing
Dimensions (W x H x D) 115 x 32 x 95 mm
Weight 384 g
Mounting Options DIN rail, wall mount, flat surface (requires additional kit)

Operating Environment

Specification Details
Operating Temperature -40 °C to 75 °C
Operating Humidity 5% to 95% non-condensing
Ingress Protection Rating IP30



Regulatory & Type Approvals

Regulation/Approval Details
Regulatory Standards CE, REACH, RoHS, WEEE
Certifications TSW101 CE, TSW101 UKCA, TSW101 FCC,
TSW101 IC, TSW101 CB, TSW101 RCM,
E-Mark

EMC Emissions & Immunity

Specification Standard
EMC Emission Standards EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge Immunity (AC Power) EN 61000-4-5:2014 + A1:2017
Conducted Susceptibility (CS) EN 61000-4-6:2014

Safety Standards

Certification Body Standard
CE EN IEC 62368-1:2020 + A11:2020
EN IEC 62311:2020
EN 50665:2017
RCM AS/NZS 62368.1:2022
CB IEC 62368-1:2018



Downloads

Manual & Documentation

Links

What is this switch used for in a vehicle?
It is a plug and play automotive switch designed for in vehicle applications. It provides five ethernet ports including four PoE+ ports and can power end devices while connecting them to the Internet, using a 12 or 24 V car battery with no external PSU required.
How many PoE ports are available and what is the PoE budget?
Ports 1 to 4 support PoE. Each port can deliver up to 30 W, for a total PoE budget of 60 W at the PSE.
What are the network port speeds and auto negotiation features?
There are 5 x RJ45 ports with 10/100/1000 Mbps, and auto MDI/MDIX is supported. It also supports IEEE standards 802.3i, 802.3u, 802.3ab, 802.3x, and 802.3az.
What mounting options and physical dimensions does the unit have?
The enclosure is aluminium and measures 115 x 32 x 95 mm and weighs 384 g. Mounting options include DIN rail, wall mount, or flat surface with the additional kit.
What are the operating conditions and regulatory approvals?
It operates from -40 C to 75 C and 5 to 95 percent non condensing humidity, with an IP30 rating. It carries CE, RoHS, WEEE and other listed certifications.
