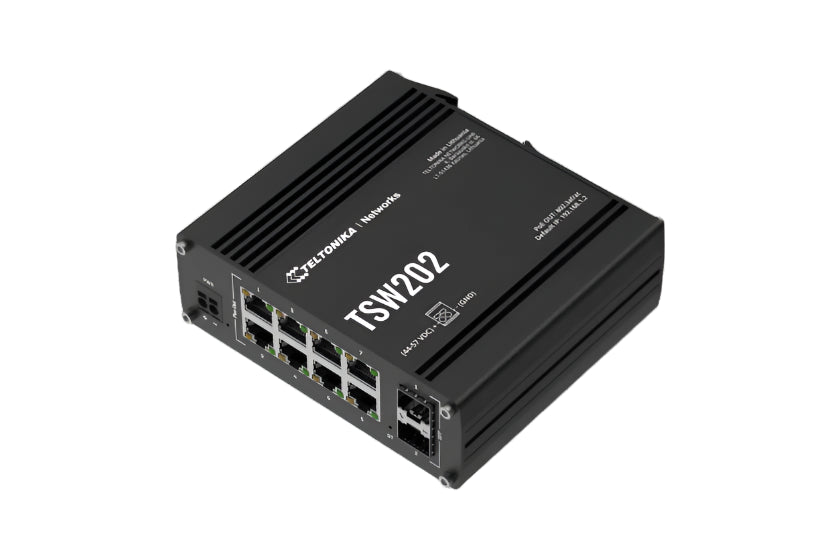

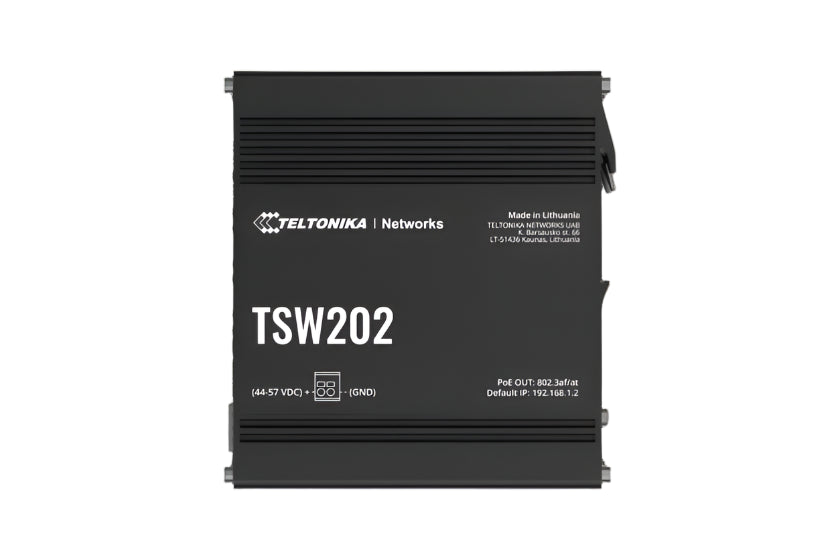

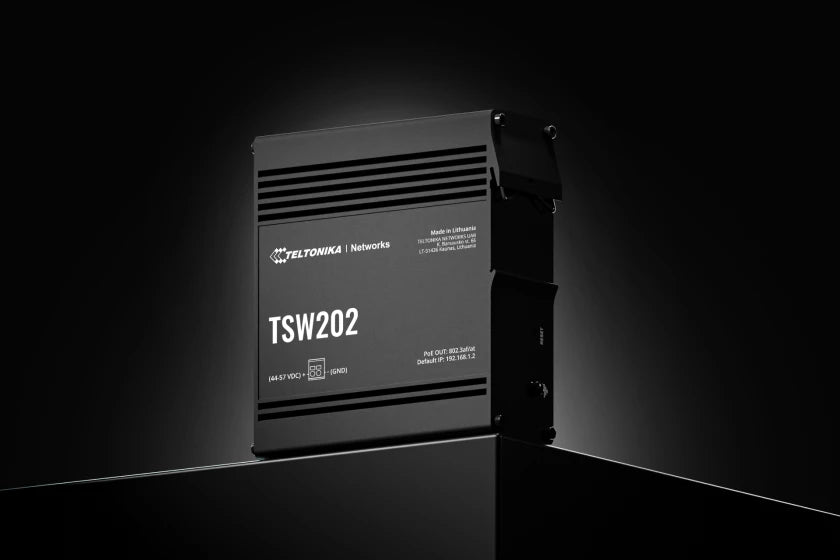

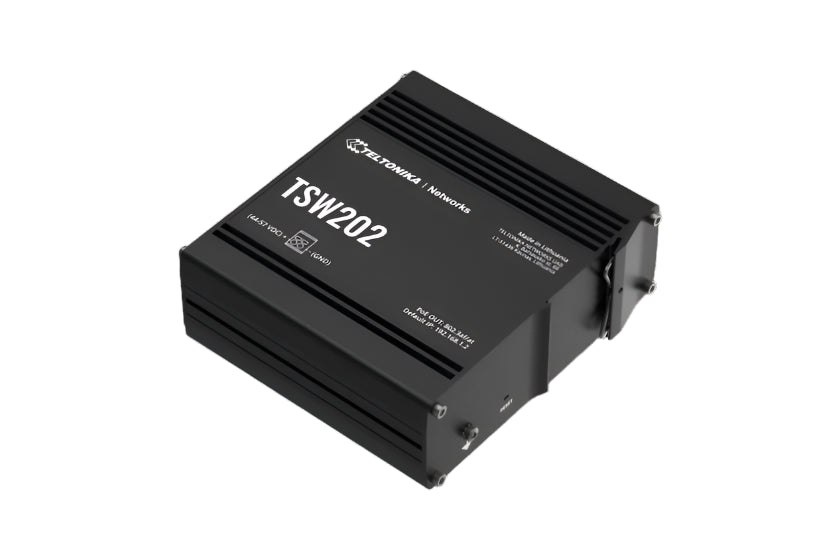

TSW202 - Managed POE+ Ethernet Switch

SKU: ELC8753

ā‚¹ 20,599.99 ā‚¹ 30,199.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ā± This is a pre-order item. We'll ship it as soon as it's back in stock.
TSW202 - Managed POE+ Ethernet Switchā‚¹ 20,599.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

TSW202 is a managed PoE+ Ethernet switch, designed to provide granular network management capabilities while centralising power distribution. This PoE+ switch enables flexibility over management and power supply and supports protocols, including EtherNet/IP, PROFINET, and MRP. The TSW202 has 2 SFP ports and 8 Gigabit Ethernet ports providing 30 W of power each.

Standard package*

  • TSW202
  • QSG (Quick Start Guide)
  • Packaging box

*Standard package contents may differ based on standard order codes.

Features

Ethernet (ETH)

Feature Specification
Type Multi-layer managed
Ports 8 x ETH ports, 10/100/1000 Mbps
Features Supports auto MDI/MDIX crossover
Fibre Ports 2 x SFP ports
Standards IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3z

PoE OUT

Feature Specification
PoE Ports Ports 1 - 8
PoE Standards 802.3af and 802.3at Alternative B
Max Power per Port 30 W
Total PoE Power Budget 240 W
Max Ethernet Cable Length 100 m

Services

Service Supported
EtherNet/IP Yes
PROFINET (Class B) Yes
SNMP (V2, V3) Yes
LLDP Yes

Network Management

Feature Specification
Traffic Prioritization 802.1p Class of Service
Access Control 802.1x Port-Based Network Access Control
VLAN 802.1Q VLAN

Ā

Ā

Network Features

Feature Description
MRP MRP client role, MRP manager role
L2 Features Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP DHCP server, DHCP client, DHCP static leases (with MAC wildcards support)
Port Settings Enable/disable, link speed control, port isolation, PoE management, EEE (802.3az), Port Mirroring
L3 Features Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

Security

Feature Description
Authentication PAM (Pre-shared key), RADIUS, TACACS+, IP & login attempts blocking

Quality of Service (QoS)

Feature Description
QOS Features Port priority, DSCP priority, 802.1p priority, TOS
Scheduling Methods SP (Strict Priority), WFQ (Weighted Fair Queue), WRR (Weighted Round Robin)
Bandwidth Control Rate limiting, storm control
Traffic Shaper Port-based shaping

Diagnostics

Tool Description
Diagnostics Tools Cable diagnostic, ping, traceroute, nslookup
Ping Reboot Capability to restart PoE on a specific port

API

Feature Description
Teltonika Networks Web API Configurable API endpoints to retrieve or change data (Beta). Documentation available at Teltonika API Documentation

Ā

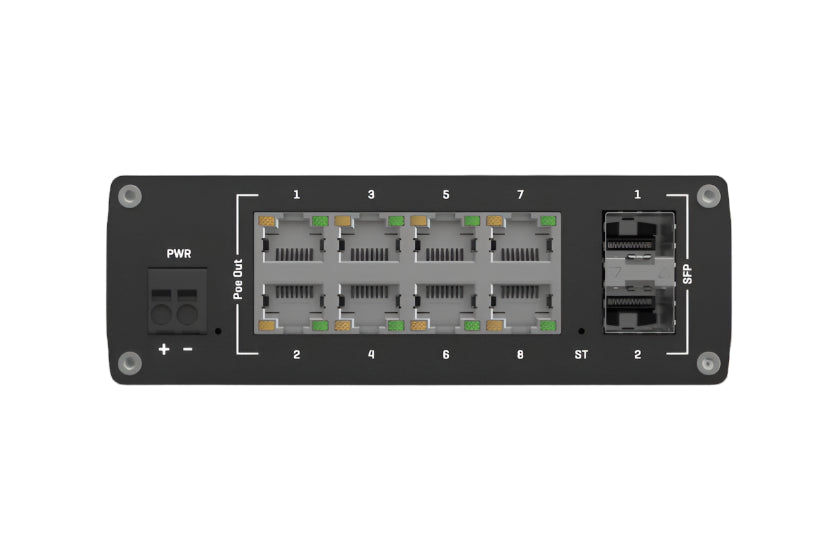

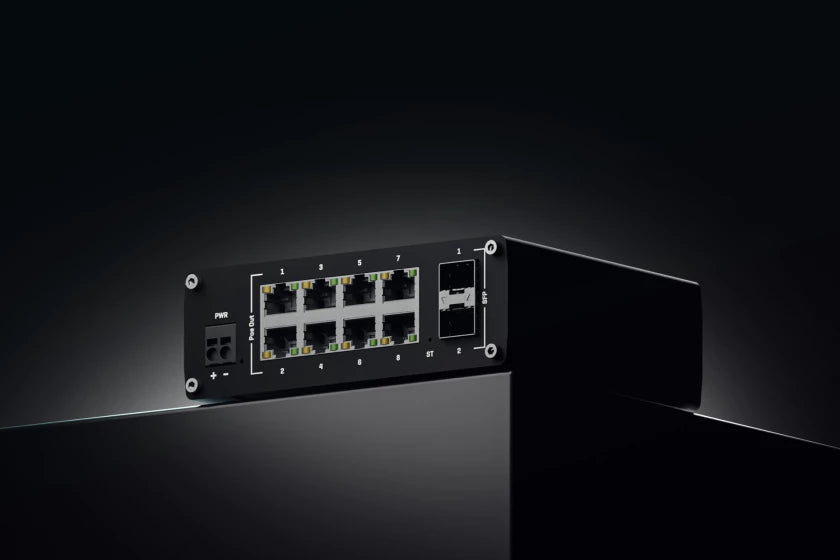

Physical Interfaces

Attribute Specification
Ethernet 8 x RJ45 ports, 10/100/1000 Mbps
Fibre 2 x SFP ports
Status LEDs 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power 1 x 2-pin industrial DC power socket

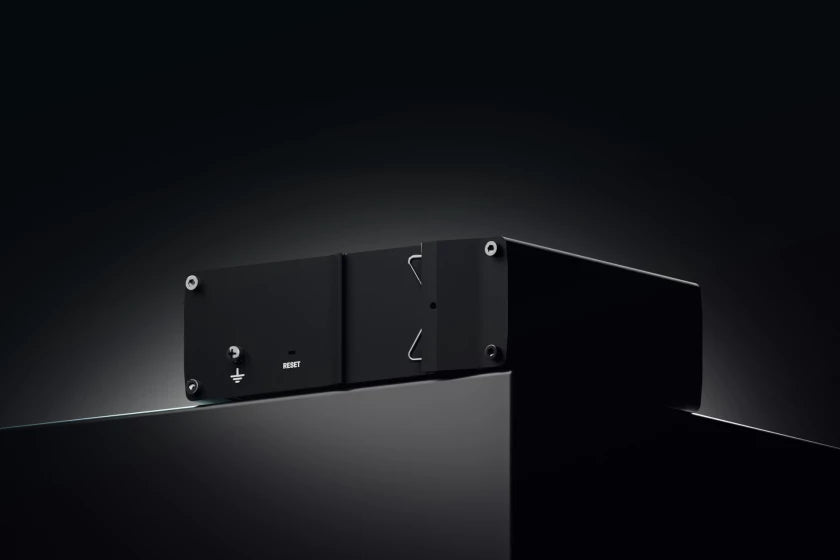

Reset Software reset button
Other 1 x Grounding screw

Physical Specifications

Attribute Specification
Casing Material Anodized aluminum housing and panels
Dimensions (W x H x D) 132 x 44.2 x 122.2 mm
Weight 610 g
Mounting Options Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating Environment

Attribute Specification
Operating Temperature -40 Ā°C to 75 Ā°C
Operating Humidity 5% to 95% non-condensing
Ingress Protection Rating IP30

Ā

Regulatory & Type Approvals

Category Approvals
Regulatory CE, UKCA, RCM, ANRT, FCC, IC, CB, NBTC, PROFINET, CITC, RoHS, REACH, WEEE, SDPPI (POSTEL), JATE, Kenya, ICASA, Giteki

Ā

EMC Emissions & Immunity Standards

Standard Description
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2 2019 + A1:2021
EN 61000-3-3 2013 + A1:2019 + A2:2021
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge Immunity EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2020

Safety Standards

Standard Description
CE EN IEC 62368-1:2020 + A11:2020
RCM AS/NZS 62368.1:2022
CB IEC 62368-1:2018

Ā

Downloads

Manual & Documentation


Links

What ports are available on the device and how much PoE power can be supplied on each port?
The switch provides 8 x RJ45 Ethernet ports and 2 x SFP ports. PoE is supported on ports 1 to 8 up to 30 W per port, with a total PoE budget of 240 W.
What management and networking features are supported?
It supports EtherNet/IP and PROFINET, SNMP v2/v3, LLDP, MRP, VLAN 802.1Q, 802.1x, DHCP server and client, port mirroring, and static IPv4/IPv6 routing among others.
How can this device be mounted and what are its operating conditions?
Mounting options include integrated DIN rail bracket, wall mount, or flat surface with an additional kit. It operates from -40 C to 75 C and 5 to 95 percent non condensing humidity, with IP30 enclosure.
What is included in the standard package and can contents vary by order code?
The standard package includes the TSW202 unit and the Quick Start Guide in the packaging box. Contents may differ based on standard order codes.
Where can I find documentation and firmware updates for the TSW202?
Documentation and firmware updates are available on the Teltonika Networks product page, including the Quick Start Guide, User Manual, Datasheet and Firmware Downloads.
