TSW304 - Din Rail Ethernet Switch

SKU: ELC8749

ā‚¹ 13,699.99 ā‚¹ 20,099.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ā± This is a pre-order item. We'll ship it as soon as it's back in stock.
TSW304 - Din Rail Ethernet Switchā‚¹ 13,699.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

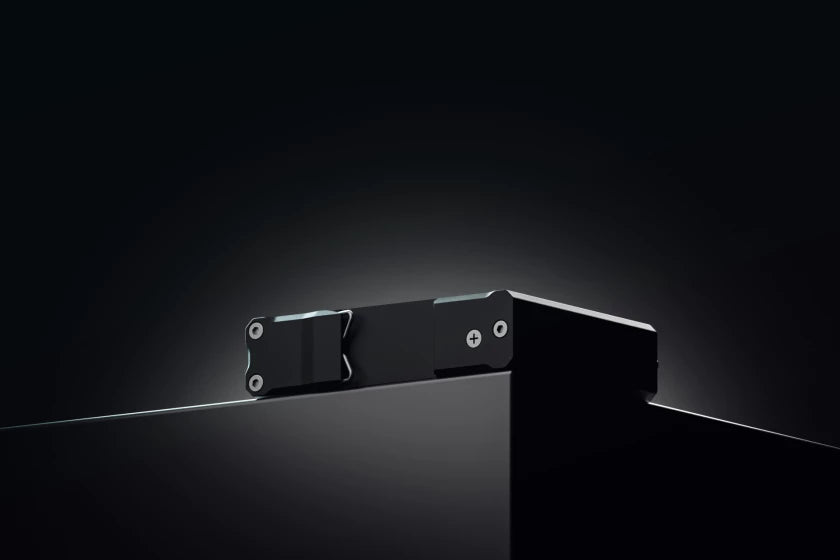

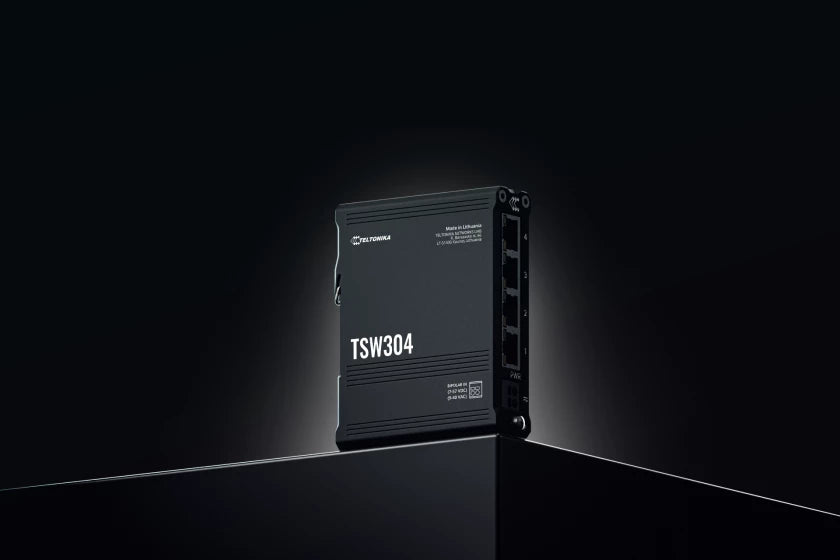

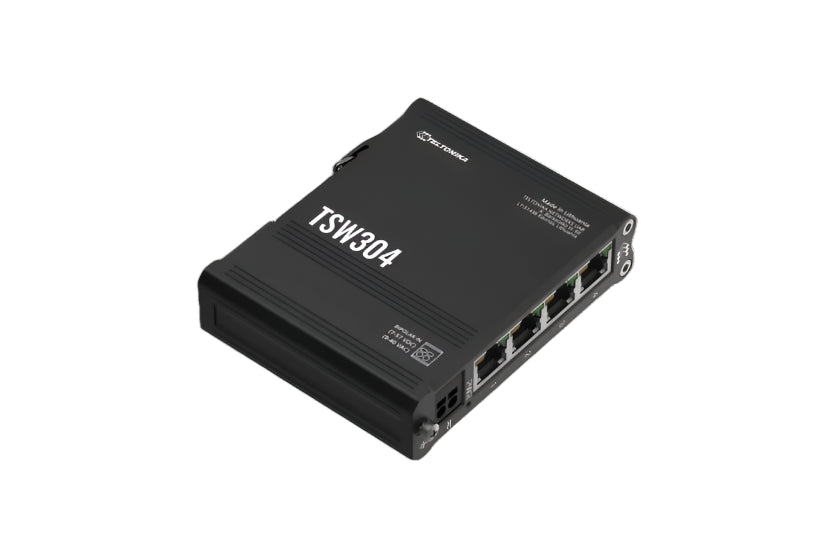

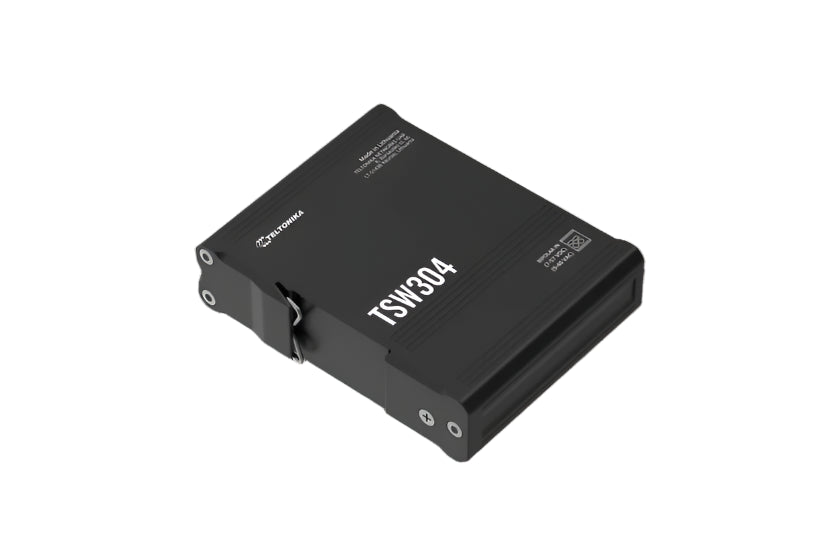

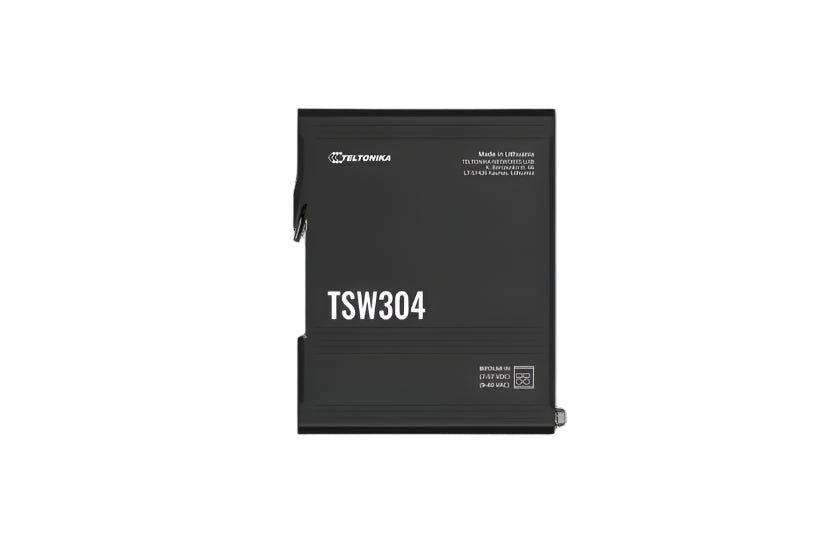

TSW304 is the tiniest Ethernet switch in the Teltonika Networks portfolio, made with the industrial application scenarios in mind. This ultra-small device comes with an integrated DIN rail mounting option and will easily find its place in any server cabinet. Durable design and shock-resistant casing make it perfect for even the most challenging industrial environments.

Standard package*

  • TSW304
  • QSG (Quick Start Guide)
  • Packaging box

*Standard package contents may differ based on standard order codes.

Features

Ethernet

Feature Specification
Ports 4 x ETH ports, 10/100/1000 Mbps
Auto MDI/MDIX Crossover Support Yes
IEEE 802.3 Standards 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Performance Specifications

Specification Details
Bandwidth (Non-blocking) 8 Gbps
Packet Buffer 128 KB
MAC Address Table Size 2K entries
Jumbo Frame Support Up to 9216 bytes

Ā

Power

Feature Specification
Connector 2-pin industrial DC power socket
Input Voltage Range 7 - 57 VDC; 9 - 40 VAC
PoE (Passive) Supported through ETH1, Mode B, 9 - 30 VDC, not compatible with IEEE802.3af/at/bt standards
Power Consumption Idle: 0.26 W / Max: 1.44 W

Physical Interfaces

Feature Specification

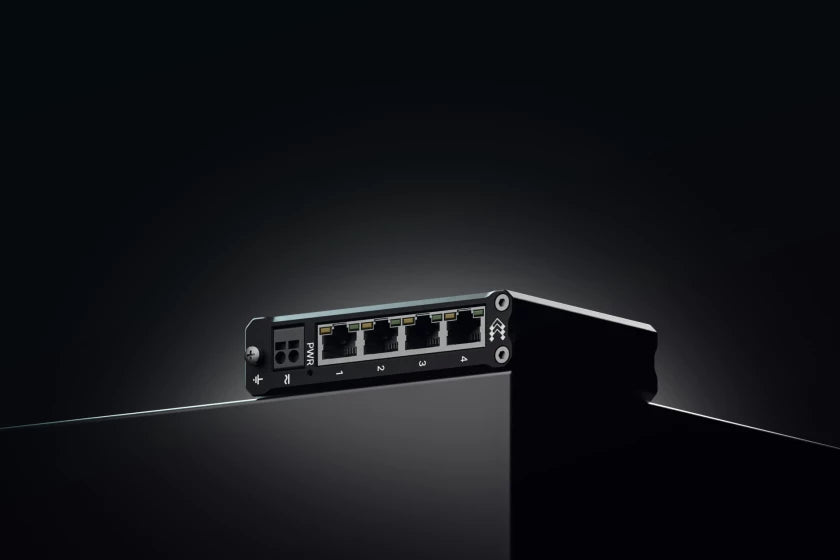

Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
Status LEDs 8 x ETH status LEDs, 1 x Power LED
Power 1 x 2-pin industrial DC power socket
Other 1 x Grounding screw

Physical Specification

Feature Specification
Casing Material Aluminium housing
Dimensions (W x H x D) 102 x 25 x 81.5 mm
Weight 210 g
Mounting Options Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating Environment

Feature Specification
Operating Temperature -40 Ā°C to 75 Ā°C
Operating Humidity 5% to 95% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Feature Specification
Regulatory Certifications CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM

Safety

Feature Specification
Standards EN IEC 62368-1:2020+A11:2020
Environmental Testing Standards IEC 60068-2-6:2007, IEC 60068-2-27:2008, IEC 60068-2-31:2008

Ā

Downloads

Manual & Documentation


Links

What are the main network ports and capabilities of the switch?
It has 4 x RJ45 ports with 10/100/1000 Mbps and Auto MDI/MDIX crossover. It supports jumbo frames up to 9216 bytes and a 2K MAC address table with non blocking bandwidth of 8 Gbps.
Is the device suitable for harsh industrial environments?
Yes, it features an aluminium housing, shock resistant casing, a wide operating temperature range from -40 C to 75 C, and an IP30 rated enclosure with integrated DIN rail mounting.
How is power supplied and is PoE supported?
Power is provided via a 2 pin industrial DC power socket with 7-57 VDC or 9-40 VAC. Passive PoE is supported through ETH1 Mode B with 9-30 VDC, not compatible with IEEE 802.3 af/at/bt standards.
What mounting options and physical dimensions does the unit have?
It includes an integrated DIN rail bracket and can also be wall mounted or mounted on a flat surface with an additional kit. The dimensions are 102 x 25 x 81.5 mm and it weighs 210 g.
Where can I access manuals and what regulatory approvals apply?
Downloads include the TSW304 flyer, datasheet, quick start guide and user manual. Regulatory approvals include CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB and RCM.
