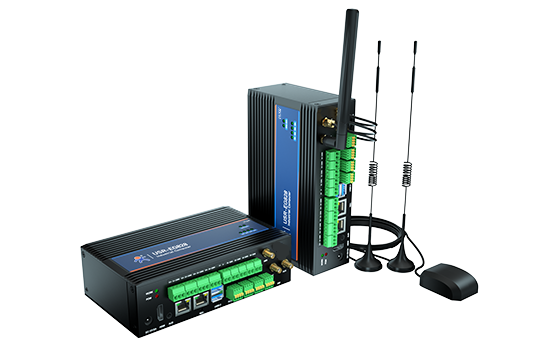

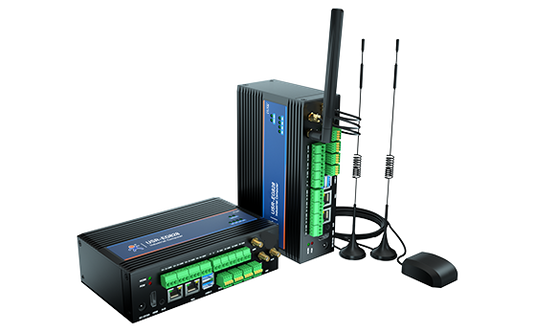

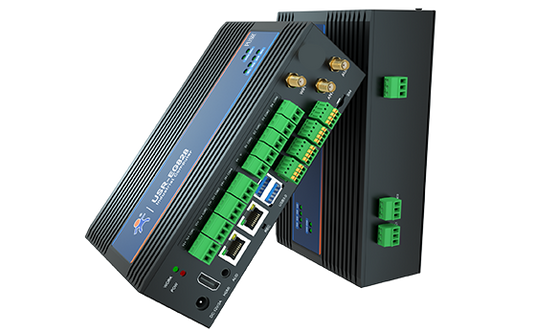

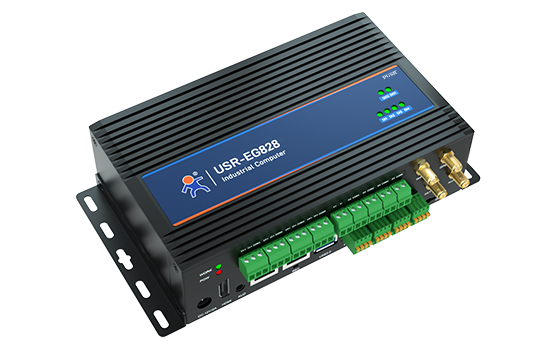

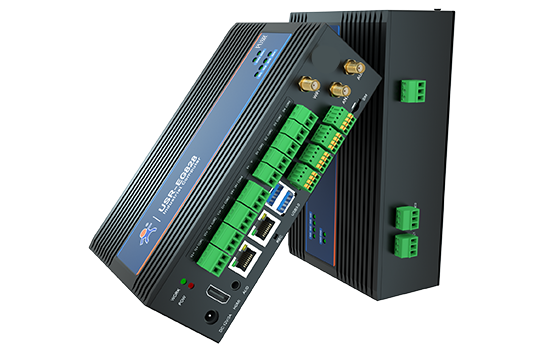

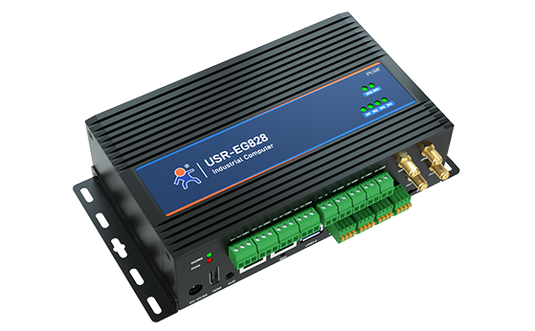

USR-EG828-G4
ARM Industrial mini PC
EG828 is an ARM embedded industrial computer with powerful processor. It has built-in edge computing, edge acquisition functions and AI intelligent algorithms. It is also a Linux open source and an ARM architecture industrial computer.
USR-EG828 | ARM Industrial mini Computer
USR-EG828 is a new generation of industrial box computer, supporting global 4G cellular frequencies. It is a Linux open source and an ARM architecture industrial computer which is eqquiped with a 4-core 64-bit high-performance ARM architecture CPU design with a main frequency of up to 2.0G ensuring the strong general computing performance. It has AI neural network processor NPU integrated, computing performance up to 1.0TOPS, support a variety of AI development tools and interfaces. It comes with Linux OS with Android OS optional.
Powerful Hardware Performance
1. Processor: Rockchip RK3568, ARM architecture, Cortex-A55 with 4-core 64-it, main frequency up to 2.0 GHz
2. GPU: ARM G52 2EE GPU, embedded high performance 2D acceleration hardware
3. AI Algorithm: Improve edge computing speed with AI power based on 1 Tops
4. Memery&Storage: 4G DDR, 32G SSD

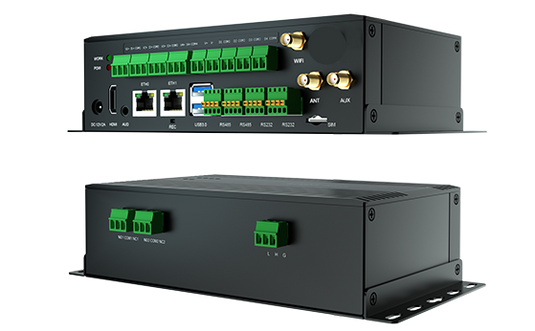

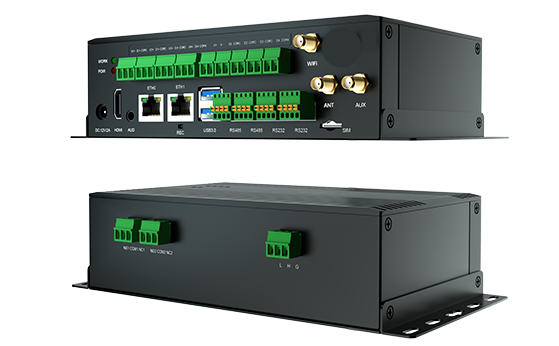

Rich Hardware Interface
I/Os: AI, DI, DO.
Serial Port: RS232, RS485, CAN.
Others: Ethernet ports, WiFi, GPS, USB3.2, etc.
eSIM supported(Need Customized).
Linux OS, Easy For Your Deployment Of Applications
1. Released Linux Ubuntu 20.04 version, supporting visual development
2. Full integration of interface driver, faster application development
3. Re-installed Node-RED and Docker, save your time
Multi-Network Access, Reliable Data Transmission
1. Support globle 4G cellular networks, Gigabit Ethernet and Wi-Fi, mutual backup of networks
2. Built-in router function: VPN, firewall, and network diagnosis to ensure data security
3. With PUSR platform, can realize remote networking, quick network construction
Edge Computing Gateway
1. Built-in edge computing service, simple configuration, fast application
2. Support multiple industry protocols and PLC protocols, applicable for different device
3. Local linkage, flexible reporting method, communication with MQTT server or mainsteam IoT platform
Support Video AI Model
1. Support AI model such as: Caffe/Mxnet/TensorFlow/TF Lite/ONNX/Darknet
2. Rich examples, perfect execution of marginal AI tasks, such as face recognition, speech recognition, image recognition, etc
Widely Used
1. Intelligent retail, vending machines, express cabinets, food delivery cabinets, advertising machines, energy storage cabinet industrial computer;
2. Industrial automation equipment, telecommunication servers, intelligent manufacturing, smart grid, energy monitoring controller;
3. Intelligent medical treatment, medical machinery equipment, remote diagnosis and treatment, medical image analysis, medical ECG monitor;
4. Intelligent vehicle gateway, AGV robot, intelligent traffic video surveillance, automatic driving, intelligent driving test;
5. Building energy saving controller, recycling cabinet, intelligent water and electric meter monitoring, fire gas safety monitoring.
Selection List
Note: Available variant is USR-EG828-G4, without GPS.
Specification
| CPU | Rockchip RK3568 Quad-core ARM Cortex-A55 64bit CPU, up to 2.0GHz |
| GPU | ARM G52 2EE GPU Support OpenGLES1.1/2.0/3.2, OpenCL2.0, Vulkan1.1, embedded high performance 2D acceleration hardware |
| NPU | 1.0TOPS@INT8 Support Caffe/Mxnet/TensorFlow/TFLite/ONNX/Darknet models. |
| Operating System | Linux Ubuntu 20.04 |
| RAM | DDR4 4GB |
| ROM | eMMC 32GB |
| Network | Dual 10/100 Ethernet ports 2.4GHz Wi-Fi 802.11b/g/n 4G mobile network |
| GPS | GPS, GLONASS, BDS, Galileo and QZSS Protocol: NMEA 0183 Data update rate: 1 Hz by default Sensitivity: -162dBm Receive frequency: 1575.42MHz Acquisition Autonomous -146 dBm Tracking Autonomous -157 dBm Accuracy: Autonomous @ open sky 10m |
| SIM | 1*SIM slot Nano-SIM(4FF) |
| Displays | 1*HDMI OUT 2.0, 4K 60fps |
| Audio | 1 * Ear output |
| RTC | Built-in real-time clock battery, supports scheduled power on/off. |
| USB | 1*USB3.0 HOST 1 * USB 3.0 OTG |
| LED | 1*PowerLED(RED), 1*SystemLED(Blue, blinking) 2*DO LED 4*DI LED |
| Button | 1*upgrade for OTA, REC |
| Serial Ports | 2*RS232, 2*RS485 |
| IO | 4*DI: dry/wet contact --DI voltage range 0-36V (Max. 36V), High 5-36V, Low 0-2V 2*DO: Relay --DO Max. 10A-277VAC/28VDC for NO, 5A-250VAC for NC 4*AI: Analog quantity --Voltage range 0-10V; Analog input Current range 4~20mA |
| Power Input | DC12V/2A (Max. 15V) Connector: Jack Barrel Type DC5.5*2.1mm Round socket |
| Working Temperature | -10 ~ 70°C |
| Storage Temperature | -20 ~ 70°C |
| Working Humidity | 10%-80% |
| Dimension | 160mm*85mm*28mm |
| Multi-media | Support for 4K 60fps H.265/H.264 Video decoding Support for 1080P 100fps H.265/H.264 Video decoding Support for 8 MISP, and support for HDR |
| Language | Default English, and you can download other languages online |
| Input Method | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
Resources
| Documents | Download |
| Utilities | Download |
| Certificate | Download |
Package Content
| Quantity | Item |
| 1x | USR-EG828 |
| 1x | Ethernet Cable |
| 1x | 12V/2A Power Supply |
| 3x | Antenna |

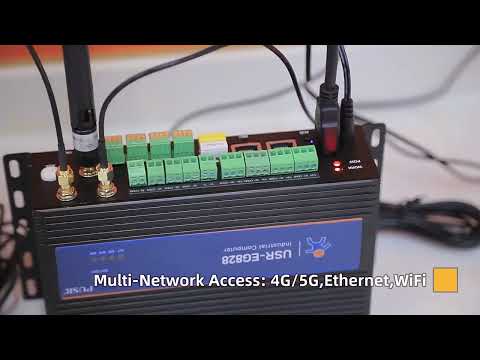

Video
