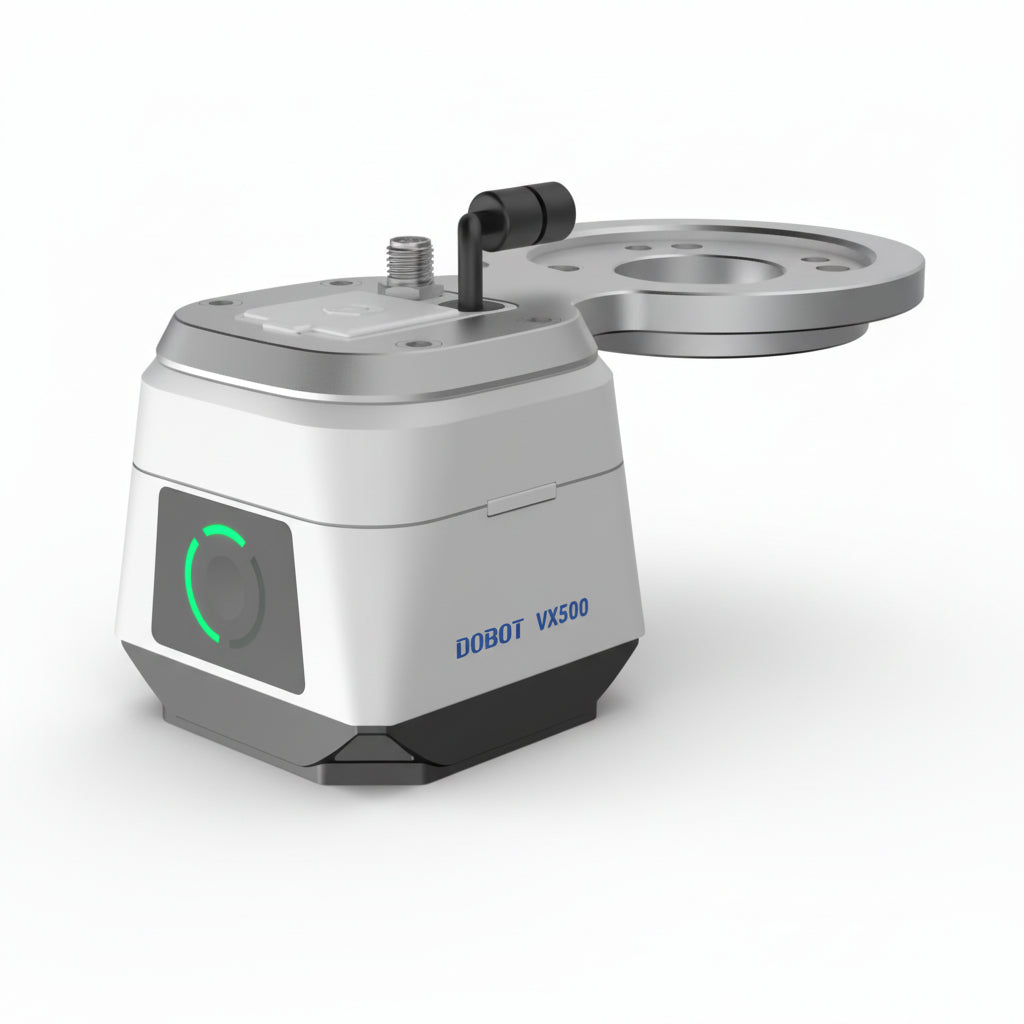

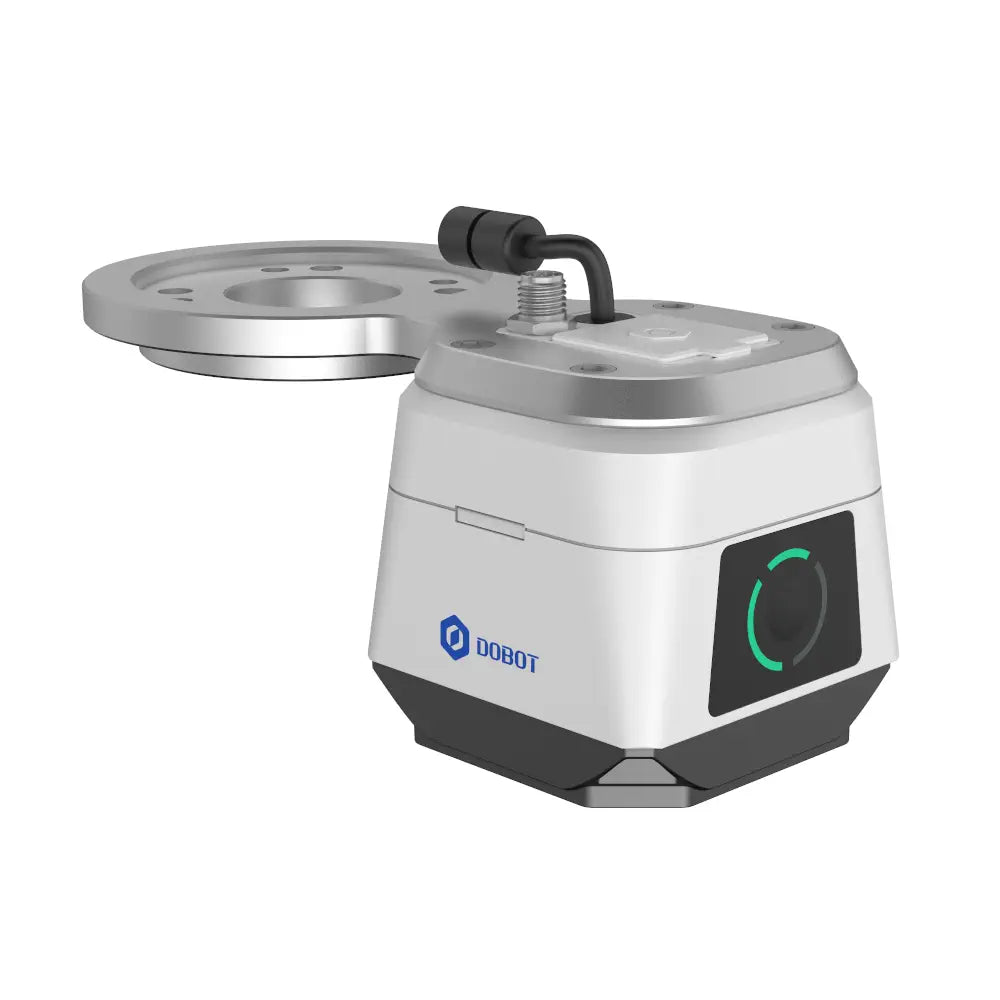

The VX500 Smart Camera features a 5-megapixel industrial camera combined with an integrated LED light source and Dobot’s self-developed 2.5D spatial compensation technology. It delivers positioning accuracy of up to ±0.26 mm, making it ideal for precision vision applications.
The VX500 supports a wide range of industrial scenarios including grabbing slanted object surfaces, fixed-position assembly, AMMR robot transportation, and automated loading and unloading tasks. With visualizable operation software, deployment is fast and development complexity is significantly reduced.
With Dobot self-developed 2.5D spatial compensation technology, it can accurately identify target object’s horizontal and tilt angles with accuracy up to ±0.5 mm, allowing robots to capably dealing with complex scenarios having uneven floors and disorderly objects.
Integrates various types of fault preventing inspection algorithms for tasks such as material positioning, barcode and character identification, width and diameter measurement, gray scale measurement and more.
Works with the DobotStudioPro operation software to allow setting up solutions through quick guidance without the need of handling complex procedures in developmental work. It supports graphical programming which is easy to familiarized and can increase the efficiency of solution deployment.
| Camera | |
|---|---|
| Sensor Type | CMOS, Global Shutter |
| Pixel Size | 3.2 µm × 3.2 µm |
| Sensor Size | 1/1.7" |
| Resolution | 2368 × 1760 |
| Pixel Format | Mono 8 |
| Color | Black & White |

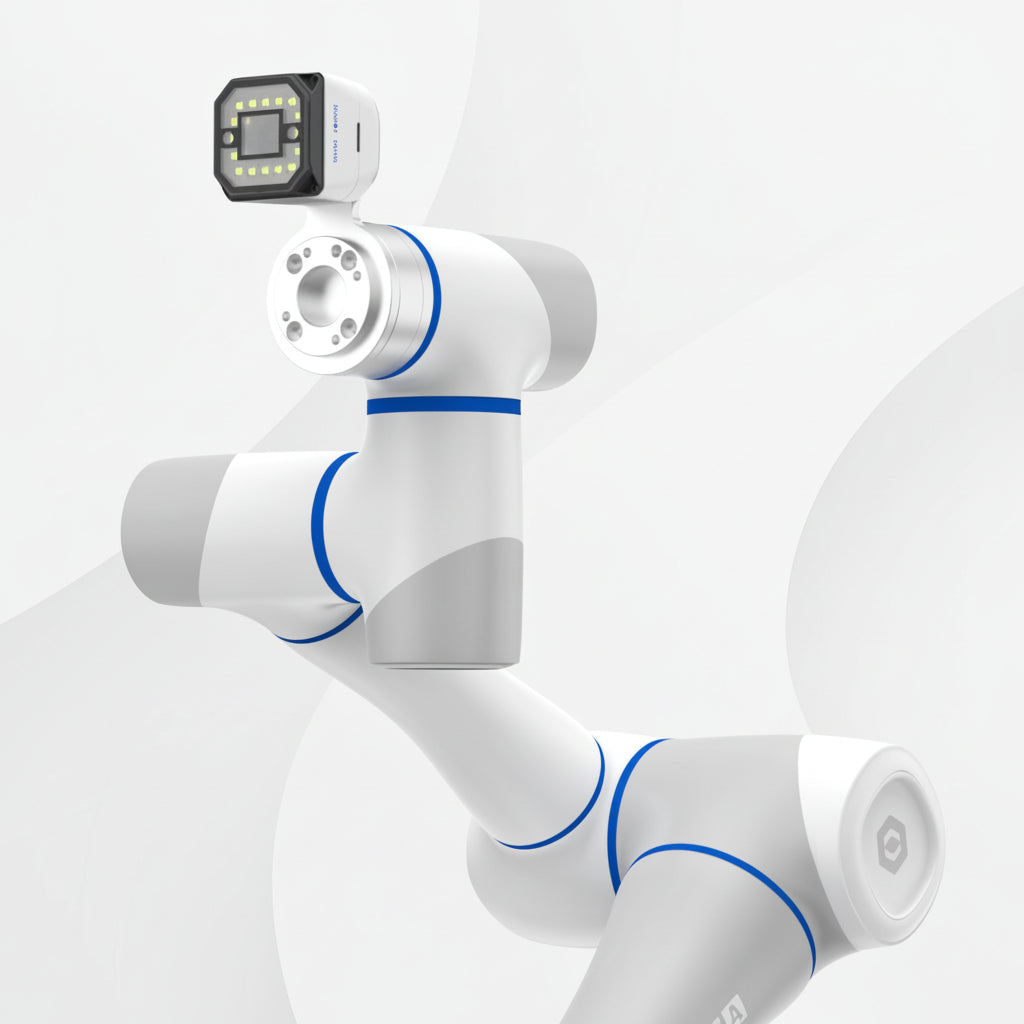

| Compatible Robots | CRA Series (CR3A, CR5A, CR7A, CR10A, CR12A, CR16A, CR20A) |
| Components | |
| Lens Connector | M12 Mount, Mechanical Focusing |
| Focal Length | 12.4 mm |

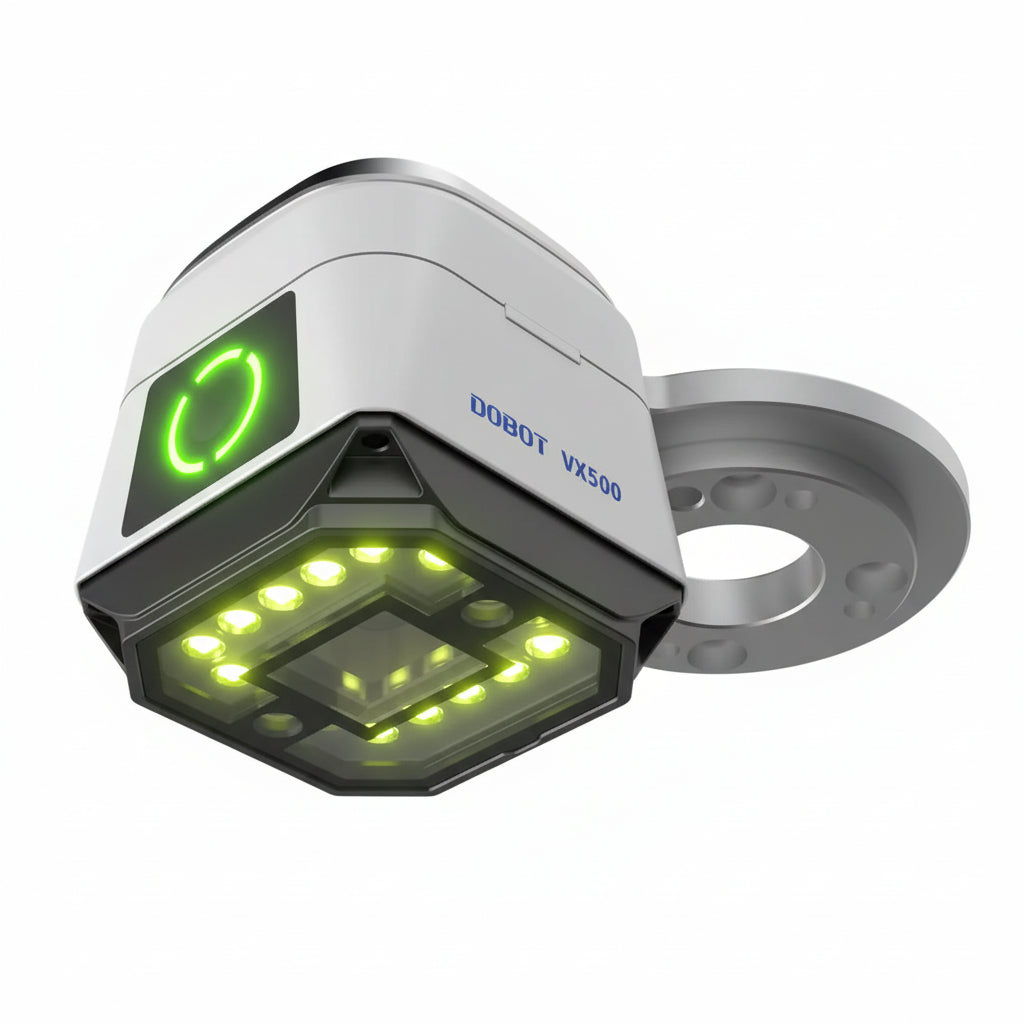

| Light Source | 14 LEDs, White |
| User Guide | Download |
