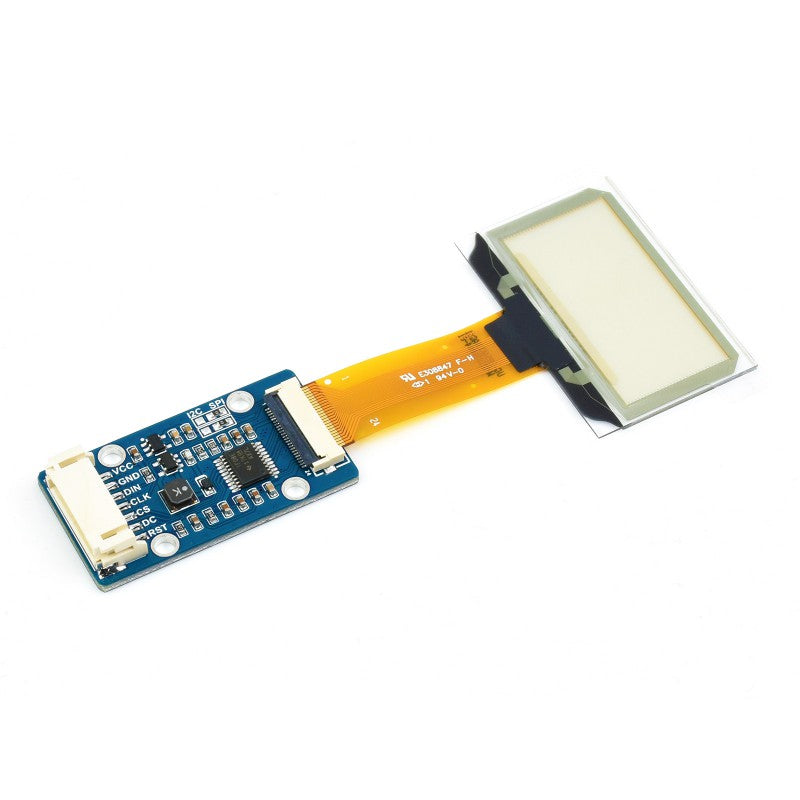

1.51inch Transparent OLED, 128Ɨ64 Resolution, SPI/I2C Interfaces, Light Blue Color Display

Embedded Independent Driver Chip, Using SPI/I2C Interfaces

Comes with examples for Raspberry Pi, Arduino, STM32, etc.


Ā Features:

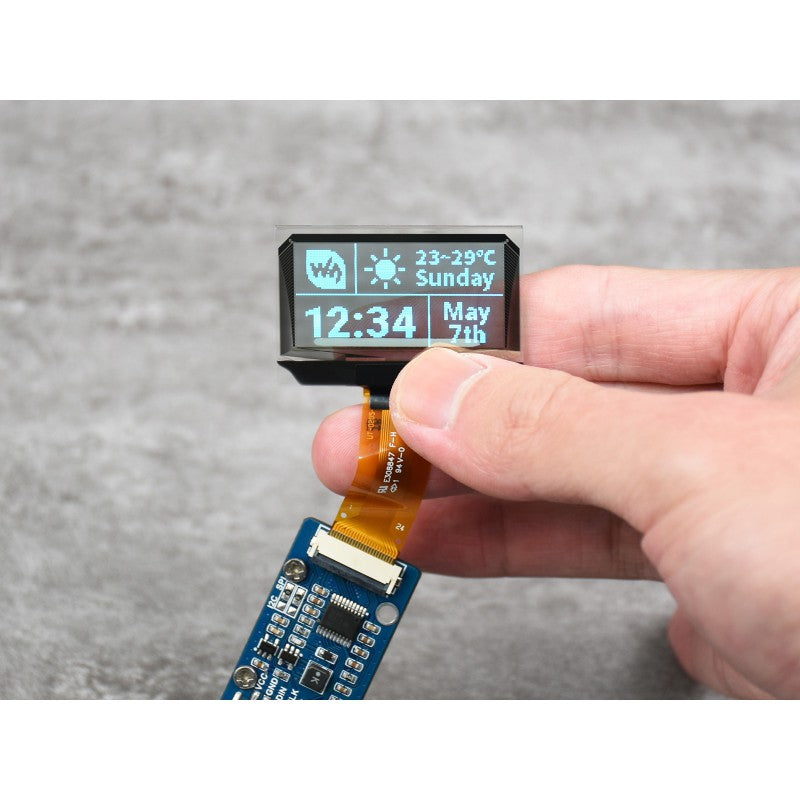

  • OLED transparent module, full viewing angle
  • Adopts 4-wire SPI and I2C interface, better compatibility, fast data rate
  • Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Specifications:

  • Operating voltage: 3.3V / 5V
  • Pixel Pitch:Ā 0.274 Ɨ 0.274mm
  • Interface: 4-wire SPI / I2C

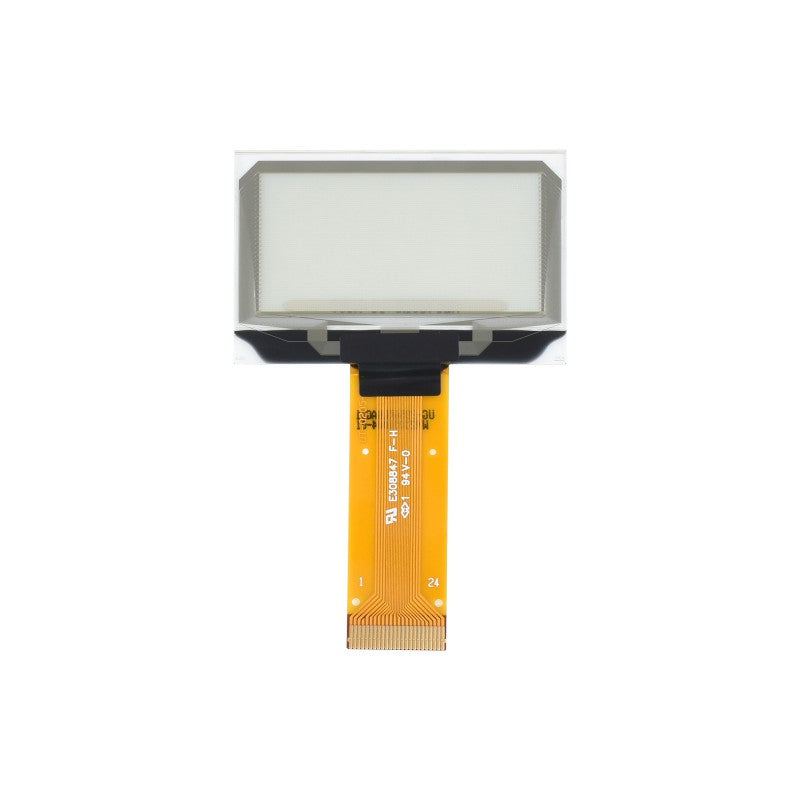

  • Display Panel:Ā OLED
  • Driver: Embedded driver
  • Resolution: 128 Ɨ 64 pixels
  • Module Size:Ā 42.04 Ɨ 27.22mm
  • Display Size: 35.05 Ɨ 15.32 mm
  • Pixel Size: 0.254 Ɨ 0.254 mm

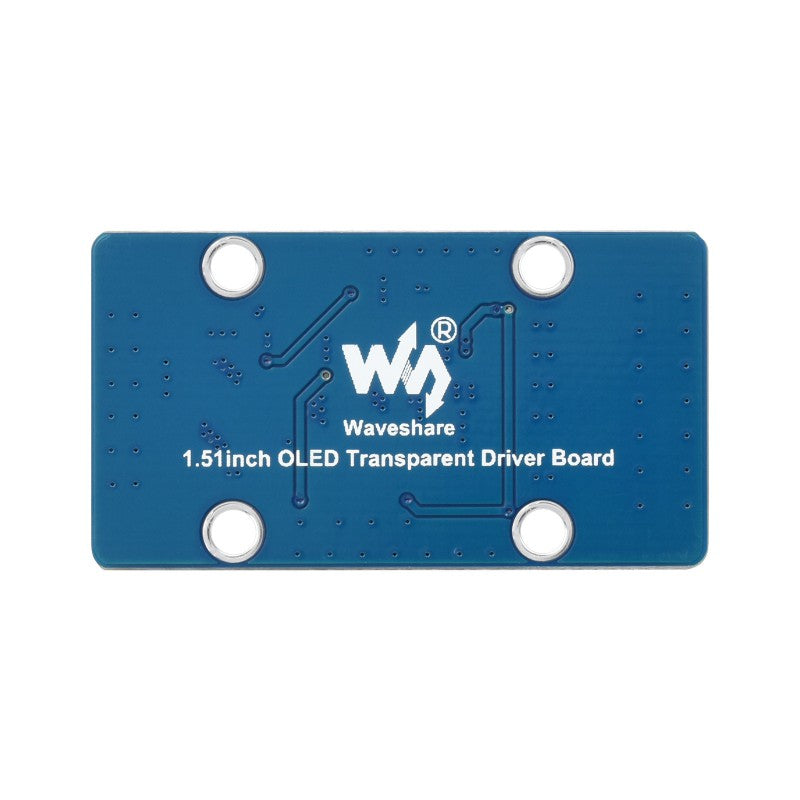

  • Driver Board Size: 41 Ɨ 22.5 mm

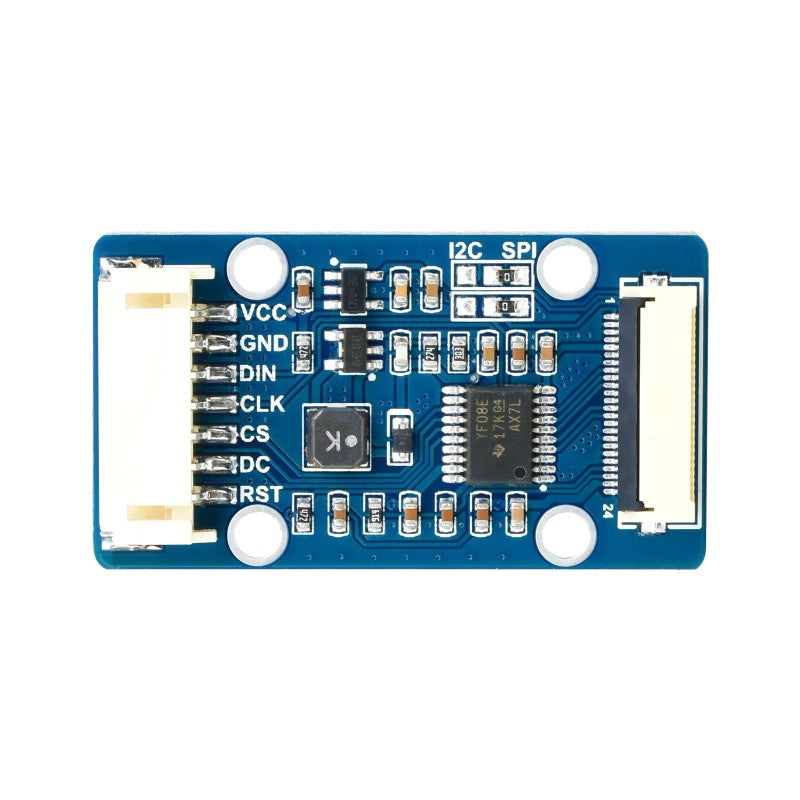

SPI And I2C Control Interface Switching

Supports Controller Boards Like Raspberry Pi/Arduino/STM32

  • VCC - 3.3V / 5V power input
  • GND - Ground
  • DIN - Data Input / SPI MOSI pin
  • CLK - Clock / SPI SCK pin
  • CS - SPI chip selection, low active
  • DC - Data/Command selection (high for data, low for command)
  • RST - External reset, low active



Outline Dimensions

Wiki:Ā www.waveshare.com/wiki/1.51inch_Transparent_OLED

What interfaces does this OLED module support and how do I choose between them?
It supports both 4 wire SPI and I2C interfaces and you can use the appropriate wiring and library examples for your board to select the interface.
What is the display size and resolution of the module?
The display is 1.51 inches diagonally with a 128 by 64 pixel resolution.
What voltage is required to power the module?
The module supports 3.3V or 5V supply and has a VCC input for either voltage.
Which development environments are supported and where can I find examples?
Development resources include examples for Raspberry Pi, Arduino and STM32 to help you get started.
Where can I find documentation and technical details for this product?
Documentation and setup guidance are available on the Waveshare wiki at www.waveshare.com/wiki/1.51inch_Transparent_OLED.
