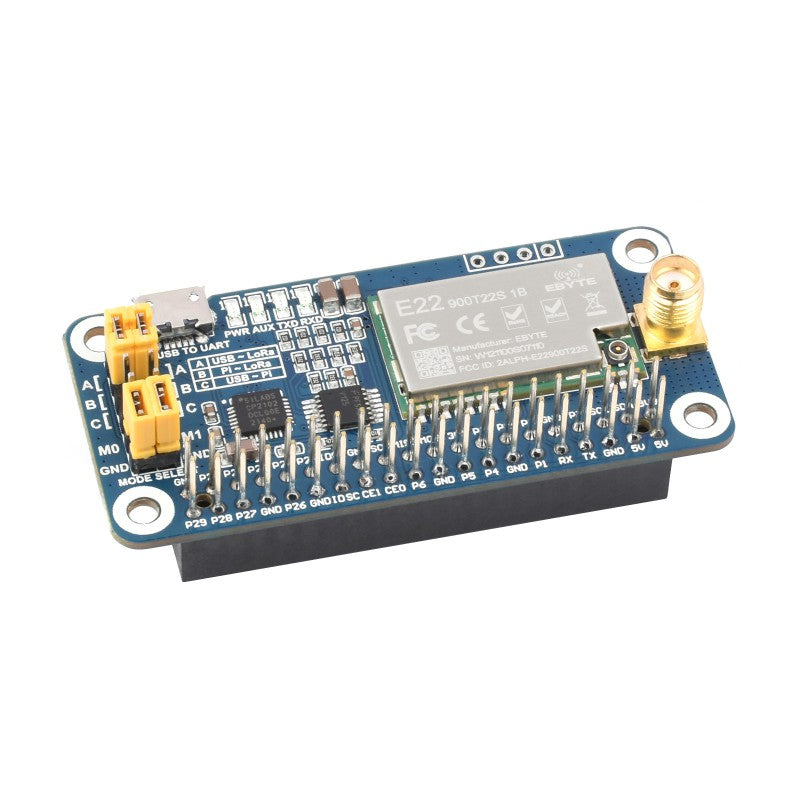

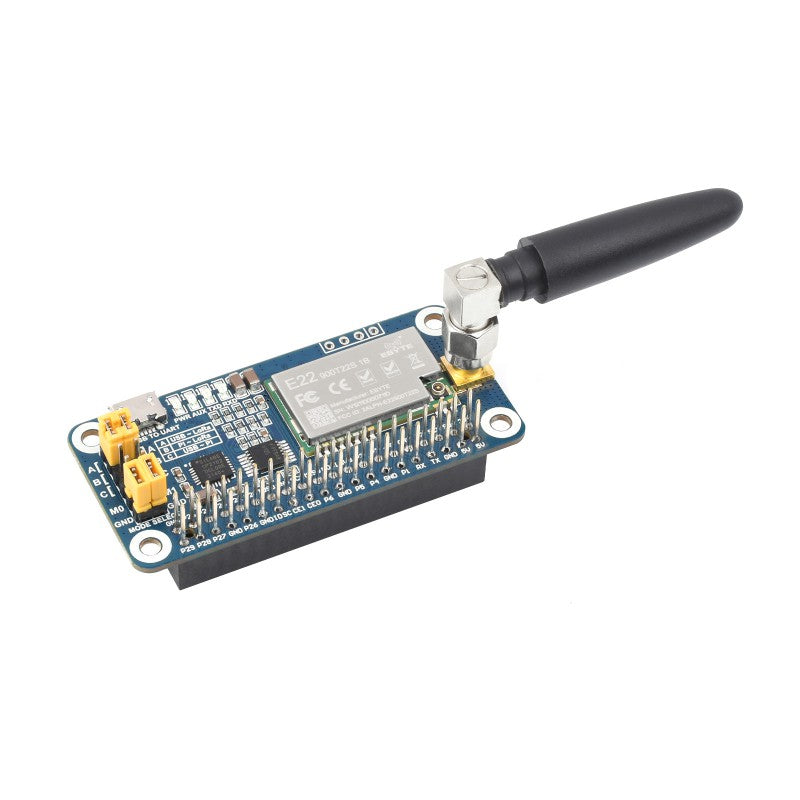

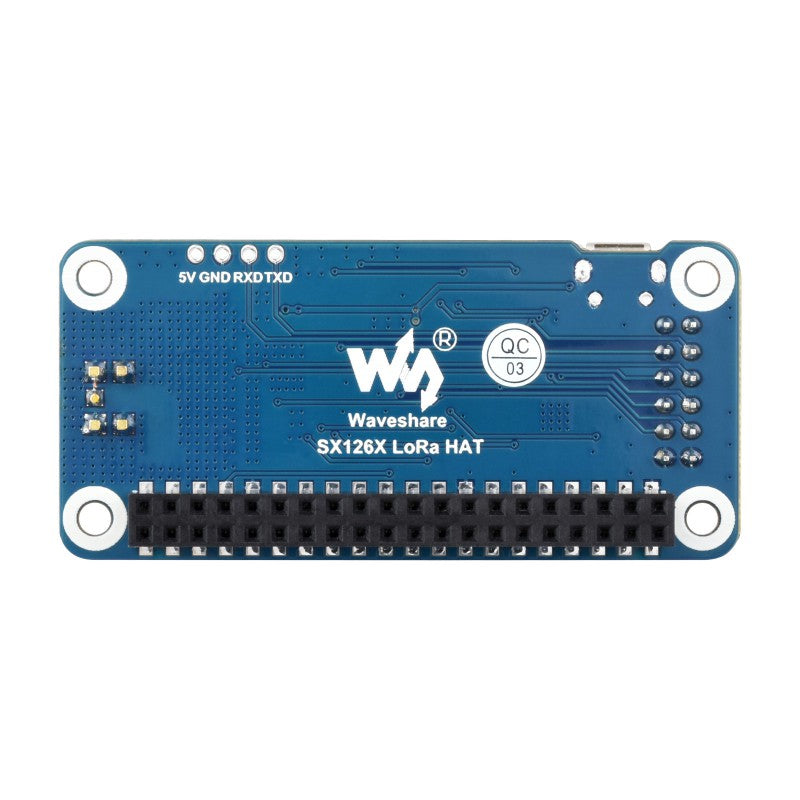

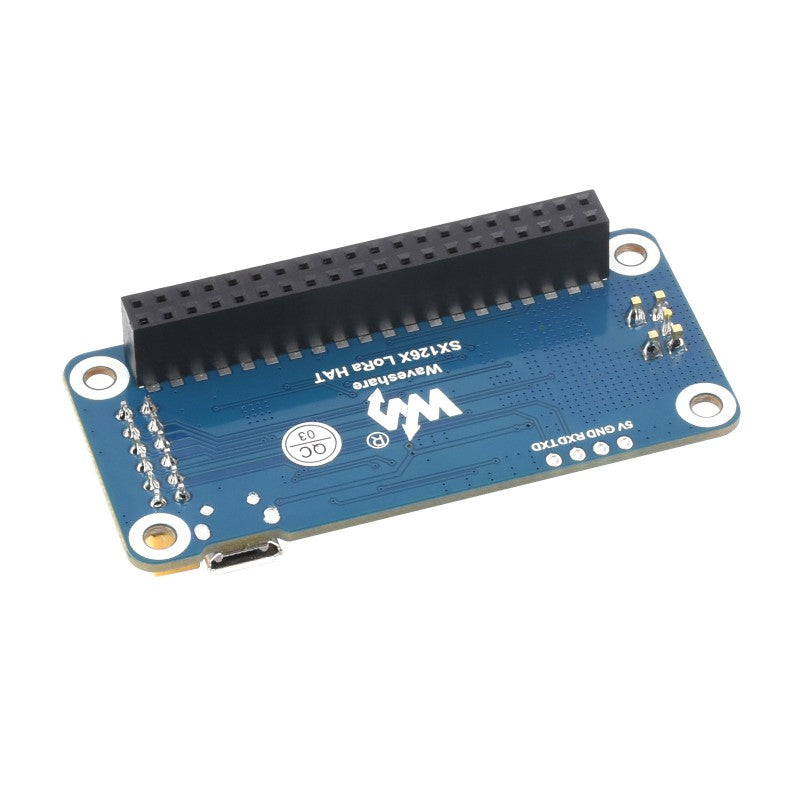

Name: Waveshare SX1262 LoRa HAT for Raspberry Pi 868M
Brand: Waveshare
SKU: SBC2042
Price: 2199.99 INR
Availability: InStock

{"id":6629098487894,"title":"Waveshare SX1262 LoRa HAT for Raspberry Pi 868M","handle":"waveshare-sx1262-lora-hat-for-raspberry-pi-online","description":"\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch1 class=\"richTitle\" style=\"text-align: center;\"\u003eRaspberry Pi SX1262 LoRa HAT\u003c\/h1\u003e\n\u003cp class=\"hilitBlock2 round1234\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-1.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003cblockquote\u003e\n\u003cdiv class=\"msg msg_warning\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003eThis series does not support LoRaWAN protocol.\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/blockquote\u003e\n\u003c\/div\u003e\n\u003ch2 data-mce-fragment=\"1\"\u003eFeatures\u003c\/h2\u003e\n\u003cdiv class=\"pdT\"\u003e\n\u003cdiv class=\"bgGrey alignl mgnTB\"\u003e\n\u003cp\u003eBy utilizing the new generation LoRa spread spectrum modulation technology, the communication distance of SX126X LoRa HAT is as long as 5km, also supports auto repeating to transmit longer. Other features include Wake on Radio, wireless config, carrier sensing, communication key, and so on.\u003c\/p\u003e\n\u003cp\u003eComparing with normal SX127X LoRa modules, the SX126X LoRa HAT achieves longer communication distance, higher rate, lower consumption, better safety and anti-interference, suitable for various applications such as industrial control, smart home, data collection, etc.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eAdopts SX1262\/SX1268 module, options for 433M \/ 470M \/ 868M \/ 915M frequency band\u003c\/li\u003e\n\u003cli\u003eStandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards\u003c\/li\u003e\n\u003cli\u003eOnboard CP2102 USB TO UART converter, for serial debugging\u003c\/li\u003e\n\u003cli\u003eBrings the UART control interface, for connecting host boards like Arduino\/STM32\u003c\/li\u003e\n\u003cli\u003e4x LED indicators, easy to check the module status\u003c\/li\u003e\n\u003cli\u003eLoRa spread spectrum modulation technology, up to 81 available signal channels, longer communication distance, more robust to interference\u003c\/li\u003e\n\u003cli\u003eAuto multi-level repeating, suit for ultra long range communication, allows multi network on the same region\u003c\/li\u003e\n\u003cli\u003eLow power consumption features like deep sleeping and Wake on Radio, ideal for battery-powered applications\u003c\/li\u003e\n\u003cli\u003eCustomizable communication key which won't be retrieved, greatly improves the security of user data\u003c\/li\u003e\n\u003cli\u003eSupports LBT, monitoring the signal channel noise before transmitting, greatly improves the success ratio under extreme environment\u003c\/li\u003e\n\u003cli\u003eSupports RSSI signal intensity indicating, for evaluating signal quality, tuning the network\u003c\/li\u003e\n\u003cli\u003eSupports wireless parameter configuration, by sending wireless command\/data packet, remotely configure or retrieve the module parameter\u003c\/li\u003e\n\u003cli\u003eSupports fixed-point transmission, broadcast, signal channel monitor\u003c\/li\u003e\n\u003cli\u003eComes with online development resources and manual (examples for Raspberry Pi\/STM32)\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003cdiv\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eSelection Guide\u003c\/h2\u003e\n\u003ctable class=\"tabSty-2 mgnTB alignc\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth\u003e \u003c\/th\u003e\n\u003cth\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sx1262-868m-lora-hat.htm?sku=16805\"\u003eSX1268 470M LORA HAT\u003c\/a\u003e\u003c\/th\u003e\n\u003cth\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sx1262-868m-lora-hat.htm?sku=16804\"\u003eSX1268 433M LORA HAT\u003c\/a\u003e\u003c\/th\u003e\n\u003cth\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sx1262-868m-lora-hat.htm?sku=16806\"\u003eSX1262 868M LORA HAT\u003c\/a\u003e\u003c\/th\u003e\n\u003cth\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sx1262-868m-lora-hat.htm?sku=16807\"\u003eSX1262 915M LORA HAT\u003c\/a\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRF module\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eSX1268\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eSX1262\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eFrequency band\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e410.125 ~ 493.125MHz\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e850.125 ~ 930.125MHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eAntenna\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e470MHz antenna (2dBi)\u003c\/td\u003e\n\u003ctd\u003e433MHz antenna (2dBi)\u003c\/td\u003e\n\u003ctd\u003e868MHz antenna (2dBi)\u003c\/td\u003e\n\u003ctd\u003e915MHz antenna (2dBi)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRadio rate\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e0.3kbps ~ 62.5kbps (programmable)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmit power\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e22.0dBm (10\/13\/17\/22dBm programmable)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eReceive sensitivity\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e-147dBm (radio rate 2.4kbps)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePower consumption\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eTransmit current: 110mA (transient consumption)\u003cbr\u003eReceive current: 11mA\u003cbr\u003eSleep current: 2uA (LoRa module software shutoff)\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eTransmit current: 133mA (transient consumption)\u003cbr\u003eReceive current: 11mA\u003cbr\u003eSleep current: 2uA (LoRa module software shutoff)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCommunication interface\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003eUART (TTL level)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBaudrate\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e1200bps ~ 115200bps (9600bps by default)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePacket length\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e240 Byte (32\/64\/128\/240 Byte programmable)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCache\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e1000 Byte\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eExperimental range\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e5km (condition: cloudless and wild, altitude 2.5m, antenna gain 5dBi, radio rate 2.4kbps)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePower supply\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eLogic level\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e3.3V\/5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating temperature\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e-40~85℃\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eApplications\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003esmart home, industrial sensors, building automation, smart meters, and other IoT applications\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"note\"\u003e\n\u003ctd rowspan=\"2\"\u003e\u003cstrong\u003eApplicable region\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eChina\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eEurope, Asia, Africa\u003c\/td\u003e\n\u003ctd\u003eAmerica, Oceania, Asia\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"note\"\u003e\n\u003ctd colspan=\"4\"\u003eNote: for reference only, please confirm the local supported LoRa bands before placing an order.\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cp data-mce-fragment=\"1\"\u003e \u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eConnect To Raspberry Pi Series Boards\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\"\u003e\u003cspan style=\"color: rgb(194, 0, 1);\"\u003e\u003cstrong\u003eStandard Raspberry Pi 40PIN GPIO Extension Header, Support Raspberry Pi Series Boards\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-5.jpg\"\u003e\n\u003cp class=\"note\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003e\u003cem\u003e* for reference only, the Raspberry Pi boards are NOT included.\u003c\/em\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eFaster Transmission Speed\u003c\/h2\u003e\n\u003ch4 class=\"richDesc\" style=\"text-align: center;\"\u003eThe Radio Rate Is Up To 62.5kbps, 3X The Speed Of The SX127X Series LoRa Module\u003c\/h4\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-7.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eSupports Long-Distance Transmission\u003c\/h2\u003e\n\u003cp class=\"richDesc\" style=\"text-align: center;\"\u003e\u003cstrong\u003eThe LoRa Spread Spectrum Transmission Distance Of The SX126X Series Is Up To 5000m, Which Is 65% Longer Than The SX127X LoRa Module With The Same Power\u003c\/strong\u003e\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-9.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch3 class=\"richTitle\" style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003e \u003c\/span\u003e\u003c\/h3\u003e\n\u003ch3 class=\"richTitle\" style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003eSupports Wake On Radio, Low Power Consumption And More Power Saving\u003c\/span\u003e\u003c\/h3\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-11.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eSupports Multiple Transmission Methods\u003c\/h2\u003e\n\u003ch4 class=\"richDesc\" style=\"text-align: center;\"\u003eFixed-Point Transmission, Broadcast, Fixed-Point Broadcast, Channel Monitoring\u003c\/h4\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-13.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-15.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eWhat's On Board\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-intro.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003cdiv class=\"richGridWrap richGridWrap-valignTop richGridWrap-2c alignl subBlock bgGrey\"\u003e\n\u003cdiv\u003e\n\u003col\u003e\n\u003cli style=\"text-align: left;\"\u003e\u003cstrong\u003eSX1268\/SX1262 LoRa module\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\n\u003cstrong\u003e74HC125V:\u003c\/strong\u003e\u003cbr\u003evoltage level translator\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\n\u003cstrong\u003eCP2102:\u003c\/strong\u003e\u003cbr\u003eUSB TO UART converter\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\n\u003cstrong\u003eRaspberry Pi GPIO connector:\u003c\/strong\u003e\u003cbr\u003efor connecting with Raspberry Pi\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\u003cstrong\u003eUSB TO UART port\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\n\u003cstrong\u003eUART header:\u003c\/strong\u003e\u003cbr\u003efor connecting host boards like STM32\/Arduino\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\u003cstrong\u003eSMA antenna connector\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\u003cstrong\u003eIPEX antenna connector\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\n\u003cstrong\u003eIndicators:\u003c\/strong\u003e\u003cbr\u003eRXD\/TXD: UART RX\/TX indicator\u003cbr\u003eAUX: auxiliary indicator\u003cbr\u003ePWR: power indicator\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\n\u003cstrong\u003eUART selection jumpers\u003c\/strong\u003e\u003cbr\u003eA: control the LoRa module through USB TO UART\u003cbr\u003eB: control the LoRa module through Raspberry Pi\u003cbr\u003eC: access Raspberry Pi through USB TO UART\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\n\u003cstrong\u003eLoRa mode selection jumpers\u003c\/strong\u003e\u003cbr\u003eshort M0, short M1: transmission mode\u003cbr\u003eshort M0, open M1: configuration mode\u003cbr\u003eopen M0, short M1: WOR mode\u003cbr\u003eopen M0, open M1: deep sleep mode\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eApplication Example\u003c\/h2\u003e\n\u003ch3 style=\"text-align: center;\" class=\"hilitBlock2 round1234\"\u003e\u003cspan style=\"color: rgb(194, 0, 1);\"\u003eSmart wireless meter solution\u003c\/span\u003e\u003c\/h3\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\"\u003e\u003cstrong\u003eAutomatic Monitoring And Data Collection, Reducing Labor Costs; Wireless Transmission, No Need For Cable Connection, Easy To Install. LoRa Spread Spectrum Has Strong Anti-Interference Ability And Supports Stable Transmission In The Complex Environment\u003c\/strong\u003e\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-17.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eApplication Scenarios\u003c\/h2\u003e\n\u003ctable style=\"margin: auto; width: 90%;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 0px; text-align: center; vertical-align: top;\"\u003e\n\u003cimg class=\"round1234\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-19-1.jpg\"\u003e\n\u003cp\u003e\u003cstrong\u003eIndustrial manufacturing\u003c\/strong\u003e\u003cbr\u003eUsing Short-range wireless signal transmission to replace signal cables in the industrial field, which can reduce wiring and improve production efficiency, easy to manage\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"border: 0px; text-align: center; vertical-align: top;\"\u003e\n\u003cimg class=\"round1234\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-19-2.jpg\"\u003e\n\u003cp\u003e\u003cstrong\u003eSmart home\u003c\/strong\u003e\u003cbr\u003eThe physical layer technology solution of Home IoT with good diffraction performance and wide coverage for villa-level deployment\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 0px; text-align: center; vertical-align: top;\"\u003e\n\u003cimg class=\"round1234\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-19-3.jpg\"\u003e\n\u003cp\u003e\u003cstrong\u003eSmart Farm\u003c\/strong\u003e\u003cbr\u003eAccurately monitor the details of each operation area for statistical management and finding potential risks at the first time\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"border: 0px; text-align: center; vertical-align: top;\"\u003e\n\u003cimg class=\"round1234\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-19-4.jpg\"\u003e\n\u003cp\u003e\u003cstrong\u003eHotel Scheme\u003c\/strong\u003e\u003cbr\u003eSupports large data volume access points, which can facilitate centralized management in the backend, reduce manpower for inspections and improve regulatory efficiency\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp data-mce-fragment=\"1\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eOutline Dimensions\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-size.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eResources\u003c\/h2\u003e\n\u003cp\u003e\u003cstrong\u003eWiki: \u003c\/strong\u003e\u003ca href=\"http:\/\/www.waveshare.com\/wiki\/SX1262_868M_LoRa_HAT\" target=\"_blank\"\u003ewww.waveshare.com\/wiki\/SX1262_868M_LoRa_HAT\u003c\/a\u003e\u003c\/p\u003e\n\u003cdiv class=\"bgGrey\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003e \u003c\/h2\u003e\n\u003ch2\u003ePackage Contains:\u003c\/h2\u003e\n\u003cp\u003e\u003cstrong\u003eWeight: \u003c\/strong\u003e\u003cspan\u003e0.071 kg\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv class=\"std\"\u003e\n\u003col\u003e\n\u003cli\u003eSX1268 868M LoRa HAT x1\u003c\/li\u003e\n\u003cli\u003e868MHz Antenna x1\u003c\/li\u003e\n\u003cli\u003eUSB type A plug to micro plug cable x1\u003c\/li\u003e\n\u003cli\u003eScrews pack x1\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cdiv class=\"imgTextWrap\"\u003e\n\u003cdiv\u003e1 \u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX1268-433M-LoRa-HAT-4_220.jpg\"\u003e2\u003ca href=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX1268-433M-LoRa-HAT-10.jpg\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX1268-433M-LoRa-HAT-10_220.jpg\"\u003e\u003c\/a\u003e3\u003ca href=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX1268-433M-LoRa-HAT-11.jpg\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX1268-433M-LoRa-HAT-11_93.jpg\"\u003e\u003c\/a\u003e4\u003ca href=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX1268-433M-LoRa-HAT-12.jpg\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX1268-433M-LoRa-HAT-12_93.jpg\"\u003e\u003c\/a\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2022-12-06T11:09:59+05:30","created_at":"2021-09-12T18:37:39+05:30","vendor":"Waveshare","type":"Single Board Computers","tags":["16806","868 Mhz","868Mhz","Lora","lora 868Mhz","lora hat","LORA kit","lora module","lora shield","LORA-MOD","lorawan","Raspberry Pi","raspberry pi 3 model b+","Raspberry Pi 3B","raspberry pi 4","Raspberry pi 4 1GB","Raspberry pi 4 2GB","Raspberry pi 4 4GB","Raspberry pi 4 8GB","raspberry pi hat","raspberry pi kit","raspberry pi lora hat","Raspberry Pi Pico","raspberry pi zero","Rpi","rpi 3","rpi 3a+","Rpi 4","rpi hat","rpi IOT module","rpi lora hat","Rpi PoE","rpi zero","rpi4","RPIHAT","rpizero wireless","sbc2","WAVESHARE","WVSH"],"price":219999,"price_min":219999,"price_max":219999,"available":true,"price_varies":false,"compare_at_price":299999,"compare_at_price_min":299999,"compare_at_price_max":299999,"compare_at_price_varies":false,"variants":[{"id":39537100161110,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"SBC2042","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Waveshare SX1262 LoRa HAT for Raspberry Pi 868M","public_title":null,"options":["Default Title"],"price":219999,"weight":100,"compare_at_price":299999,"inventory_management":"shopify","barcode":"39537100161110","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1262-868m-lora-hat-2_5.jpg?v=1717127669","\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1268-433m-lora-hat-3_2.jpg?v=1717127669","\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1262-868m-lora-hat-4_3.jpg?v=1717127669","\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1268-433m-lora-hat-5_2.jpg?v=1717127669","\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1262-868m-lora-hat-1_5.jpg?v=1717127669","\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1262-868m-lora-hat-7_3.jpg?v=1717127669","\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1262-868m-lora-hat-6_2.jpg?v=1717127669"],"featured_image":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1262-868m-lora-hat-2_5.jpg?v=1717127669","options":["Title"],"media":[{"alt":null,"id":38573418217789,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1262-868m-lora-hat-2_5.jpg?v=1717127669"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1262-868m-lora-hat-2_5.jpg?v=1717127669","width":800},{"alt":null,"id":38573418185021,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1268-433m-lora-hat-3_2.jpg?v=1717127669"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1268-433m-lora-hat-3_2.jpg?v=1717127669","width":800},{"alt":null,"id":38573418152253,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1262-868m-lora-hat-4_3.jpg?v=1717127669"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1262-868m-lora-hat-4_3.jpg?v=1717127669","width":800},{"alt":null,"id":38573418086717,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1268-433m-lora-hat-5_2.jpg?v=1717127669"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1268-433m-lora-hat-5_2.jpg?v=1717127669","width":800},{"alt":null,"id":38573417988413,"position":5,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1262-868m-lora-hat-1_5.jpg?v=1717127669"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1262-868m-lora-hat-1_5.jpg?v=1717127669","width":800},{"alt":null,"id":38573418021181,"position":6,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1262-868m-lora-hat-7_3.jpg?v=1717127669"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1262-868m-lora-hat-7_3.jpg?v=1717127669","width":800},{"alt":null,"id":38573418053949,"position":7,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1262-868m-lora-hat-6_2.jpg?v=1717127669"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sx1262-868m-lora-hat-6_2.jpg?v=1717127669","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch1 class=\"richTitle\" style=\"text-align: center;\"\u003eRaspberry Pi SX1262 LoRa HAT\u003c\/h1\u003e\n\u003cp class=\"hilitBlock2 round1234\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-1.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003cblockquote\u003e\n\u003cdiv class=\"msg msg_warning\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003eThis series does not support LoRaWAN protocol.\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/blockquote\u003e\n\u003c\/div\u003e\n\u003ch2 data-mce-fragment=\"1\"\u003eFeatures\u003c\/h2\u003e\n\u003cdiv class=\"pdT\"\u003e\n\u003cdiv class=\"bgGrey alignl mgnTB\"\u003e\n\u003cp\u003eBy utilizing the new generation LoRa spread spectrum modulation technology, the communication distance of SX126X LoRa HAT is as long as 5km, also supports auto repeating to transmit longer. Other features include Wake on Radio, wireless config, carrier sensing, communication key, and so on.\u003c\/p\u003e\n\u003cp\u003eComparing with normal SX127X LoRa modules, the SX126X LoRa HAT achieves longer communication distance, higher rate, lower consumption, better safety and anti-interference, suitable for various applications such as industrial control, smart home, data collection, etc.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eAdopts SX1262\/SX1268 module, options for 433M \/ 470M \/ 868M \/ 915M frequency band\u003c\/li\u003e\n\u003cli\u003eStandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards\u003c\/li\u003e\n\u003cli\u003eOnboard CP2102 USB TO UART converter, for serial debugging\u003c\/li\u003e\n\u003cli\u003eBrings the UART control interface, for connecting host boards like Arduino\/STM32\u003c\/li\u003e\n\u003cli\u003e4x LED indicators, easy to check the module status\u003c\/li\u003e\n\u003cli\u003eLoRa spread spectrum modulation technology, up to 81 available signal channels, longer communication distance, more robust to interference\u003c\/li\u003e\n\u003cli\u003eAuto multi-level repeating, suit for ultra long range communication, allows multi network on the same region\u003c\/li\u003e\n\u003cli\u003eLow power consumption features like deep sleeping and Wake on Radio, ideal for battery-powered applications\u003c\/li\u003e\n\u003cli\u003eCustomizable communication key which won't be retrieved, greatly improves the security of user data\u003c\/li\u003e\n\u003cli\u003eSupports LBT, monitoring the signal channel noise before transmitting, greatly improves the success ratio under extreme environment\u003c\/li\u003e\n\u003cli\u003eSupports RSSI signal intensity indicating, for evaluating signal quality, tuning the network\u003c\/li\u003e\n\u003cli\u003eSupports wireless parameter configuration, by sending wireless command\/data packet, remotely configure or retrieve the module parameter\u003c\/li\u003e\n\u003cli\u003eSupports fixed-point transmission, broadcast, signal channel monitor\u003c\/li\u003e\n\u003cli\u003eComes with online development resources and manual (examples for Raspberry Pi\/STM32)\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003cdiv\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eSelection Guide\u003c\/h2\u003e\n\u003ctable class=\"tabSty-2 mgnTB alignc\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth\u003e \u003c\/th\u003e\n\u003cth\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sx1262-868m-lora-hat.htm?sku=16805\"\u003eSX1268 470M LORA HAT\u003c\/a\u003e\u003c\/th\u003e\n\u003cth\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sx1262-868m-lora-hat.htm?sku=16804\"\u003eSX1268 433M LORA HAT\u003c\/a\u003e\u003c\/th\u003e\n\u003cth\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sx1262-868m-lora-hat.htm?sku=16806\"\u003eSX1262 868M LORA HAT\u003c\/a\u003e\u003c\/th\u003e\n\u003cth\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sx1262-868m-lora-hat.htm?sku=16807\"\u003eSX1262 915M LORA HAT\u003c\/a\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRF module\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eSX1268\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eSX1262\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eFrequency band\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e410.125 ~ 493.125MHz\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e850.125 ~ 930.125MHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eAntenna\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e470MHz antenna (2dBi)\u003c\/td\u003e\n\u003ctd\u003e433MHz antenna (2dBi)\u003c\/td\u003e\n\u003ctd\u003e868MHz antenna (2dBi)\u003c\/td\u003e\n\u003ctd\u003e915MHz antenna (2dBi)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRadio rate\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e0.3kbps ~ 62.5kbps (programmable)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmit power\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e22.0dBm (10\/13\/17\/22dBm programmable)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eReceive sensitivity\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e-147dBm (radio rate 2.4kbps)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePower consumption\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eTransmit current: 110mA (transient consumption)\u003cbr\u003eReceive current: 11mA\u003cbr\u003eSleep current: 2uA (LoRa module software shutoff)\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eTransmit current: 133mA (transient consumption)\u003cbr\u003eReceive current: 11mA\u003cbr\u003eSleep current: 2uA (LoRa module software shutoff)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCommunication interface\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003eUART (TTL level)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBaudrate\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e1200bps ~ 115200bps (9600bps by default)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePacket length\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e240 Byte (32\/64\/128\/240 Byte programmable)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCache\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e1000 Byte\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eExperimental range\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e5km (condition: cloudless and wild, altitude 2.5m, antenna gain 5dBi, radio rate 2.4kbps)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePower supply\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eLogic level\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e3.3V\/5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating temperature\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e-40~85℃\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eApplications\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003esmart home, industrial sensors, building automation, smart meters, and other IoT applications\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"note\"\u003e\n\u003ctd rowspan=\"2\"\u003e\u003cstrong\u003eApplicable region\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eChina\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eEurope, Asia, Africa\u003c\/td\u003e\n\u003ctd\u003eAmerica, Oceania, Asia\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"note\"\u003e\n\u003ctd colspan=\"4\"\u003eNote: for reference only, please confirm the local supported LoRa bands before placing an order.\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cp data-mce-fragment=\"1\"\u003e \u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eConnect To Raspberry Pi Series Boards\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\"\u003e\u003cspan style=\"color: rgb(194, 0, 1);\"\u003e\u003cstrong\u003eStandard Raspberry Pi 40PIN GPIO Extension Header, Support Raspberry Pi Series Boards\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-5.jpg\"\u003e\n\u003cp class=\"note\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003e\u003cem\u003e* for reference only, the Raspberry Pi boards are NOT included.\u003c\/em\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eFaster Transmission Speed\u003c\/h2\u003e\n\u003ch4 class=\"richDesc\" style=\"text-align: center;\"\u003eThe Radio Rate Is Up To 62.5kbps, 3X The Speed Of The SX127X Series LoRa Module\u003c\/h4\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-7.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eSupports Long-Distance Transmission\u003c\/h2\u003e\n\u003cp class=\"richDesc\" style=\"text-align: center;\"\u003e\u003cstrong\u003eThe LoRa Spread Spectrum Transmission Distance Of The SX126X Series Is Up To 5000m, Which Is 65% Longer Than The SX127X LoRa Module With The Same Power\u003c\/strong\u003e\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-9.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch3 class=\"richTitle\" style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003e \u003c\/span\u003e\u003c\/h3\u003e\n\u003ch3 class=\"richTitle\" style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003eSupports Wake On Radio, Low Power Consumption And More Power Saving\u003c\/span\u003e\u003c\/h3\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-11.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eSupports Multiple Transmission Methods\u003c\/h2\u003e\n\u003ch4 class=\"richDesc\" style=\"text-align: center;\"\u003eFixed-Point Transmission, Broadcast, Fixed-Point Broadcast, Channel Monitoring\u003c\/h4\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-13.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-15.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eWhat's On Board\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-intro.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003cdiv class=\"richGridWrap richGridWrap-valignTop richGridWrap-2c alignl subBlock bgGrey\"\u003e\n\u003cdiv\u003e\n\u003col\u003e\n\u003cli style=\"text-align: left;\"\u003e\u003cstrong\u003eSX1268\/SX1262 LoRa module\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\n\u003cstrong\u003e74HC125V:\u003c\/strong\u003e\u003cbr\u003evoltage level translator\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\n\u003cstrong\u003eCP2102:\u003c\/strong\u003e\u003cbr\u003eUSB TO UART converter\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\n\u003cstrong\u003eRaspberry Pi GPIO connector:\u003c\/strong\u003e\u003cbr\u003efor connecting with Raspberry Pi\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\u003cstrong\u003eUSB TO UART port\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\n\u003cstrong\u003eUART header:\u003c\/strong\u003e\u003cbr\u003efor connecting host boards like STM32\/Arduino\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\u003cstrong\u003eSMA antenna connector\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\u003cstrong\u003eIPEX antenna connector\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\n\u003cstrong\u003eIndicators:\u003c\/strong\u003e\u003cbr\u003eRXD\/TXD: UART RX\/TX indicator\u003cbr\u003eAUX: auxiliary indicator\u003cbr\u003ePWR: power indicator\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\n\u003cstrong\u003eUART selection jumpers\u003c\/strong\u003e\u003cbr\u003eA: control the LoRa module through USB TO UART\u003cbr\u003eB: control the LoRa module through Raspberry Pi\u003cbr\u003eC: access Raspberry Pi through USB TO UART\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e\n\u003cstrong\u003eLoRa mode selection jumpers\u003c\/strong\u003e\u003cbr\u003eshort M0, short M1: transmission mode\u003cbr\u003eshort M0, open M1: configuration mode\u003cbr\u003eopen M0, short M1: WOR mode\u003cbr\u003eopen M0, open M1: deep sleep mode\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eApplication Example\u003c\/h2\u003e\n\u003ch3 style=\"text-align: center;\" class=\"hilitBlock2 round1234\"\u003e\u003cspan style=\"color: rgb(194, 0, 1);\"\u003eSmart wireless meter solution\u003c\/span\u003e\u003c\/h3\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\"\u003e\u003cstrong\u003eAutomatic Monitoring And Data Collection, Reducing Labor Costs; Wireless Transmission, No Need For Cable Connection, Easy To Install. LoRa Spread Spectrum Has Strong Anti-Interference Ability And Supports Stable Transmission In The Complex Environment\u003c\/strong\u003e\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-17.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eApplication Scenarios\u003c\/h2\u003e\n\u003ctable style=\"margin: auto; width: 90%;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 0px; text-align: center; vertical-align: top;\"\u003e\n\u003cimg class=\"round1234\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-19-1.jpg\"\u003e\n\u003cp\u003e\u003cstrong\u003eIndustrial manufacturing\u003c\/strong\u003e\u003cbr\u003eUsing Short-range wireless signal transmission to replace signal cables in the industrial field, which can reduce wiring and improve production efficiency, easy to manage\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"border: 0px; text-align: center; vertical-align: top;\"\u003e\n\u003cimg class=\"round1234\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-19-2.jpg\"\u003e\n\u003cp\u003e\u003cstrong\u003eSmart home\u003c\/strong\u003e\u003cbr\u003eThe physical layer technology solution of Home IoT with good diffraction performance and wide coverage for villa-level deployment\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 0px; text-align: center; vertical-align: top;\"\u003e\n\u003cimg class=\"round1234\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-19-3.jpg\"\u003e\n\u003cp\u003e\u003cstrong\u003eSmart Farm\u003c\/strong\u003e\u003cbr\u003eAccurately monitor the details of each operation area for statistical management and finding potential risks at the first time\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"border: 0px; text-align: center; vertical-align: top;\"\u003e\n\u003cimg class=\"round1234\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-19-4.jpg\"\u003e\n\u003cp\u003e\u003cstrong\u003eHotel Scheme\u003c\/strong\u003e\u003cbr\u003eSupports large data volume access points, which can facilitate centralized management in the backend, reduce manpower for inspections and improve regulatory efficiency\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp data-mce-fragment=\"1\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eOutline Dimensions\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX126x-LoRa-HAT-details-size.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eResources\u003c\/h2\u003e\n\u003cp\u003e\u003cstrong\u003eWiki: \u003c\/strong\u003e\u003ca href=\"http:\/\/www.waveshare.com\/wiki\/SX1262_868M_LoRa_HAT\" target=\"_blank\"\u003ewww.waveshare.com\/wiki\/SX1262_868M_LoRa_HAT\u003c\/a\u003e\u003c\/p\u003e\n\u003cdiv class=\"bgGrey\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003e \u003c\/h2\u003e\n\u003ch2\u003ePackage Contains:\u003c\/h2\u003e\n\u003cp\u003e\u003cstrong\u003eWeight: \u003c\/strong\u003e\u003cspan\u003e0.071 kg\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv class=\"std\"\u003e\n\u003col\u003e\n\u003cli\u003eSX1268 868M LoRa HAT x1\u003c\/li\u003e\n\u003cli\u003e868MHz Antenna x1\u003c\/li\u003e\n\u003cli\u003eUSB type A plug to micro plug cable x1\u003c\/li\u003e\n\u003cli\u003eScrews pack x1\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cdiv class=\"imgTextWrap\"\u003e\n\u003cdiv\u003e1 \u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX1268-433M-LoRa-HAT-4_220.jpg\"\u003e2\u003ca href=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX1268-433M-LoRa-HAT-10.jpg\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX1268-433M-LoRa-HAT-10_220.jpg\"\u003e\u003c\/a\u003e3\u003ca href=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX1268-433M-LoRa-HAT-11.jpg\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX1268-433M-LoRa-HAT-11_93.jpg\"\u003e\u003c\/a\u003e4\u003ca href=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX1268-433M-LoRa-HAT-12.jpg\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SX126x-LoRa-HAT\/SX1268-433M-LoRa-HAT-12_93.jpg\"\u003e\u003c\/a\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}

Industrial manufacturing Using Short-range wireless signal transmission to replace signal cables in the industrial field, which can reduce wiring and improve production efficiency, easy to manage	Smart home The physical layer technology solution of Home IoT with good diffraction performance and wide coverage for villa-level deployment
Smart Farm Accurately monitor the details of each operation area for statistical management and finding potential risks at the first time	Hotel Scheme Supports large data volume access points, which can facilitate centralized management in the backend, reduce manpower for inspections and improve regulatory efficiency

Waveshare SX1262 LoRa HAT for Raspberry Pi 868M

Raspberry Pi SX1262 LoRa HAT

Features

Selection Guide

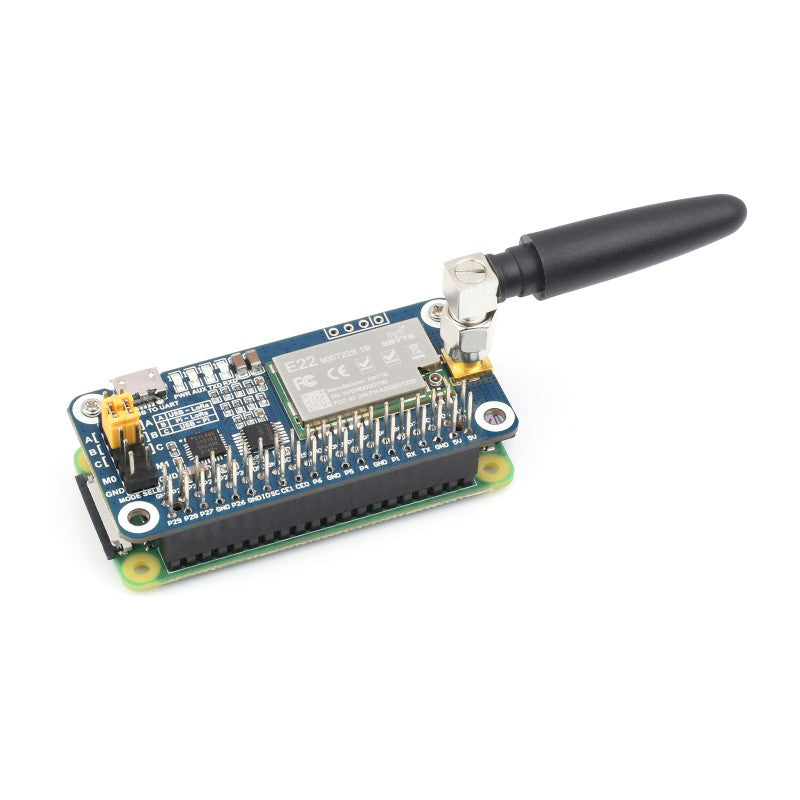

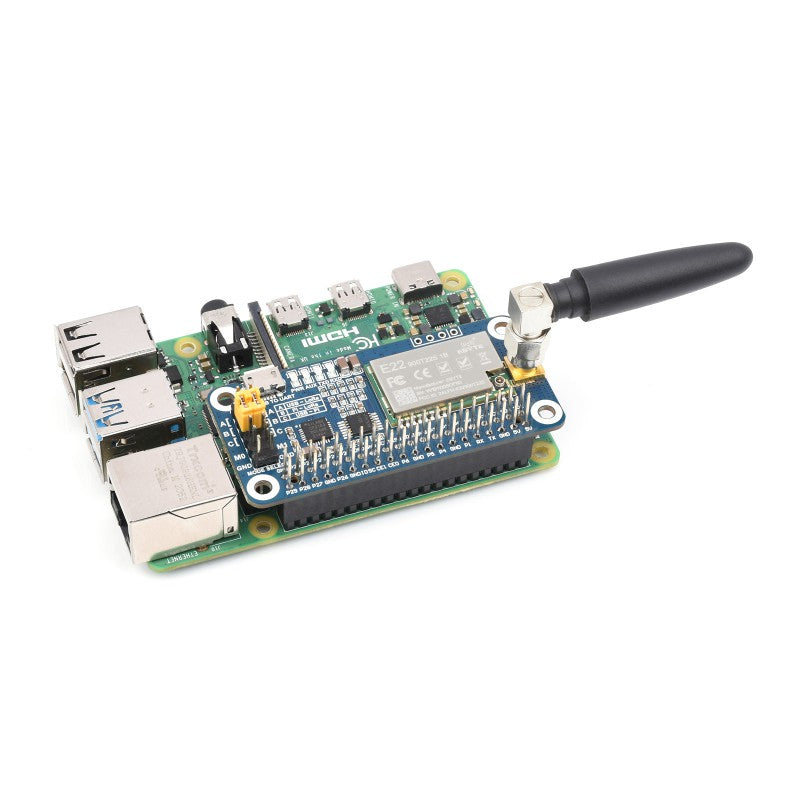

Connect To Raspberry Pi Series Boards

Faster Transmission Speed

The Radio Rate Is Up To 62.5kbps, 3X The Speed Of The SX127X Series LoRa Module

Supports Long-Distance Transmission

Supports Wake On Radio, Low Power Consumption And More Power Saving

Supports Multiple Transmission Methods

Fixed-Point Transmission, Broadcast, Fixed-Point Broadcast, Channel Monitoring

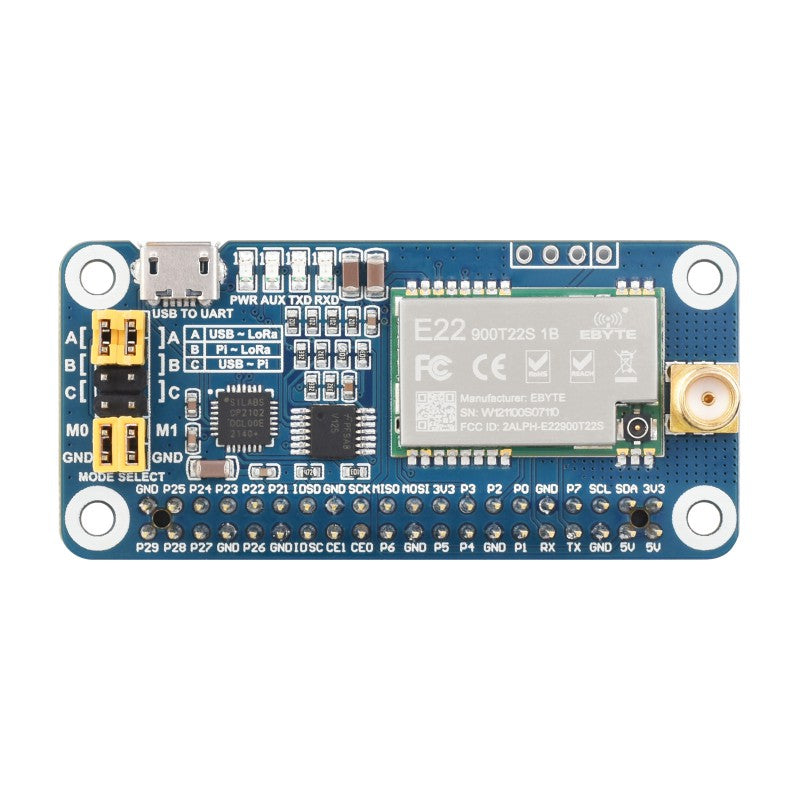

What's On Board

Application Example

Smart wireless meter solution

Application Scenarios

Outline Dimensions

Resources

Package Contains:

Want to buy in bulk?

Customer Reviews

Custom Requirements?

Download the ThinkRobotics Mobile App

We are here to serve you! Reach us at:

Popular Links

Shopping Cart

Let customers speak for us

	SX1268 470M LORA HAT	SX1268 433M LORA HAT	SX1262 868M LORA HAT	SX1262 915M LORA HAT
RF module	SX1268		SX1262
Frequency band	410.125 ~ 493.125MHz		850.125 ~ 930.125MHz
Antenna	470MHz antenna (2dBi)	433MHz antenna (2dBi)	868MHz antenna (2dBi)	915MHz antenna (2dBi)
Radio rate	0.3kbps ~ 62.5kbps (programmable)
Transmit power	22.0dBm (10/13/17/22dBm programmable)
Receive sensitivity	-147dBm (radio rate 2.4kbps)
Power consumption	Transmit current: 110mA (transient consumption) Receive current: 11mA Sleep current: 2uA (LoRa module software shutoff)		Transmit current: 133mA (transient consumption) Receive current: 11mA Sleep current: 2uA (LoRa module software shutoff)
Communication interface	UART (TTL level)
Baudrate	1200bps ~ 115200bps (9600bps by default)
Packet length	240 Byte (32/64/128/240 Byte programmable)
Cache	1000 Byte
Experimental range	5km (condition: cloudless and wild, altitude 2.5m, antenna gain 5dBi, radio rate 2.4kbps)
Power supply	5V
Logic level	3.3V/5V
Operating temperature	-40~85℃
Applications	smart home, industrial sensors, building automation, smart meters, and other IoT applications
Applicable region	China	Europe, Asia, Africa		America, Oceania, Asia
Applicable region	Note: for reference only, please confirm the local supported LoRa bands before placing an order.
