WeAct NVIDIA Jetson TX1 TX2 Carrier Board

SKU: SBC2051

₹ 14,499.99 ₹ 24,999.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
WeAct NVIDIA Jetson TX1 TX2 Carrier Board₹ 14,499.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

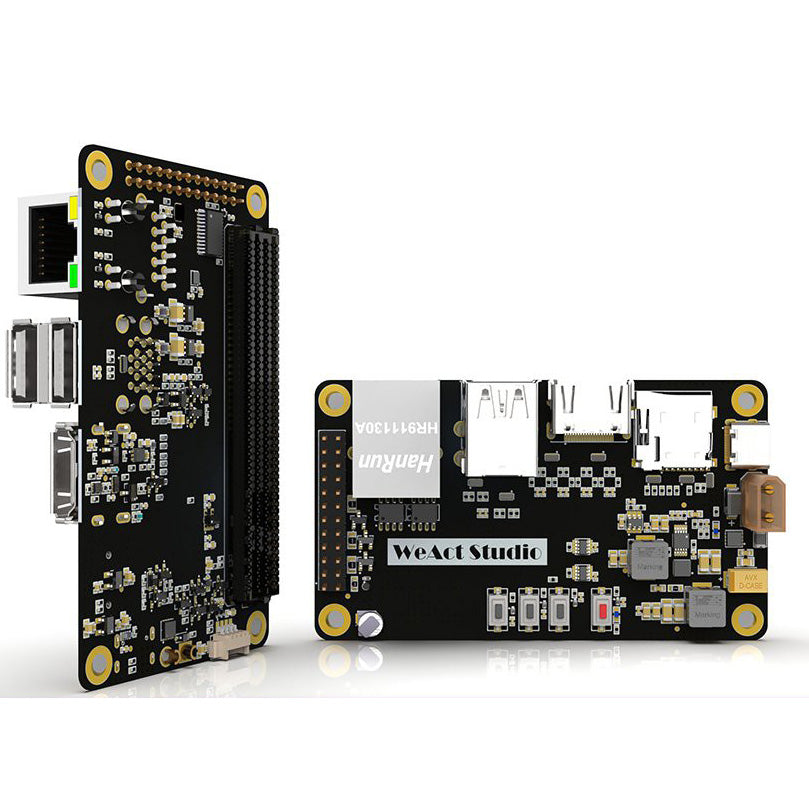

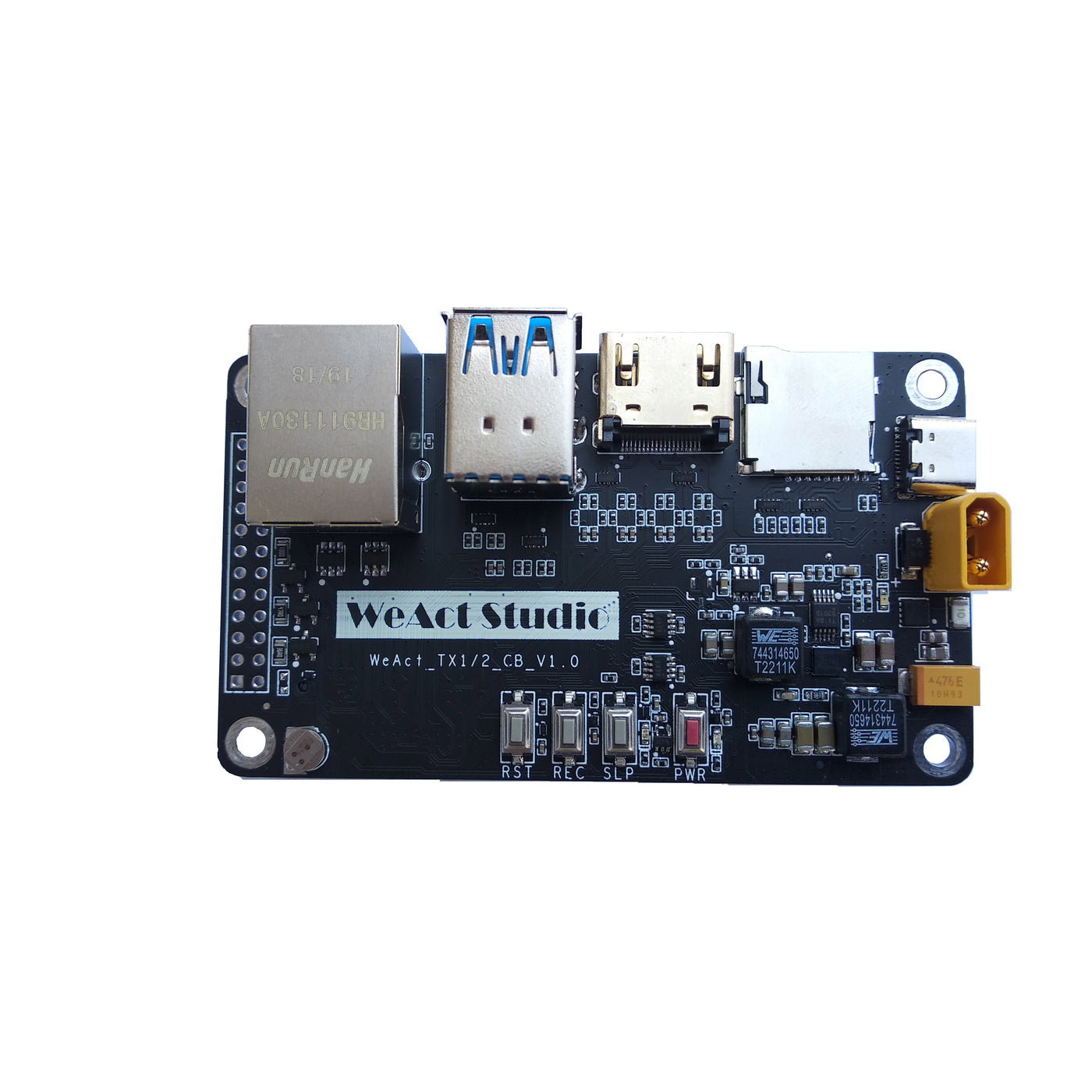

The carrier board from WeAct Studio meets the requirements set by the TX1 / TX2 modules, including wide voltage input range, a variety of interfaces, low power consumption, power protection and a host of other features.

  • Suitable for Nvidia TX1 and TX2 modules
  • Input Voltage: 9V ~ 19V
  • Maximum Power Consumption: 60W
  • Operating Temperature: 0℃ ~ 70 ℃
  • Size: 87mm X 50mm X 38mm
  • Weight: 58g
  • Interfaces: USB3.0 x2, USB2.0 x2, USB_OTG x1, MicroSD x1, Fan Connector x1, HDMI x1, CAN x2, Giga Ethernet x1, 3.3V UART x2, 3v3 GPIO x4, 3v3 SPI x1
  • Additional Functions: Supports Power ON self starting, Power Protection (UVP, OVP, Short), All ESD protection, and XT30 power interface.
  • User Manual at https://github.com/WeActTC/WeAct-TX1_2-CB
Is this carrier board compatible with both Nvidia TX1 and TX2 modules?
Yes. The board is designed to meet the requirements of TX1 and TX2 modules.
What is the input voltage range and maximum power consumption?
Input is 9V to 19V and the maximum power consumption is 60W.
What interfaces are available on this board?
It provides USB 3.0 x2, USB 2.0 x2, USB OTG x1, MicroSD x1, HDMI x1, CAN x2, Giga Ethernet x1, 3.3V UART x2, 3.3V GPIO x4, 3.3V SPI x1, a fan connector, and XT30 power interface.
What are the physical dimensions and weight of the board?
Size is 87 mm by 50 mm by 38 mm and weight is 58 g.
Where can I find the user manual and what protection features are included?
The user manual is available at https://github.com/WeActTC/WeAct-TX1_2-CB. The board includes power protection features such as UVP, OVP and short circuit protection, and full ESD protection.
A
Admin
Welcome to the discussion thread for WeAct NVIDIA Jetson TX1 TX2 Carrier Board
Feel free to ask questions, share tips or report issues.

Discover More In:

NVIDIA Jetson →

Category: View all Single Board Computers

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

The carrier board from WeAct Studio meets the requirements set by the TX1 / TX2 modules, including wide voltage input range, a variety of interfaces, low power consumption, power protection and a host of other features.

  • Suitable for Nvidia TX1 and TX2 modules
  • Input Voltage: 9V ~ 19V
  • Maximum Power Consumption: 60W
  • Operating Temperature: 0℃ ~ 70 ℃
  • Size: 87mm X 50mm X 38mm
  • Weight: 58g
  • Interfaces: USB3.0 x2, USB2.0 x2, USB_OTG x1, MicroSD x1, Fan Connector x1, HDMI x1, CAN x2, Giga Ethernet x1, 3.3V UART x2, 3v3 GPIO x4, 3v3 SPI x1
  • Additional Functions: Supports Power ON self starting, Power Protection (UVP, OVP, Short), All ESD protection, and XT30 power interface.
  • User Manual at https://github.com/WeActTC/WeAct-TX1_2-CB
FAQ
Is this carrier board compatible with both Nvidia TX1 and TX2 modules?
Yes. The board is designed to meet the requirements of TX1 and TX2 modules.
What is the input voltage range and maximum power consumption?
Input is 9V to 19V and the maximum power consumption is 60W.
What interfaces are available on this board?
It provides USB 3.0 x2, USB 2.0 x2, USB OTG x1, MicroSD x1, HDMI x1, CAN x2, Giga Ethernet x1, 3.3V UART x2, 3.3V GPIO x4, 3.3V SPI x1, a fan connector, and XT30 power interface.
What are the physical dimensions and weight of the board?
Size is 87 mm by 50 mm by 38 mm and weight is 58 g.
Where can I find the user manual and what protection features are included?
The user manual is available at https://github.com/WeActTC/WeAct-TX1_2-CB. The board includes power protection features such as UVP, OVP and short circuit protection, and full ESD protection.
