WS2812 Digital RGB LED Strip

Programmable LED, Natural & Bright Color

60 LEDs per meter, IP65 rated

Specifications

LED type	5050	IC	WS-2812B
Voltage	5V	Color	RGB
PCB width	10mm	Beam angle	120°
Operating power	0.3W/LED	Length	1m/roll
Operating temperature	-25~80℃	Grey scale	256 Adjustable (per color)
LED Quantity	60 LEDs/M	Degree of protection	IP65

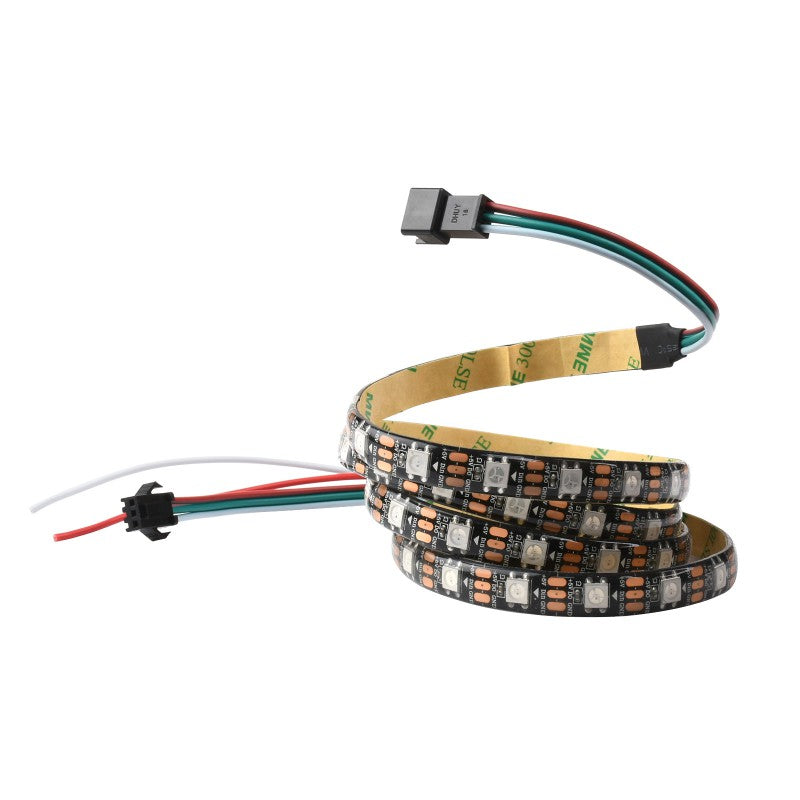

Connection	3PIN SM connector cable + 2PIN voltage adding cables	Installation method	with 3M double-sided tape on the back
Cable definition	Red cable (5V positive), white cable (5V negative) and green cable (DATA signal)

Product Details

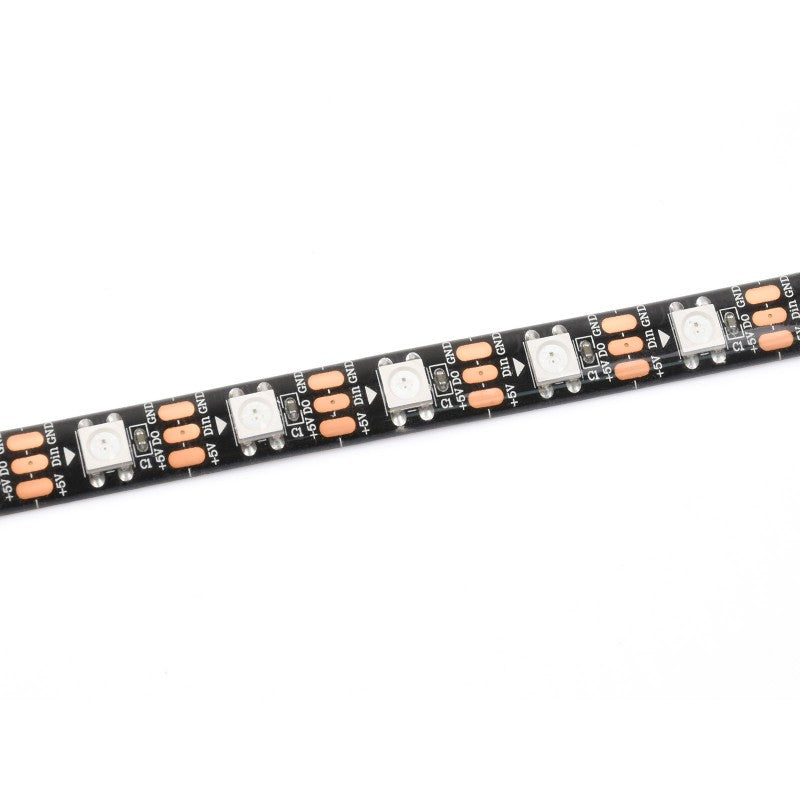

* Note: Please cut it from the solder joint to avoid or reduce unnecessary waste and damage.

Flexible And Bendable

High Light Transmittance And Flexible, Insulated And Anti-Leakage, Can Be Bent Into Any Shape

IP65 Protection Rating

Covered With High-Transparency Resin To Protect Against Small Water Jets

Installation Mode

Demonstration

Dimensions

Resources

WIKI: www.waveshare.com/wiki/RGB -5050-5V-IP65-60D-1M

What is the length and LED count of this strip?

The strip is 1 meter long and has 60 LEDs per meter.

What are the power and data connections?

Power is 5V with red = 5V, white = ground, green = data. It uses a 3PIN SM connector plus 2PIN voltage adding cables.

Is it suitable for outdoor or wet environments?

Yes, it has IP65 protection and is encased to resist small water jets.

What does 256 grey scale per color mean?

It means each color channel (red, green, blue) supports 256 levels for color control when used with a compatible controller.

How should I install and cut the strip?

You should cut it from the solder joints to avoid waste and damage. Install using the included 3M double sided tape on the back.
