X852 Dual MSATA SSD Shield

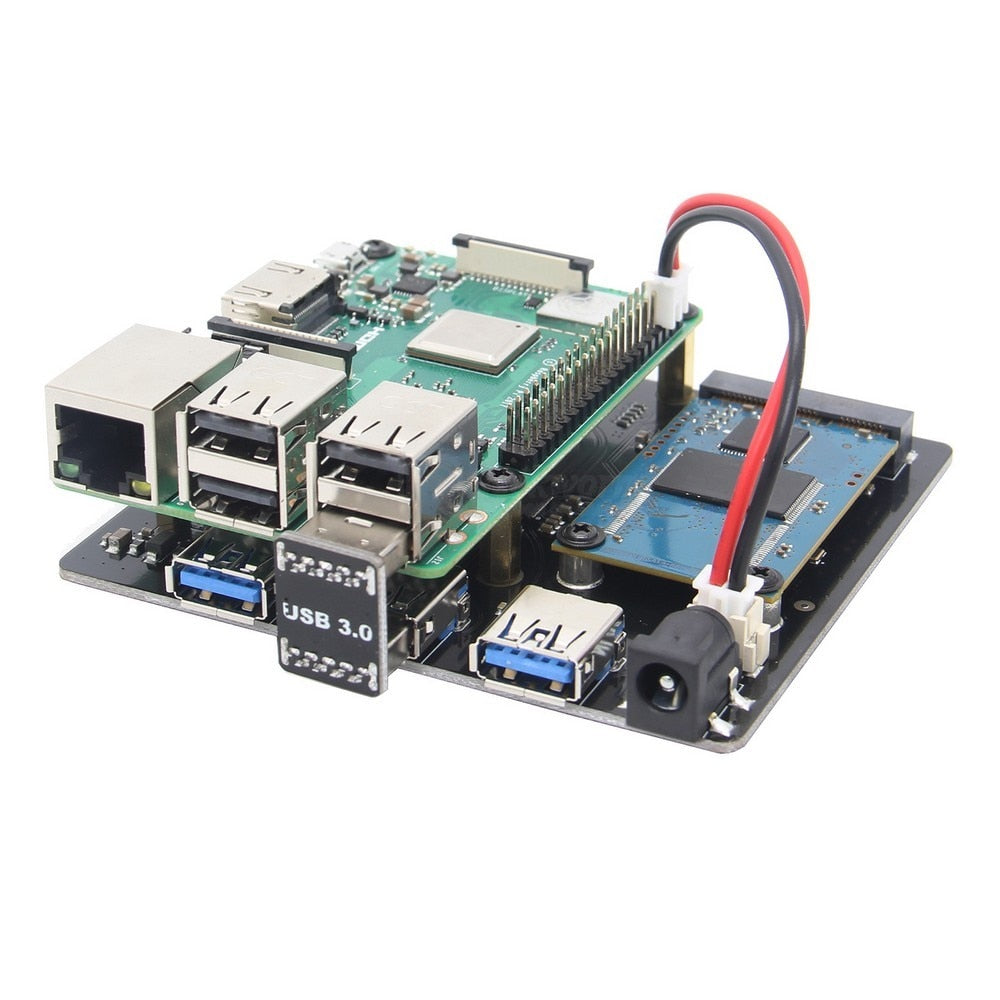

This is an ideal storage solution for Raspberry Pi 3 Model  B+ or Raspberry Pi 4, offering dual mSATA SSD Shield, it supports 2 picese of mSATA SSD working at the same time, with USB3.1 Gen 1 port, SSD sequential write speed >300MB/s, use the new USB 3.0 connector.

Features

• Ideal storage solution for Raspberry Pi - Dual MSATA SSD Shield
• Supports up to 2TB MSSD solid-state drive (SSD)
• Supports 2 MSATA SSD working at the same time
• Supports operating system installation and booting from your SSD
• Provides additional 2 USB ports for Raspberry Pi
• Powers the Raspberry Pi via on-board XH2.54 connector - Only one power adapter required
• Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller
• Integrated USB 3.1 Gen 1 Hub Controller
• USB 2.0 connectivity offers plug-and-play functionality on your Raspberry Pi
• Quick file transfer with high-speed USB3.0 5Gb/s connectivity from a PC or a Mac
• Specially-made USB3.0 jumper to connect with Raspberry Pi - no additional cables needed
• LED blue indicator indicates drive status
• Fully compatible with X735 for intelligent and safe power management
• PCB Size: 107.5mm x 85mm

IMPORTANT NOTES

• USB3.1 Gen 1 port, SSD sequential write speed >300MB/s
• mSATA SSD is not included
• As with all SSDs, new media must be formatted before use
• Performance depends on host system, workload, and SSD media used
• SSDs use exceptionally high performance storage media that will run hot when under load
• Older SSD drives with less efficient flash media may not perform as well as newer drives

Power Supply: 5.1Vdc +/-5% , 4A

(Please use an external DC jack power supply to power X852 if the hard disk cannot be recognized.)

 Three Kind of Power Supply Mode:

1. Use DC 5V 4A power adapter with DC jack to power the X852, use 2Pin cable to connect Raspberry Pi GPIO and X852 (recommended).
2. Use DC 5V 4A power adapter with DC jack to power the X735 (you need to purchase X735 seperately), use 2pin cable to connect X735 and X852 (recommend)
3. Use common power adapter power Raspberry Pi via RPi micro USB, use 2Pin cable to connect Raspberry Pi GPIO and X852, this is not recommended. As the Raspberry Pi micro USB only support Max. 2.5A, so the X852 maybe not get enough current to recognize the SSD. Although this power supply mode is ok to power the kit, it is not be recommended strongly to use this mode.

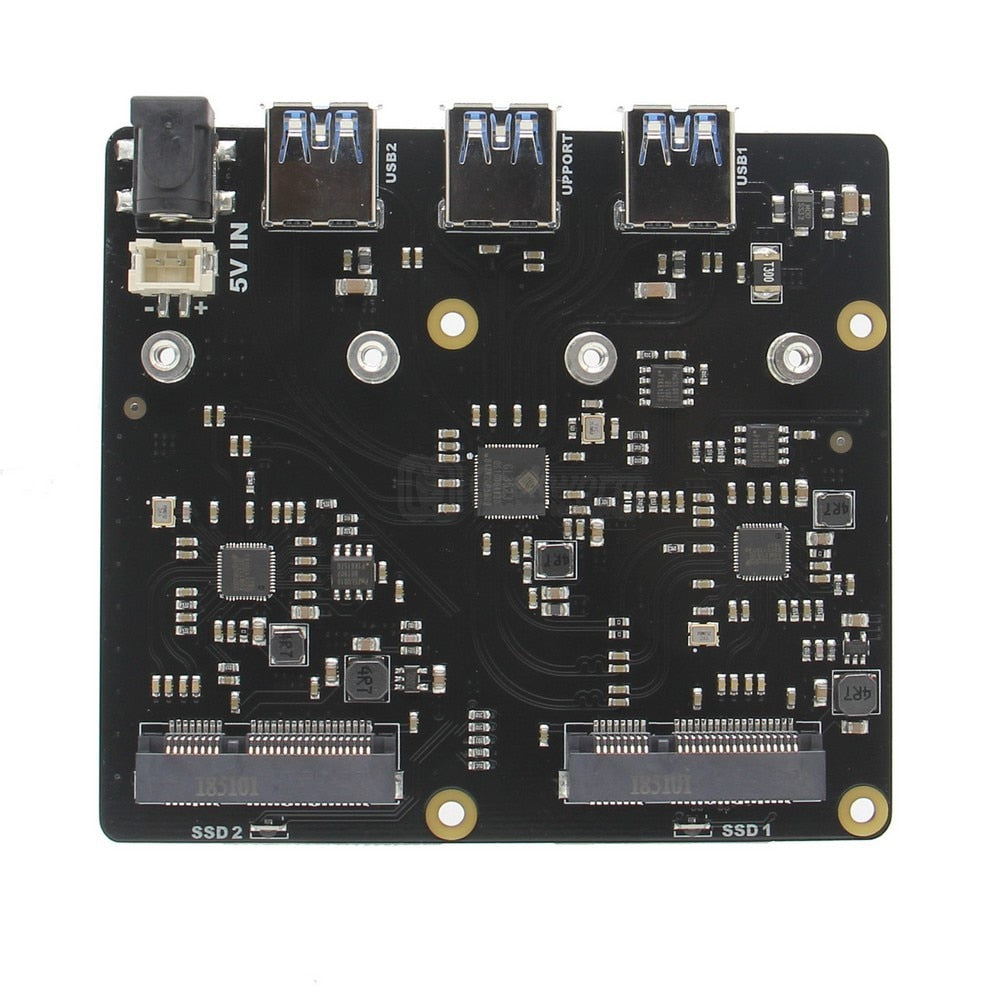

Ports & Connectors

• USB socket - USB 3.0 type A x 1
• DC jack - 5.5x2.5mm x 1
• Power input / output connector - XH2.54 2-pin x 1

Packing List

• 1 x X852 Board (Not include Raspberry pi 3 model B+)
• 1 x USB3.0 Connector
• 1 x USB 3.0 A-Male to A-Male Data cable
• 1 x Screws Pack
