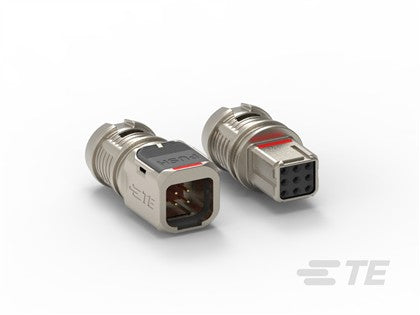

Enhance your electronic assembly with the TE CONNECTIVITY / DEUTSCH YD369-MR99-NS10000 rectangular connector, designed for reliable wire-to-wire connections in demanding applications. This shielded receptacle features a robust construction suitable for aerospace, defense, and marine environments.
Rectangular connector assembly with 9 female contacts (socket type)
Shielded design for enhanced electromagnetic compatibility
Wire-to-wire configuration with crimp termination
Sealable with grommet and interfacial seals for environmental protection
All contacts are preloaded for ease of assembly
Connector shell size: 09
Number of cavities: 9
Number of rows: 3
Connector system supports power and signal applications
Operating temperature range: -55°C to 175°C
Operating voltage: up to 400 VAC
Current rating per contact: 5 A
Specifications
Contact Size
Size 22
Termination Method
Crimp
Shell Material
Composite with Nickel plating
Contact Plating
Gold (Au)
Seal Material
Fluorosilicone
Body Color
Black
Ingress Protection
Sealed with grommet and interfacial seals
Additional Information
Compatible with TE Part #Yd369-MP99-NP10000 (plug)
Supports reflow soldering up to 245°C
Meets RoHS compliance standards
Product is suitable for power and signal circuit applications
For detailed specifications and CAD models, please refer to the product page.
Disclaimers
This product complies with EU RoHS Directive 2011/65/EU with exemptions and is compliant with REACH regulations. Do not eat, drink, or smoke when handling. Wash thoroughly after handling. Recycle if possible and dispose of according to local regulations.
Datasheet was not processed please search the internet for the part number for more details.
