YIHUA 950 150W High Frequency ESD Safe Soldering Station

SKU: TOL1027

ā‚¹ 20,899.99 ā‚¹ 27,999.99

In stock | Ready to ship

āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
YIHUA 950 150W High Frequency ESD Safe Soldering Stationā‚¹ 20,899.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Ā

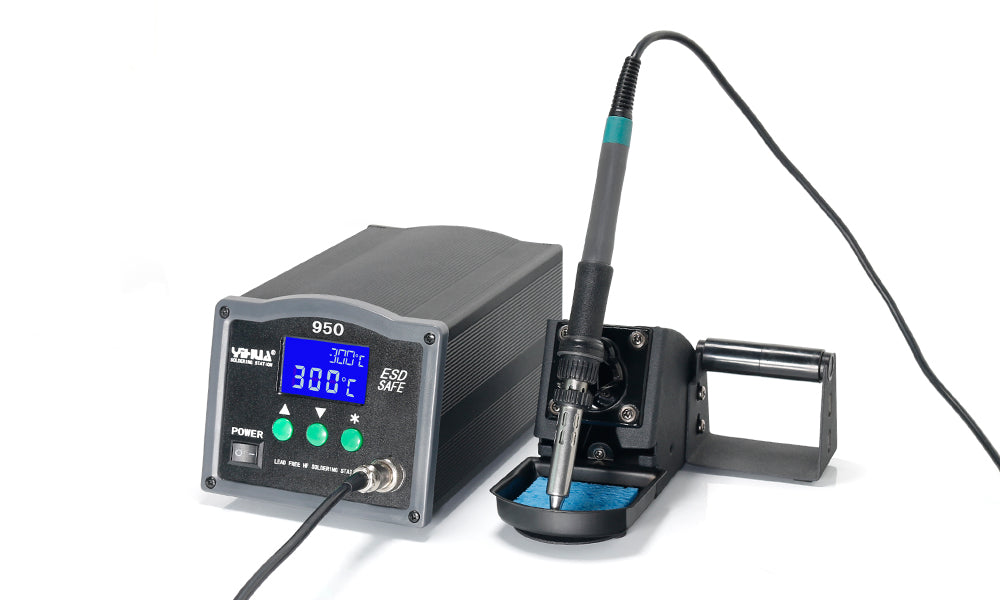

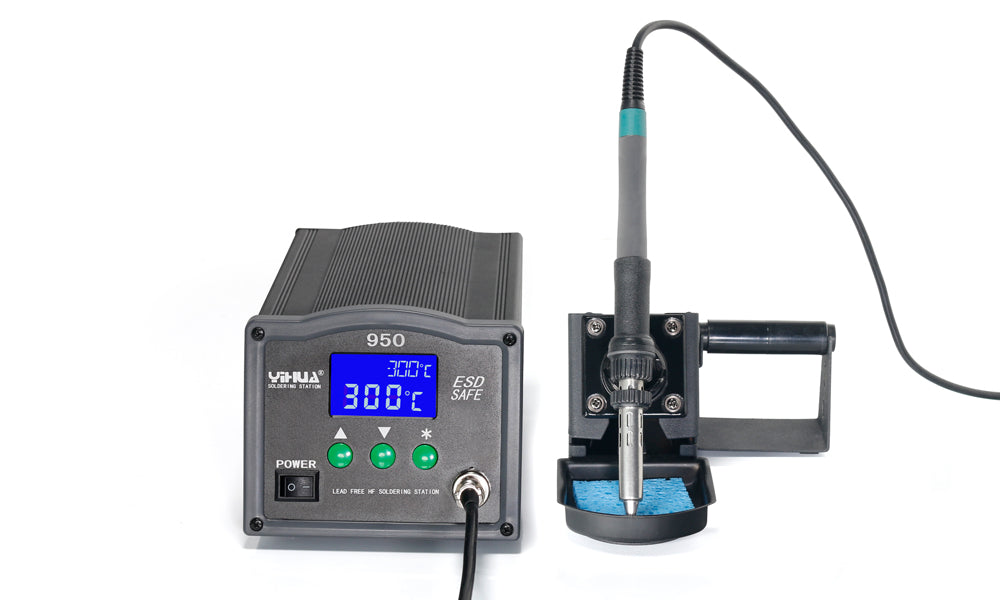

YIHUA-950 Lead Free High Frequency Soldering Station

This 150W soldering station uses high frequency eddy current heating principle and techniques to achieve high-strength lead-free solder. In addition to adapt to the general welding, it is also particularly suitable for multi-tin, crude terminals, large joints and other circumstances. It is widely used in universities, research institutes, laboratories, production lines, maintenance department etc.

Features

  • Applying high-frequency eddy current heating which allows for speedy warming, the YIHUA-950 lead free high frequency soldering station is more suitable for high-temperature lead-free soldering.
  • With microcomputer control, the temperature can be precisely controlled. This soldering machine has the output power of 150W. It applies LCD display.
  • Our soldering equipment comes with automatic sleep function or automatic power-off function.
  • The temperature password lock function contributes to the convenient management, ensuring the production process.
  • Many types of anti-static soldering tips are available.
  • A buzzer has been installed inside the rework station. It alarms when the temperature reaches the set value, abnormal conditions occurs, or when the soldering station goes dormant or is automatically power off.
  • The whole machine works stably with high-level configuration. It is applicable for high intensity welding operation.
  • Housing of the YIHUA-950 lead free high frequency soldering station is made of high-grade aluminum alloy. It resists high temperature and can be used for a long time.

Parameters

Rated Voltage AC 220VĀ±10% 50Hz
Output Power 150W
Working Environment 0~40ā„ƒ relative humidity< 80%
Storage Environment -20~80ā„ƒ relative humidity< 80%
Overall Dimensions 20*12.6*9.8CM
Weight 4.6KG
Working Voltage AC 26VĀ±10% 50Hz
Temperature Range Three-optional temperature control, respectively: a. 200-480ā„ƒ, b.100-450ā„ƒ, c. 50-420ā„ƒ
Temperature Stability Ā±1ā„ƒ (Static)
Display Mode LCD display
PID Temperature Correction Cycle Rapidly 20ms
Tip to Ground Impedance < 2Ī©
Tip of Round Voltage < 2mV
Additional Inclusions 7 additional soldering iron tips
What voltage and power does the unit require and deliver?
Rated voltage is AC 220V plus or minus 10 percent at 50 Hz, and it delivers 150W output power.
What temperature ranges are available and how is temperature controlled?
Three ranges are provided: 200 to 480 C, 100 to 450 C, and 50 to 420 C. Temperature stability is within plus or minus 1 C and control is via a LCD display with microcomputer control.
What safety and convenience features are included?
Automatic sleep or power off function, temperature password lock, built in buzzer for alerts, and compatibility with anti static soldering tips.
What accessories are included with the unit?
The package includes 7 additional soldering iron tips.
Why is this suitable for demanding soldering tasks?
The station uses high frequency eddy current heating for fast warming and high temperature lead free soldering, with a rugged aluminum alloy housing for durability.
