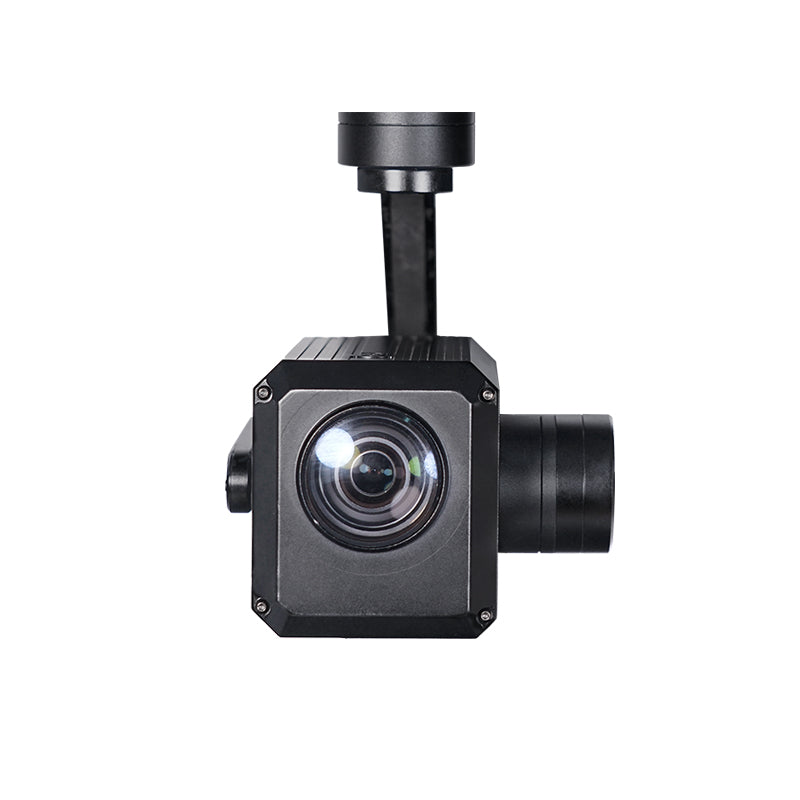

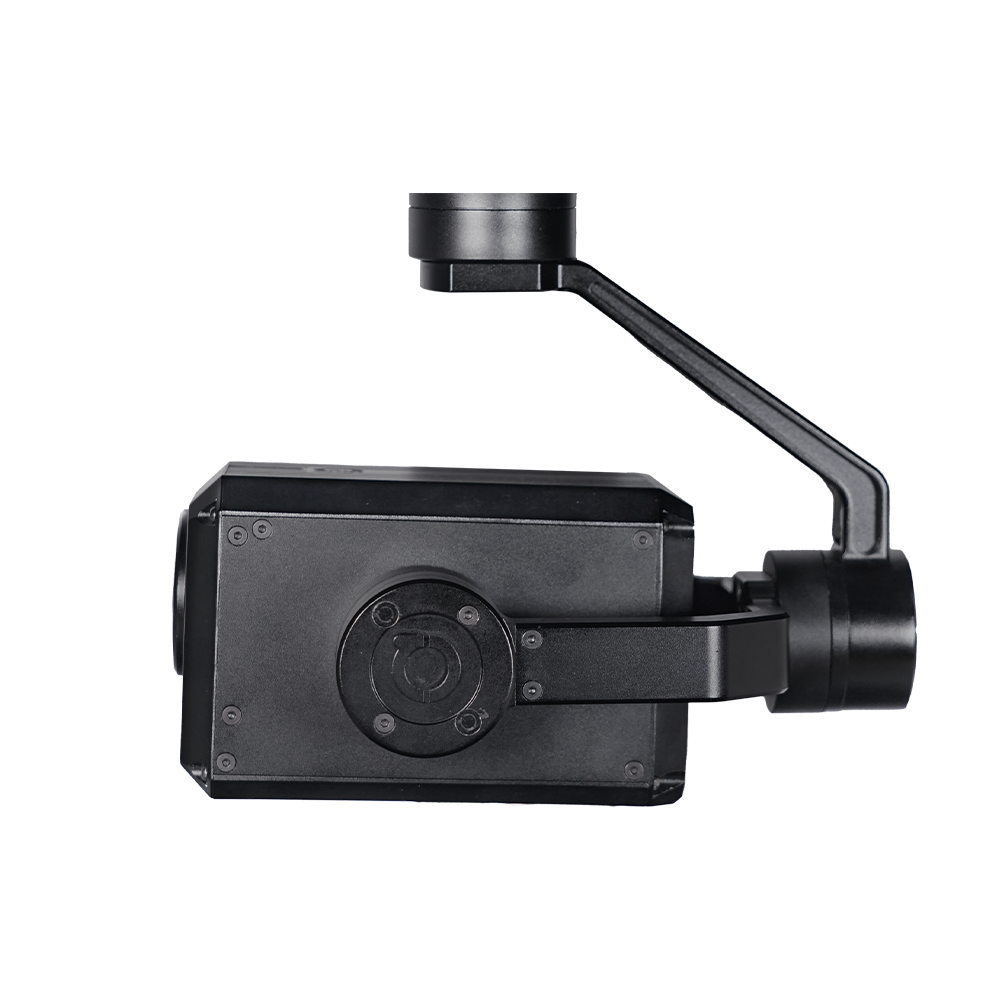

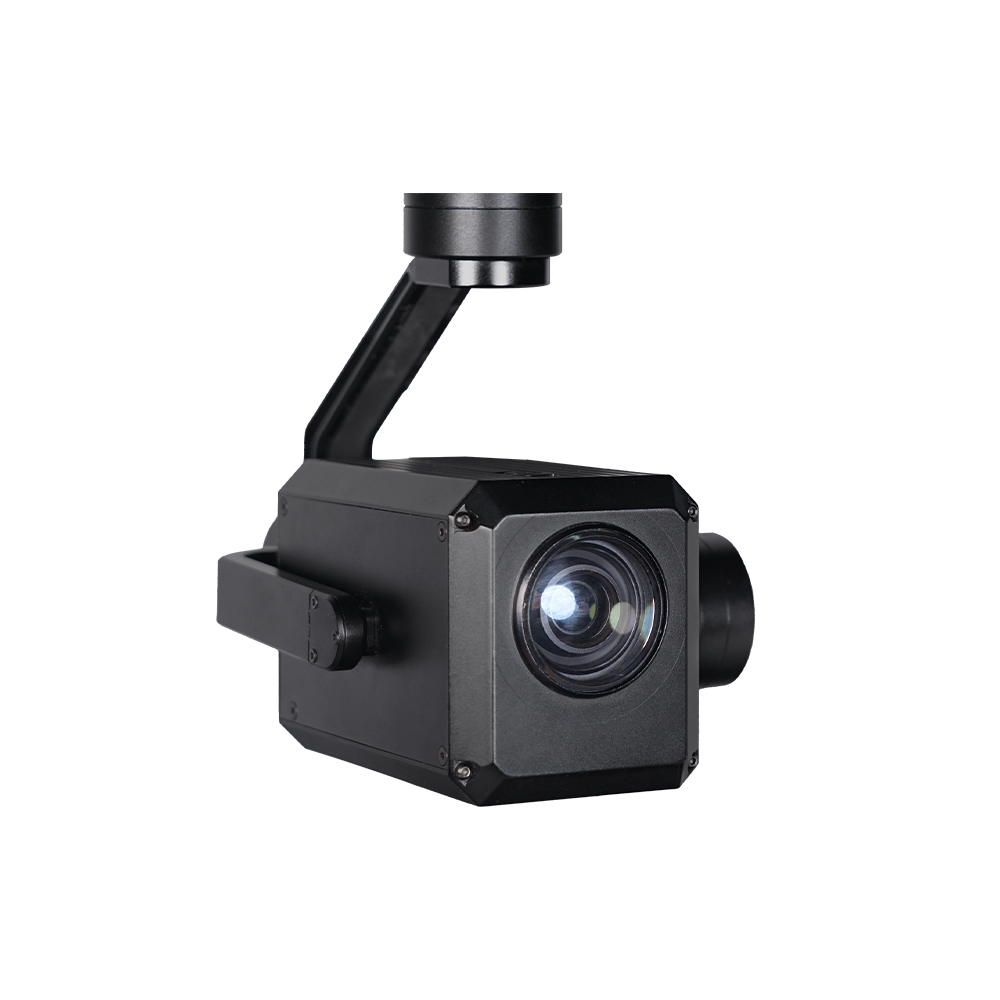

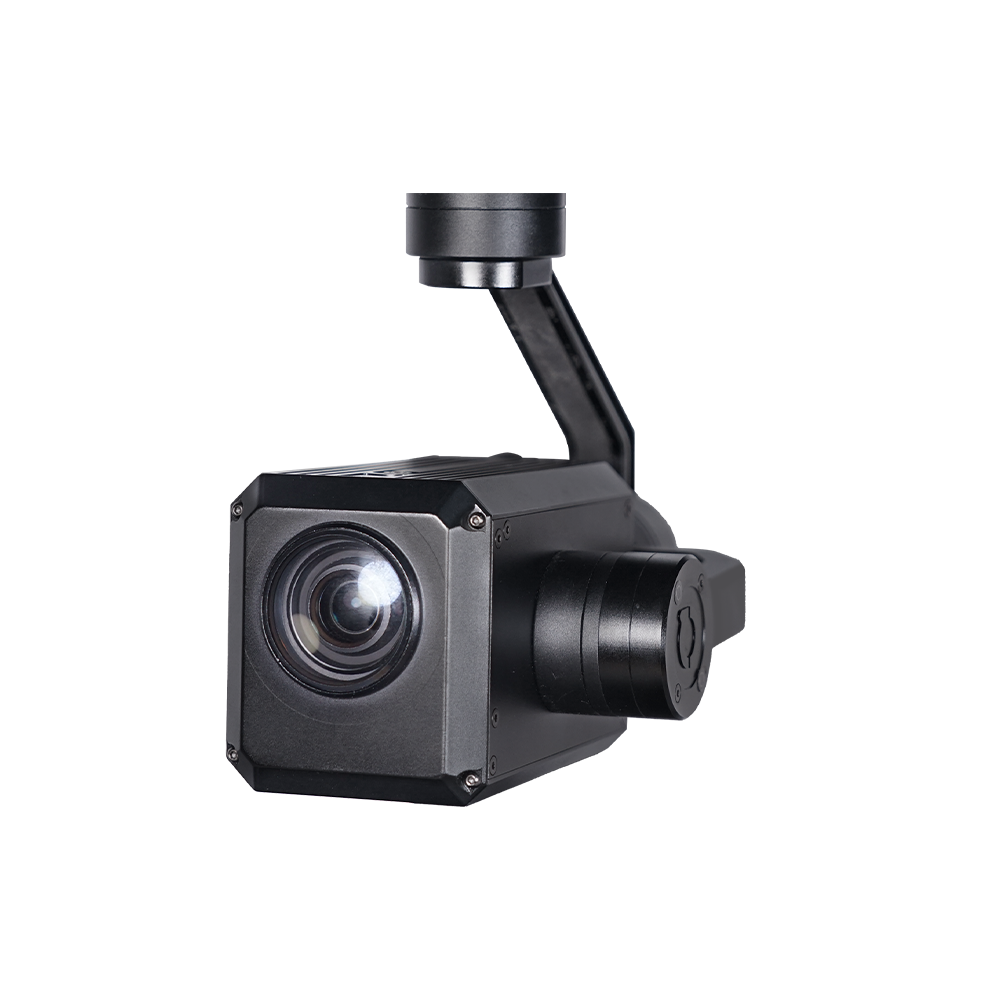

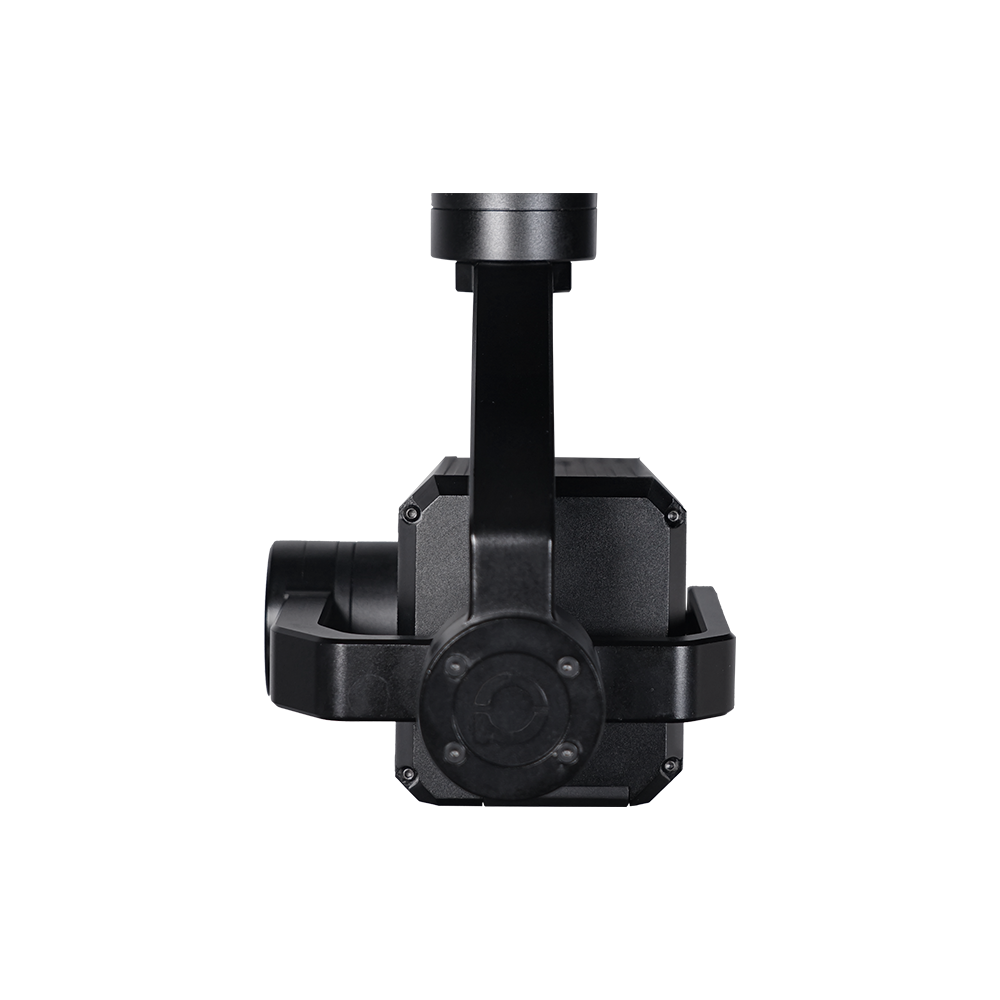

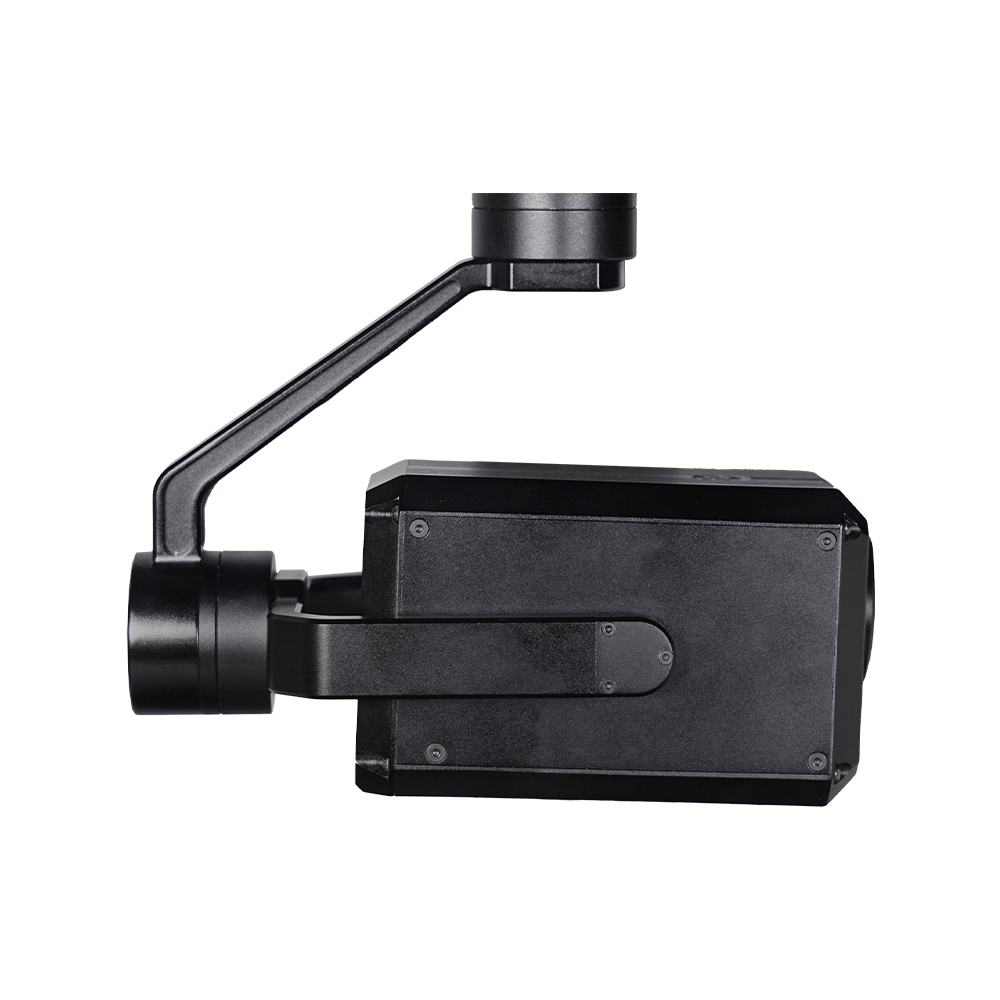

Z40K is a high-precision professional 3-axis gimbal which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. With advanced OIS function, Z40K can compensate the subtle movements of the UAV to keep the camera stable even under 25 times optical zoom. Powered by Panasonic 1/2.3inch CMOS 25.9MP 4K camera, Z40K is engineered for inspection especially power and utility industry. The speed of Z40K gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate; Fast mode for wide end, which makes the gimbal control sensitive and quick. The one-key to center function will allow the gimbal return to initial position automatically and rapidly.
Specifications
| Hardware Parameter | |
| Working voltage | 12V ~ 16V |
| Input voltage | 3S ~ 4S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 450mA @ 12V |
| Idle current | 330mA @ 12V |
| Power consumption | ≤5.4W |
| Working environment temp. | -40℃ ~ +60℃ |
| Output | micro HDMI(HD output 1080P 60fps) / IP |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Control method | PWM / TTL / SBUS |
| Gimbal Spec | |
| Pitch/Tilt | ±90° |
| Roll | ±85° |
| Yaw/Pan | ±150° |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.03° |
| One-key to center | √ |
| Camera Spec | |
| Imager Sensor | Panasoni 1/2.3inch CMOS |
| Lens | F1.8~F3.6(f=4.08~81.6mm) |
| Zoom | Optical zoom:20x, iA zoom:25x(4k) / 40x(FHD) |
| Total pixel | 25.9MP |
| Record effective pixel | 4k:8.29MP / FHD:6.10MP(16:9) |
| Picture effective pixel | 25.9MP(16:9) 6784*3816 |
| Optical Image Stabilization | 5 axis Optical Image Stabilization |
| Record format | MPEG-4 |
| Record pixel | 4k:3840*2160/30p FHD:1080/60p (HD:720/30p) |
| Record shutter speed(Manual) | 1/30 ~ 1/8000 |
| Picture format | JPEG |
| Picture pixel | 20.4M(4:3） |
| Picture shutter speed(Manual) | 1/2 ~ 1/2000 |
| Dynamic range | 65dB |
| Min object distance | 1.5M |
| Viewing angle | Horizontal: 53.2°(Wide end) ~ 5.65°(Tele end) |
| Vertical: 39.8°(wide end) ~ 4.2°(tele end) | |
| Focus: 66.6°(wide end) ~ 7.2°(tele end) | |
| Sync system | Progressive scanning |
| Local video | 1080P 30fps local TF card |
| HD output | 1080P/720/480P 60fps HDMI1.4 |
| S/N ratio | 38dB |
| Min illumination | Color 0.05lux@F1.6 |
| Backlight compensation | Backlight compensation/strong light inhibition |
| Gain | Auto |
| White balance | Auto/Manual |
| Control system | UART/IR/PWM |
| Communication protocol | PELCO-D, Hitachi protocol or VISCA |
| Focus | Auto/Manual/One-time automatic focus |
| Focus speed | 2s |
| Lens initialization | Built-in |
| User presetting bit | 20 sets |
| Image rotation | 180°, Horizontal/Vertical mirror image |
| Facial recognition | √ |
| Packing Information | |
| N.W. | 528g |
| Product meas. | 153*96*140mm |
