4G HAT for Raspberry Pi
Enabling LTE Cat-4 4G / 3G / 2G Communication & GNSS Positioning
Based on SIM7600E-H
Features at a glance
| GPIO Header | Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano |
| Network Features | Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc. |
| Positioning Systems | Supports GPS, BeiDou, Glonass, GALILEO, QZSS, and LBS base station positioning |
| USB Interface | Onboard USB for AT command testing, GPS data reading, etc. |
| UART Debugging | Onboard CP2102 USB to UART converter for serial debugging |
| Breakout Pins | UART control pin breakout to interface with Arduino/STM32 |
| SIM Card Support | SIM card slot supports 1.8V/3V SIM cards |
| TF Card Slot | For data storage such as files and messages |
| Audio Interface | Onboard audio jack and audio decoder for telephone call functionality |
| Status Indicators | 2× LED indicators to monitor operating status |
| Voltage Translator | Configurable operating voltage: 3.3V or 5V via jumper |
| Baudrate | 300bps ~ 4Mbps (default: 115200bps); autobauding: 9600bps ~ 115200bps |
| AT Command Support | 3GPP TS 27.007, 27.005, and V.25TER command sets |
| SIM Application Toolkit | SAT Class 3, GSM 11.14 Release 99, USAT |
| Development Resources | Includes manual and examples for Raspberry Pi, Jetson Nano, Arduino, STM32 |
Specifications
| Category | Specification |
|---|---|
| Frequency Band | LTE Cat-4 |
| LTE-FDD: B1/B3/B5/B7/B8/B20 | |
| LTE-TDD: B38/B40/B41 | |
| 3G: UMTS/HSPA+: B1/B5/B8 2G: GSM/GPRS/EDGE: 900/1800 MHz |
|
| GNSS | Satellite Systems: GPS/Beidou/GLONASS/GALILEO/QZSS |
| Receiver Type: 16-channel, C/A Code | |
| Sensitivity: -159 dBm (GPS), -158 dBm (GLONASS), Cold starts: -148 dBm | |
| Time-To-First Fix (Open Air) | Cold starts: <35s Hot starts: <1s |
| SMS and Audio | SMS Types: MT, MO, CB, Text, PDU Storage: USIM card and ME (default) |
| Audio: Supports echo cancellation and noise reduction | |
| Power & Environment | Power Supply: 5V Operating Voltage: 5V / 3.3V (jumper configurable) |
| Operating Temperature: -30°C to 80°C | |
| Storage Temperature: -45°C to 90°C | |
| Dimensions | 56.21mm × 65.15mm |
Standard Raspberry Pi 40PIN GPIO

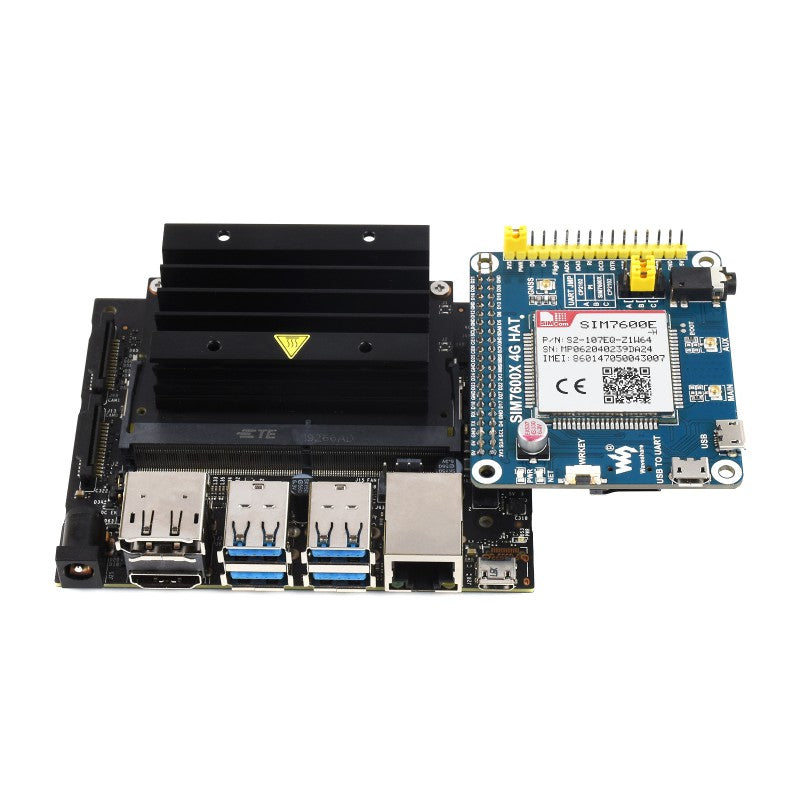

Compatible with Raspberry Pi series boards, Jetson Nano
Dial-up on Windows/Linux
LTE Cat-4: up to 50Mbps (uplink) / up to 150Mbps (downlink) *
3G (HSPA+): up to 5.76Mbps (uplink) / up to 42Mbps (downlink) *
Stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.
Cloud Communication
Supports communication protocols including TCP/UDP/FTP/FTPS/HTTP/HTTPS
GNSS positioning
Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
Telephone Call & SMS Support
Making telephone call or sending SMS by AT commands, with onboard audio jack

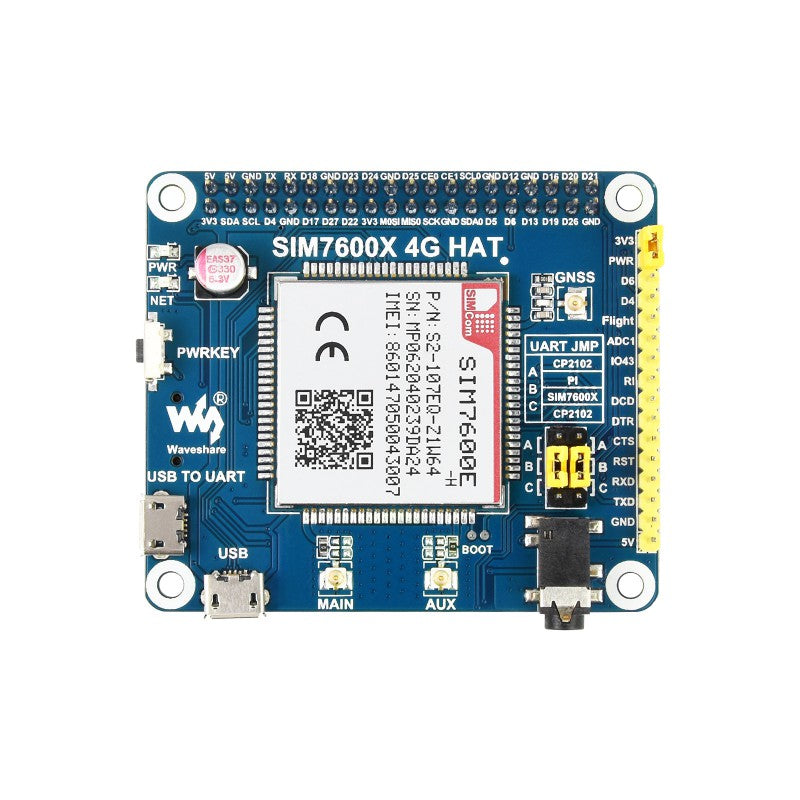

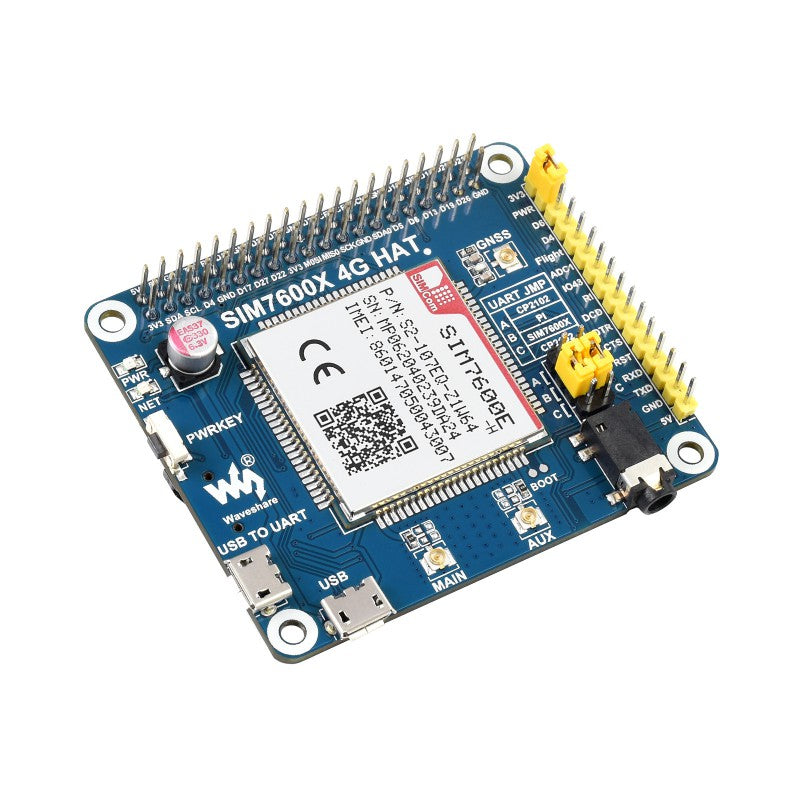

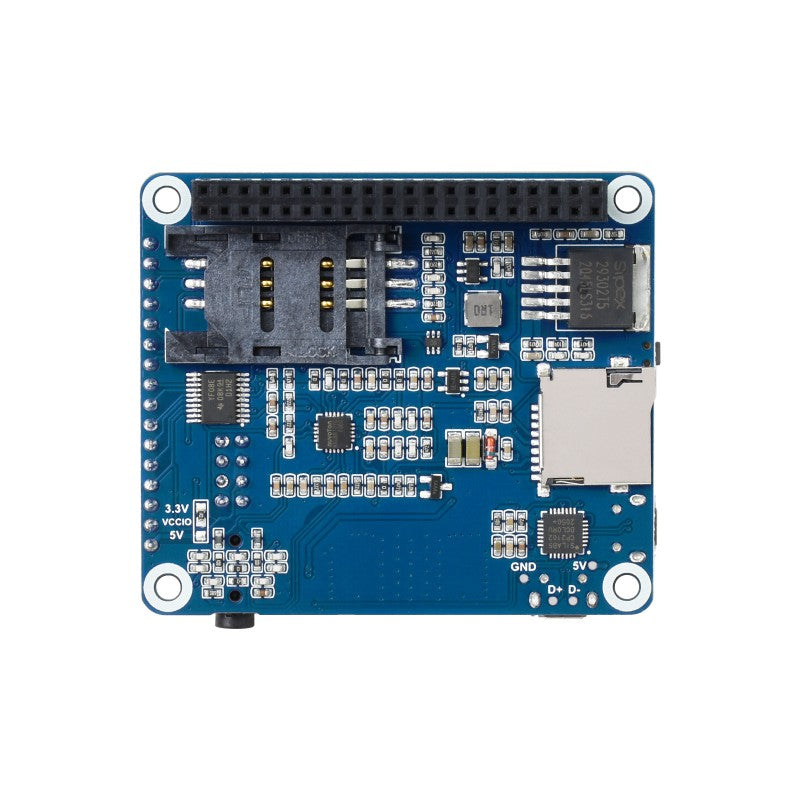

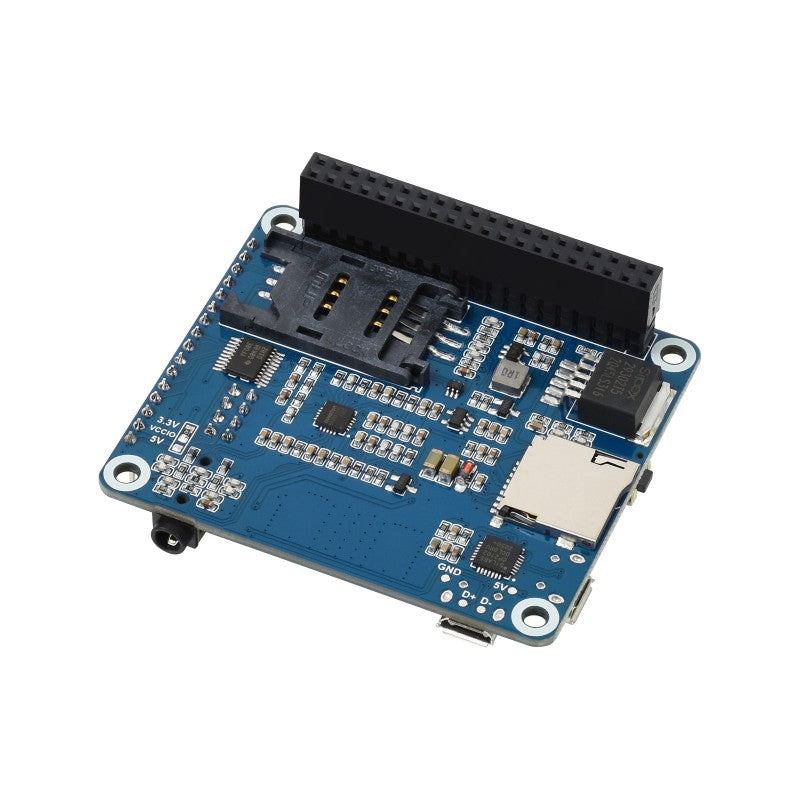

What's on board
| Component | Description |
|---|---|
| SIM7600E-H | 4G LTE module supporting global bands |
| CP2102 | USB to UART converter |
| NAU8810 | Audio decoder for voice functions |
| TXS0108EPWR | Voltage level translator (translates 3.3V/5V to 1.8V) |
| MP2128DT | Power chip for power regulation |
| SPX29302 | Low dropout voltage regulator |
| Raspberry Pi GPIO Header | Standard 40-pin header for Pi compatibility |
| SIM7600 Control Interface | For interfacing with Arduino, STM32, etc. |
| SIM Card Slot | Supports 1.8V/3V SIM cards |
| TF Card Slot | For storing messages, files, and logs |
| 3.5mm Audio Jack | Supports microphone and earphone |
| USB Interface | For AT command testing and GPS data access |
| USB to UART Interface | Used for serial debugging or Pi terminal access |
| Main Antenna Connector | Primary LTE antenna |
| AUX Antenna Connector | Diversity antenna |
| GNSS Antenna Connector | For GPS/GLONASS/etc. positioning |
| Power Switch | Manual on/off control |
| Network Status Indicator | LED shows SIM7600 network activity |
| Power Indicator | LED shows board power status |
| Voltage Selection Jumper | Set via 0Ω resistor jumper: 3.3V or 5V (VCCIO) |
| UART Selection Jumper | A: Access Raspberry Pi via USB to UART B: Control SIM7600 via Pi GPIO C: Control SIM7600 via USB to UART |
| PWR Configuration Jumper | PWR - 3V3: Auto start on power-up (default) PWR - D6: Controlled by Pi D6 pin (startup/shutdown) |
| Flight Mode Configuration Jumper | NC: No control (default) Flight - D4: Controlled by Pi D4 pin |
| USB Connector Pads | Direct solder pads for USB connection |
| BOOT Pads | Used to force programming/firmware update |
Pinout definition
Outline Dimensions
Resources & Services
WIKI: SIM7600E-H_4G_HAT
Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Selection Guide
| Feature | SIM7600CE-JT1S | SIM7600CE-T | SIM7600E | SIM7600E-H | SIM7600A-H | SIM7600NA-H | SIM7600G-H |
|---|---|---|---|---|---|---|---|
| Applicable Regions | China | Europe/Southeast Asia/West Asia/Africa/China/South Korea | Europe/Southeast Asia | North America (AT&T) | North America | North America | Global |
| LTE Cat-4 Bands | B1/B3/B5/B8 B38/B39/B40/B41 |
B1/B3/B5/B7/B8/B20 B38/B40/B41 |
B1/B3/B5/B7/B8/B20 | B2/B4/B12 | B2/B4/B5/B12/B13/B14/B25/B26/B66/B71 B41 |
B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 B34/B38/B39/B40/B41 |
B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 B34/B38/B39/B40/B41 |
| 3G Support | UMTS B1/B8 TD-SCDMA B34/B39 CDMA 1X/EVDO BC0 |
UMTS B1/B5/B8 | UMTS B1/B5/B8 | N/A | UMTS B1/B2/B4/B5/B6/B8/B19 | UMTS B1/B2/B4/B5/B6/B8/B19 | UMTS B1/B2/B4/B5/B6/B8/B19 |
| 2G Support | 900/1800 MHz | N/A | 850/900/1800/1900 MHz | N/A | N/A | N/A | N/A |
| GNSS | N/A | GPS/Beidou/GLONASS/GALILEO/QZSS | GPS/Beidou/GLONASS/GALILEO/QZSS | GPS/Beidou/GLONASS/GALILEO/QZSS | GPS/Beidou/GLONASS/GALILEO/QZSS | GPS/Beidou/GLONASS/GALILEO/QZSS | GPS/Beidou/GLONASS/GALILEO/QZSS |
| LTE Cat-4 Data Rate | 150Mbps (DL) / 50Mbps (UL) | N/A | 150Mbps (DL) / 50Mbps (UL) | 150Mbps (DL) / 50Mbps (UL) | 150Mbps (DL) / 50Mbps (UL) | 150Mbps (DL) / 50Mbps (UL) | 150Mbps (DL) / 50Mbps (UL) |
| 3G Data Rate (HSPA+) | 42Mbps (DL) / 5.76Mbps (UL) | N/A | 42Mbps (DL) / 5.76Mbps (UL) | N/A | 42Mbps (DL) / 5.76Mbps (UL) | 42Mbps (DL) / 5.76Mbps (UL) | 42Mbps (DL) / 5.76Mbps (UL) |
| 2G Data Rate (EDGE/GPRS) | EDGE: 236.8Kbps GPRS: 85.6Kbps |
N/A | EDGE: 236.8Kbps GPRS: 85.6Kbps |
N/A | N/A | N/A | N/A |
| Network Protocol | TCP/IP, IPV4/IPV6, Multi-PDP, FTP/FTPS, HTTP/HTTPS, DNS | ||||||
| Dial-up Protocol | PPP, NDIS, RNDIS | ||||||
| USB Driver Support | Windows XP/7/8/10, Linux (Raspbian driver-free) | ||||||
| SIM Slot | Compatible with 1.8V and 3V SIM cards | ||||||
| UART | Supports AT commands, compatible with 3.3V/5V | ||||||
| USB Port | For AT commands, network use, firmware updates | ||||||
| USB to UART | Supports serial debugging or Raspberry Pi login | ||||||
| Audio Jack | Supports making phone calls | ||||||
| TF Card Slot | Yes | N/A | Yes | Yes | Yes | Yes | Yes |
| Antenna Connectors | LTE Main Antenna | LTE Main + LTE Diversity + GNSS Antennas | |||||
| Applications | Healthcare, Smart Payment, Internet Talk, Environmental Monitoring, Energy Monitoring, Fleet Management, Smart Industry, Intelligent Agriculture, etc. | ||||||

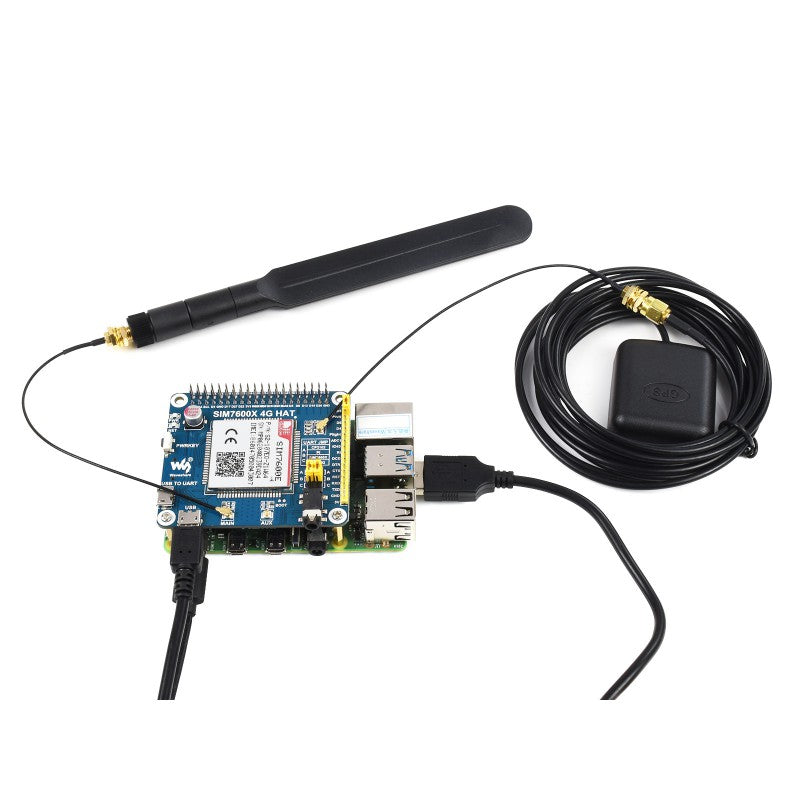

Package Content
Weight: 0.191 kg
SIM7600E-H 4G HAT x1
LTE Antenna x1
GPS External Antenna (B) x1
USB type A plug to micro plug cable x2
RPi screws pack (2pcs) x1
