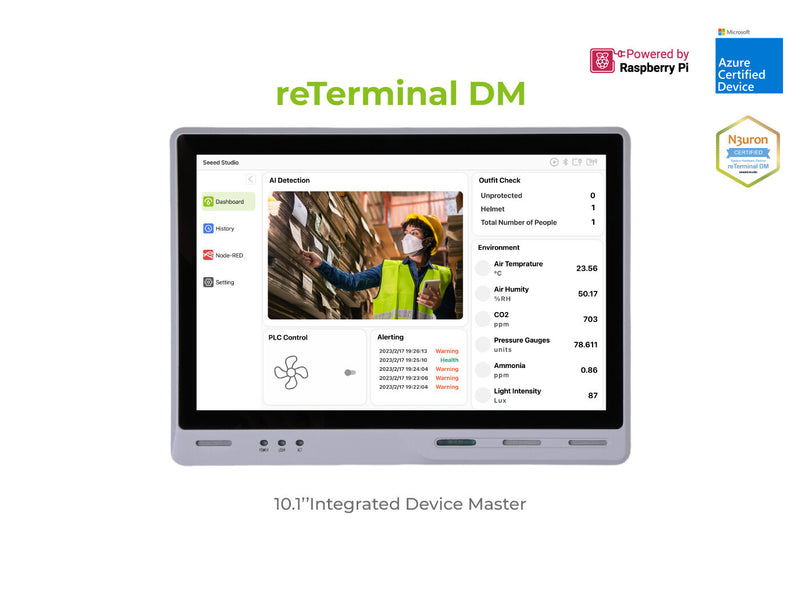

reTerminal DM - 10.1'' Integrated Device Master
reTerminal DM - 10.1'' Integrated Device Master
Industrial HMI/PLC/Panel PC/Gateway in One, Raspberry Pi CM4 Core, NodeRed Integrated
A 10.1" open-source industrial HMI - an Integrated Device Master to unify data flow and manage the onsite device.
Based on Raspberry Pi CM4, and as a Panel PC, HMI, PLC, IIoT Gateway all-in-one device, reTerminal DM is a new generation of interactive sensing hub with an IP65 industrial-grade large screen.
It is equipped with rich scalability and hybrid connectivity, supporting CAN bus, RS485, RS232, Gigabit Ethernet port, and other interfaces, as well as powerful wireless communication capabilities such as 4G, LoRa®, WiFi, and BLE.
Features
HMI, PLC, Panel PC and gateway in one: Perfect for the distributed hub devices
Low code programming for event-driven applications: Natively integrated Node-RED for flow-based editing and one-click deployment, compatible with all software runs on Raspberry Pi
Rugged design for harsh working environment: IP65 front panel, -10~50°C operating temperature
Hybrid connectivity: Support 4G LTE, LoRaWAN®, WiFi, BLE, RS485/RS232, CAN bus, 1000M Ethernet, USB, HDMI
Open-source design in software and hardware: Powered by Raspberry Pi CM4, welcome customization or derivatives
Product warranty: Two-year warranty
Application
reTerminal DM works as an integrated device master to unify data flow and manage onsite devices, reducing the big gap between legacy systems and modern IT infrastructures in various application scenarios.
Your Trustworthy Provider of Raspberry Pi Customization Service
With decades of ODM & OEM experience and in-depth understanding of popular open-source hardware, we promise you professional and flexible customization service for our existing Pi devices and your creative Pi-based idea.
reTerminal DM Customization possibilities - PCIe Extensions: NVME SSD, Dual 1000M Ethernet, COM Port RS485/RS232, Dual USB 3.0
Specification
Basic Display Video&Audio Interfaces Wireless Communication Power Environment Mechanical Certification Others
Basic
CPU
CM4
Quad-core Cortex-A72@1.5GHz
Memory
8GB
Storage
32GB eMMC
M.2 SATA SSD Slot 2280-B Key (optional)
OS Support
Raspbian SenseCraft Edge OS
Display
Size
10.1''
Max. Resolution
1280 x 800
Max. Colors
16.7M (8-bit)
Luminance
400 nit
Viewing Angle
170/170 H/V°
Backlight Life
30000 hrs
Touch Type
10-point Capacitive
Pencil Hardness
7H
Video&Audio
Video
HDMI 2.0
Audio
Microphone x 2
Buzzer
3.5mm Audio Jack
Camera
CSI (optional)
Interfaces
Ethernet
1 x 10/100/1000 Mbps
1 x 10/100/1000 Mbps (optional)
USB
2 x USB-A 2.0 Host
2 x USB 3.0 (optional)
RS485
1 x RS-485 > Terminal Block 1 x RS-485 > DB9 (optional)
RS232
1 x RS-232 > Terminal Block 1 x RS-232 > DB9 (optional)
CAN
1 x CAN-BUS > Terminal Block
DI
4 x DI > Terminal Block
DO
4 x DO > Terminal Block
40pin GPIO
Inside
Wireless Communication
WiFi
On-chip WiFi
BLE
On-chip BLE
LoRa®
Mini-PCIe for LoRaWAN® (optional)
Cellular
Mini-PCIe for 4G (optional)
Power
Input
2-pin Terminal Block
PoE
12W PoE (optional)
Power Range
12~24 DC
Environment
Ingress Protection
IP65 Front Panel
Operating Temperature
-10~50 °C
Storage Temperature
-20~70 °C
Humidity (Operating)
10~90% RH
Mechanical
Dimension
259.4 x 191 x 42.2 mm
Enclosure
Die-cast Aluminum Alloy

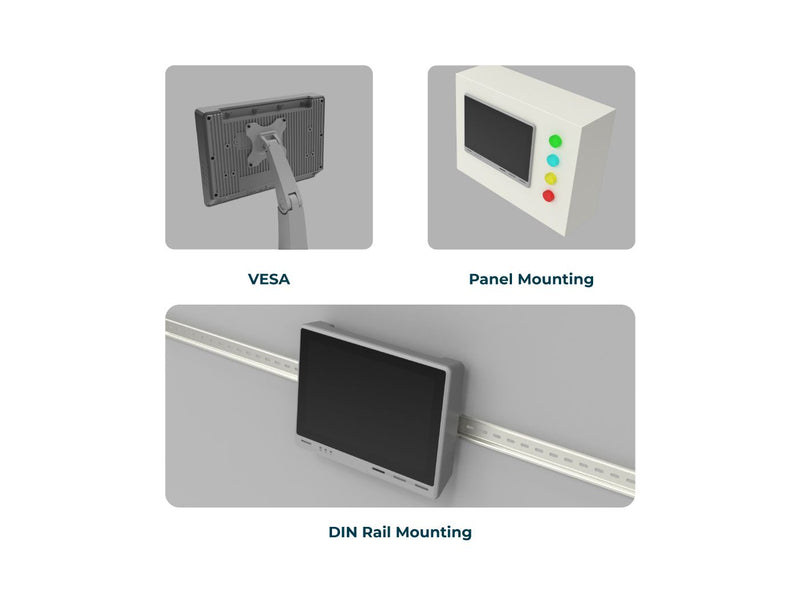

Mounting
Panel, VESA, Din-Rail
Weight (Net)
1.8Kg
Certification
CE, FCC, RoHS, Telec, REACH
Others
RTC
High Accuracy RTC
Security
ATECC608A
Warranty
2 Years
Heat Dissipation
Fanless
The
LoRa® Mark is a trademark of Semtech Corporation or its subsidiaries.
LoRaWAN® is a mark used under license from the LoRa Alliance®.
