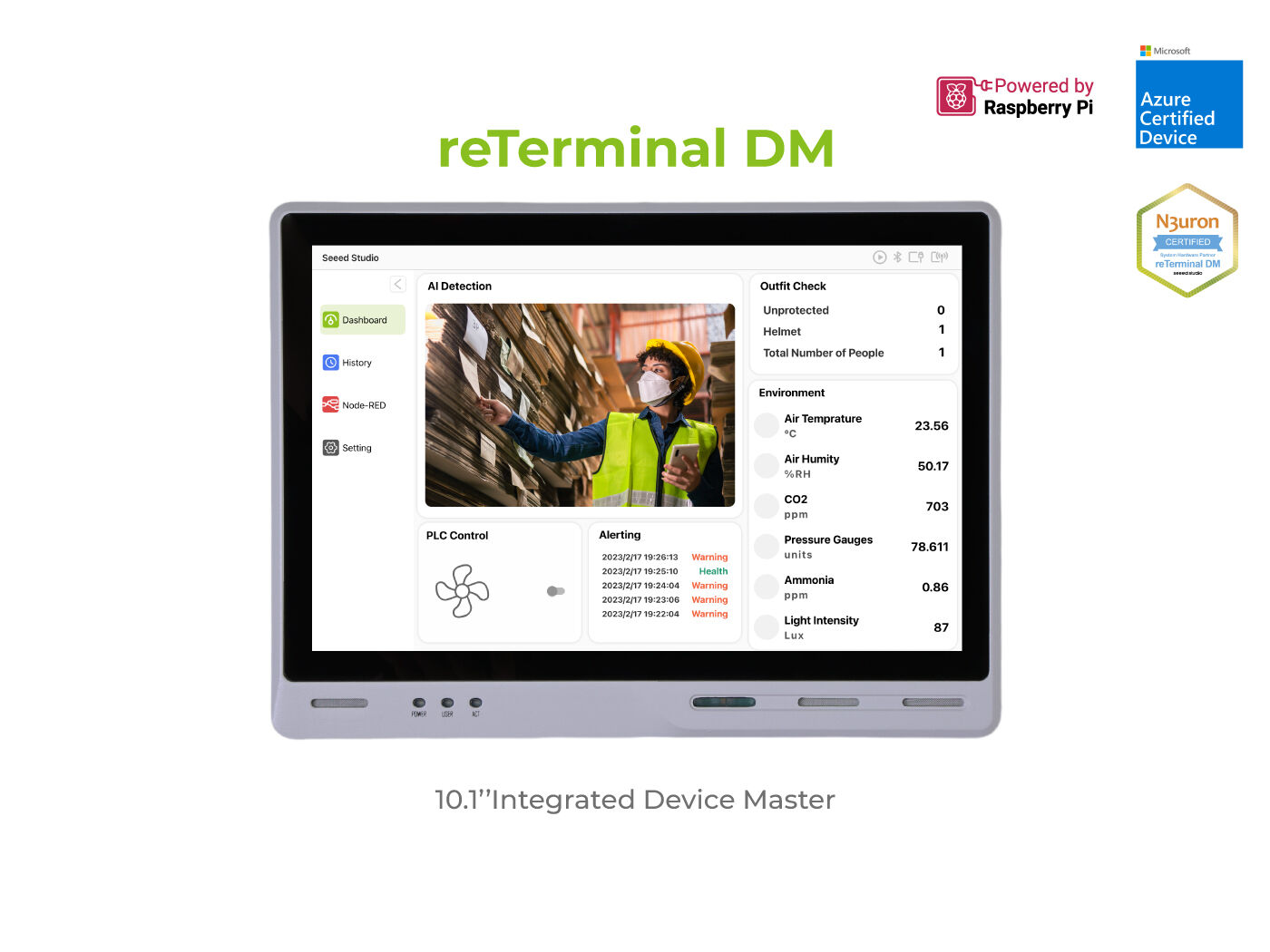

reTerminal DM - 10.1'' Integrated Device Master
Industrial HMI/PLC/Panel PC/Gateway in One, Raspberry Pi CM4 Core, NodeRed Integrated | with Camera & PoE
A 10.1" open-source industrial HMI - an Integrated Device Master to unify data flow and manage the onsite device.
Based on Raspberry Pi CM4, and as a Panel PC, HMI, PLC, IIoT Gateway all-in-one device, reTerminal DM is a new generation of interactive sensing hub with an IP65 industrial-grade large screen.
It is equipped with rich scalability and hybrid connectivity, supporting CAN bus, RS485, RS232, Gigabit Ethernet port, and other interfaces, as well as powerful wireless communication capabilities such as 4G, LoRa®, WiFi, and BLE.
reTerminal DM is a Panel PC, HMI, IIoT Gateway all-in-one device powered by Raspberry Pi CM4, with 10.1'' IP65 front panel and supports Raspberry Pi-based software ecosystem.It is equipped with rich interfaces, supporting CAN bus, RS485, RS232, Gigabit Ethernet, as well as powerful wireless communication capabilities such as 4G, LoRa®, Wi-Fi, and BLE.
Features
HMI, PLC, Panel PC and gateway in one: Perfect for the distributed hub devices
Low code programming for event-driven applications: Natively integrated Node-RED for flow-based editing and one-click deployment, compatible with all software runs on Raspberry Pi
Rugged design for harsh working environment: IP65 front panel, -10~50°C operating temperature
Hybrid connectivity: Support 4G LTE, LoRaWAN®, WiFi, BLE, RS485/RS232, CAN bus, 1000M Ethernet, USB, HDMI
Open-source design in software and hardware: Powered by Raspberry Pi CM4, welcome customization or derivatives
Product warranty: Two-year warranty
Application
reTerminal DM works as an integrated device master to unify data flow and manage onsite devices, reducing the big gap between legacy systems and modern IT infrastructures in various application scenarios.
Your Trustworthy Provider of Raspberry Pi Customization Service
With decades of ODM & OEM experience and in-depth understanding of popular open-source hardware, we promise you professional and flexible customization service for our existing Pi devices and your creative Pi-based idea.
reTerminal DM Customization possibilities - PCIe Extensions: NVME SSD, Dual 1000M Ethernet, COM Port RS485/RS232, Dual USB 3.0
Specification
| Basic | |
| CPU | CM4 |
| Quad-core Cortex-A72@1.5GHz | |
| Memory | 8GB |
| Storage | 32GB eMMC |
| M.2 SATA SSD Slot 2280-B Key (optional) | |
| OS Support | Raspbian SenseCraft Edge OS |
| Display | |
| Size | 10.1'' |
| Max. Resolution | 1280 x 800 |
| Max. Colors | 16.7M (8-bit) |
| Luminance | 400 nit |
| Viewing Angle | 170/170 H/V° |
| Backlight Life | 30000 hrs |
| Touch Type | 10-point Capacitive |
| Pencil Hardness | 7H |
| Video&Audio | |
| Video | HDMI 2.0 |
| Audio | Microphone x 2 |
| Buzzer | |
| 3.5mm Audio Jack | |
| Camera | CSI (optional) |
| Interfaces | |
| Ethernet | 1 x 10/100/1000 Mbps |
| 1 x 10/100/1000 Mbps (optional) | |
| USB | 2 x USB-A 2.0 Host |
| 2 x USB 3.0 (optional) | |
| RS485 | 1 x RS-485 > Terminal Block 1 x RS-485 > DB9 (optional) |
| RS232 | 1 x RS-232 > Terminal Block 1 x RS-232 > DB9 (optional) |
| CAN | 1 x CAN-BUS > Terminal Block |
| DI | 4 x DI > Terminal Block |
| DO | 4 x DO > Terminal Block |
| 40pin GPIO | Inside |
| Wireless Communication | |
| WiFi | On-chip WiFi |
| BLE | On-chip BLE |

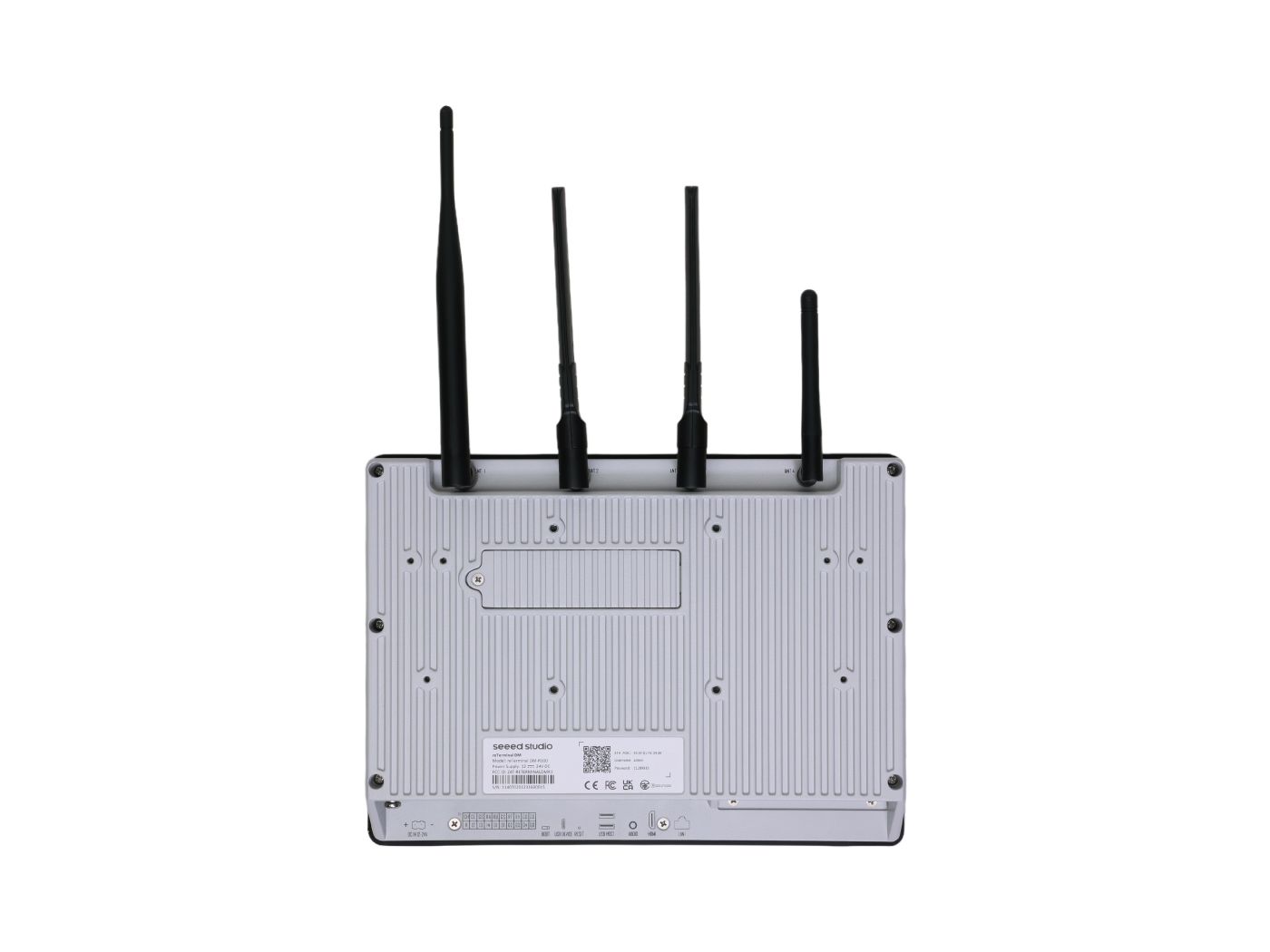

| LoRa® | Mini-PCIe for LoRaWAN® (optional) |
| Cellular | Mini-PCIe for 4G (optional) |
| Power | |
| Input | 2-pin Terminal Block |
| PoE | 12W PoE (optional) |
| Power Range | 12~24 DC |
| Environment | |
| Ingress Protection | IP65 Front Panel |
| Operating Temperature | -10~50 °C |
| Storage Temperature | -20~70 °C |
| Humidity (Operating) | 10~90% RH |
| Mechanical | |

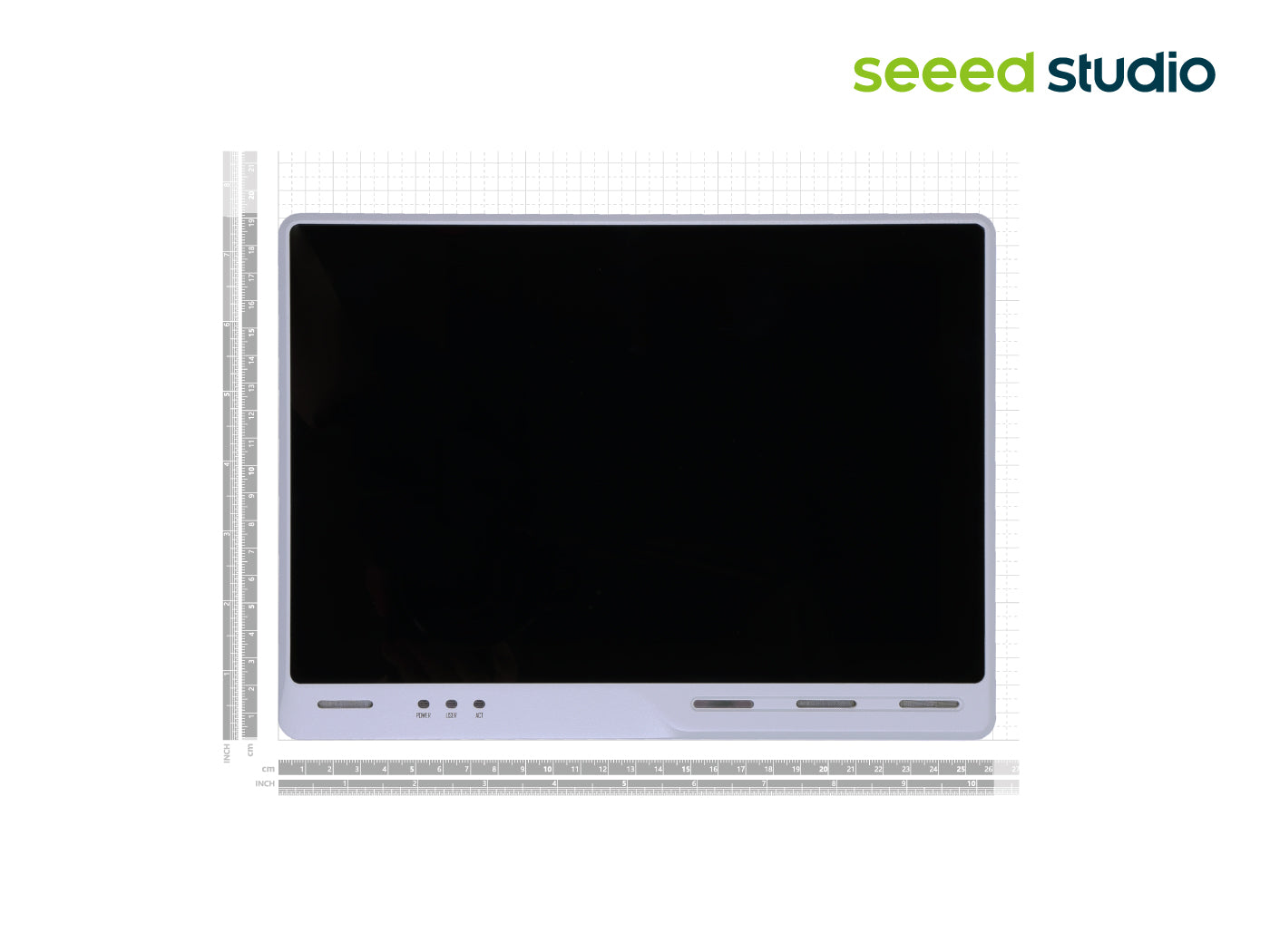

| Dimension | 259.4 x 191 x 42.2 mm |
| Enclosure | Die-cast Aluminum Alloy |

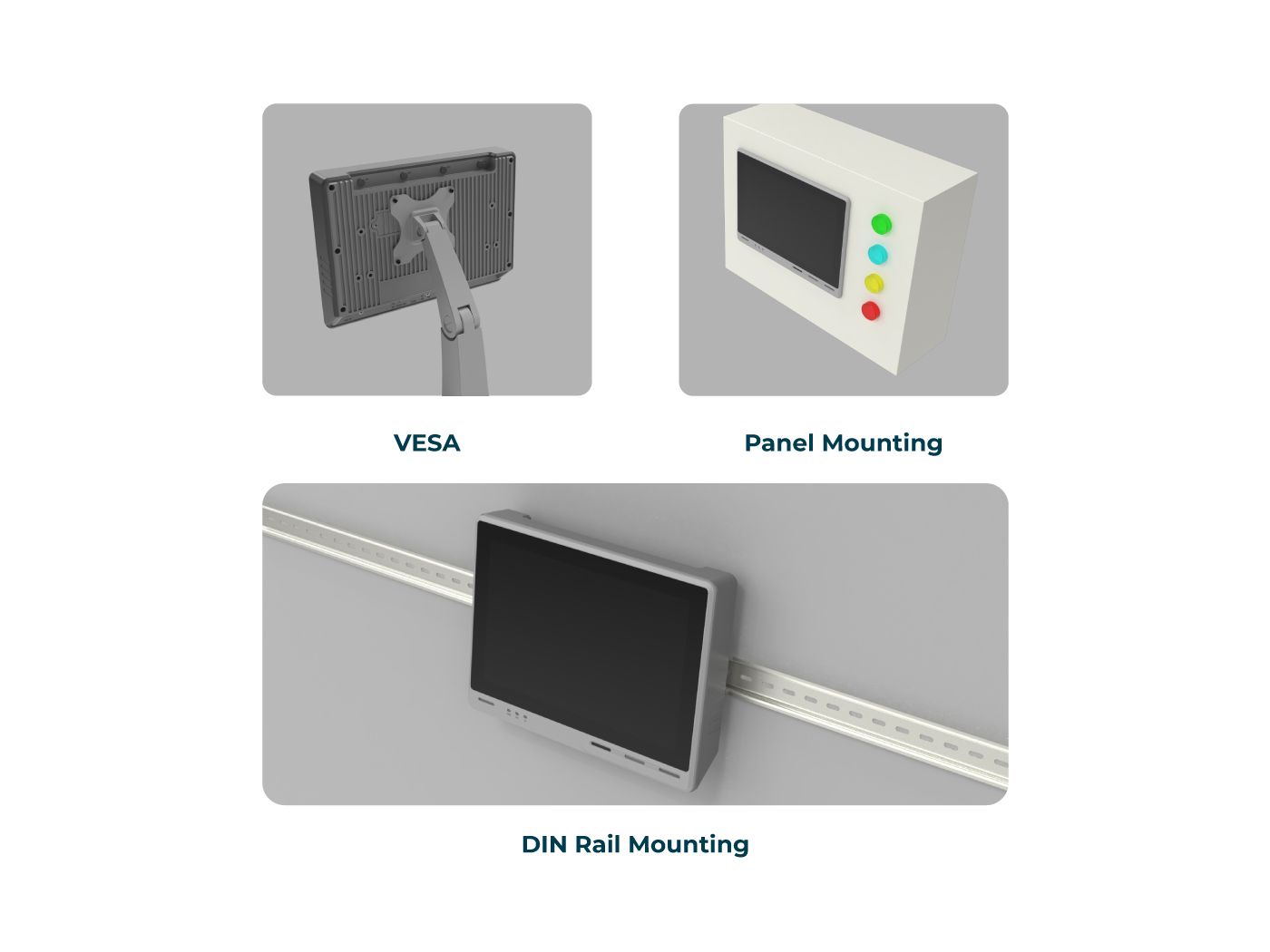

| Mounting | Panel, VESA, Din-Rail |
| Weight (Net) | 1.8Kg |
| Certification | |
| CE, FCC, RoHS, Telec, REACH | |
| Others | |
| RTC | High Accuracy RTC |
| Security | ATECC608A |
| Warranty | 2 Years |
| Heat Dissipation | Fanless |

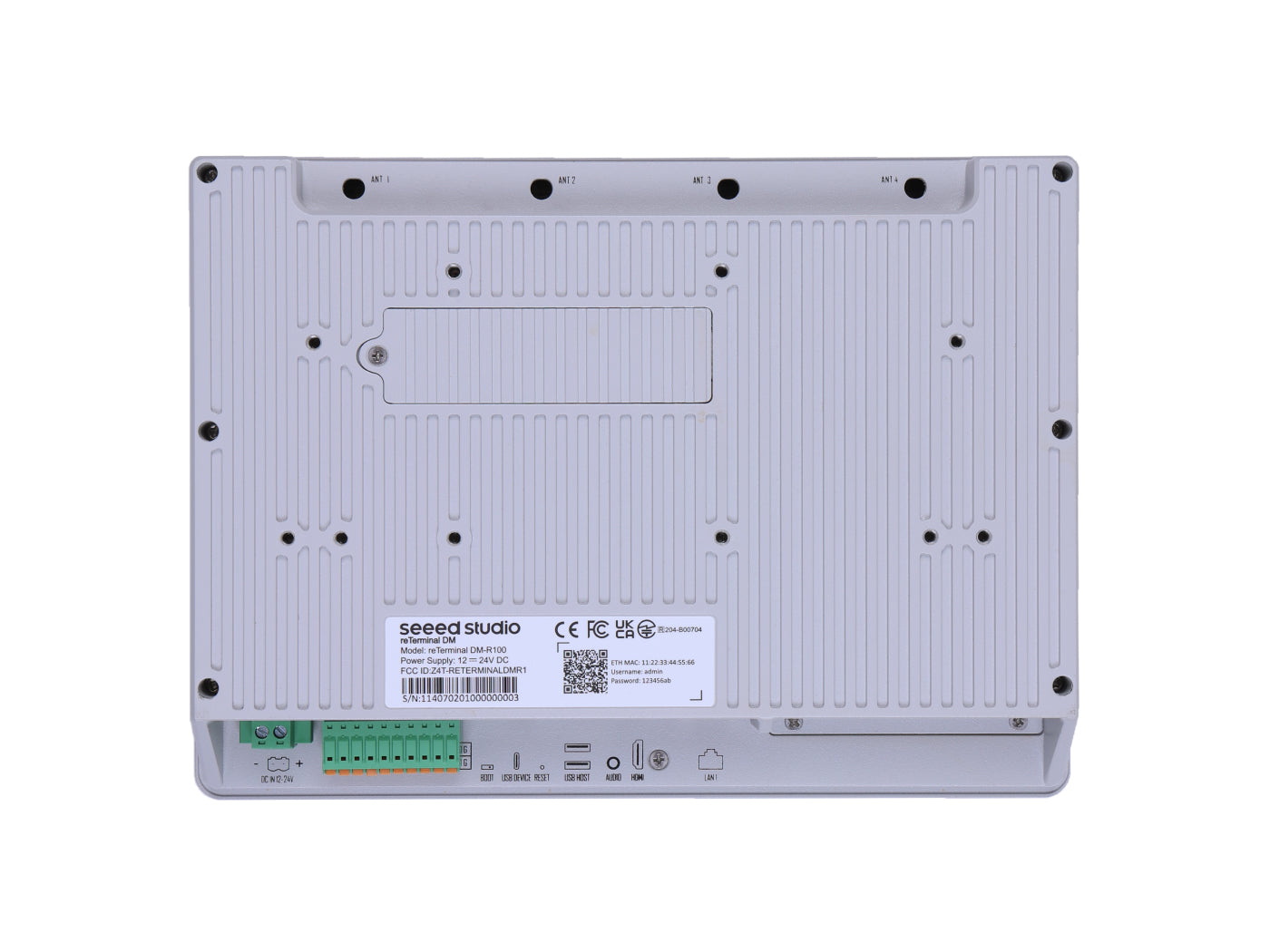

Hardware Overview

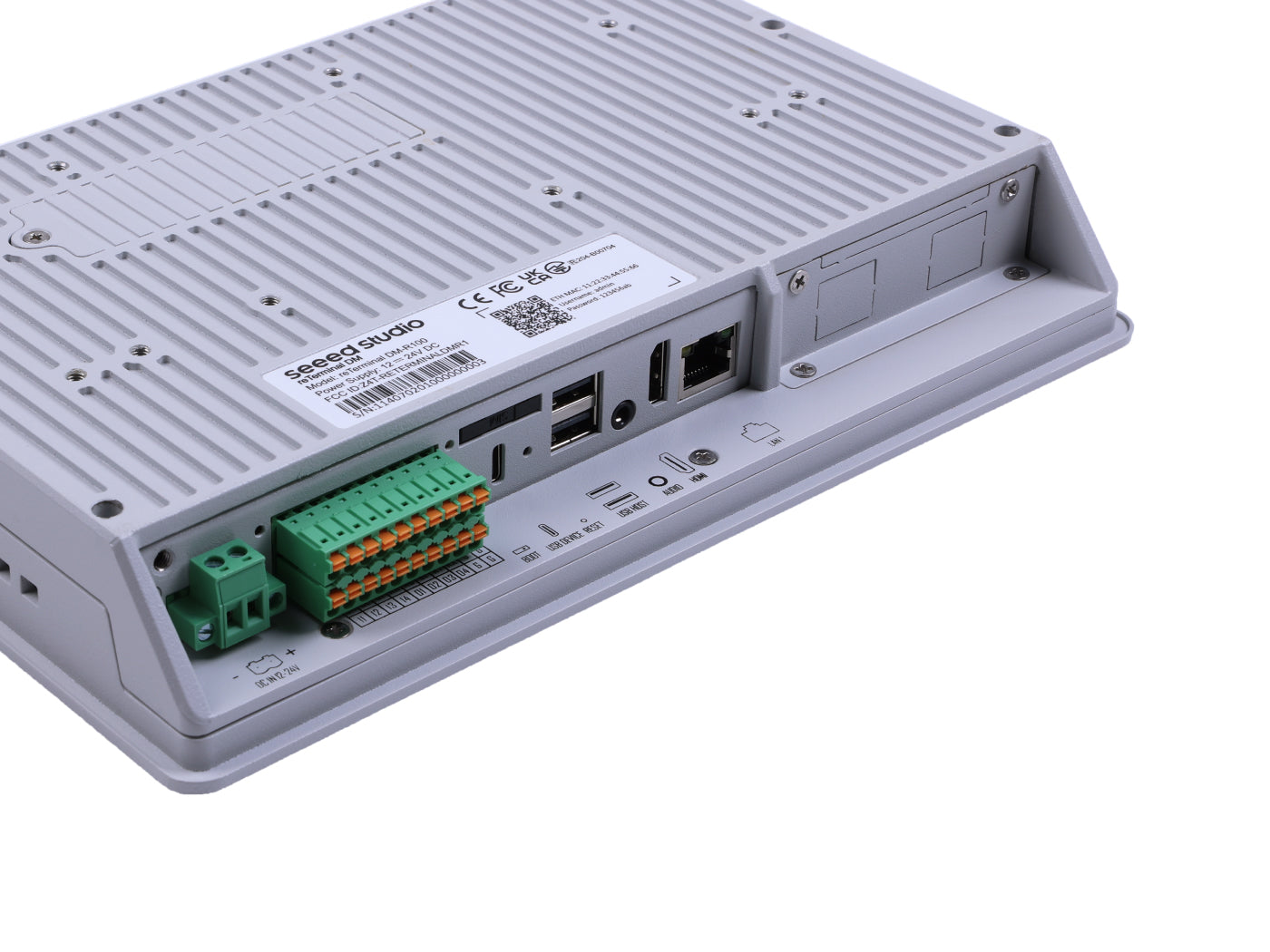

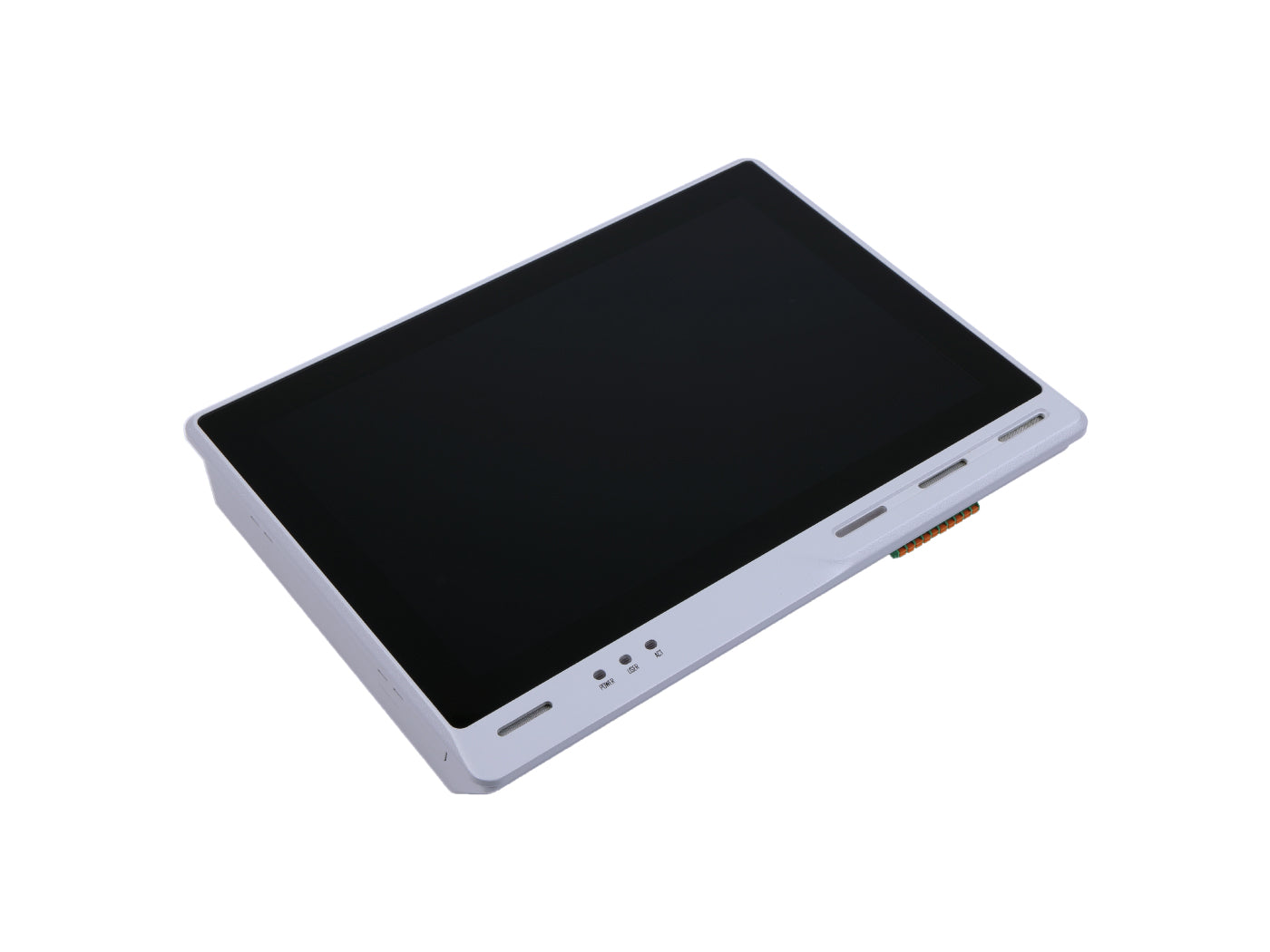

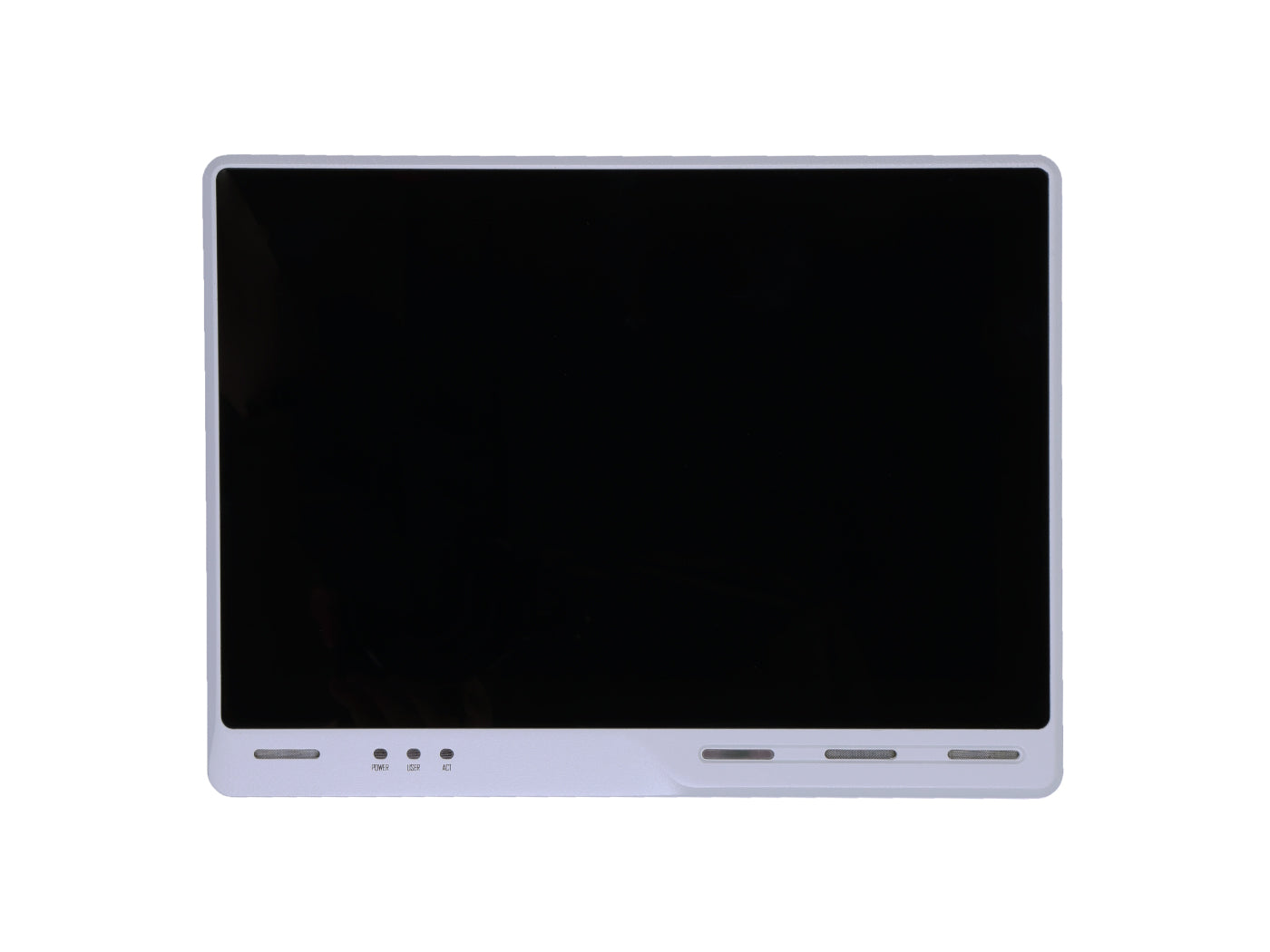

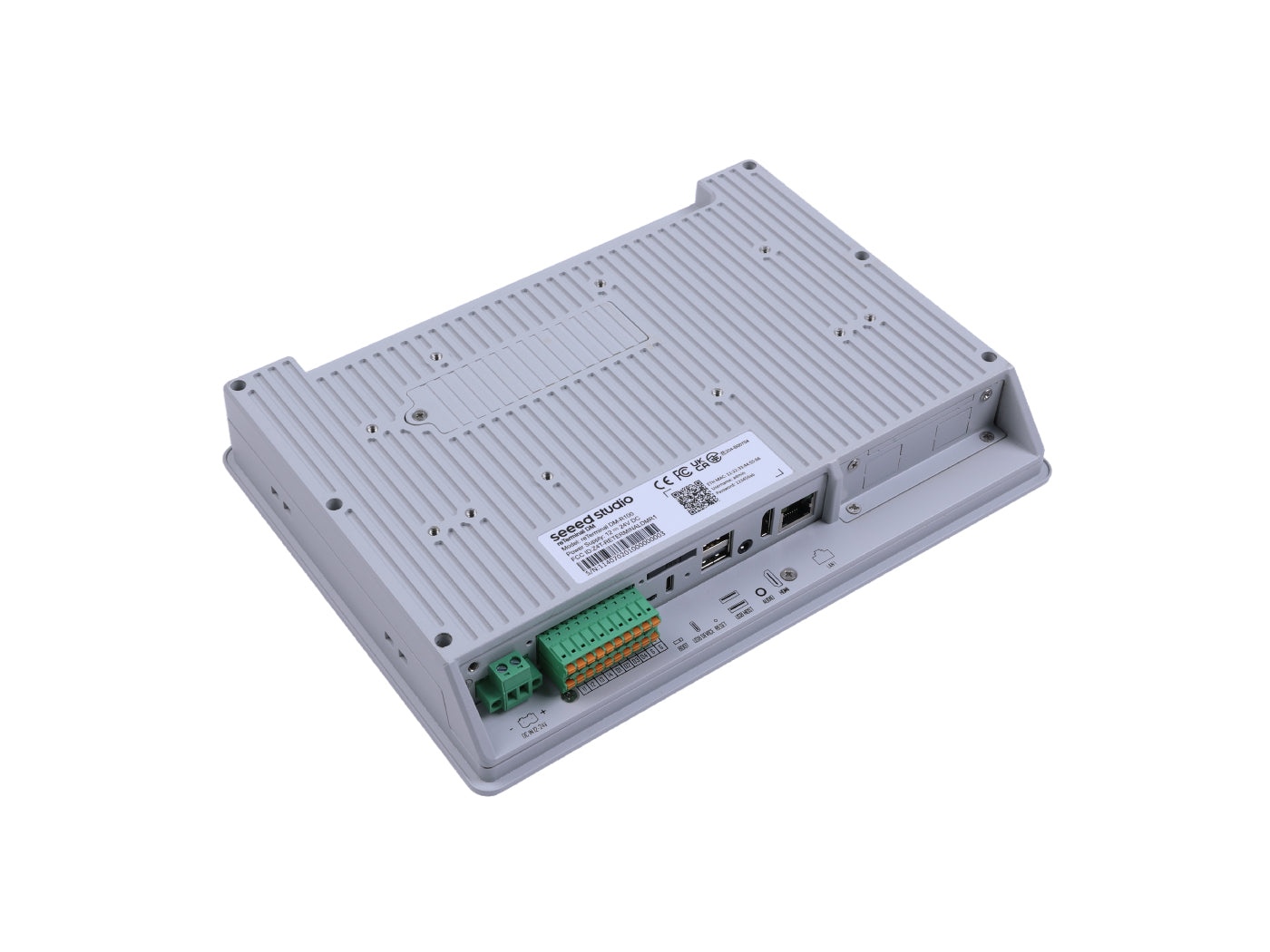

reTerminal DM is an integrated device master that can function as an HMI/PLC/Gateway/Panel PC all-in-one device, working in the edge layer of the IOT architecture, unifying data flow, and managing onsite devices, reducing the big gap between legacy systems and modern IT infrastructures in various application scenarios.
Learn
 |
Running GPT on a Raspberry Pi: How to Build Your Own AI Device with Seeed’s reTerminal DM Running GPT on Seeed's Raspberry Pi-powered HMI, reTerminal DM, building your own AI device, and finding out more possibilities with Raspberry Pi in the AI world. |
 |
reTerminal DM is based on Raspberry Pi CM4, and as a Panel PC, HMI, PLC, IIoT Gateway all-in-one device, reTerminal DM is a new generation of interactive sensing hub with an IP65 industrial-grade large screen. |
