SX1262 LoRaWAN Node Module Expansion Board for Raspberry Pi - 868Mhz & GNSS

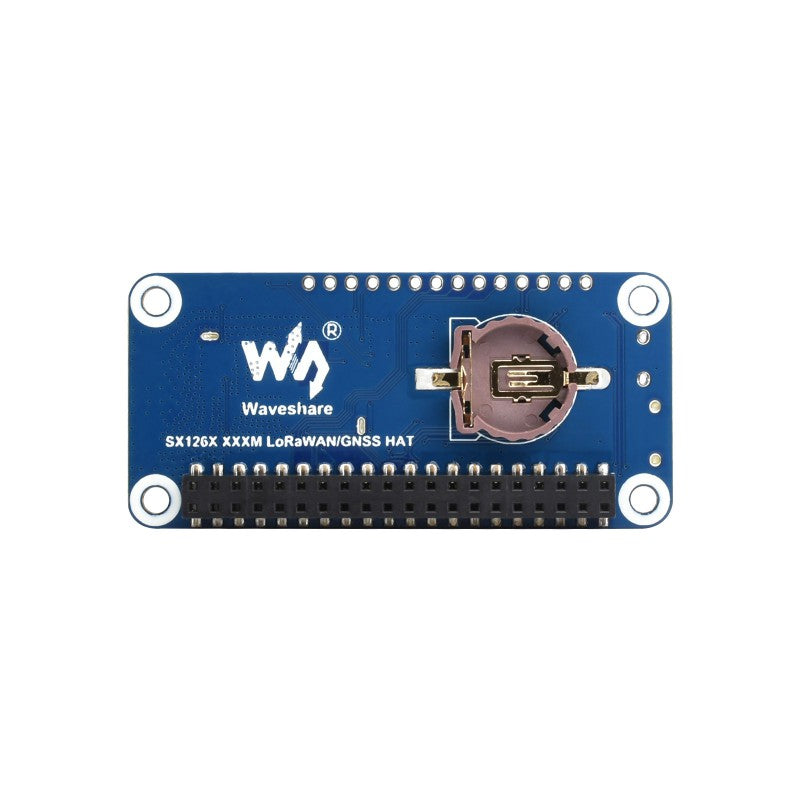

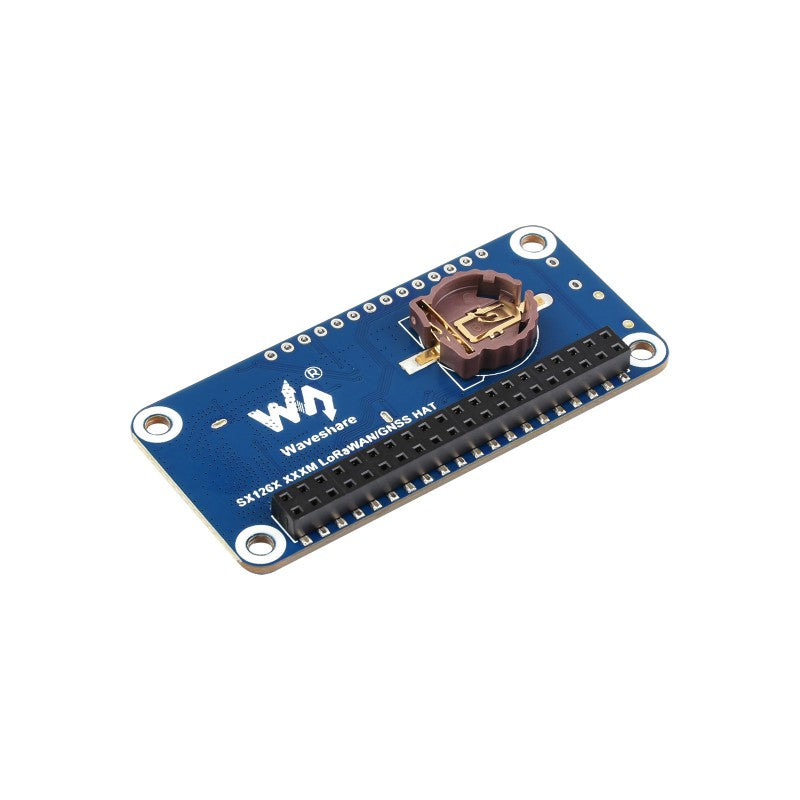

SX1262 LoRaWAN/GNSS HAT
SX1262 RF Chip LoRa Module, Suitable For Sub-GHz Band Network
Features At A Glance
This series of products are LoRa modules using the new generation of SX1262 RF chip, with the features of long communication distance and strong anti-interference ability. Suitable for Sub-GHz frequency band network, and is available in LF (410~510MHz) or HF (850~930MHz) frequency band versions. Combined with a LoRa gateway, it can be connected to servers such as TTN to build a LoRaWAN network. In addition to the basic LoRaWAN version, it also provides optional GNSS positioning function with GPS/BD support.
Common features:
Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi series boards
The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278
Suitable for Sub-GHz band, combined with the gateway, can be quickly connected to a cloud server such as TTN to build a LoRaWAN network
GNSS version features:
Onboard L76K module with GPS/BD support, provides accurate clock and location info for node module
Onboard button cell holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
Onboard 4 LED indicators for module operating status
Comes with online development resources and manual (example in C)
Version Option: SX1262 868/915M LoRaWAN/GNSS HAT
Suitable for HF band, comes with a magnetic CB antenna, a GPS antenna and IPEX adapter cables (2PCS)
Specifications
LORA PARAMETERS
RF CHIP
SX1262
FREQUENCY BAND
LF: 410 ~ 510MHz
MODULATION
LoRa / (G)FSK
DATA RATE
LoRa: 0.018 ~ 62.5Kbps
EMIT POWER
22dBm@3.3V
SPREADING FACTOR
SF7 ~ SF12
OPERATING VOLTAGE
3.3V
MODULE CURRENT CONSUMPTION
emitting current: 107mA@22dBm 5.3mA@125KHz
COMMUNICATION BUS
SPI
OPERATING TEMPERATURE
0 ~ 50℃
INTERFACE
40PIN GPIO header
GNSS PARAMETERS
GNSS MODULE
L76K
GNSS TYPE
GPS/GLONASS/BDS/QZSS
L1 BAND RECEIVER (CHANNELS)
32 Tracking ch/72 Acquisition ch
A-GNSS
support
RECEIVING SENSITIVITY
-148dBm, -160dBm, -162dBm
TTFF (TIME TO FIRST FIX)
30s, Autonomous
POSITION ACCURACY
2.0m CEP
SPEED ACCURACY
0.1m/s
ACCELERATION ACCURACY (MAX)
0.1m/s²
UART RATE
Range: 4800~115200bps
GNSS DATA UPDATE RATE
Max: 5Hz
Pinout Definition

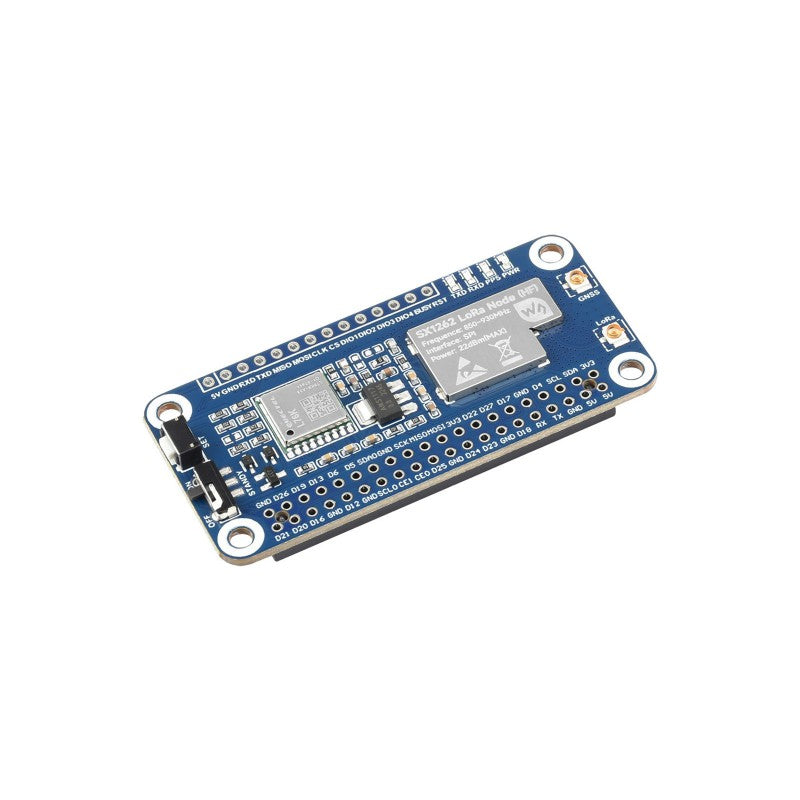

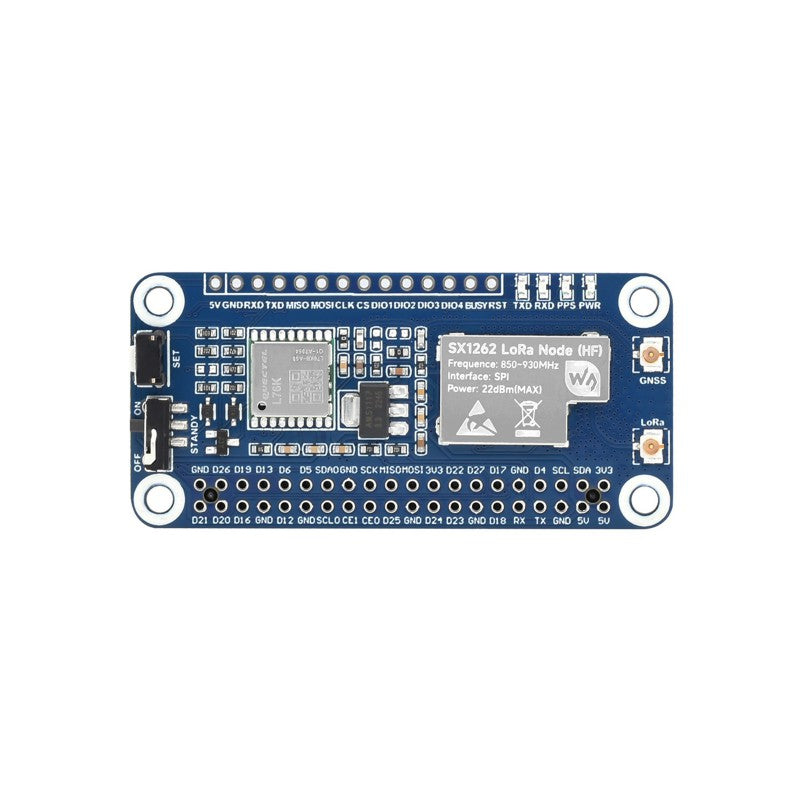

What's On Board
SX1262
L76K
Power chip
GPS STANDY mode ON/OFF
SET button
GNSS module IPEX 1 connector
LoRa module IPEX 1 connector
Status Indicator
Raspberry Pi 40PIN GPIO header
LoRa module and GNSS module pin header
Application Examples
Industrial Control, Intelligent Home, And Data Acquisition...
Outline Dimensions
Package Contents:
SX1262 868/915M LoRaWAN/GNSS HAT
SX1262 868/915M LoRaWAN/GNSS HAT x1

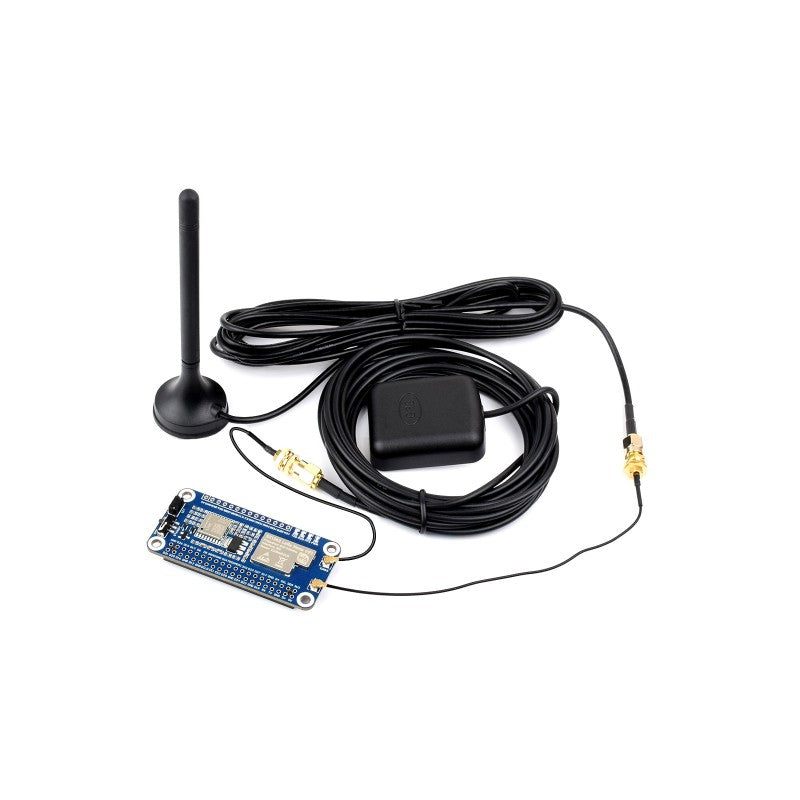

868/915M Magnetic CB antenna x1
GPS antenna x1
IPEX to SMA adapter cable ~17cm x2
Screws pack x1
2×20PIN female pinheader x1
