5G DONGLE Expansion Board, USB 3.2 Port

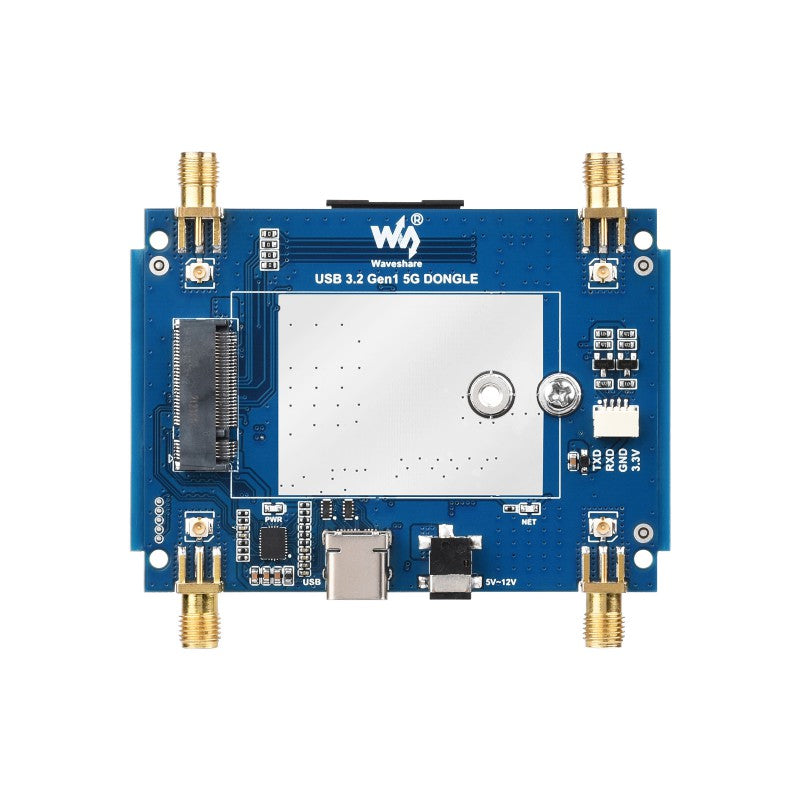

5G DONGLE Expansion Board

5G M.2 to USB 3.2 Port

Supports SIMCom / Quectel / Fibocom Mainstream 5G M.2 Modules
Compatible With 3042 / 3052 Packages

Features

Compatible 5G Modules

Multiple Size Compatible

Supports 3042 / 3052 Packages

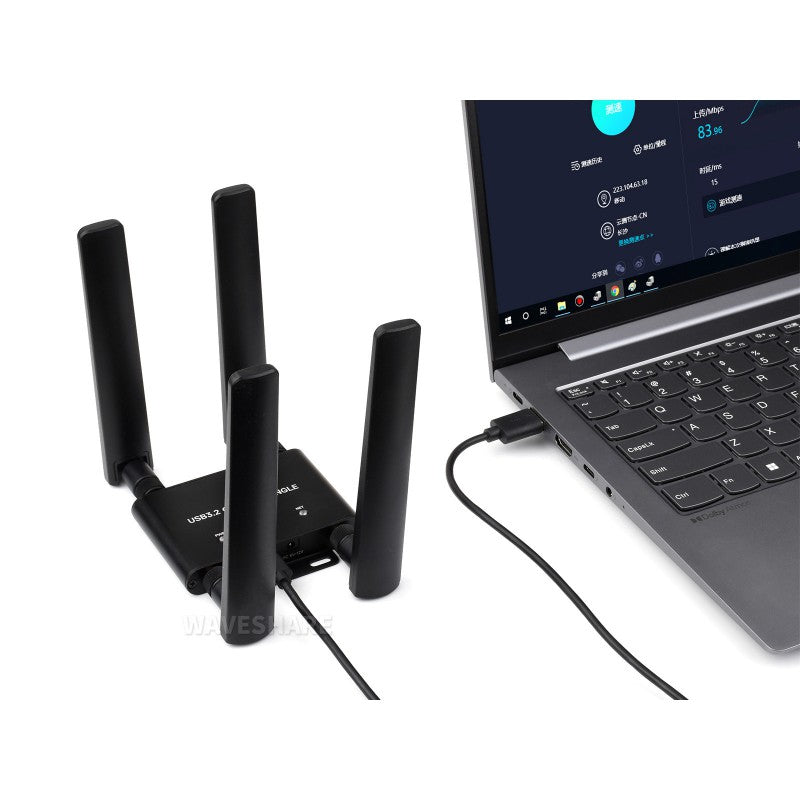

Connection Examples

Connect To Windows PCs, Raspberry Pi Motherboards
And Jetson Nano Series Motherboards Via USB Port For 5G Networking

Multi System Support, Easy To Use

Supports Windows / Linux...

Just plug it into USB port, go through some simple configuration,
the high speed 5G network connection will be ready to use

Application Scenarios

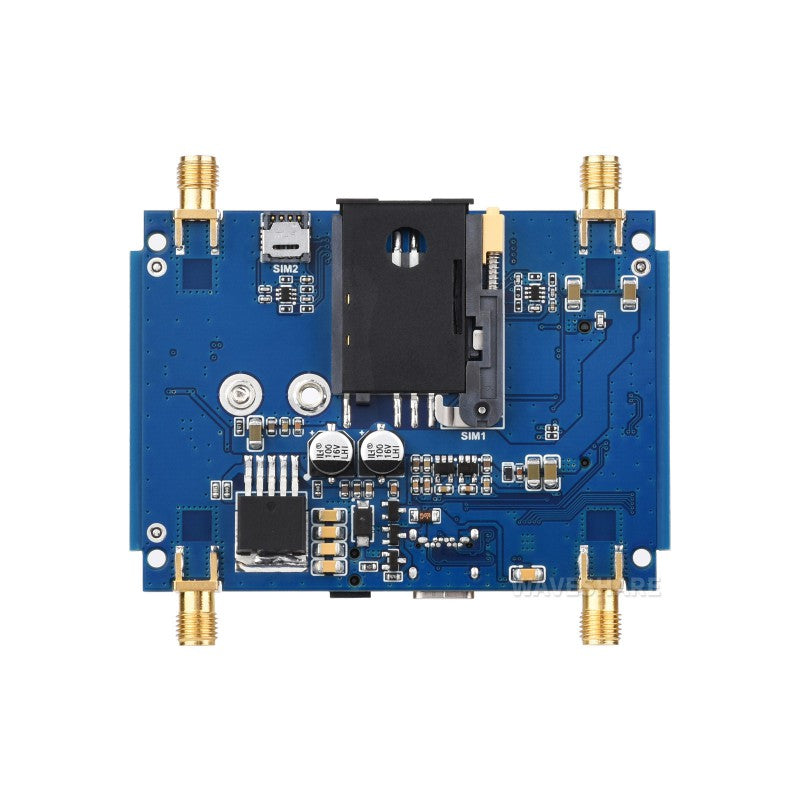

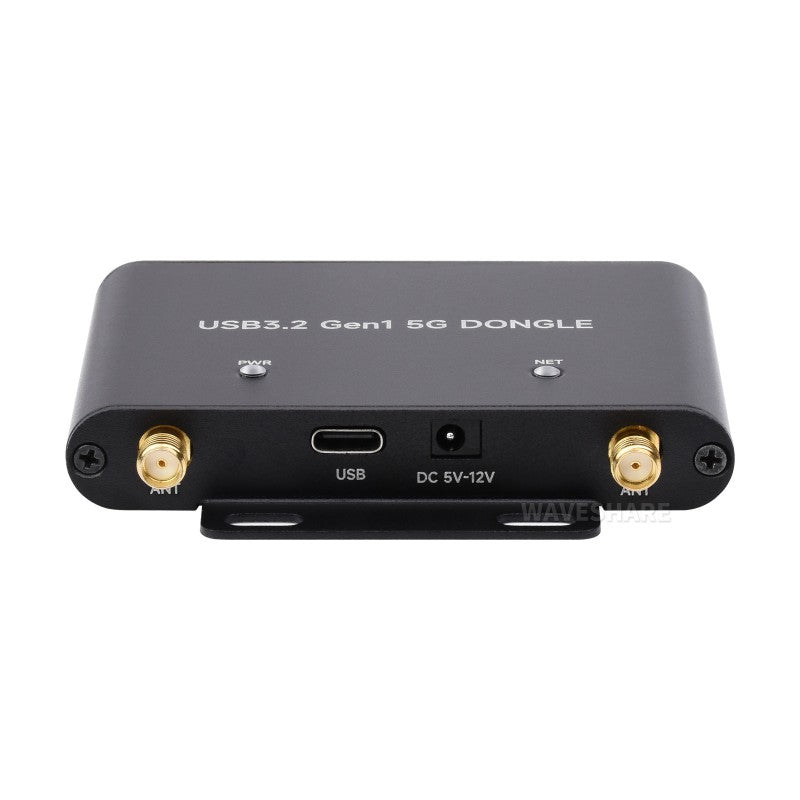

Interface Introduction

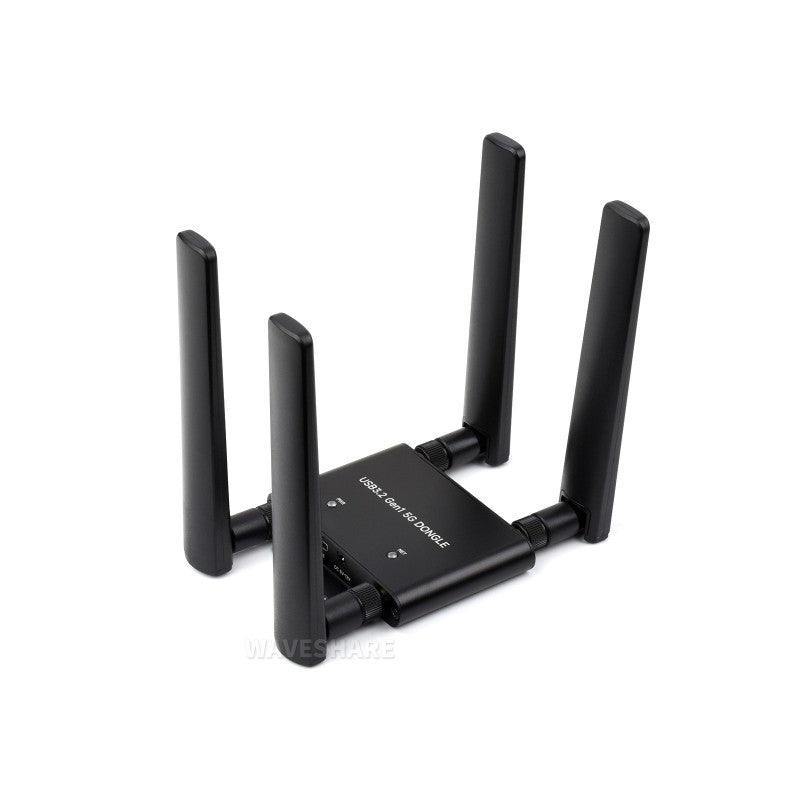

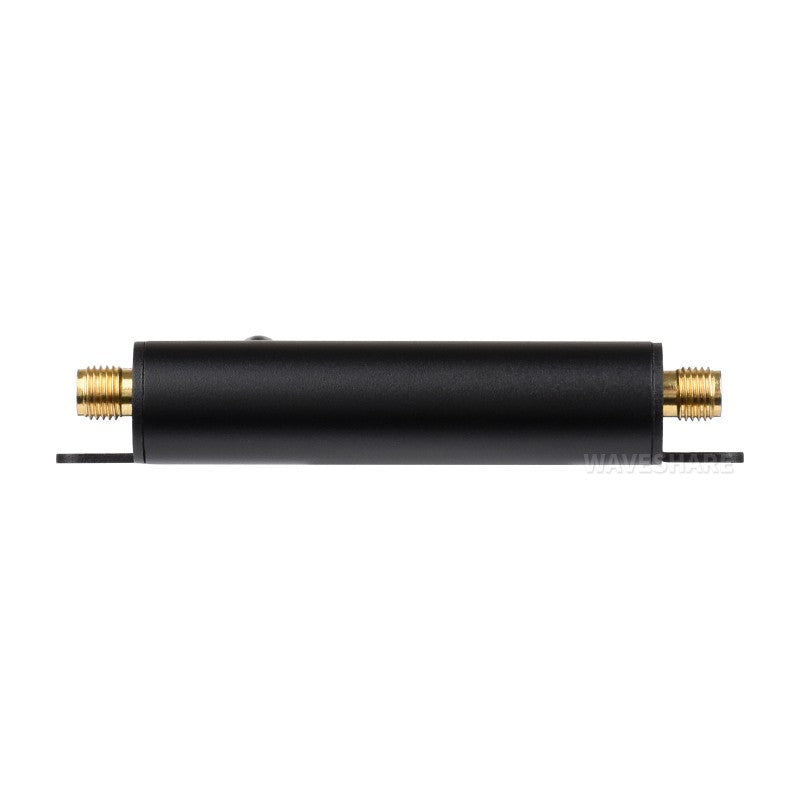

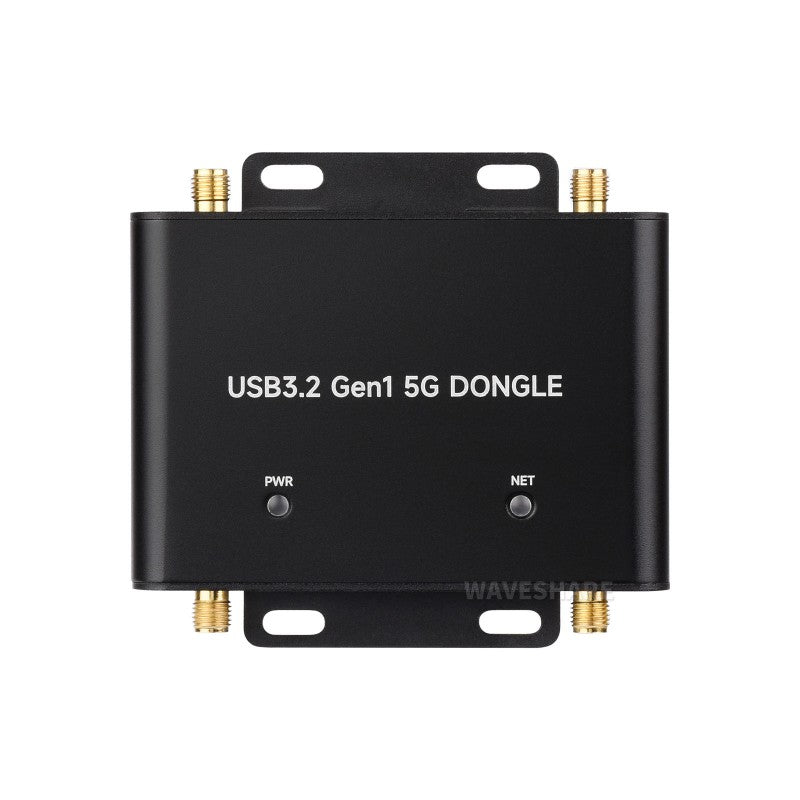

Industrial Grade Aluminium Alloy Enclosure

Aluminum Alloy Enclosure With Oxidation Dull-Polish Surface,
Solid And Durable, Compact Size, Desktop Or Wall-Mount Support

5G Module Installation Introduction

Resources

Kit Selection

Package Contents:

USB 3.2 Gen1 5G DONGLE with Optional 5G Module

Want to buy in bulk?

Customer Reviews

Custom Requirements?

Popular Links

Shopping Cart

Let customers speak for us

MODEL	SIM8202G-M2	SIM8262E-M2	SIM8262A-M2	RM520N-GL
5G STANDARD	3GPP R15	3GPP R16
APPLICABLE REGIONS	except Americas		Americas	Global
CHIP	Qualcomm Snapdragon X55	Qualcomm Snapdragon X62
FREQUENCY BAND
SUB-6G	n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79	n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79	5G NR NSA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
SUB-6G		n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79		5G NR SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71	B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32	B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE-TDD	B34, B38, B39, B40, B41, B42, B43, B48	B38, B39, B40, B41, B42, B43	B41, B46, B48	B34, B38, B39, B40, B41, B42, B43, B48
LAA	-			B46
WCDMA	B1, B2, B3, B4, B5, B8	B1, B5, B8	B2, B4, B5	B1, B2, B4, B5, B8, B19
GNSS	Supports GPS / GLONASS / BeiDou(Compass) / Galileo / QZSS
DATA RATE
SUB-6G	2.4Gbps (DL) / 500Mbps (UL)			5G NR SA: 2.4Gbps (DL) / 900Mbps (UL)
SUB-6G	2.4Gbps (DL) / 500Mbps (UL)			5G NR NSA: 3.4Gbps (DL) / 550Mbps (UL)
LTE	1.0Gbps (DL) / 200Mbps (UL)			1.6Gbps (DL) / 200Mbps (UL)
UMTS	42Mbps (DL) / 5.76Mbps (UL)
DIMENSIONS	42.0 × 30.0 × 2.3mm			52.0 × 30.0 × 2.3mm
Note: 5G module is optonal. This table only lists some supported models after actual testing, and the pin compatibility should be tested if used with other models.

MODEL	APPLICATION
USB 3.2 Gen1 5G DONGLE	The 5G module needs to be purchased separately. Compatible with SIMCom / Quectel / Fibocom 5G M.2 modules in the table above
SIM8202G-M2 5G DONGLE (B)	Comes with the SIM8202G-M2 5G module, applicable for countries or regions except the Americas. Onboard USB 3.2 Type-C port for fast 5G networking access and module evaluation.
SIM8262E-M2 5G DONGLE (B)	Comes with the SIM8262E-M2 5G module, applicable for countries or regions except the Americas. Onboard USB 3.2 Type-C port for fast 5G networking access and module evaluation.
SIM8262A-M2 5G DONGLE (B)	Comes with the SIM8262A-M2 5G module, applicable for the Americas. Onboard USB 3.2 Type-C port for fast 5G networking access and module evaluation.
RM520N-GL 5G DONGLE (B)	Comes with the Qualcomm RM520N-GL 5G Sub-6G module, global applicable. Onboard USB 3.2 Type-C port for fast 5G networking access and module evaluation.
RM530N-GL 5G DONGLE (B)	Comes with the Qualcomm RM530N-GL 5G Sub-6G & mmWave module, global applicable. Onboard USB 3.2 Type-C port for fast 5G networking access and module evaluation.
