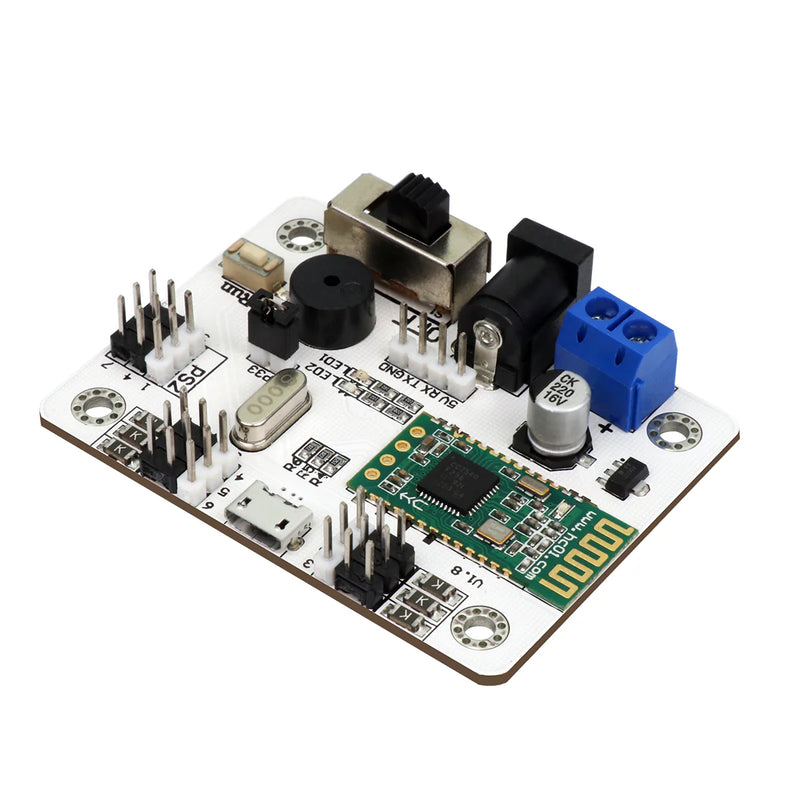

LSC-6: Hiwonder 6 CH Bluetooth 4.0 Servo Controller Module
LSC-6: Hiwonder 6 CH Bluetooth 4.0 Servo Controller Module RC Robot Toy for Children
Hiwonder 6 Channel servo controller has built in Bluetooth 4.0 module, which can be used in robotic arm or biped robot. It has over-current protection, as well as support Android phone and PS2 handle control.
Feature
> Built-in power switch, easy to use.
> Built in Bluetooth 4.0 module. Support Android App control.
> Equipped with 6 channel over-current protection, prevent servo from burning out.
> CPU uses high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer.
> 16M high-capacity memory, which is able to hold 230 action groups! Each action group can hold up to 1020 actions!
> Support TTL serial communication, the servo controller can be connected with other single chips which support TTL, other single chips can send instructions to the controller.
12 Product Features
Android Phone APP Operation Interface

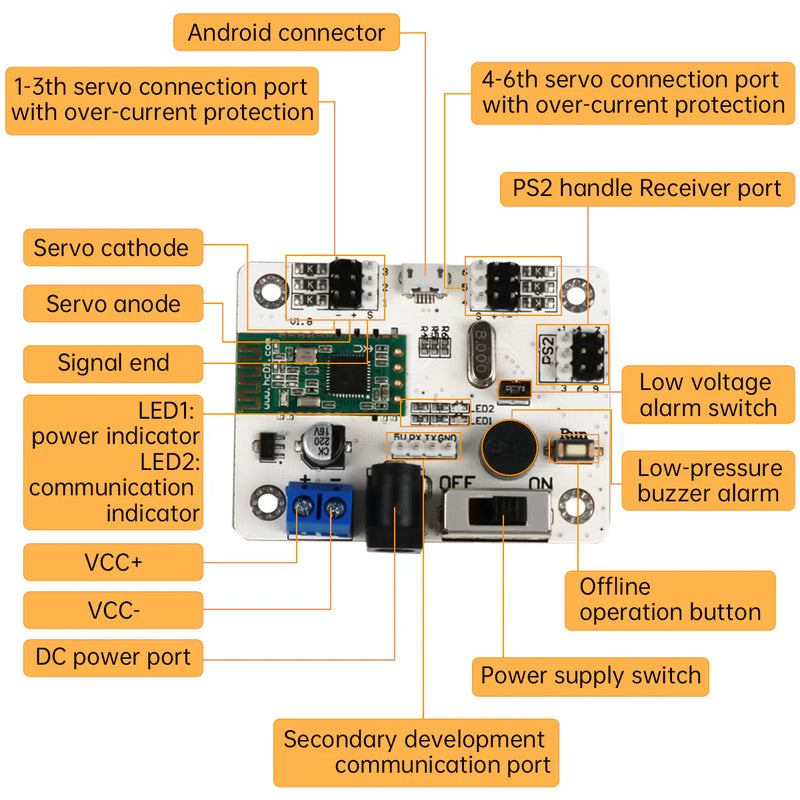

About Wiring
Secondary Development

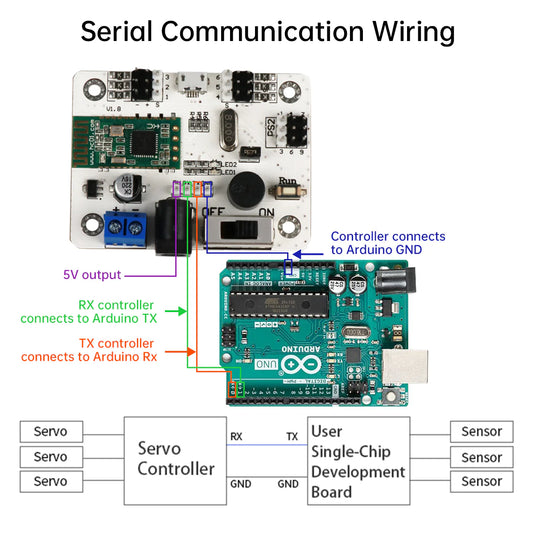

About Serial Communication Wiring
About PS2 Handle Connection
Product Parameter
Specifications
Item Specification

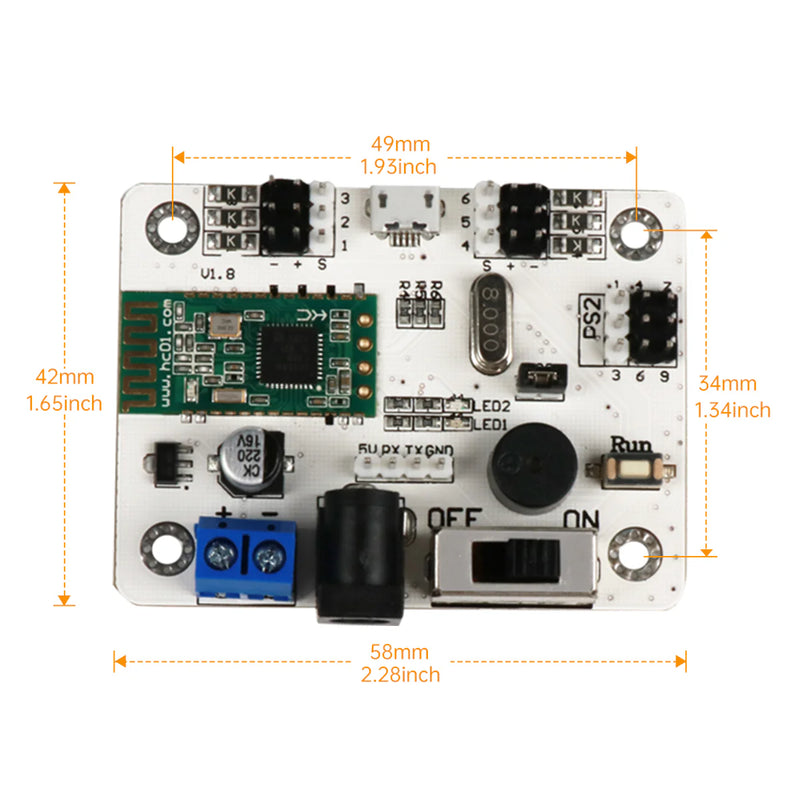

Outline Area Size
2.28inch*1.65inch
Mounting Hole Size
1.93inch*1.34inch
Bluetooth Module
4.0 version
Graphical Programming
support
Wireless Handle Control
support
The Maximum Number of Controlling Servo
6
Memory
16M
Current-limiting Protection
support
External Single-chip (Secondary Development)
support
Low Voltage Alarm
support
Over-current Protection
support
Net Weight
20 grams
Package List
1* servo controller
Packing List
1* servo controller
