Description

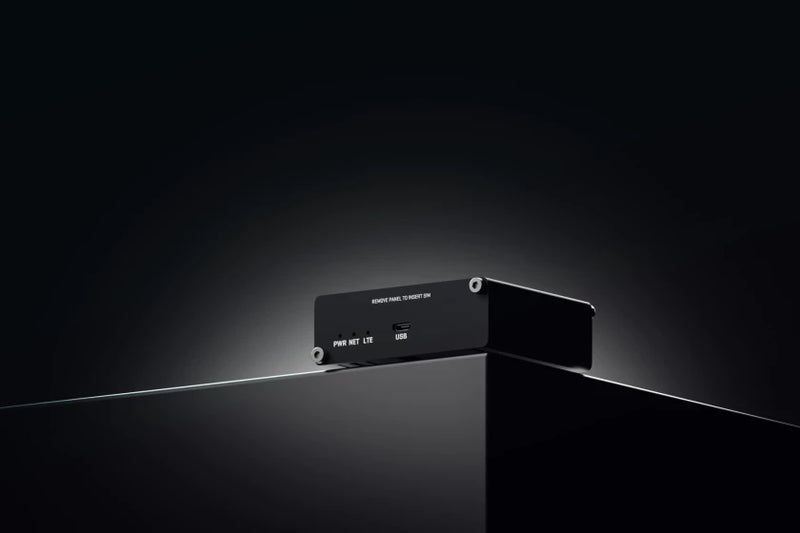

TRM240 is an industrial-grade USB LTE Cat 1 modem with a rugged housing and an external antenna for better signal coverage. This product is perfect for upgrading existing industrial equipment with cost-efficient LTE connectivity.
Standard package*
- TRM240
- 1x Mobile antenna (swivel, SMA male)
- Micro-USB cable (0.8 m)
- 1x hex key
- QSG (Quick Start Guide)
- Packaging box
*Standard package contents may differ based on standard order codes.
Feature
Mobile
| Feature | Details |
|---|---|
| Mobile Module | 4G LTE Cat 1: up to 10 Mbps DL / 5 Mbps UL 3G: up to 384 kbps DL / 384 kbps UL 2G: up to 296 kbps DL / 236.8 kbps UL |
| 3GPP Release | Release 12 |
Power
| Feature | Details |
|---|---|
| Connector | microUSB |
| Input Voltage Range | 5V (powered via microUSB) |
| Power Consumption | 3.2 W Max |
Physical Interfaces
| Feature | Details |
|---|---|

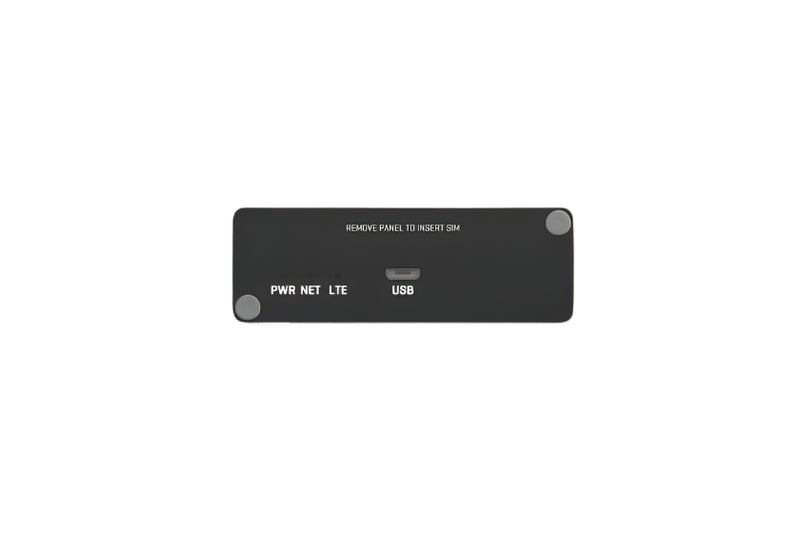

| Status LEDs | 1 x Power LED 1 x Network LED 1 x Mobile LED |
| SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |
| Power | 1 x microUSB |
| Antennas | 1 x SMA for LTE |
Physical Specifications
| Feature | Details |
|---|---|
| Casing Material | Aluminium housing |
| Dimensions (W x H x D) | 74.5 x 25 x 64.5 mm |
| Weight | 131 g |
| Mounting Options | DIN rail, wall mount, flat surface (all require additional kit) |
Operating Environment
| Feature | Details |
|---|---|
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
Software
| Feature | Details |
|---|---|
| Management Software | Windows Connection Manager (NDIS driver) |
| USB Driver | Windows 7/8/8.1/10 Windows CE 5.0/6.0 Linux 2.6/3.x/4.1~4.14 Android 4.x/5.x/6.x/7.x/8.x |
| RIL Driver | Android 4.x/5.x/6.x/7.x/8.x |
| NDIS Driver | Windows 7/8/8.1/10 |
| Gobinet Driver | Linux 2.6/3.x/4.1~4.14 |
| Linux Driver | 3.x (3.4 and later)/4.1~4.14 |
Regulatory & Type Approvals
| Feature | Details |
|---|---|
| Regulatory | CE, UKCA, EAC, UCRF, Kenya, ICASA |
EMC Emissions & Immunity
| Feature | Details |
|---|---|
| Standards | Draft EN 303 446-1 V1.1.0 |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2006 + A1:2008 + A2:2010 |
RF
| Feature | Details |
|---|---|
| Standards | EN 301 511 V12.5.1 EN 301 908-1 V13.1.1 EN 301 908-2 V13.1.1 EN 301 908-13 V13.1.1 |
Safety
| Feature | Details |
|---|---|
| Standards | CE: EN 62368-1:2014 + A11:2017 EN 62311:2008 |
