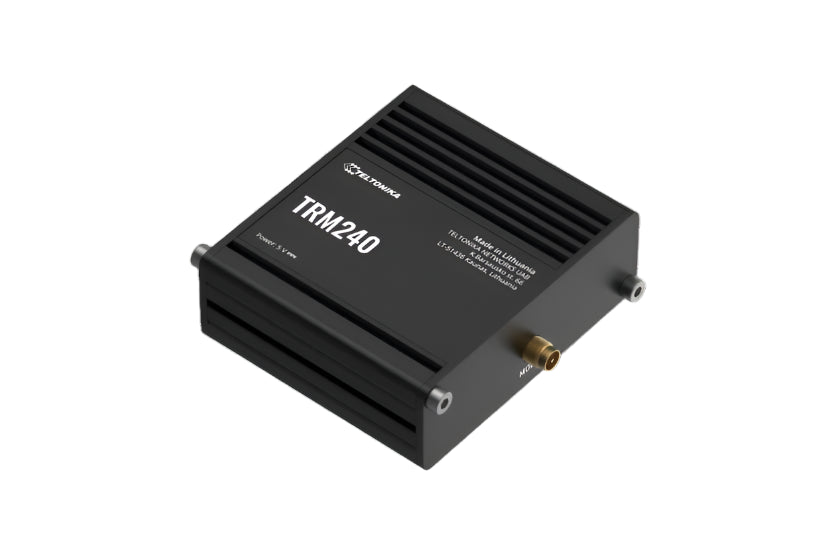

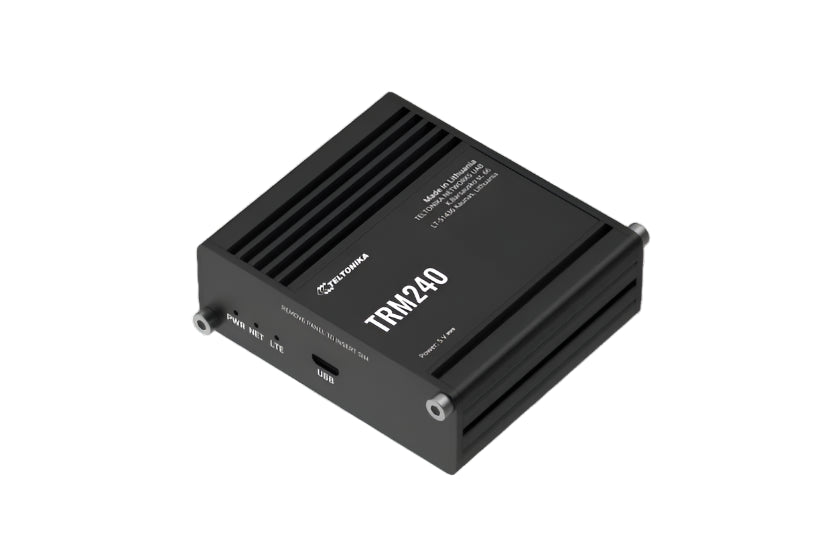

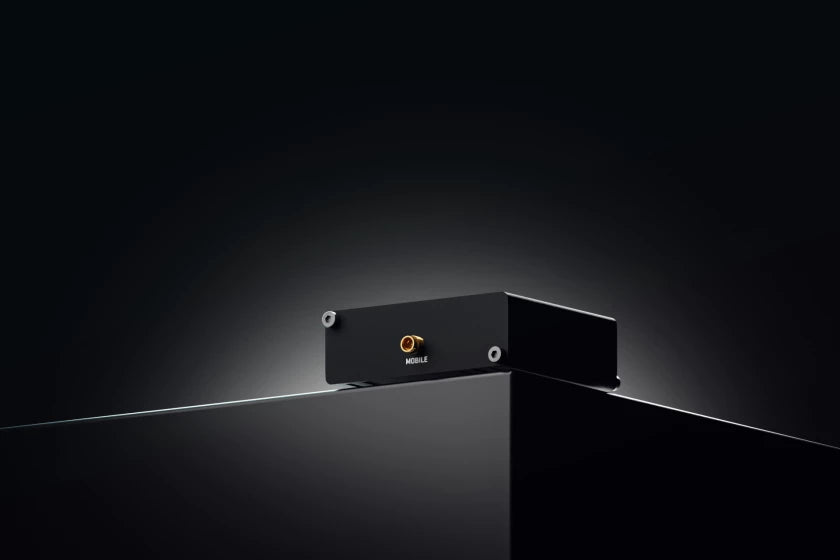

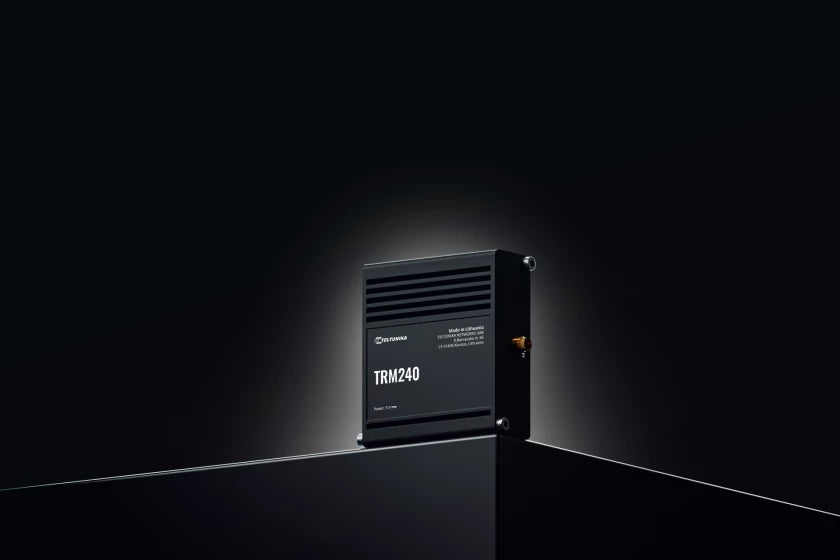

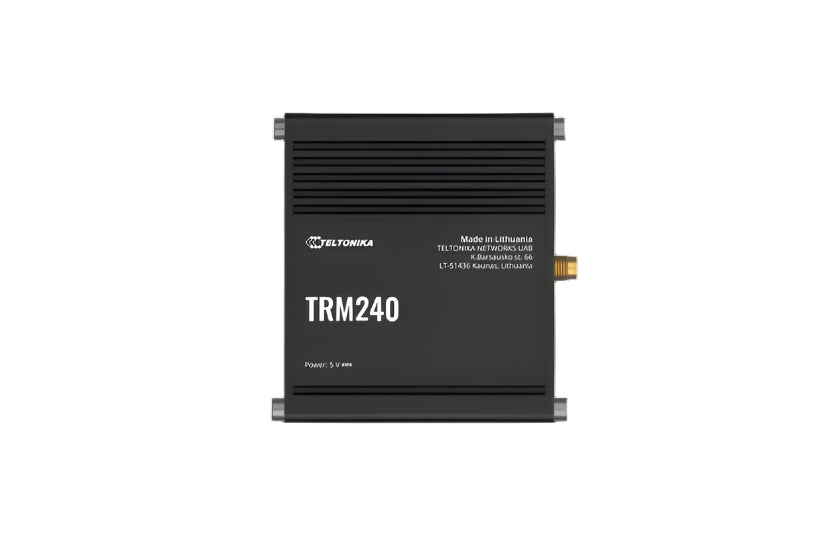

TRM240 - Industrial Cellular Modem
TRM240 - Industrial Cellular Modem
TRM240 - Industrial Cellular Modem
TRM240 - Industrial Cellular Modem
TRM240 - Industrial Cellular Modem
TRM240 - Industrial Cellular Modem
TRM240 - Industrial Cellular Modem
TRM240 - Industrial Cellular Modem
Need Support? Click Here
Free Delivery Above ā‚¹999

Best seller

Teltonika Networks

TRM240 - Industrial Cellular Modem

SKU: ELC8701

ā‚¹ 11,749.99 ā‚¹ 17,199.99

Out of stock Ā· Available in 2 weeks

šŸ“¦ Min order 1

Enter your email or your WhatsApp number.
Chat with us on WhatsApp We reply quickly! Contact Us
TRM240 - Industrial Cellular Modemā‚¹ 11,749.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

TRM240 is an industrial-grade USB LTE Cat 1 modem with a rugged housing and an external antenna for better signal coverage. This product is perfect for upgrading existing industrial equipment with cost-efficient LTE connectivity.

Standard package*

*Standard package contents may differ based on standard order codes.

Feature

Mobile

Feature Details
Mobile Module 4G LTE Cat 1: up to 10 Mbps DL / 5 Mbps UL
3G: up to 384 kbps DL / 384 kbps UL
2G: up to 296 kbps DL / 236.8 kbps UL
3GPP Release Release 12

Ā

Power

Feature Details
Connector microUSB
Input Voltage Range 5V (powered via microUSB)
Power Consumption 3.2 W Max

Ā

Physical Interfaces

Feature Details
Status LEDs 1 x Power LED
1 x Network LED
1 x Mobile LED
SIM 1 x SIM slot (Mini SIM ā€“ 2FF), 1.8 V/3 V
Power 1 x microUSB
Antennas 1 x SMA for LTE

Ā

Physical Specifications

Feature Details
Casing Material Aluminium housing
Dimensions (W x H x D) 74.5 x 25 x 64.5 mm
Weight 131 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)

Ā

Operating Environment

Feature Details
Operating Temperature -40 Ā°C to 75 Ā°C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Ā

Software

Feature Details
Management Software Windows Connection Manager (NDIS driver)
USB Driver Windows 7/8/8.1/10
Windows CE 5.0/6.0
Linux 2.6/3.x/4.1~4.14
Android 4.x/5.x/6.x/7.x/8.x
RIL Driver Android 4.x/5.x/6.x/7.x/8.x
NDIS Driver Windows 7/8/8.1/10
Gobinet Driver Linux 2.6/3.x/4.1~4.14
Linux Driver 3.x (3.4 and later)/4.1~4.14

Ā

Regulatory & Type Approvals

Feature Details
Regulatory CE, UKCA, EAC, UCRF, Kenya, ICASA

Ā

EMC Emissions & Immunity

Feature Details
Standards Draft EN 303 446-1 V1.1.0
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2006 + A1:2008 + A2:2010

Ā

RF

Feature Details
Standards EN 301 511 V12.5.1
EN 301 908-1 V13.1.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.1.1

Ā

Safety

Feature Details
Standards CE: EN 62368-1:2014 + A11:2017
EN 62311:2008

Ā

Download

Manual & Documentation

TRM240 FLYER (EN)
What network technologies and speed can the TRM240 deliver?
It supports 4G LTE Cat 1 with up to 10 Mbps download and 5 Mbps upload. It also offers 3G up to 384 kbps and 2G up to 296 kbps download with corresponding upload speeds.
What mounting and enclosure features does it have?
The modem uses an aluminium housing with dimensions 74.5 x 25 x 64.5 mm and a weight of 131 g. It can be mounted on DIN rail, a wall, or a flat surface with an additional kit.
What hardware interfaces and power does it require?
It is powered via microUSB with 5 V input and up to 3.2 W power consumption. It includes a SIM slot (Mini SIM 2FF, 1.8 V/3 V), 1 micro USB port, and 1 SMA LTE antenna, plus status LEDs.
What software and driver support is available for different operating systems?
Management software includes Windows Connection Manager with an NDIS driver and Windows USB drivers. Linux and Android drivers are available, including RIL and Gobinet variants, for various platforms.
What environmental limits and regulatory approvals apply to the TRM240?
Operating range is -40 C to 75 C and 10 to 90 percent humidity non condensing, with IP30 ingress protection. Regulatory approvals include CE, UKCA, EAC, UCRF, Kenya, and ICASA.
A
