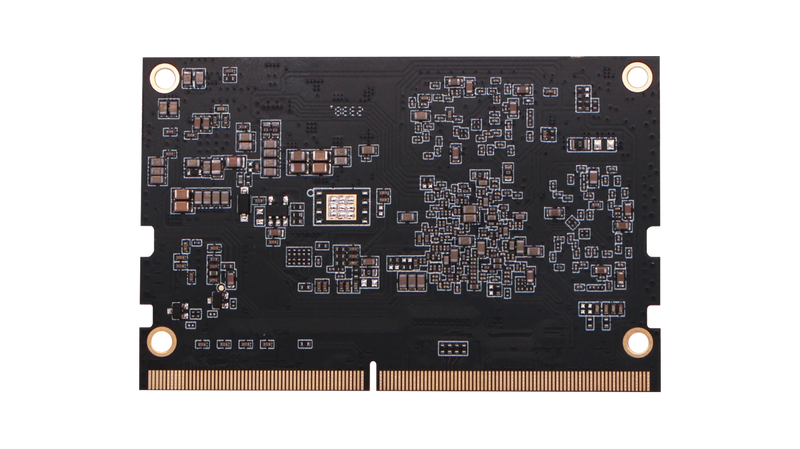

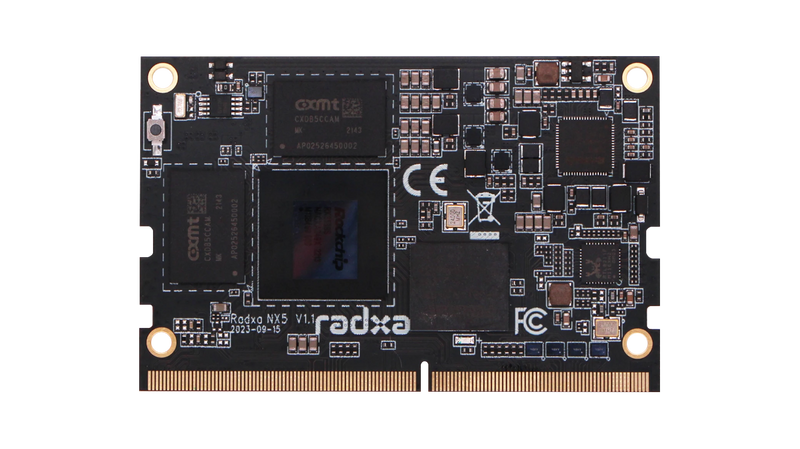

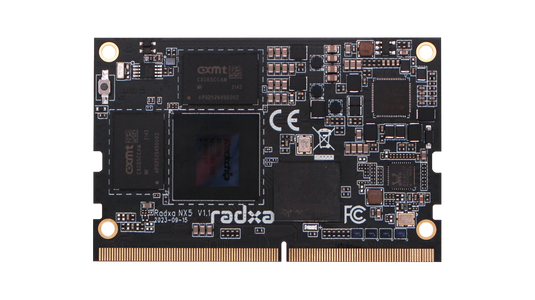

NX5(mEdge-RK3588S)
Radxa mEdge-RK3588S
Rockchip RK3588S
Experience Outstanding Performance, Explore Endless Possibilities
Empower Various Scenarios with
Strong AI Processing Power of 6TOPs
Make AI Easy with Support for Popular Deep Learning Frameworks
TensorFlow, Caffe, Tflite, PyTorch, ONNX NN, Android NN, and More!
Ample Memory for Effortless Multitasking
LPDDR4X RAM: 2GB / 4GB / 8GB / 16GB
Onboard eMMC: 8GB / 16GB / 32GB / 64GB
Ample Memory for Effortless Multitasking
H.265 / AVS2 / VP9 multivideo decoder up to 8K@60fps
H.264 multivideo decoder up to 8K@30fps
H.264 / H.265 multivideo encoder up to 8K@30fps
Support for Multiple Displays and
8K Ultra HD Screens
Simultaneous 8K, 4K, and 2K Support!

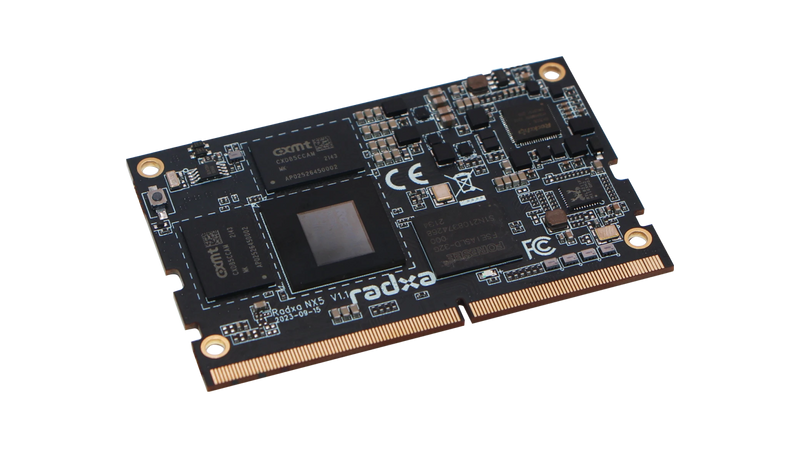

260 Pins SODIMM Interface Offer
a Wealth of Functionality
Standard and Conveniently Pluggable
SODIMM Connector
Easy-to-Remove and Install 260-Pin SODIMM Connector
Quick Functional Verification with Radxa NX5 IO Board
Accelerate your testing process with the convenience of Radxa NX5 IO board, ensuring swift and efficient functional verification.
*Note: Radxa NX5 does not support Jetson Nano Carrier Board.
Comprehensive Technical Documentation and
Active Community
Interfaces
Tech Specs
| Item | Specification |
|---|---|
| SoC | Rockchip RK3588S |
| CPU | Quad Cortex‑A76 @ 2.2~2.4GHz and Quad Cortex‑A55 @ 1.8GHz (Arm® DynamIQ™) |
| GPU | Arm Mali™ G610MP4 - OpenGL® ES1.1, ES2.0, ES3.2 - OpenCL® 1.1, 1.2, 2.2 - Vulkan® 1.1, 1.2 - Embedded high-performance 2D image acceleration |
| NPU | Supports INT4/INT8/INT16/FP16/BF16/TF32 Computing power: up to 6 TOPs |
| RAM | 64-bit LPDDR4x (1GB / 4GB / 8GB / 16GB) |
| Storage | Optional: 4GB / 8GB / 16GB / 32GB up to 512GB onboard eMMC (eMMC 5.1 compatible) SDMMC interface supported for OS boot & data storage |
| Multimedia | VP9 / H.265 / AVS2 decode: 8K@60fps H.264 / H.265 encode: 8K@30fps |
| Ethernet | 1x Onboard Gigabit Ethernet PHY |
| Display | 1x HDMI TX up to 8K@60Hz 1x eDP TX up to 4K@60Hz 1x DP TX (and USB 3.0 combo) up to 8K@30Hz 1x 2-lane MIPI D/C PHY TX |
| Camera | 2x 2-lane or 1x 4-lane MIPI CSI 1x 2-lane MIPI D/C-PHY RX 1x 4-lane MIPI D/C-PHY RX |
| Audio | Up to 2x I2S, 2x PDM, 2x SPDIF TX |
| USB | 2x USB 2.0 Host Ports (HighSpeed) 1x USB 3.0 Host Port (SuperSpeed) 1x USB 3.0 OTG Port |
| PCIe | 2x PCIe 2.0 (1-lane) - One shared with USB3 and SATA - One shared with SATA |
| SATA | 2x SATA Ports - One shared with USB3 & PCIe2.0 - One shared with PCIe2.0 |
| Connectivity | Up to 10x UART Up to 5x SPI Up to 3x CAN Up to 7x I2C Up to 15x PWM |
| Software | Radxa OS, Debian, Android, and various third-party images |
| Power Input | 5V DC (Max 5.2V) |
| Operating Conditions | Temperature: 0 ~ 50°C recommended Throttles above 80°C — external cooling advised for max performance |
| Dimension | 70mm x 45mm |
| Connector | 260-Pin SODIMM Golden Finger Edge Connector |
| Compliance Certification | FCC / CE |
Download
Documentation
| Overview - Radxa ROCK NX5 | Download |
| Getting Started - Radxa ROCK NX5 | Download |
| Radxa OS - Radxa ROCK NX5 | Download |
| Android - Radxa ROCK NX5 | Download |
Product Information
| Product Brief | Download |
| Schematic V1.1 | Download |
| Components Placement Map (SMD V1.1) | Download |
| Pinout V1.1 | Download |
| 2D Drawings | Download |
| 3D Drawings | Download |
Official Images
| Debian OS | Download |
NX5(mEdge-RK3588S) Works with
> Radxa Heatsink 7010
Specialized for Radxa NX5(mEdge-RK3588S)
> Radxa NX5 IO Board
an Application Board for Radxa NX5(mEdge-RK3588S)
