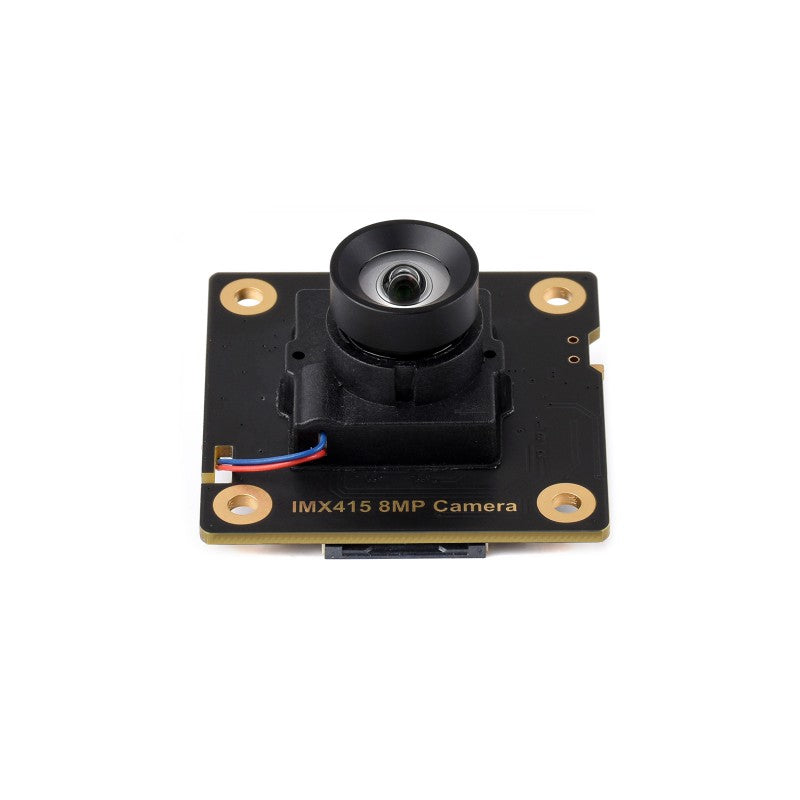

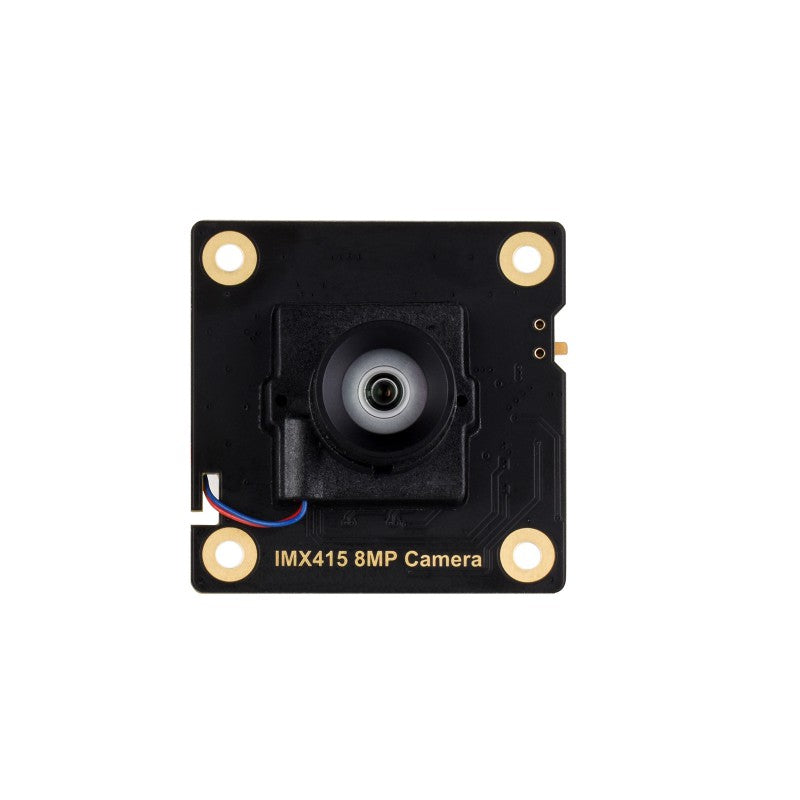

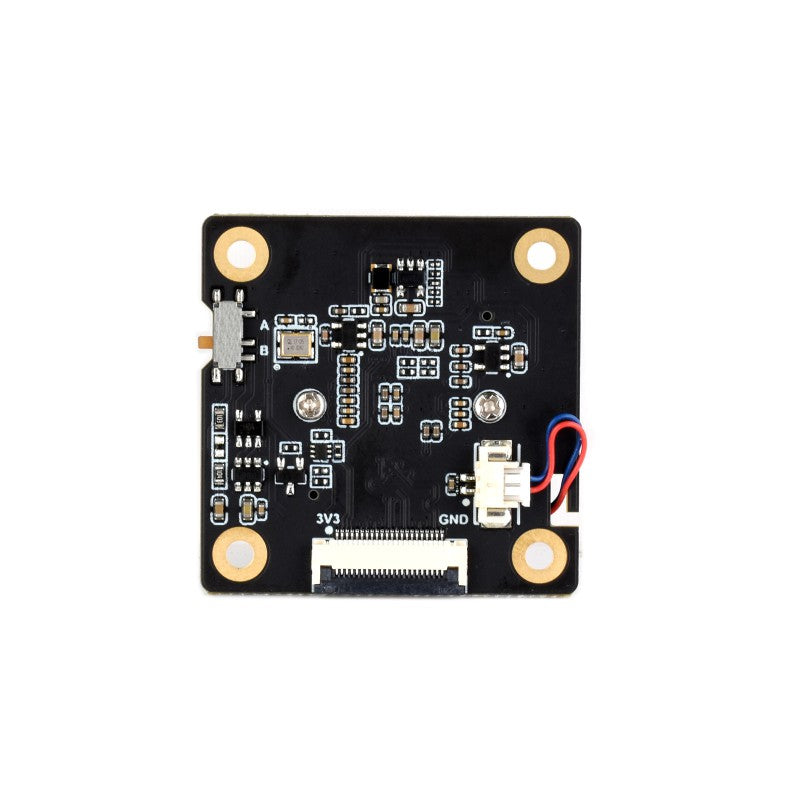

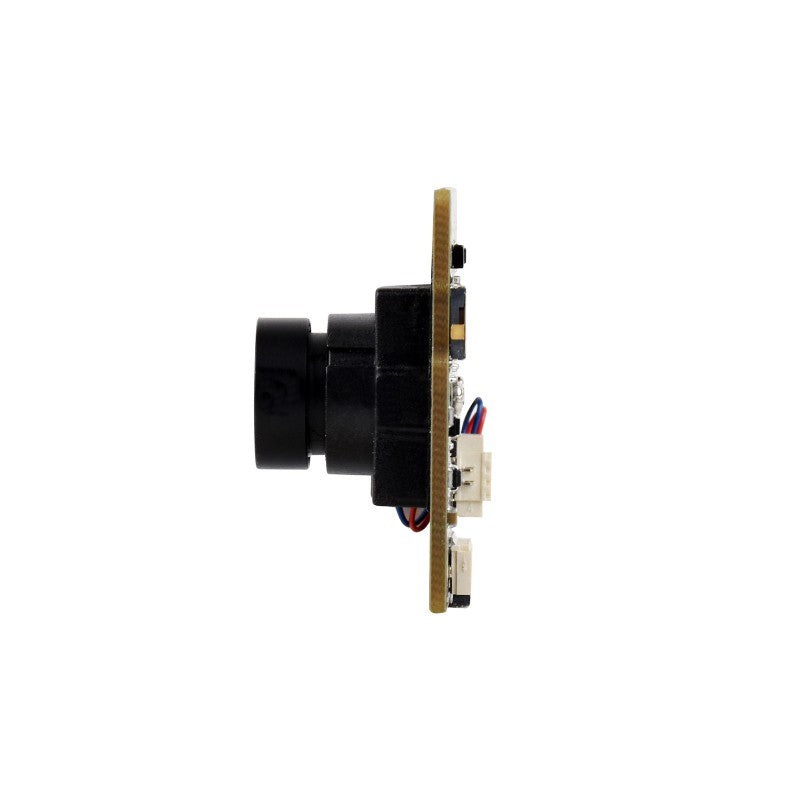

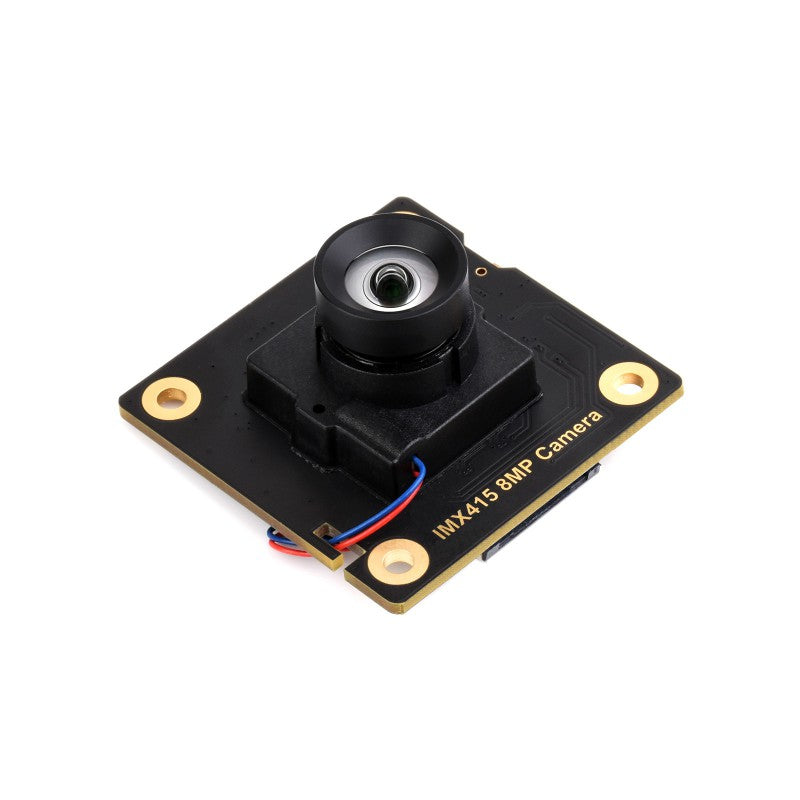

IMX415 8MP Camera (A)
Adopts IMX415 Sensor Chip With 95.5° Wide Angle Lens
Specifications
| Sensor | IMX415 | CMOS size | 1/2.8″ |
| Camera type | Color | Recommended recording pixels | Approx. 8.29MP (3840 × 2160) |
| Image size | Diagonal 6.43mm | Unit cell size | 1.45µm (H) × 1.45µm (V) |
| Aperture | F2.4 | Focal length | 2.88mm |
| FOV | 95.5° | Distortion | <1% |
| Applications | Suitable for AI applications such as facial recognition, road marking recognition, license plate recognition, etc. | ||
Wide Field of View
Onboard 95.5° wide angle lens, provides a wider picture range and viewing angle
High SNR and Low Light Performance
Multiple Motherboards Support
Compatible With Raspberry Pi 5 / Zero Series / Zero 2W Series Boards
Extra FPC Cable Is Required For Raspberry Pi 4B+ / 3B+ / 3B Series
 Connecting with Raspberry Pi 5 |
 Connecting with Raspberry Pi 4B |
 Connecting with Zero 2 W |
 Connecting with Zero W |
Supports Luckfox Motherboards Can be Directly Connected to Luckfox-Omni3576 Development Board
Connecting with Luckfox-Omni3576 Development Board
* for reference only, Raspberry Pi 4B, Raspberry Pi 5, Zero W, Zero 2 W, Luckfox-Omni3576, and yellow FPC are NOT included.
Outline Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/IMX415_8MP_Camera_(A)
Package Content
Weight: 0.012 kg
IMX415 8MP Camera (A) ×1
22PIN FPC cable ×1
