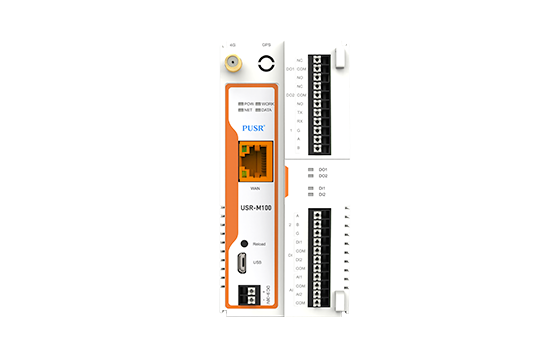

USR-M100 is designed for edge computing applications in IoT, Smart Manufacturing, Industrial Automation etc.Ā It provides rich network protocols, like TCP, UDP, HTTP, MQTT, SSL, etc. The USR-M100 integrates comprehensive interface such as: RS232, RS485, Ethernet port, Cellular antenna, DI, DO, AI etc.
Ā
Ā
Standard MQTT Protocol, Fast Access to Mainstream Cloud Platforms
Ā
USR-M100 supports SD card for data caching, the collected data will be cached to
the SD card when the gateway is in Internet disconnection.
And the cached data will be sent to server when the gateway get
connection recovery. (Only USR-M100-HM supports this function)

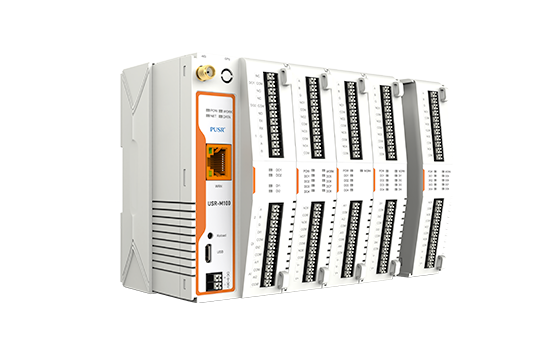

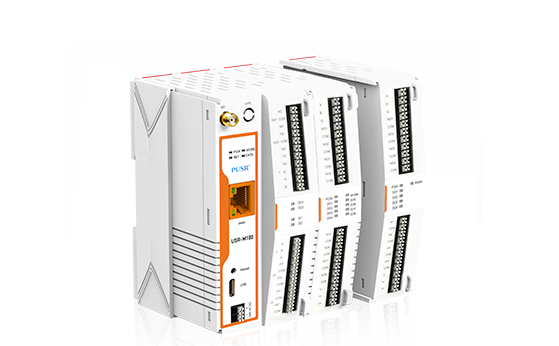

Creative Modular Design.
Users can extend IO Modules according to needs.
Simple & Efficient & Cost-saving
Ā
Support multi-host polling and Modbus protocol conversion.
Support slave data point configuration.
Report in custom Json format after edge computing.
JSON message custom conversion,
supports protocol of various servers and can be used without complicated changes.
Ā
Watchdog
Hardware & software dual watchdog.
7*24h stable operation without downtime.
Surge Protection
Protect device against damage caused by
instantaneous current interference in circuit,
such as lightning stroke, power switch, etc.
ESD Protection
Prevent electrostatic damage to
equipment, such as dust electrostatic,
electric arc, etc.

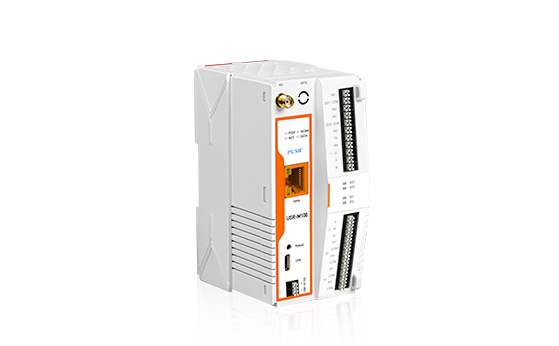

Support DIN-rail & Panel Installation
M100 is connected to sensors such as temperature, humidity,
water quality to monitor environmental data in real time.
Meanwhile, it can automatically control irrigation equipment,
blowers, etc. based on these data, and can also be viewed and controlled on a PC and mobile phone.
M100 can be used in various control scenarios of smart homes,
such as checking temperature and humidity, air quality,
controlling fresh air conditioners,
various solenoid valves, lighting equipment, and access control garages.
All status can be grasped through a mobile phone or computer.
Ā
| Power Supply | |
|---|---|
| Input Voltage | 9 ā 36 VDC, reverse polarity protection, surge protection |
| Power Consumption | Idle: < 2.4W, Max: < 4.8W |
| Serial Port | |
| No. |
2 RS485 serial port, the first one can also be RS232 RS232 Terminal block connector: TX, RX RS485 Terminal block connector: A, B |
| Baud rates | 600~230400bps |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Parity | None, Even, Odd, Mark, Space |
| Flow | None, XON/XOFF |
| Physical Interface | |
| DI (Digital Inputs) | 2 x Digital non-isolated input (0 - 2 V detected as logic low, 9 - 36 V detected as logic high) |
| DO (Digital Outputs) |
2 x Relays DC contacts rating @R (at resistive load)10A / 28V DC AC contacts rating @R (at resistive load)10A / 277V AC, NO AC contacts rating @R (at resistive load)5A / 250V AC, NC |
| AI (Analog Inputs) | 2 x Analog input 4-20mA |
| Extendable I/O Modules | |
| USR-IO4040 | 4 x Digital input, 4 x Digital output |
| USR-IO0440 | 4 x Analog input (4-20mA), 4 x Digital output |
| USR-IO0080 | 8 x Digital output |
| Physical Specs | |
| Dimensions (W x H x D) | 79.6 x 58 x 110 (mm) |
| Mounting options | DIN rail, wall mounting |
| Hardware Protection | |
| ESD | IEC61000-4-2, Level 3, class B, contact 6KV, air 8KV |
| Surge | IEC61000-4-5, Level 3, class B |
| EFT | IEC61000-4-4, Level 3, class B |
| Status LEDs | |
| Power | ON: Gateway is powered up; OFF: Gateway is not powered up |
| Work | When the device is working properly, it blinks for 1s frequency |
| NET | Blinking when the WAN connects to the internet; OFF when there is no work |
| DATA | Blinking when serial port is transmitting data |
| DO | Light on, the channel output is activated |
| DI | Light on, the channel is activated by input signal |
| Network | |
| Cellular | LTE FDD: B1/3/5/7/8/20/28, LTE TDD: B38/40/41, WCDMA: B1/5/8, GSM/GPRS/EDGE: 850/900/1800 |
| Ethernet | 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| Software | |
| Network protocols | ICMP, IPv4, ARP, ICMP, TCP, UDP, DHCP, DNS, HTTPS, MQTT, SNMP, Telnet, NTP, SSL v3 |
| IP | DHCP/Static IP |
| Websocket | Supported |
| MQTT | Supported, standard MQTT protocol, 16 subscription topics and 16 publish topics |
| Linkage control | Supported. Data collection points, DI, and AI can be used as trigger and executed by DO |
| IOT Platforms | Alibaba cloud, AWS IoT, PUSR cloud, Microsoft Azure, ThingsBoard |
| User Configuring | Windows Utility, web console (HTTP) |
| Operating Environment | |
| Operating temperature | -40Ā°C to 75Ā°C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| MODBUS RTU Master | |
| Supported functions | 01, 02, 03, 04 |
| Supported data formats | 8 bit: INT, UINT; 16 bits: INT, UINT (MSB first); 32 bits: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB); 64 bits: float |
| Supported data points | 128 |
| Approvals | |
| Regulatory | CCC, CE/RED*, RoHS* |
Ā
Documents
| Ā [User Manual]USR-IOxx-User Manual-EN-V1.0.1 | Download >> |
| [User Manual] USR-M100_User-Manual | Download >> |
| [Datasheet] USR-M100_Datasheet | Download >> |
| [Application]USR-M100 Quick Start Guide with Azure | Download >> |
| [Application]USR-M100 Access PUSR to achieve Transmit Data Bidirectional | Download >> |
| [User Manual] USR-M100-HM_User-Manual (HM Version) | Download >> |
Ā
Utilities
| Ā [User Manual] USR-M100_set-up_software | Download >> |
| [PC Test Software] USR-TCP232-Test-V1.3 | Download >> |
| [Virtual COM Software]USR-VCOM_V5.0.4_Setup | Download >> |
| [Setup Software] Ethernet Tool V1.4.0(Edge computing) | Download >> |
