CM5 To Pi 5 Adapter Board
Designed for Raspberry Pi Compute Module 5
Specifications
| CM5 SOCKET | Suitable for all variants of Compute Module 5 | |
| NETWORKING | Ethernet | Gigabit Ethernet RJ45 port |
| CONNECTOR | PCIe | 16PIN PCIe connector (PCIe Gen2 / Gen3 ×1) |
| GPIO | Header | Raspberry Pi 40PIN GPIO header ×1 |
| USB | USB 3.2 | USB 3.2 Gen1 ×2 |
| USB 2.0 | USB 2.0 ×2 | |
| MIPI | Camera / Display | MIPI 4-lane interface ×2 (22pin 0.5mm FPC connector) |
| VIDEO | HDMI | HDMI port ×2, supports dual 4K output |
| AUDIO | Header | Onboard audio header with adapter for 3.5mm headphone / microphone |
| STORAGE | TF Card | TF card socket for Compute Module 5 Lite (without eMMC) |
| FAN HEADER | Connector | 5V 4PIN JST-SH PWM connector |
| POWER INPUT | Voltage | DC 5V 5A |
| DIMENSIONS | Size | 85 × 56 (mm) |
Based on the Raspberry Pi CM5
Use CM5 to reproduce the original appearance of the Pi 5 as much as possible. Compatible with the interfaces of the Raspberry Pi 5
* for reference only, please refer to the package content for detailed part list.
Install CM5 Easily
Onboard 40 PIN GPIO header and Standard CM5 connector
Supports Access To Compute Module 5 Lite / eMMC Series Boards
* the CM5 is NOT included.
Onboard USB Audio Decoder Chip
Compared to the Raspberry Pi 5, the CM5-to-Pi5-Adapter adds an audio header, supports microphone input
* for reference only, please refer to the package content for detailed part list.

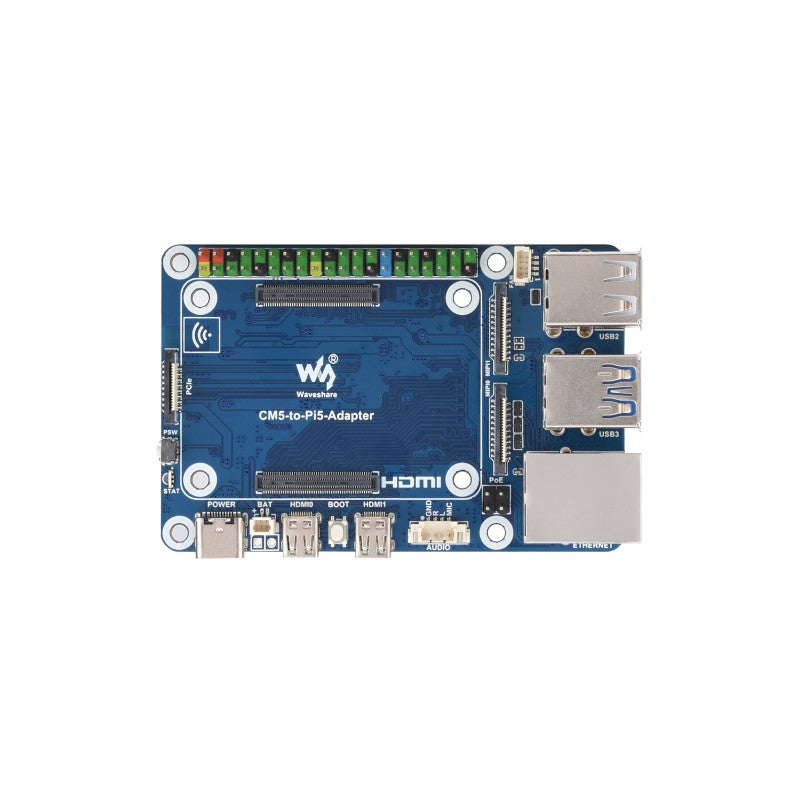

What's On Board
| 1. CM5 Socket Suitable for all variants of Compute Module 5 |
11. PoE 4PIN Header For connecting to PoE module |
| 2. 40PIN GPIO Interface Suitable for HAT / HAT+ modules |
12. Dual MIPI Interfaces For DSI displays or CSI cameras |
| 3. Power Supply / Programming 5V / 5A power supply, eMMC burning |
13. 4PIN JST-SH PWM Fan Header For 5V cooling fan |
| 4. STAT LED Dual-color LED indicator |
14. USB 2.0 Ports ×2 |
| 5. PSW Power Button Short press ON/OFF, long press force OFF |
15. USB 3.2 Gen1 Ports ×2 Up to 5Gbps speed |
| 6. PCIe Interface For PCIe expansion boards |
16. Gigabit Ethernet RJ45 10 / 100 / 1000M |
| 7. RTC Battery Header External RTC battery support |
17. TF Card Slot Lite variant only |
| 8. BOOT Button Enter burning mode |
18. IO-VREF Selection 3.3V (default) / 1.8V |
| 9. Micro HDMI Ports ×2 Supports 4K output |
19. Other Function Pins Disable or write protection |
| 10. Extended Audio Interface USB audio with 3.5mm adapter |
Outline Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/CM5-to-Pi5-Adapter
Package Content
Weight: 0.052 kg
CM5-to-Pi5-Adapter × 1

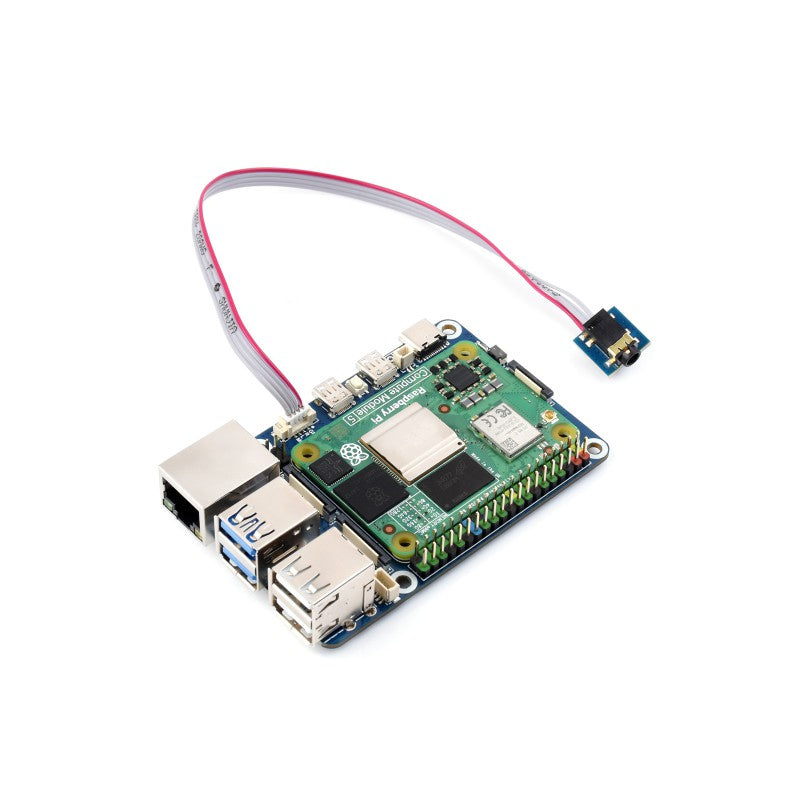

Audio-Adapter × 1
MX1.25 4PIN dual-plug cable ~200mm × 1
Screws pack × 1
