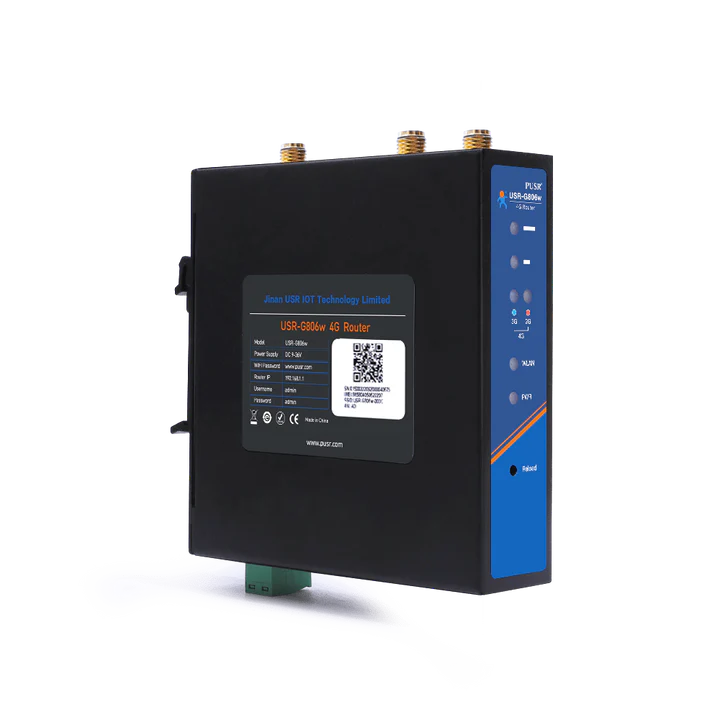

USR-G806w
Qualcomm Chipset Industrial Cellular Router
USR-G806w is the pro version of our all-time bestseller G806 that inherited its' best features, including industrial design, compact size, multiple connection interfaces.
USR-G806w
Better Wi-Fi Performance 4G Cellular Router
USR-G806w is an industrial 4G cellular router from PUSR. It also comes with 3 Ethernet ports and enhanced Wi-Fi, which can provide users with rich networking methods. This device has undergone rigorous EMC testing, which allows the product to work in very harsh industrial environments such as Bus & Truck, intelligent Reboot and so on.
Selection of 4G Cellular Router G806w
Your Data Security, Our Responsibility
- Comprehensive VPN protocols support ensures your data security, including OpenVPN, IPsec, PPTP, L2TP and GRE.
- Multiple encryption method make financial-grade data transmission.
Enhanced OpenVPN Design
- Easy to use, but also professional
- Allows to connect to three different OpenVPN servers as a client and also function as an OpenVPN server.
- One-click import .ovpn config-file and PKCS#12 cert-file import Say goodbye to the complex parameter.
- Available to OpenVPNR CloudConnexaTm, OpenVPN Access Server, OpenVPN @AWS EC2,Open source OpenVPN, OPNsense, pfSense and other OpenVPN Servers.
Qualcomm Solution, Performance Ensurance
The core Wi-Fi chip (master control) and 4G cellular module adopt the industry-leading Qualcomm solution to ensure the performance and stability of the device during using.
Wi-Fi Enhance, More Coverage
- Including 2 professional FEMs Effectively improve wireless transmission intensity and reception sensitivity.
- Adopt 5dbi high gain dual Wi-Fi antenna Wireless speed up to 300Mbps.
Data Service Solution, PUSR Provides one-stop Service
PUSR not only offers equipment with outstanding performance but also provides highly competitive data plans. Pls contact our professional sales team, who will tailor the most suitable data plan for you based on your specific needs.
- APN: linksnet
- User name/Password: No need
- Data Plan: 1G/month, total 12 months
- Region: Europe, compatible with the mainstream carrier like Vodafone、France
- Telecom、Telefonica、TeliaSonera、Orange、Wind Tre and etc.
- Contact: Contact your sales manager or Contact Us when you have any question
Multiple Networking, Failover and Backup
Cellular, wired and Wi-Fi internet access modes can be switched freely. Service can be recovered in time when a network exception occurs.
Ethernet & Wi-Fi terminal can connect to the router for data transmission.
Remote Management, Anytime Anywhere
PUSR Remote Management platform is an all-in-one user-friendly loT platform providing a smart way to manage your device remotely, securely and reliably. Users can access to built-in web page remotely to achieve Parameter Configuration, Device Reboot and Firmware Upgrade.
Network Abnormal, Real Time Alarming
- Device offline alarm, weak signal alarm, network traffic overrun. All of this can be alarmed in real time.
- Multiple alarm push ways such as E-mail, SMS. Repeated push supported.
Industrial Grade Design, High Reliability
- Watchdog: Hardware & software dual watchdog. 7*24h stable operation without downtime.
- Surge/EFT Protection: Protect device against damage caused by instantaneous current interference in circuit, such as lightning stroke, power switch, etc.
- ESD Protection: Prevent electrostatic damage to equipment, such as human electrostatic, dust electrostatic, electric arc, etc.
- Wide Operation Temperature: -20℃ ~ +70℃
Product Details
Dimension: 104*102*28mm

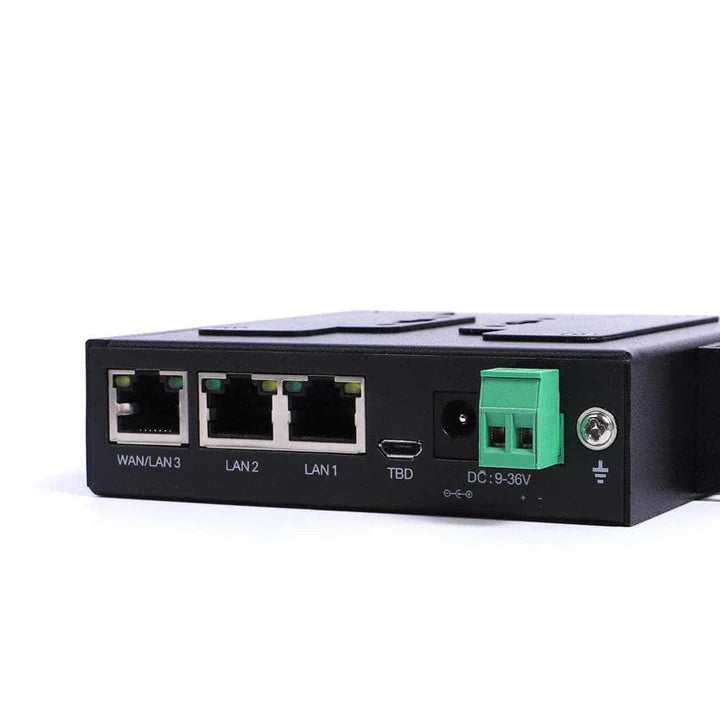

Ethernet Ports: 1*WAN+2*LAN or 3*LAN

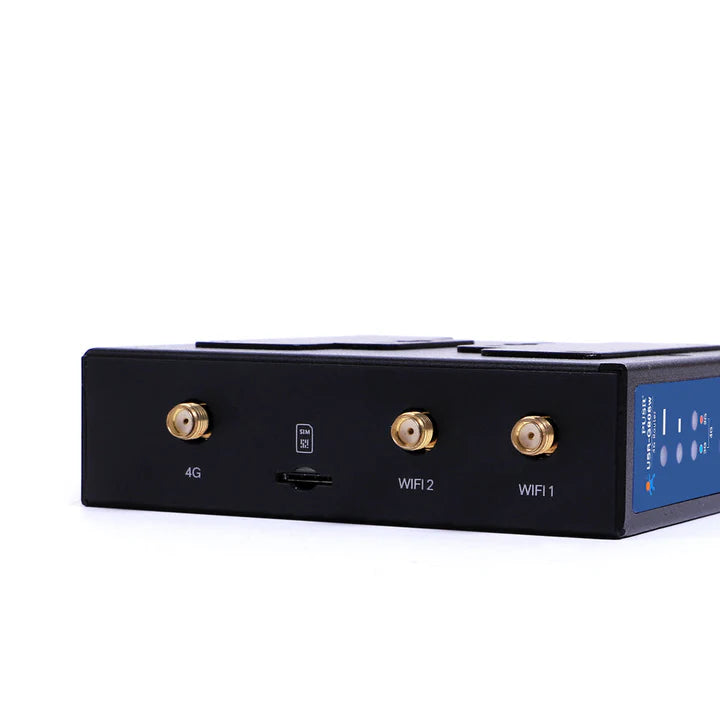

Wi-Fi: IEEE 802.11 b/g/n, 2*RP-SMA-K antenna connector
Power Supply: 2-pin terminal block & DC socket redundancy
SIM Card: Mini SIM(2FF)

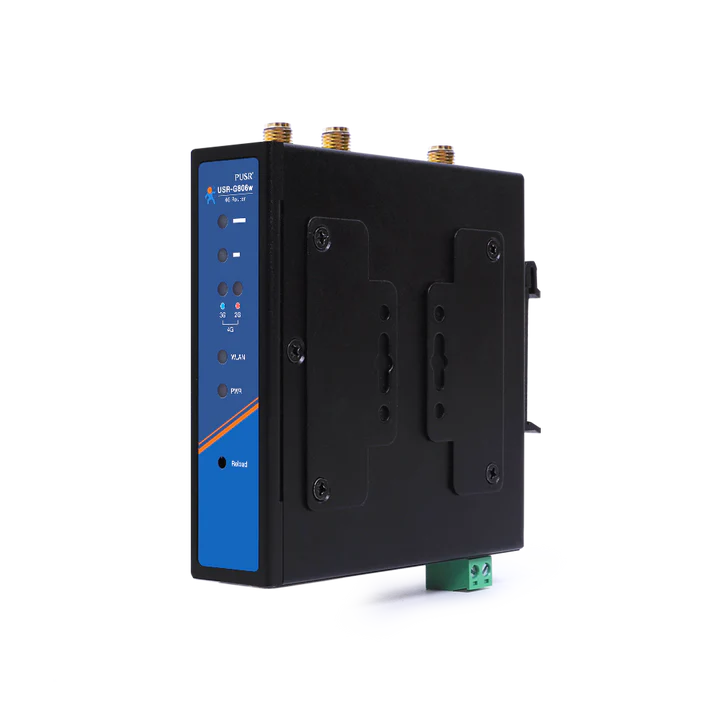

Installation: Wall Mounting & DIN Rail Mounting Available
Packaging List
1*USR-G806w
2* Wi-Fi Rubber Antenna
1*Power Supply
1*LTE Rubber Antenna
Ideal Applications
This industrial router can be applied to various scenarios, including intelligent robots, self-service shared devices, and public transportation, such as freight vehicles, allowing you to have full control over your devices.
PARAMETER
|
USR-G806w Hardware Specification |
|
|---|---|
| Cellular Interface | |
| Frequency |
|
| Antenna | 1 x SMA-K |
| SIM card | 1 x (3 V & 1.8 V) Standard 4FF SIM |
| Ethernet | |
| WAN | 1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX, 1.5KV network isolation transformer protection |
| LAN | 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX, 1.5KV network isolation transformer protection |
| Indicators | |
| PWR | Red, always on after powered on |
| WIFI | Green, always solid on when WiFi is enabled and working properly |
| 2/3/4G mode indicator |
|
| SIG | Signal strength: 2 LED is solid on, strongest signal |
| Wi-Fi | |
| Standards & Frequency | IEEE 802.11b/g/n, 2.4GHz, AP/STA/Repeater mode |
| Data speed | 300Mbps |
| Antenna | 2 x RP-SMA-K |
| MIMO | 2×2 |
| Transmission distance | 500 meters by line of sight. Actual transmission distance depends on environment of the site. |
| WiFi users | Up to 20 simultaneous connections |
| Power Supply | |
| Adaptor | DC 12V/1A |
| Connector | DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN industrial terminal block, reverse polarity protection |
| Input voltage | DC 9-36V |
| Power consumption | Average 260mA/12V |
| Physical Characteristics | |
| Casing material | Metal shell, IP30 |
| Dimensions | 104.0*102.0*28.0 (L*W*H, antenna pedestal, terminal block and DIN Rail are not included) |
| Installation | Panel mounting, DIN-Rail mounting |
| EMC | Static IEC61000-4-2, level 3; Pulsed Electric Field IEC61000-4-4, level 3; Surge IEC61000-4-5, level 3 |
| Operating temperature | -20℃~+70℃ |
| Storage temperature | -40℃～+125℃（non-condensing） |
| Operating humidity | 5%~95%（non-condensing） |
| Others | |
| Reload | Pinhole reset button |
| Debug interface (TTL Level) | TBD |
| Ground protection | Screw |
| Approvals | CE, WPC, RCM, ROHS, WEEE |
|
USR-G806w Software Specifications |
|
|---|---|
| Network Connection | |
| WAN protocol | PPP, PPPoE, DHCP client |
| LAN protocol | ARP, DHCP server, NAT, VLAN |
| 4G network access | Auto APN/VPDN, private network. Access authentication: CHAP/PAP |
| WLAN security | Open system, WPA/WPA2 PSK, TKIP/AES encryption |
| IP routing | Static routing |
| Network diagnosis | Ping, route trace, DNS |
| Device management | |
| Configuration | Web |
| Remote management | SSH, AT command, SNMP, SMS |
| PUSR platform | Remote monitoring, remote upgrade, alarming, base station location, remote access to web pages of the router |
| Security | |
| Failover backup | WiFi WAN, Mobile, Wired options, each of which can be used as an automatic Failover |
| Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| VPN | Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1), OPENVPN protocols |
| Service | |
| DDNS | Remote access the device through domain name |
| Alarm | Email, SMS |
| NTP client | |
| Others | Timing task |
DOWNLOAD
Documents
| [Specification]USR-G806w-Specification-1.0.1 | Download >> |
| [Quick Start Guide] USR-G806 series Quick Start Guide V1.0.0 | Download >> |
| [Certificate-WPC]USR-G806w-WPC-Certificate | Download >> |
| [Certificate-RCM]USR-G806w-WPC-Certificate | Download >> |
| [Certificate-CE]USR-G806w-CE-Certificate | Download >> |
| [pfSense Server] PUSR Routers Series Connect to pfSense Server | Download >> |
| [OPNsense Server] PUSR Routers Series Connect to OPNsense Server | Download >> |
| [TLS Certification Guide] How to generate TLS certificates (Windows for OpenVPN) | Download >> |
