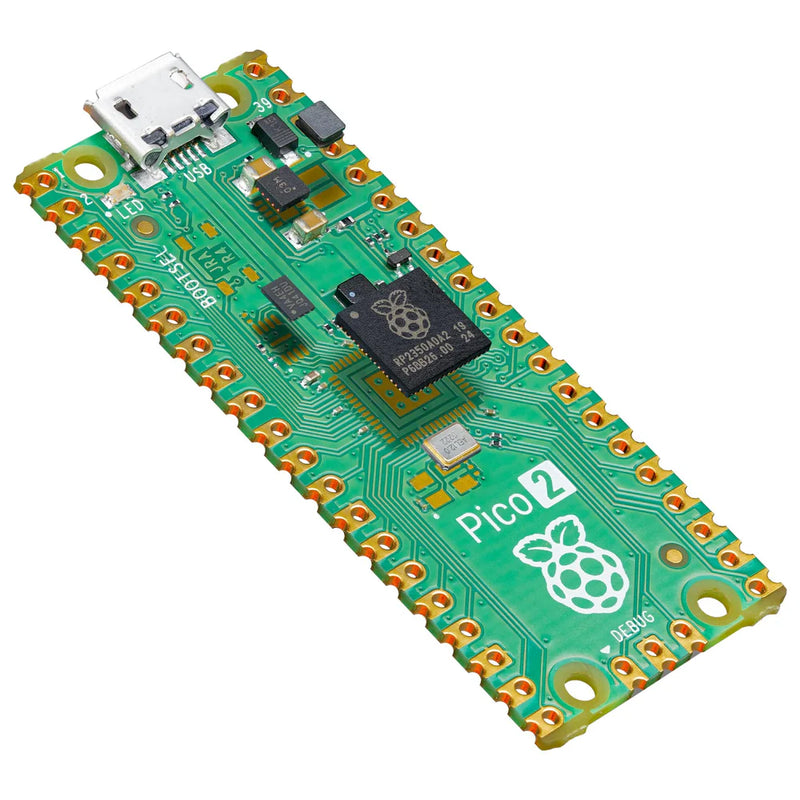

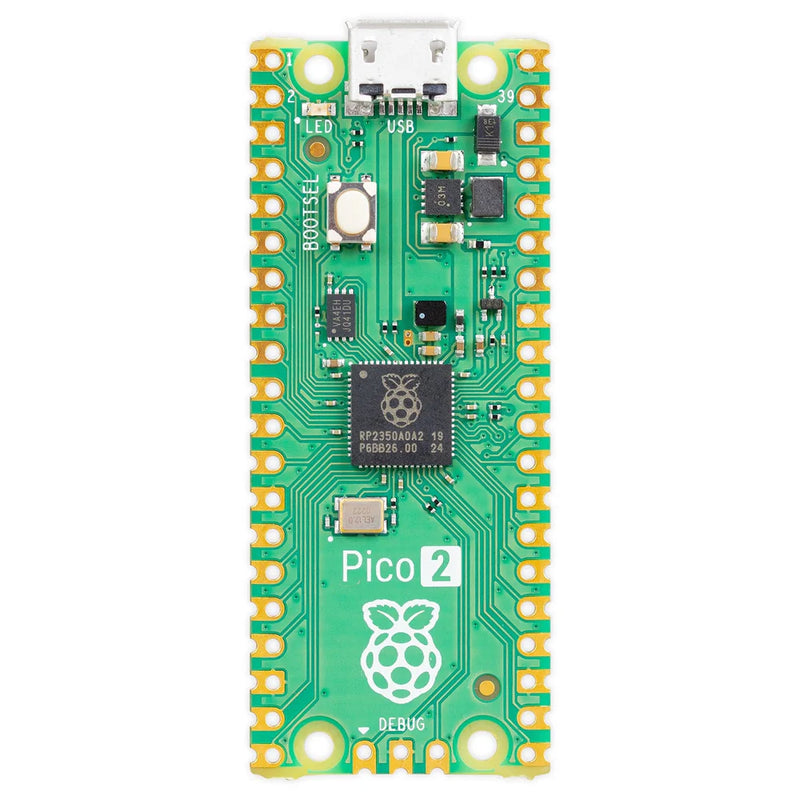

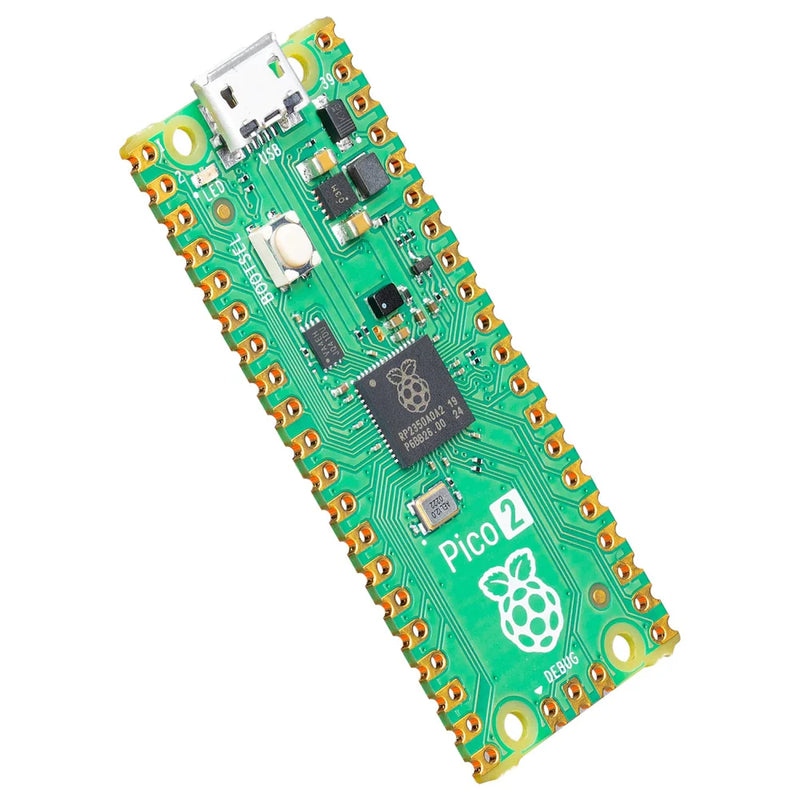

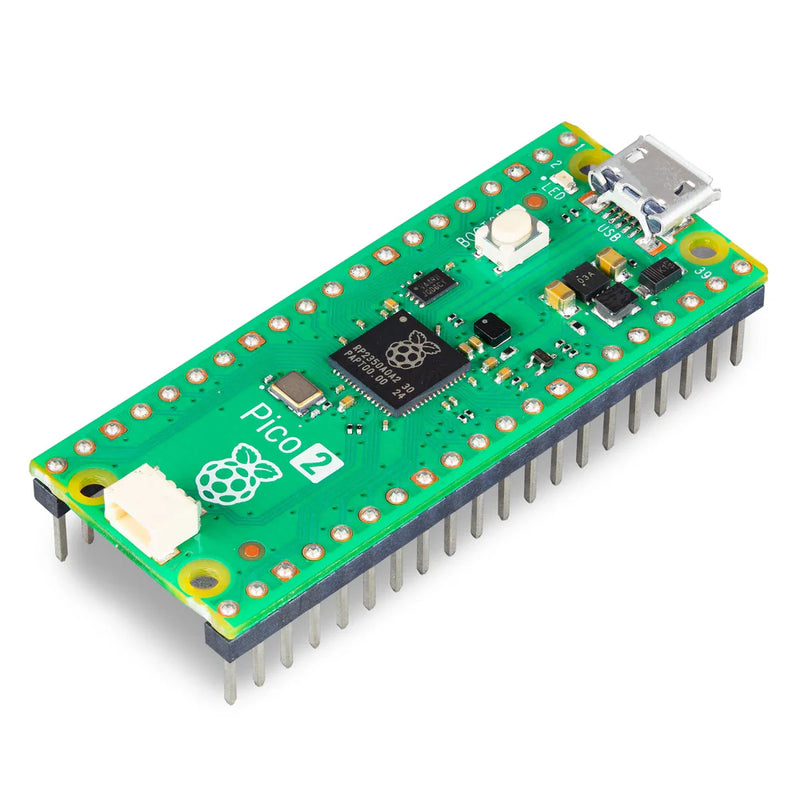

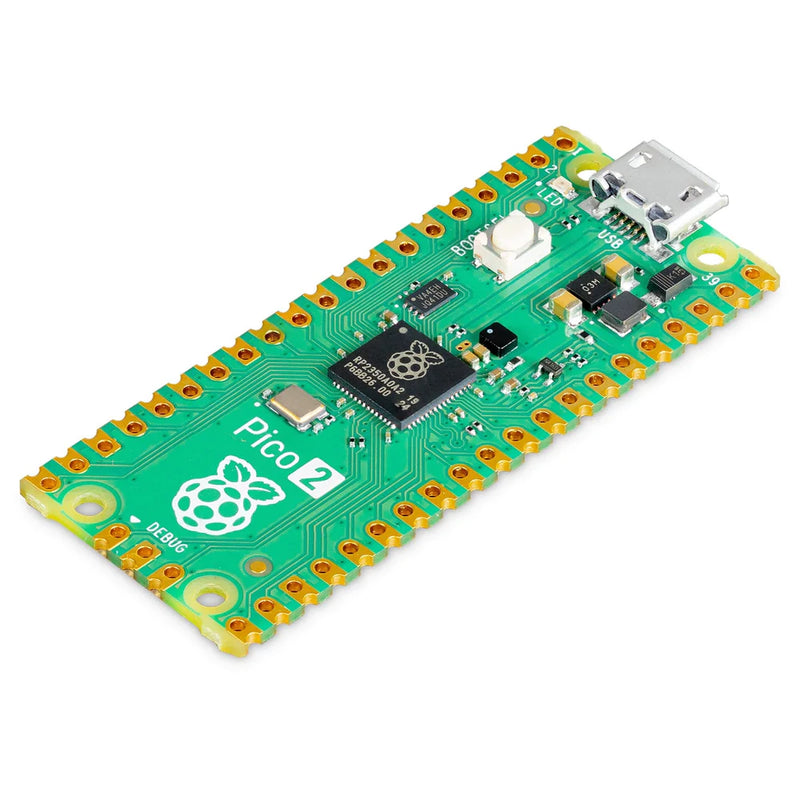

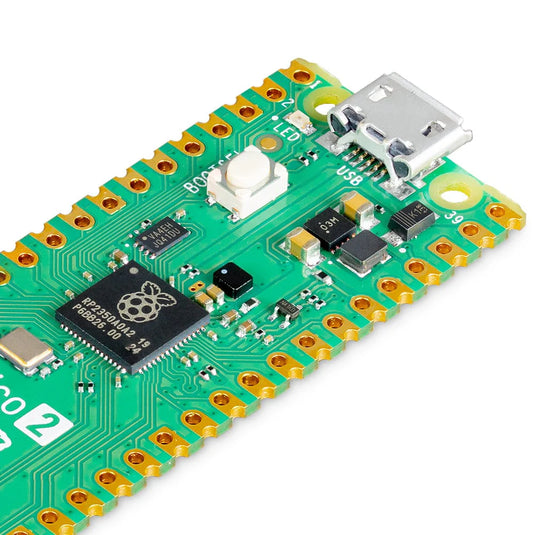

Raspberry Pi Pico 2
The next big, tiny thing.
Our next-generation microcontroller board built using RP2350.
Now with added wireless
Raspberry Pi Pico 2 W features 2.4GHz 802.11n wireless LAN and Bluetooth 5.2, giving you even more flexibility in your IoT or smart product designs and expanding the possibilities for your projects.
Just as good, but better
With a higher core clock speed, double the memory, more powerful Arm cores, optional RISC‑V cores, new security features, and upgraded interfacing capabilities, Raspberry Pi Pico 2 delivers a significant performance boost, while retaining compatibility with earlier members of the Raspberry Pi Pico series.
Programmable in C / C++ and Python, and with detailed documentation, Raspberry Pi Pico 2 is the ideal microcontroller board for enthusiasts and professional developers alike.
Chip off the new block

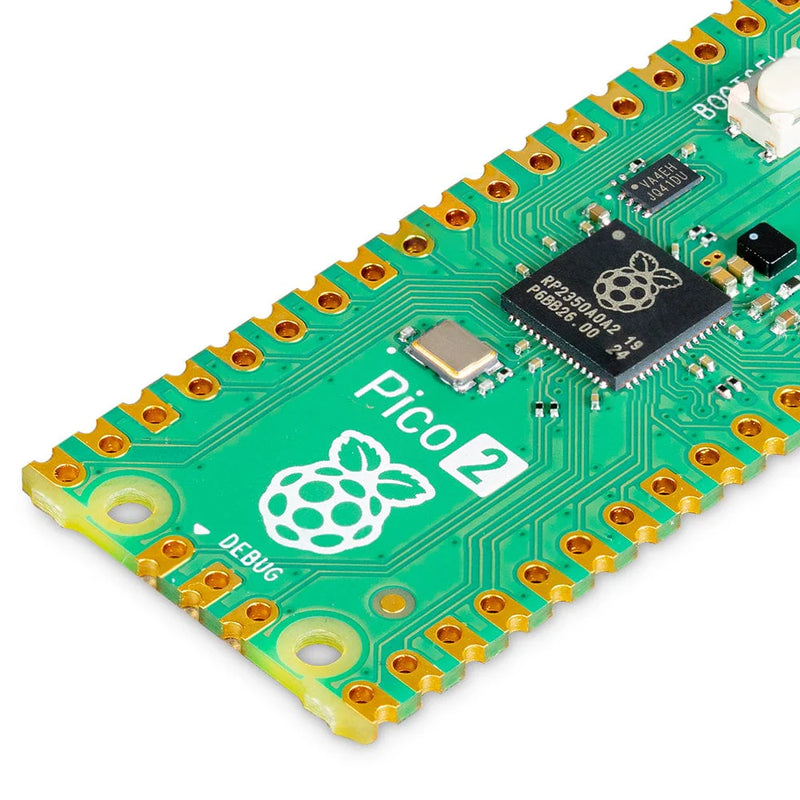

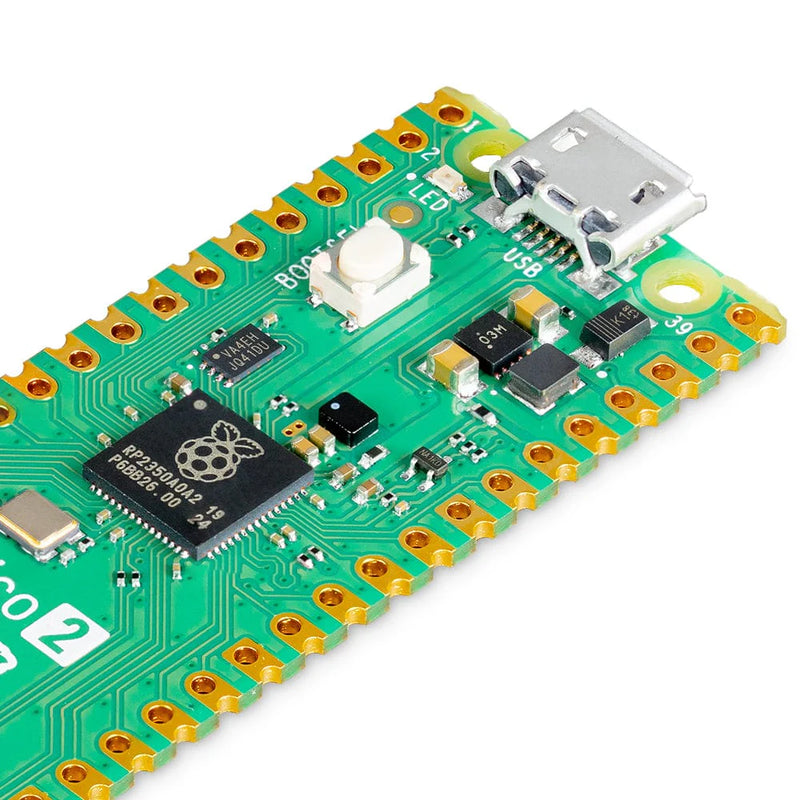

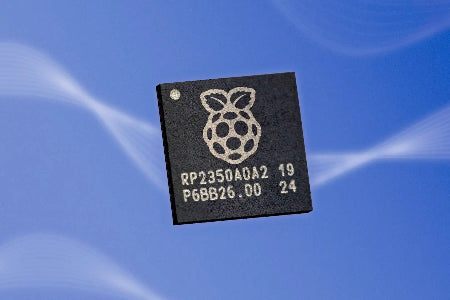

Raspberry Pi Pico 2 is powered by RP2350, our new high-performance, secure microcontroller. Every aspect of the design has been upgraded, from the CPU cores to our unique PIO interfacing subsystem. We’ve introduced a comprehensive security architecture, built around Arm TrustZone for Cortex-M. And new low-power states and package options expand the range of addressable applications.
Switch it up
The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC‑V architecture in a stable, well-supported environment.
Radical transparency
The RP2350 security architecture, including the secure boot ROM, are extensively documented and available to all users without restriction: this transparent approach, which contrasts with the “security through obscurity” offered by legacy vendors, allows professional users to integrate RP2350, and Raspberry Pi Pico 2, into products with confidence.
Specification
| Feature | Description |
|---|---|
| Processor | Dual Arm Cortex-M33 or Dual Hazard3 RISC-V processors @ 150MHz |
| On-Chip Memory | 520 KB SRAM |
| Wireless Connectivity | 2.4GHz 802.11n Wi-Fi and Bluetooth 5.2 (Pico 2 W only) |
| Compatibility | Software- and hardware-compatible with Raspberry Pi Pico 1 |
| Programming Interface | Drag-and-drop programming using mass storage over USB |

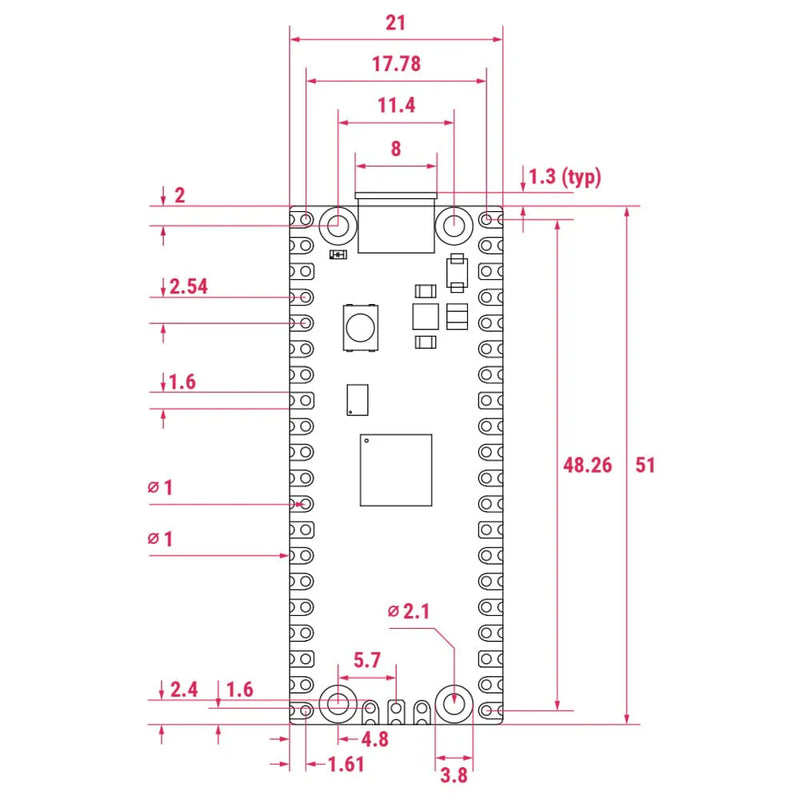

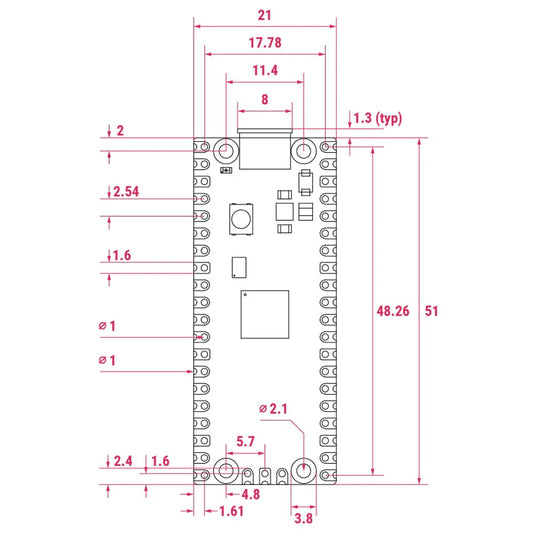

| Form Factor | Castellated module for direct soldering to carrier boards |
| Security Features |
|
| Interfaces |
|
| Software Support | Open-source C/C++ SDK, MicroPython |
| Operating Temperature | -20°C to +85°C |
| Input Voltage | 1.8V – 5.5V DC |
Documents
Raspberry Pi Pico 2 series product brief
Raspberry Pi Pico 2 Micro Python SDK
Compliance
Raspberry Pi Pico 2 has undergone extensive compliance testing and meets a number of regional and international standards.
View and download relevant certificates and conformity documents.
Obsolescence
Raspberry Pi Pico 2 series will remain in production until at least January 2040
