Raspberry Pi SSD Kit
For Raspberry Pi 5

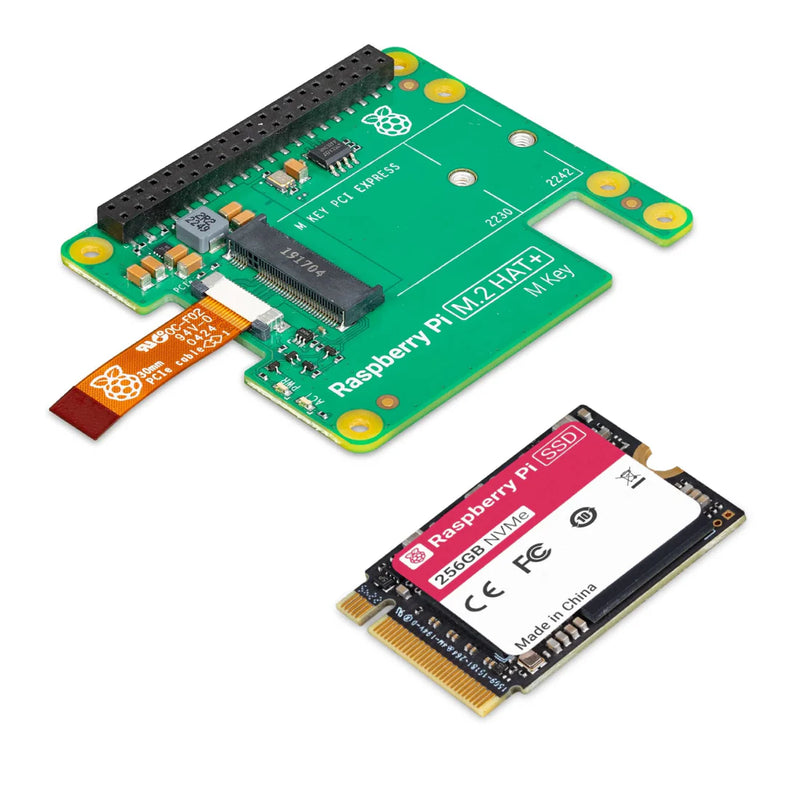

The Raspberry Pi SSD Kit is a Raspberry Pi M.2 HAT+ with a Raspberry Pi NVMe SSD. It unlocks outstanding performance for I/O intensive applications on Raspberry Pi 5, including super-fast startup when booting from SSD.
The Raspberry Pi SSD Kit is a great-value way to grab both the Raspberry Pi NVMe SSD and Raspberry Pi M.2 HAT+ to unlock outstanding performance for I/O intensive applications on Raspberry Pi 5, including super-fast startup when booting from the SSD.

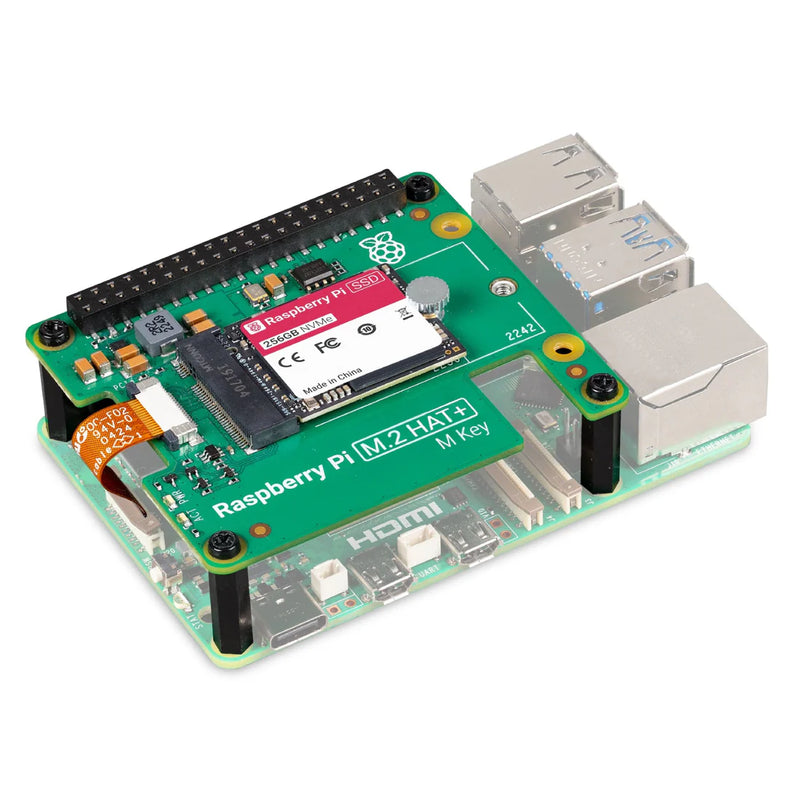

The kit comes pre-assembled with the SSD installed into the M.2 HAT+, ready out of the box to connect to your Raspberry Pi 5 (not included).
The kit includes a 16mm stacking header, spacers, and screws to secure to your Pi 5. A Raspberry Pi Active Cooler can also be used underneath the HAT at the same time when using these spacers.
Feature
| Product Name | SSD + M.2 HAT+ Bundle for Raspberry Pi 5 |
| Storage Capacity | 256GB NVMe SSD |
| Performance | 40k IOPS (4kB random reads) / 70k IOPS (4kB random writes) |
| Compatibility | Conforms to Raspberry Pi HAT+ specification |
| Assembly | SSD pre-assembled to HAT+ (256GB) |
| Accessories | Standoffs and screws included |
Specification
| Capacity | 256GB |
| Operating Temperature | 0℃ to 50℃ (ambient) |
| Production Lifetime | The Raspberry Pi SSD Kit will remain in production until at least January 2032 |
| Compliance | For a full list of local and regional product approvals, please visit pip.raspberrypi.com |
Hardware Overview
Documents
| Raspberry Pi SSD product brief | Download |
| Raspberry Pi SSD Kit product brief | Download |
Part List
| Raspberry Pi M.2 HAT+ (with PCI-E cable) | X1 |
| Raspberry Pi NVMe SSD - 256GB | X1 |
| 16mm GPIO Stacking Header | X1 |
| Nylon Standoff/Screw Set | X1 |
