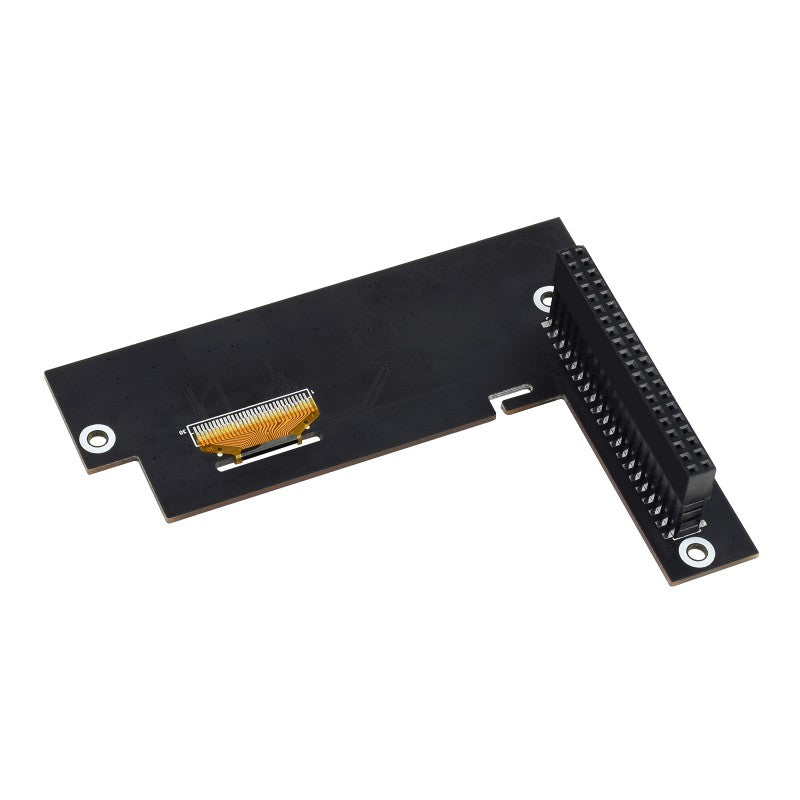

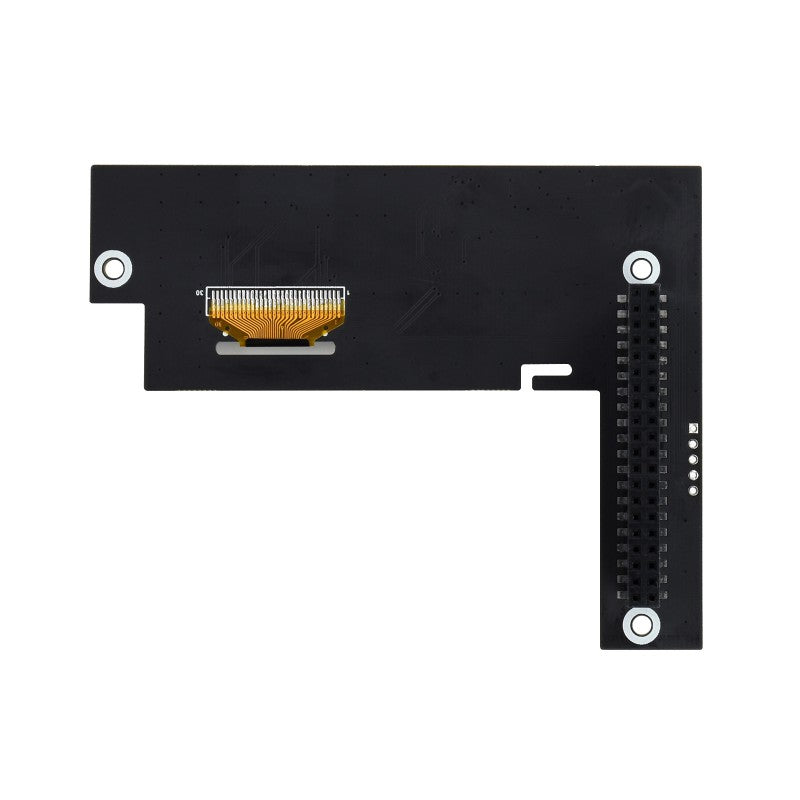

Environment Sensors Module Designed For Jetson Nano, I2C Bus, With 1.3inch OLED Display
This environment sensors module gives Jetson Nano Developer Kit the ability to collect environment data like temperature & humidity, air pressure, ambient light intensity, VOC, IR ray, UV ray, etc. It can also be used to build a robot that can detect motion and orientation
Features
- Onboard TSL25911FN digital ambient light sensor, for measuring IR and visible light.
- Onboard BME280 sensor, for measuring temperature, humidity, and air pressure.
- Onboard ICM20948 motion sensor, accelerometer, gyroscope, and magnetometer.
- Onboard Si1145 sensor, for measuring IR/UV rays.
- Onboard SGP40 sensor, for detecting ambient VOC.
- Onboard 1.3inch OLED display, for displaying environment data in real time.
- I2C bus, allows reading and displaying data by just using two wires.
- Comes with development resources and user manual (python examples).
Parameter
|
TSL25911FN DIGITAL AMBIENT LIGHT SENSOR |
|
|
I2C address |
0x29 |
|
Effective range |
0~88000Lux |
|
BME280 TEMPERATURE, HUMIDITY, AND AIR PRESSURE SENSOR |
|
|
I2C address |
0x76 |
|
Temperature detection |
-40 ~ 85℃ (0.01℃ resolution, ±1℃ accuracy) |
|
Humidity detection |
0~100%RH (0.008%RH resolution, ±3%RH accuracy, 1s response time, ≤2%RH delay) |
|
Air pressure detection |
300~1100hPa (0.18Pa resolution, ±1hPa accuracy) |
|
ICM20948 MOTION SENSOR |
|
|
I2C address |
0x68 |
|
Accelerometer resolution |
16-bit |
|
Accelerometer range (configurable) |
±2, ±4, ±8, ±16g |
|
WCDMA |
B1, B3, B5, B8 |
|
Gyroscope resolution |
16-bit |
|
Gyroscope range (configurable) |
±250, ±500, ±1000, ±2000°/sec |
|
Magnetometer resolution |
16-bit |
|
Magnetometer range |
±4900µT |
|
SI1145 IR/UV SENSOR |
|
|
I2C address |
0x60 |
|
Response wavelength |
280nm - 950nm |
|
SGP40 VOC SENSOR |
|
|
I2C address |
0x59 |
|
Measuring range |
0 ~ 1,000 ppm ethanol equivalent |
|
Limit condition |
< 0.05 ppm ethanol equivalent OR < 10 % preset concentration point (the larger one should prevail) |
|
Response time |
< 10 s (tau 63 %) |
|
Start time |
< 60 s |
|
On-chip humidity compensation support |
|
|
OLED DISPLAY |
|
|
I2C address |
0x3C |
|
Driver IC |
SH1106 |
|
Resolution |
128x64 |
|
Display color |
blue |

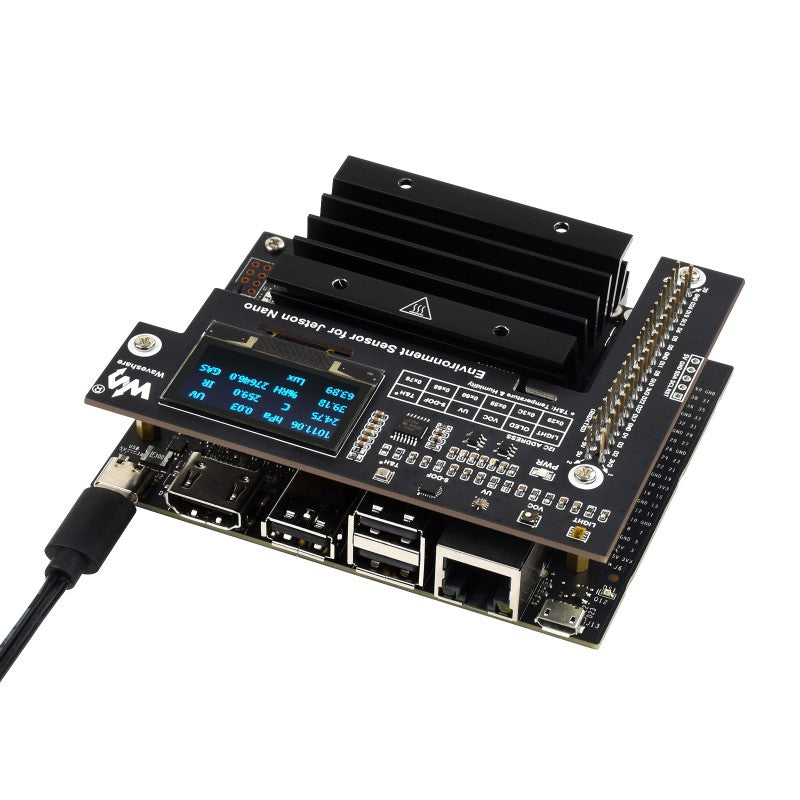

Tailored For Jetson Nano

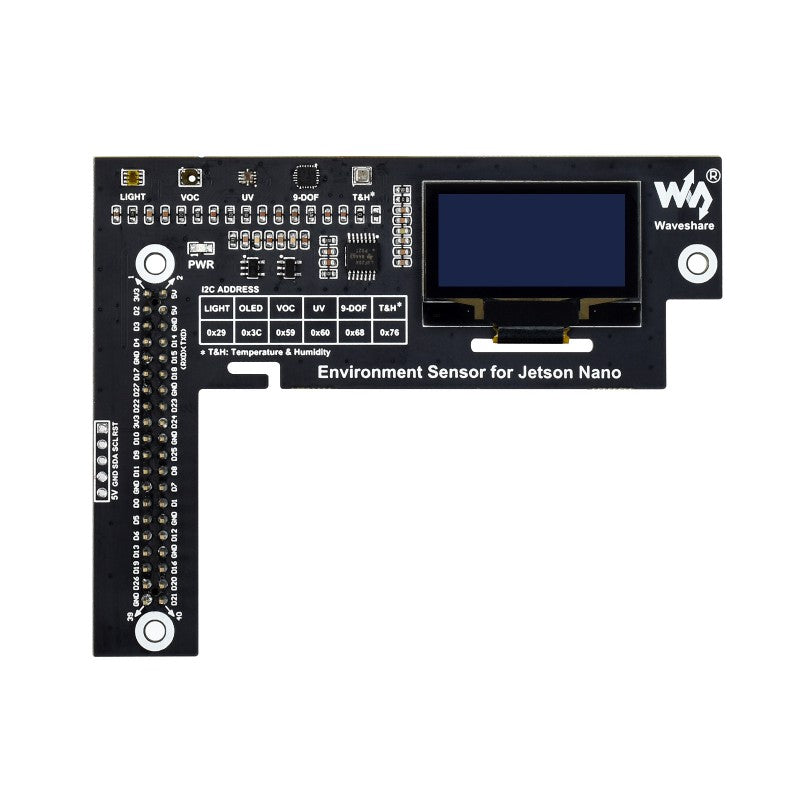

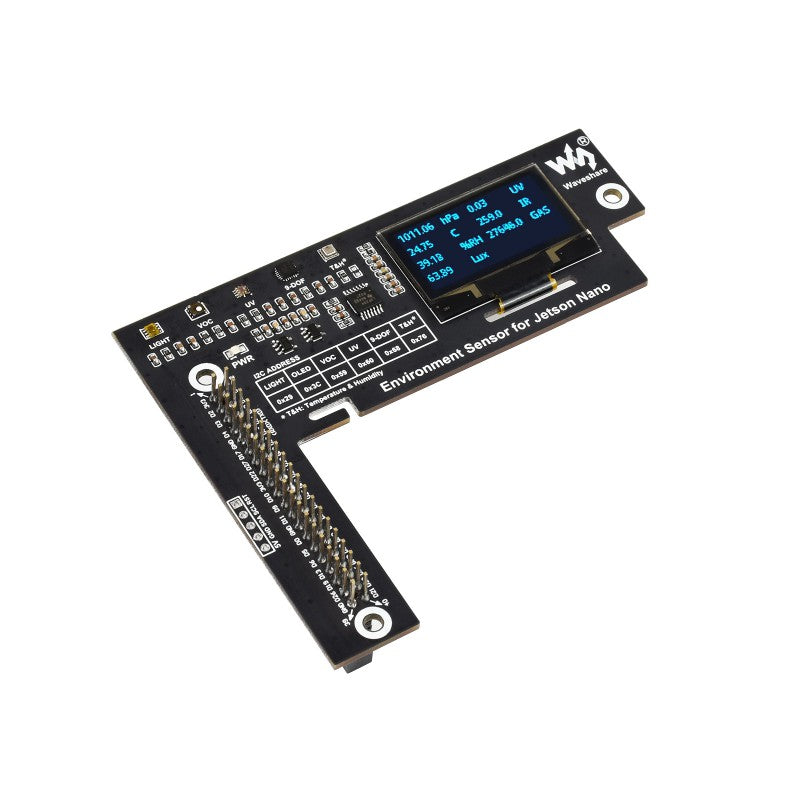

What's On Board
-
TSL25911FN
digital ambient light sensor, for measuring IR and visible light -
SGP40
VOC sensor -
Si1145
IR/UV sensor -
ICM20948
3-axis accelerometer, 3-axis gyroscrope, 3-axis magnetometer -
BME280
temperature, humidity, and air pressure sensor -
1.3inch OLED
128x64 resolution -
Voltage level translator
5V to 3.3V/1.8V
Resources
