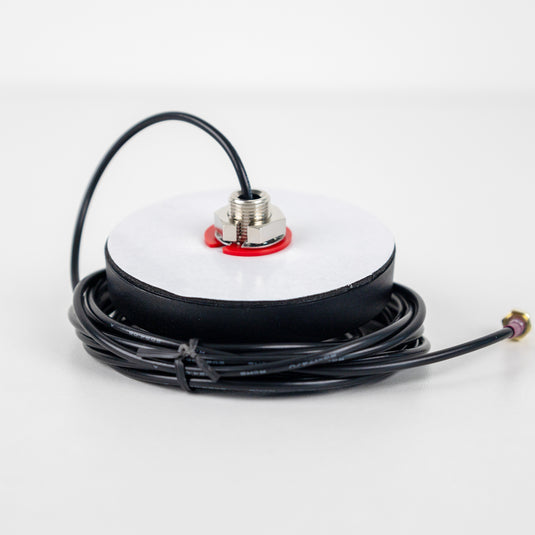

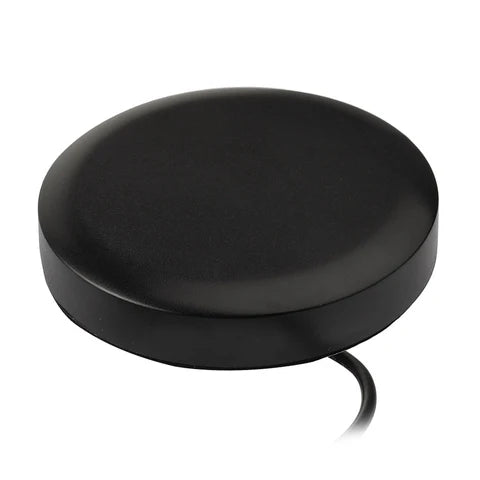

JCG046L LTE Antenna
JCG046L is a multi-band antenna, which covers 700~2700MHz. It is specially designed for 2G, 3G and 4G applications. The high sensitivity of JCG046L will be the best candidate for 4G LTE Router, Vehicle Truck RV Motorhome, Marine Boat, Cell Phone Booster System etc.
Features
Low profile structure
Both permanent and magnetic mountings are available
Covers all the mobile communication network
Fully waterproof
Applications
Vehicle Tracking
Asset Tracking
Telemetry Application
4G Application
Specifications
Item
Specifications
LTE Antenna MAIN
Frequency Range
698~960MHz/1710~2690MHz
V.S.W.R
＜3.0
Polarization
Linear
Gain
2.5dBi（Zenith）
Impendance
50Ω
LTE Antenna AUX
Frequency Range
698~960MHz/1710~2690MHz
V.S.W.R
＜3.0
Polarization
Linear
Gain
2.0dBi（Zenith）
Impendance
50Ω
Mechanical
Cable
RG174
Connector
SMA or others
Material
ABS
Mounting Method
Screw
Environmental
Operating Temperature
-40℃~+85℃
Relative Humidity
Up to 95%
Ingress Protection
IP67(exclude cable outlet)
Vibration
10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly
ROHS Compliant
