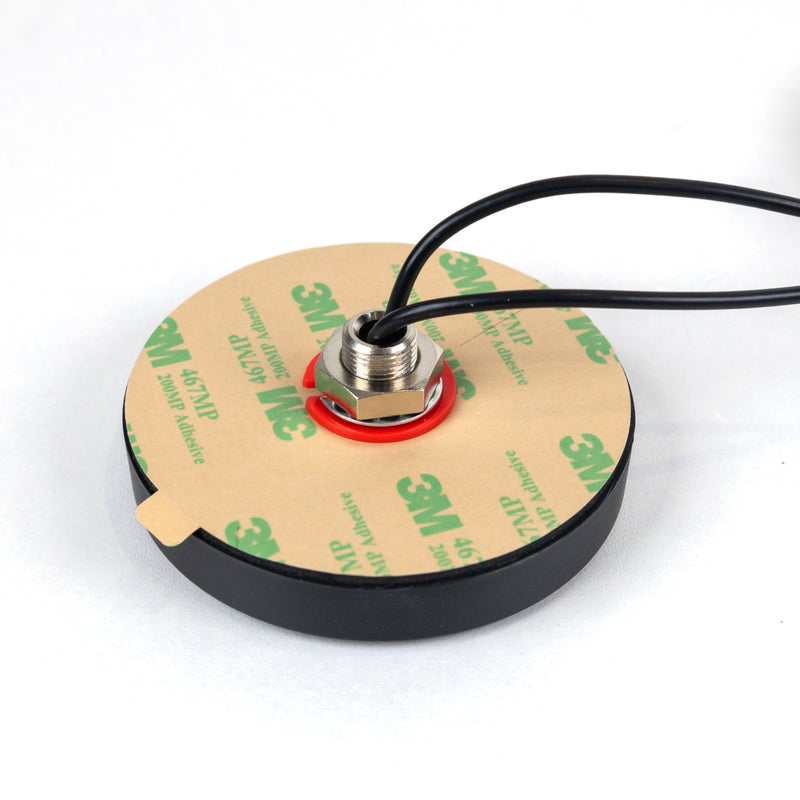

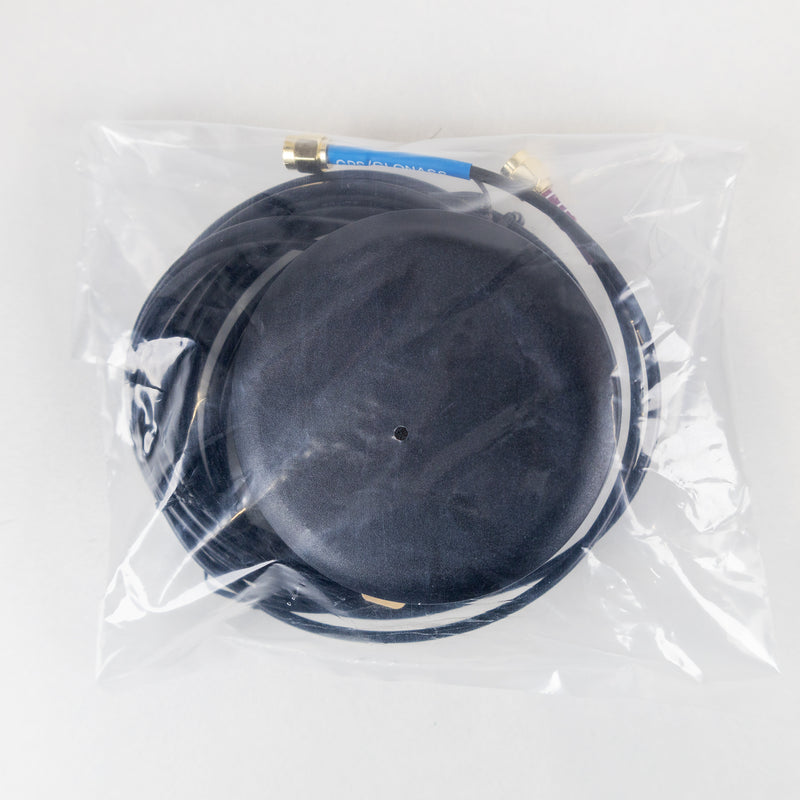

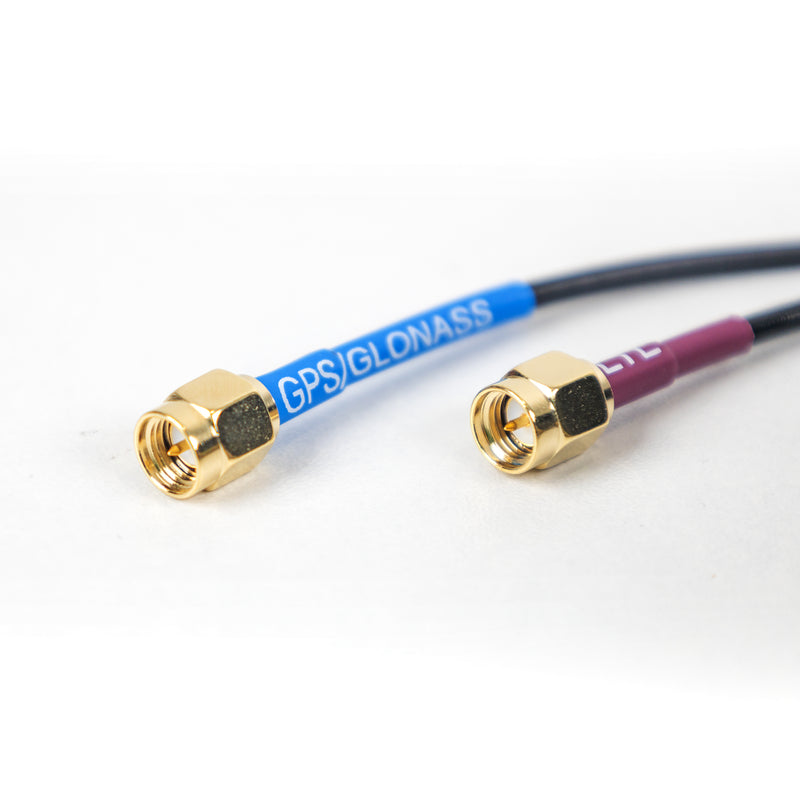

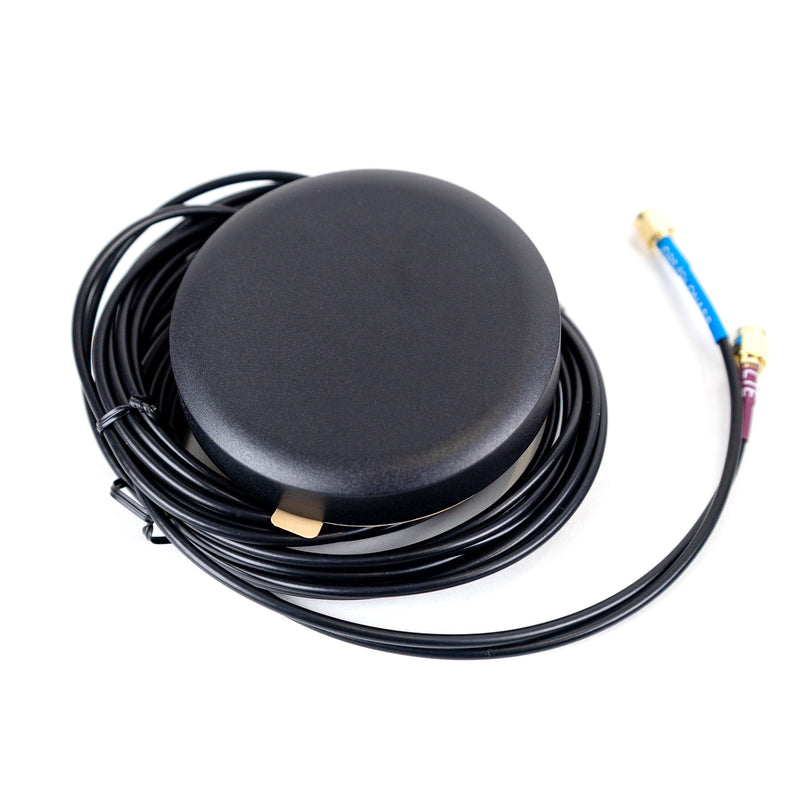

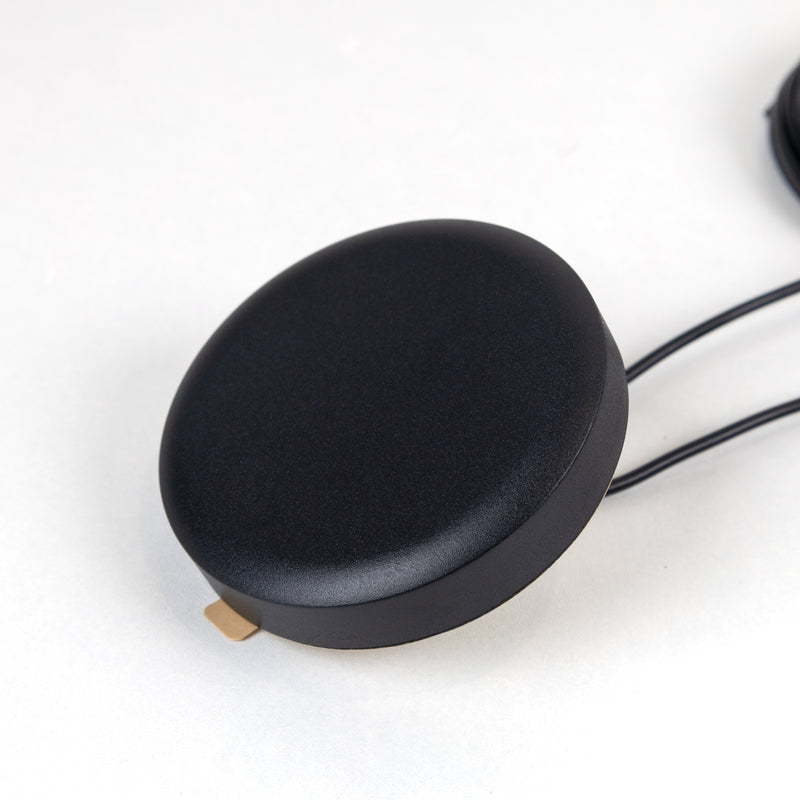

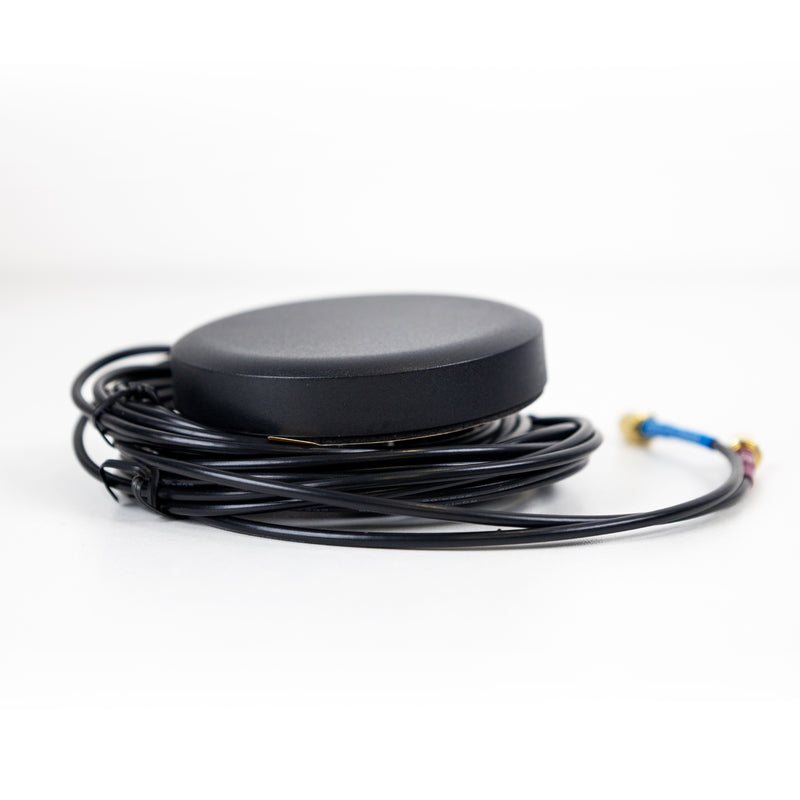

JCB046L GPS/GLONASS+LTE Combo Antenna
JCB046L is a multi-band antenna covering the LTE and GPS frequency bands. Different connector types and cable lengths for LTE and GPS are available.
Specifications:
Item
Specifications
GPS Antenna
Dielectric
Antenna
Frequency Range
1575.42±3MHz
Polarization
RHCP
Gain
2dBic（Zenith）
V.S.W.R
＜1.5
Impedance
50Ω
LNA
Gain
28±2dB
Noise Figure
＜2dB
V.S.W.R
＜2.0
Supply Voltage
3~5V DC
Current Consumption
＜20mA
LTE Antenna
Frequency Range
698~960MHz/1710~2690MHz
V.S.W.R
＜3.0
Polarization
Linear
Gain
2.5dBi
Impedance
50Ω
Mechanical
Cable
RG174
Connector
SMA or others
Material
ABS
Mounting Method
Screw
Environmental
Operating Temperature
-40℃~+85℃
Relative Humidity
Up to 95%
Ingress Protection
IP67 (exclude cable outlet)
Vibration
10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly
ROHS Compliant
