RaspRover Open-source 4WD AI Robot for Raspberry Pi
Received the boxes in mint condition and product works as expected
How many robot included in this package
Ask AI about this product

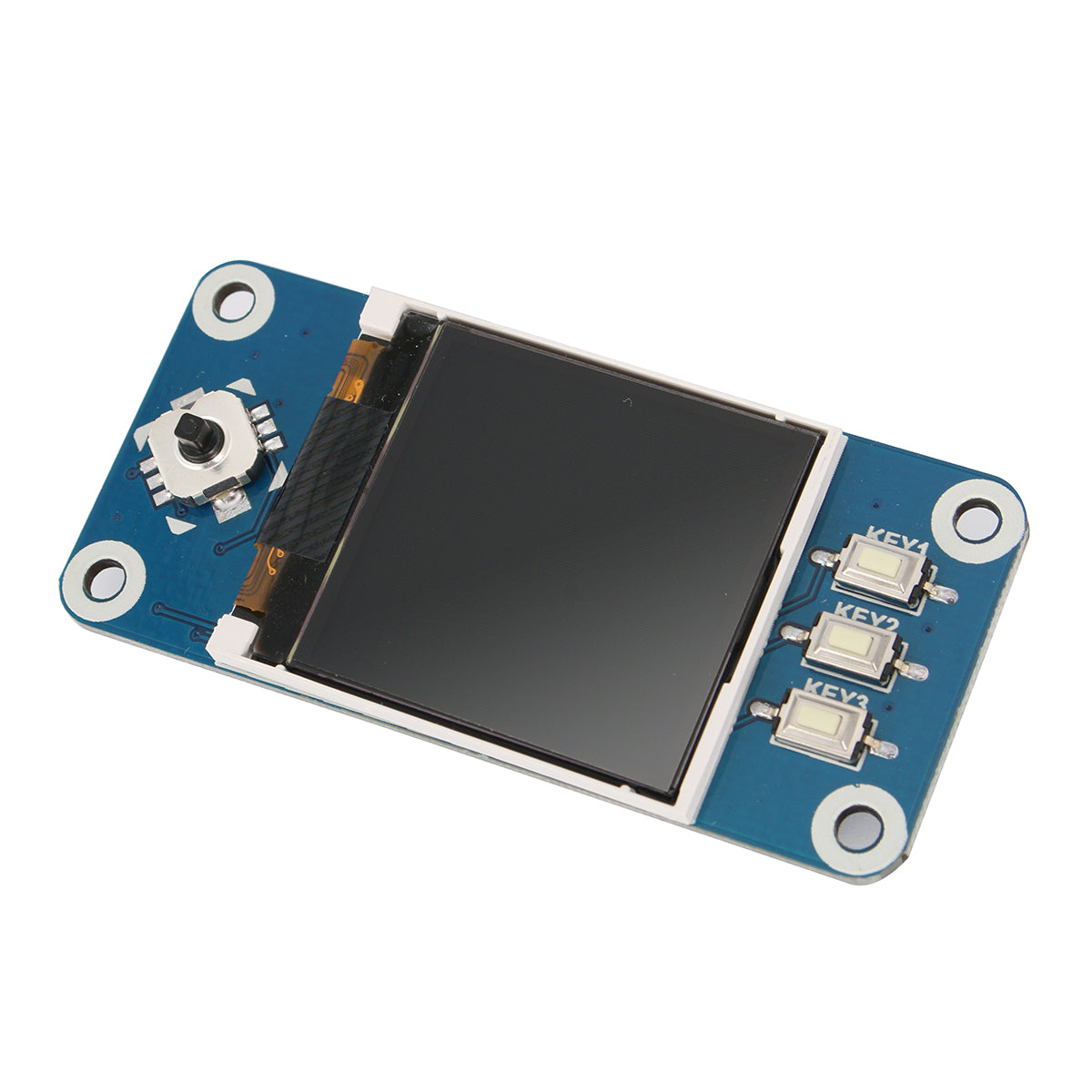

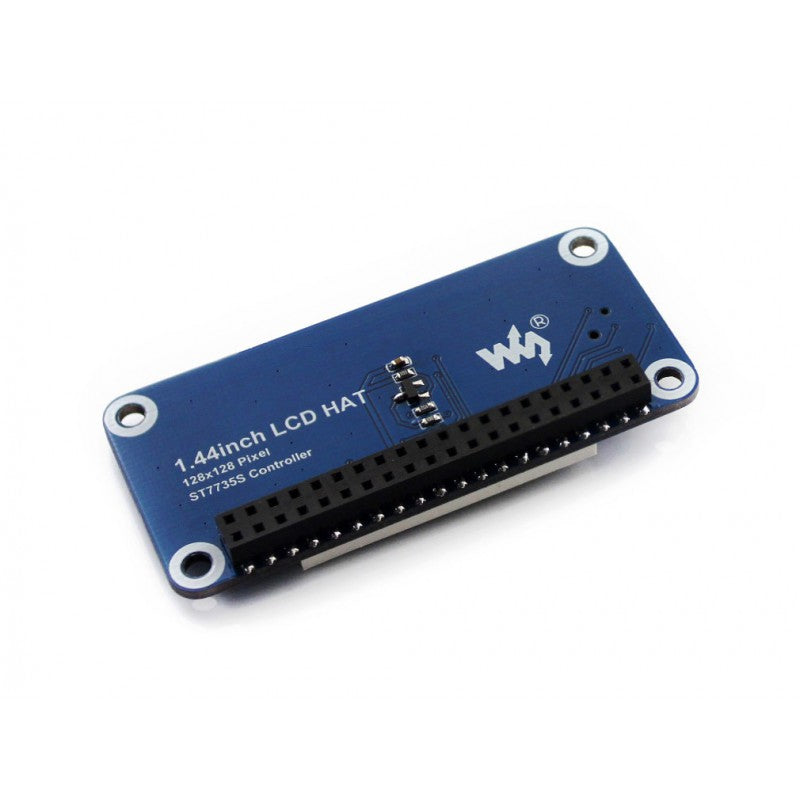

This is an LCD display HAT for Raspberry Pi, 1.44inch diagonal, 128Ć128 pixels, with an embedded controller and SPI interface.
- Trying to add a control interface for your Pi?
- Even making the Pi into a handheld game console?
- This compact display would be the ideal choice.
Features and Benefits:
- Standard Raspberry Pi connectivity, compatible with and direct-pluggable onto Raspberry Pi 2B/3B/Zero/Zero W
- 1x joystick (5-position), 3x pushbuttons, handy and useful
Specifications:
- Color: Blue
- Size: 65*30.2mm/2.6*1.2"
- Driver: ST7735SĀ
- Interface: SPIĀ
- Display color: RGB, 65K color
- Resolution: 128Ć128
- Backlight: LED
- Operating voltage: 3.3V
Development Resources
Wiki : www.waveshare.com/wiki/1.44inch_LCD_HAT

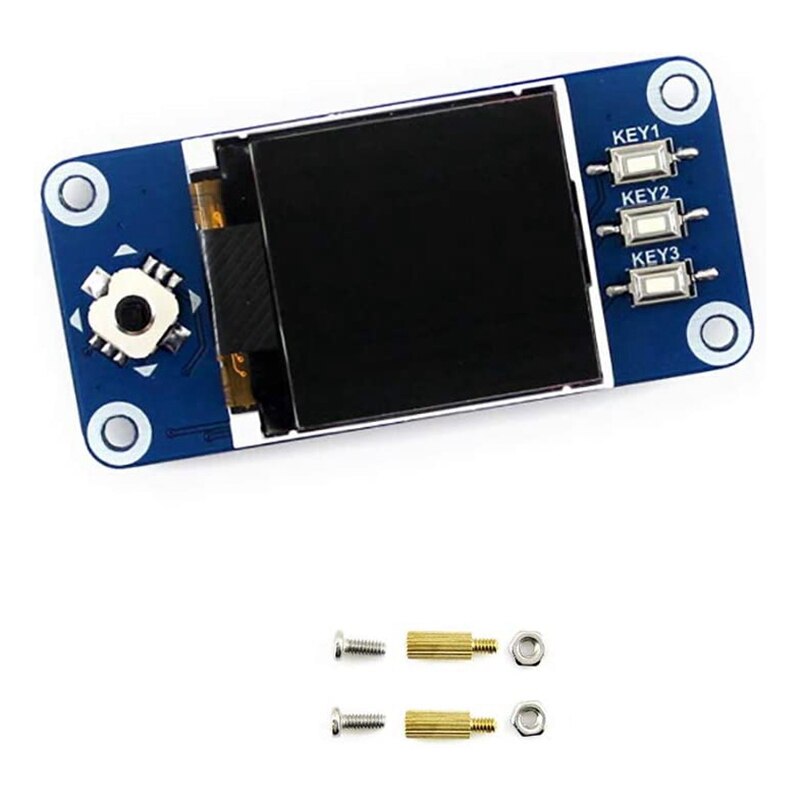

Package Includes:Ā
- 1x 1.44inch LCD HAT
- 1 * RPi screws pack
Is this display compatible with my Raspberry Pi model?
Yes. It is designed to be direct pluggable onto Raspberry Pi 2B 3B Zero and Zero W and uses a 3.3V supply with an SPI interface.
What features does the display offer?
It has a 1.44 inch LCD with 128x128 pixel resolution in RGB 65K color driven by ST7735S. It includes a 5 position joystick and three pushbuttons, a blue backlight and an embedded controller.
What are the power and interface requirements?
The module operates at 3.3V and communicates over SPI. It plugs onto compatible Raspberry Pi boards for convenient use.
What is included in the package?
The package contains 1x 1.44 inch LCD HAT and 1x Raspberry Pi screws pack.
Where can I find documentation or support?
Development resources are available on the Waveshare wiki for the 1.44 inch LCD HAT.
No reviews yet. Be the first to share your experience!
Discover More In:
Category: View all Single Board Computers
Fill out the form below and our team will get back to you with bulk pricing.
Description
Ask AI about this product
This is an LCD display HAT for Raspberry Pi, 1.44inch diagonal, 128Ć128 pixels, with an embedded controller and SPI interface.
- Trying to add a control interface for your Pi?
- Even making the Pi into a handheld game console?
- This compact display would be the ideal choice.
Features and Benefits:
- Standard Raspberry Pi connectivity, compatible with and direct-pluggable onto Raspberry Pi 2B/3B/Zero/Zero W
- 1x joystick (5-position), 3x pushbuttons, handy and useful
Specifications:
- Color: Blue
- Size: 65*30.2mm/2.6*1.2"
- Driver: ST7735SĀ
- Interface: SPIĀ
- Display color: RGB, 65K color
- Resolution: 128Ć128
- Backlight: LED
- Operating voltage: 3.3V
Development Resources
Wiki : www.waveshare.com/wiki/1.44inch_LCD_HAT
Package Includes:Ā
- 1x 1.44inch LCD HAT
- 1 * RPi screws pack
FAQ
Is this display compatible with my Raspberry Pi model?
Yes. It is designed to be direct pluggable onto Raspberry Pi 2B 3B Zero and Zero W and uses a 3.3V supply with an SPI interface.
What features does the display offer?
It has a 1.44 inch LCD with 128x128 pixel resolution in RGB 65K color driven by ST7735S. It includes a 5 position joystick and three pushbuttons, a blue backlight and an embedded controller.
What are the power and interface requirements?
The module operates at 3.3V and communicates over SPI. It plugs onto compatible Raspberry Pi boards for convenient use.
What is included in the package?
The package contains 1x 1.44 inch LCD HAT and 1x Raspberry Pi screws pack.
Where can I find documentation or support?
Development resources are available on the Waveshare wiki for the 1.44 inch LCD HAT.
Reviews
No reviews yet. Be the first to share your experience!
