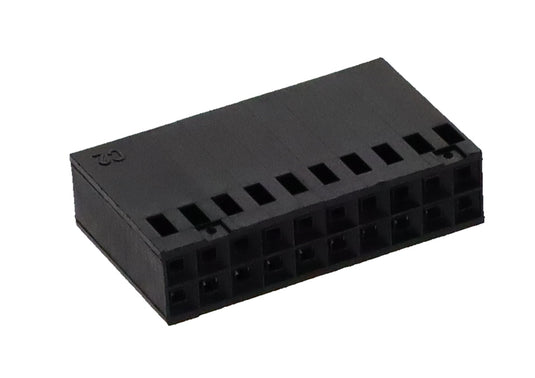

TE CONNECTIVITY/AMP BRAND AMP MODU Headers & Wire Housings 20 MODIV HSG COMP DR
Enhance your electronic assembly with the TE CONNECTIVITY/AMP BRAND AMP MODU Headers & Wire Housings, part number 1-87456-5. Designed for reliable wire-to-board connections, this high-quality connector is suitable for industrial applications requiring precision and durability.
Product Features
Terminations support 32-20 AWG [0.03-0.6mm²] discrete wire
Contacts feature insulation support and are available in gold and tin platings
Receptacles mate with .025 [0.64] square or round posts
This connector system is part of the AMPMODU interconnection system, offering wire-to-board solutions with .100 [2.54] centerline products. It supports a wide range of wire sizes, contact platings, and post lengths to suit various application needs. The housing sizes range up to 100 positions, with options for single- and double-row configurations.
Additional Information
Compatible with manual, pneumatic, and electric power tools for crimping and assembly
Recognized under UL Component Program (File No. E28476 R) and certified by CSA (File No. LR 7189)
Performance characteristics include a maximum current rating of 3 amperes and low termination resistance (max. 12 milliohms for beryllium copper contacts)
For more detailed specifications and application guidance, please refer to the datasheet linked above. The datasheet provides comprehensive information on contact sizes, plating options, housing configurations, and tooling compatibility.
Note: All part numbers are RoHS compliant. Please search the internet for the part number for additional details if needed.
