PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5

PCIe TO M.2 4G/5G And USB3.2 HAT

Suitable for Raspberry Pi 5
Compatible With Multiple SIMCom/Quectel 4G/5G modules with M.2 Key B interface

Features:

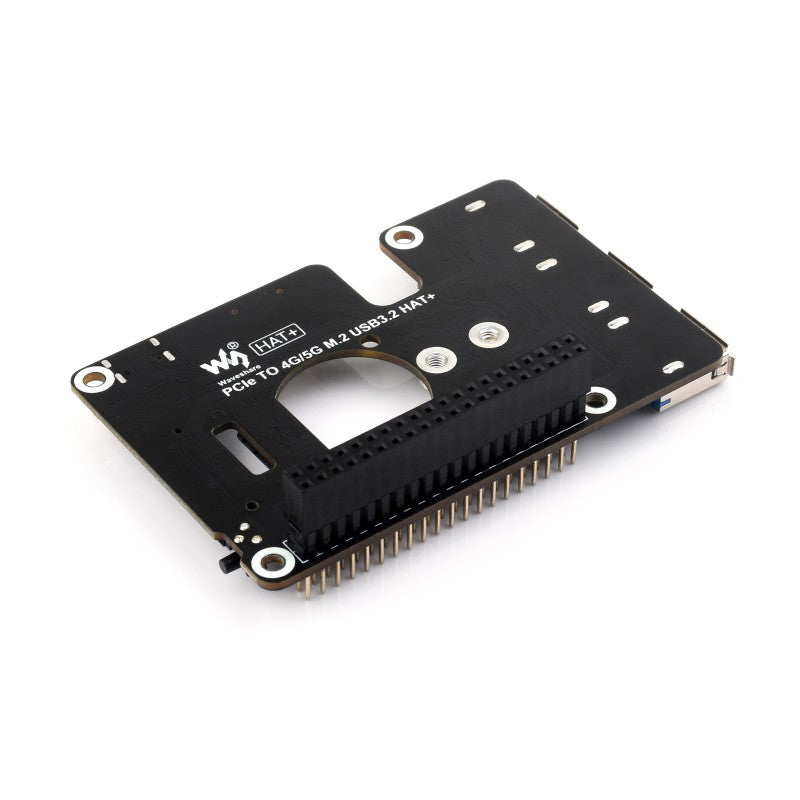

Designed for Raspberry Pi 5, HAT+ standard

Onboard PCIe interface for directly connecting to Raspberry Pi 5 via 16PIN cable

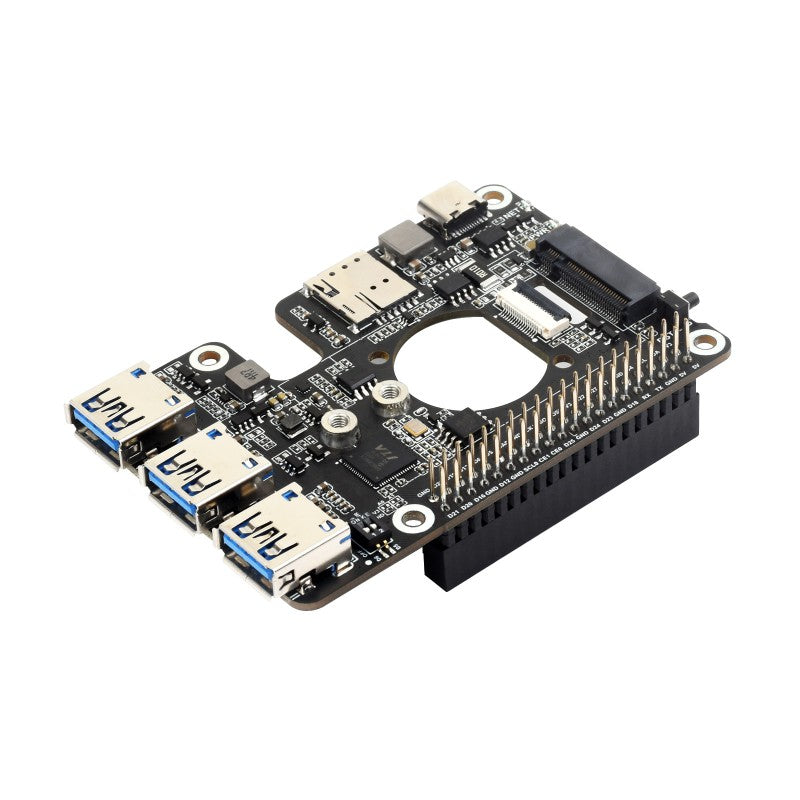

More USB Capability For Raspberry Pi 5

Compatible With Multiple SIMCom/Quectel 4G/5G modules with M.2 Key B interface

Multi-system Support

Supports systems such as Raspberry Pi OS, Ubuntu, OpenWRT, etc.

Raspberry Pi OS

OpenWRT

Ubuntu

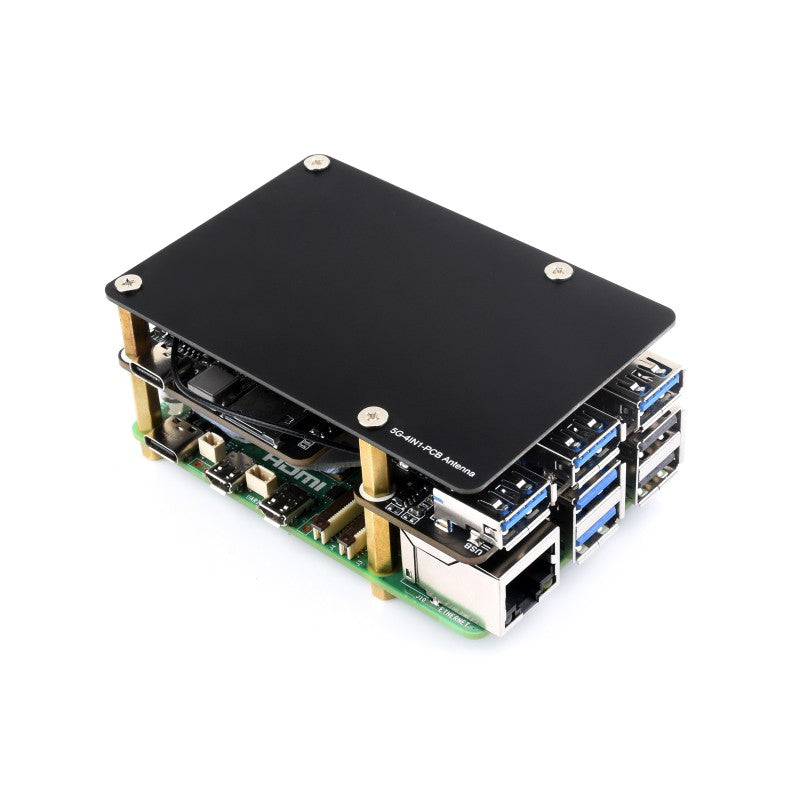

Comes with 5G-4IN1-PCB Antenna

Supports top and bottom mounting, easy to install, good communication effect

Onboard power monitoring chip and EEPROM

for real-time monitoring voltage, current and power of module Via I2C
supports saving HAT+ ID and product information, compatible with HAT+ standard

Reserved Airflow Vent For Cooling Fan

More Airflow for Pi5, Faster Cooling Effect, More Stable Operation

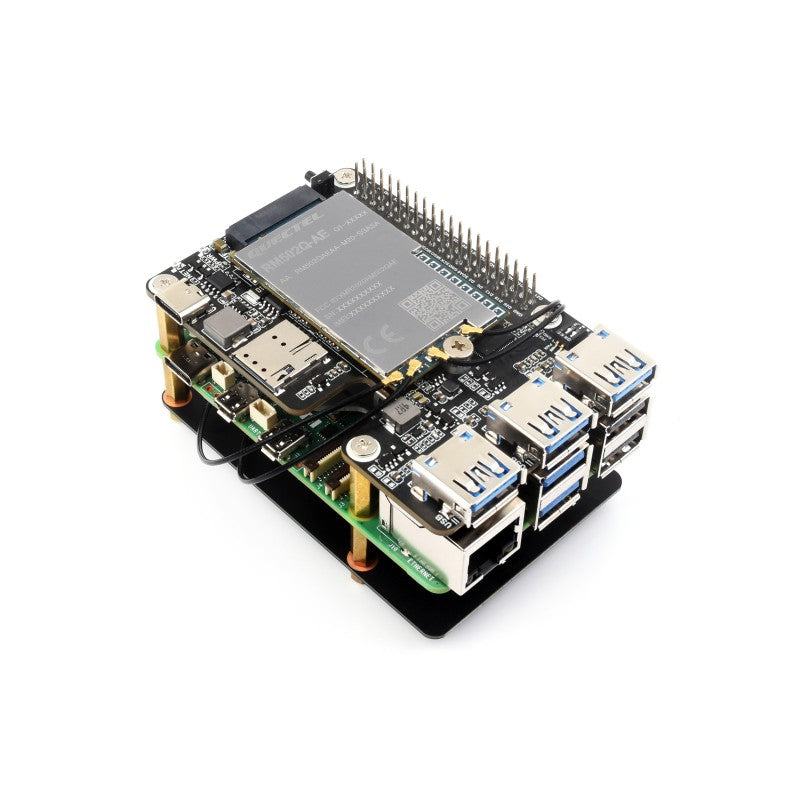

How to Install

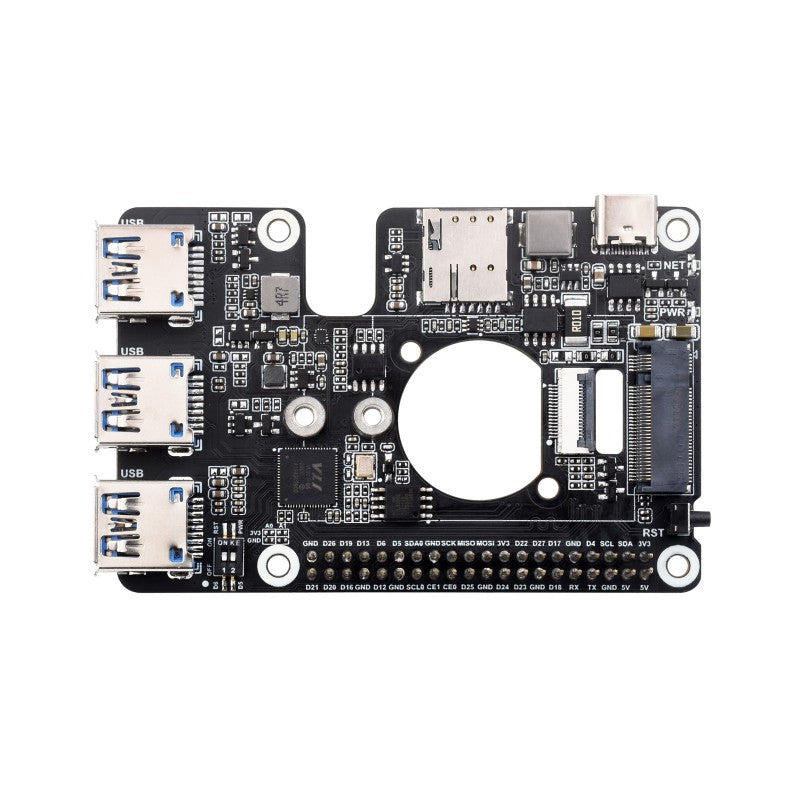

What's On Board

Pinout definition

Outline dimensions

Resources

Package Contains:

Want to buy in bulk?

Customer Reviews

Custom Requirements?

Download the ThinkRobotics Mobile App

We are here to serve you! Reach us at:

Popular Links

Shopping Cart

Let customers speak for us

5G Module		RM502Q-AE	RM520N-GL	RM530N-GL	SIM8262E-M2	SIM8262A-M2	SIM7600G-H-M.2

5G Standard		3GPP R15	3GPP R16				-
5G		Sub-6 GHz		Sub-6G & mmWave	Sub-6 GHz		-
Applicable Region		Global (except China)	Global		except Americas	Americas	Global
Dimensions		30.0 × 52.0 × 2.3 (mm)			30.0 × 42.0 × 2.3 (mm)		42.0 × 31.4 × 3.8 (mm)
Frequency band
5G	5G NR	-		n257, n258, n260, n261	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79	n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79	-
	5G NR NSA	n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
	5G NR SA	n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
LTE	LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71			B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32	B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71	B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
	LTE-TDD	B34, B38, B39, B40, B41, B42, B43, B48			B38, B39, B40, B41, B42, B43	B41, B46, B48	B34, B38, B39, B40, B41
	LAA	B46			-
UMTS	WCDMA	B1, B2, B3, B4, B5, B6, B8, B19	B1, B2, B4, B5, B8, B19		B1, B5, B8	B2, B4, B5	B1, B2, B4, B5, B6, B8, B19
GNSS		GPS / GLONASS / BeiDou (Compass) / Galileo / QZSS (QZSS is not supported on RM502Q-AE)			GPS / GLONASS / BeiDou / Galileo / QZSS
Data rate
5G mmWave		-		downlink 4 Gbps; uplink 1.4 Gbps	-
5G SA Sub-6		downlink 4.2 Gbps; uplink 450 Mbps	downlink 2.4 Gbps; uplink 900 Mbps		downlink 2.4 Gbps; uplink 500 Mbps		-
5G NSA Sub-6		downlink 5 Gbps; uplink 650 Mbps	downlink 3.4 Gbps; uplink 550 Mbps		downlink 2.4 Gbps; uplink 500 Mbps		-
LTE		downlink 2 Gbps; uplink 200 Mbps	downlink 1.6 Gbps; uplink 200 Mbps		downlink 1.0 Gbps; uplink 200 Mbps		downlink 150 Mbps; uplink 50 Mbps
UMTS		downlink 42 Mbps; uplink 5.76 Mbps
Note: The 4G/5G module is NOT included, please purchase separately. The above are the supported modules after testing; If you need to use with other modules, please confirm with the module manufacturer for interface compatibility.
