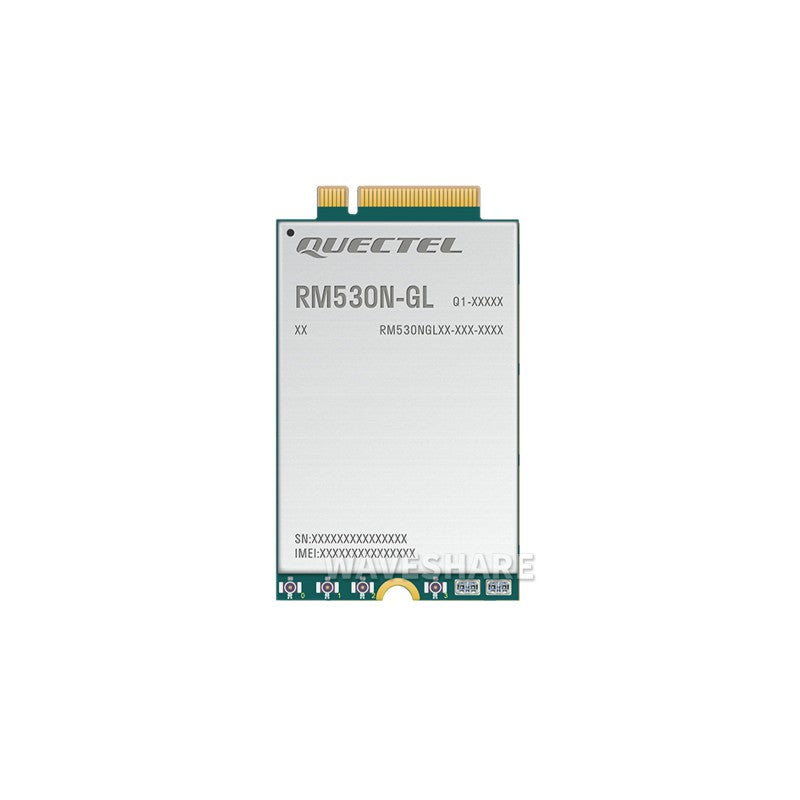

Quectel RM5x0N-GL 5G Sub-6G Global Band M.2 Module

SKU: WVSH0224

₹ 38,749.99

In stock | Ready to ship

Select variant

RM530N-GL
⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Quectel RM5x0N-GL 5G Sub-6G Global Band M.2 ModuleRM530N-GL₹ 38,749.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini



Quectel RM5x0N-GL
IoT 5G Global Band Module

5G Sub-6G Module, M.2 Form Factor With 3GPP 5G Release 16 Specification



The RM5x0N-GL is a 5G Sub-6GHz module specially optimized for IoT/EMBB applications. Adopts 3GPP Release 16 specification and supports 5G non-standalone (NSA) and standalone (SA) modes. Designed in an M.2 form factor, RM5x0N-GL is compatible with Quectel RM50xQ 5G module series, LTE-A Cat 6 module EM06, Cat 12 module EM12/EM12xR/EM120K series, and Cat 16 module EM160R-GL, facilitating migration from LTE-A to 5G. This module is an industrial-grade module for industrial and commercial applications only.

The RM5x0N-GL series nearly covers all the mainstream carriers worldwide. The integrated multi-constellation high-precision GNSS receiver (supports GPS, GLONASS, BDS and Galileo) greatly simplifies the product design and provides quicker, more accurate positioning capability.

Built in a rich set of network protocols, integrates multiple industry-standard interfaces and supports multiple drivers and software functions (USB/PCIe drivers for Windows 7/8/8.1/10, Linux, and Android), which can be adopted in a wide range of eMBB and IoT applications including industrial routers, home gateways, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, video surveillance and digital signage.

  • Designed for IoT/eMBB applications, support 5G/4G/3G, M.2 form factor
  • Full coverage of multi network standards including 5G and LTE-A
  • Supports NSA and SA modes
  • Multi-constellation GNSS receiver available for applications requiring fast and accurate positioning in any environment
  • Supports multi functions: DFOTA and VoLTE (optional)
  • Supports 3GPP Release16


Specifications
5G SUB-6 RM500U-CN RM500Q-GL RM502Q-AE RM520N-GL RM530N-GL

5G Standard 3GPP R15 3GPP R16
5G Sub-6 GHz Sub-6G & mmWave
Region / Provider China Global (except US) Global (except China) Global
Operating temperature -30 °C ~ +75 °C
Extension temperature -40 °C ~ +85 °C
Dimensions 30.0 × 52.0 × 2.3 (mm)
Weight 8.9 (g) 8.7 (g) 8.8 (g)
Power supply 3.3~4.4 V, typical 3.7 V 3.135~4.4 V, typical 3.7 V
Power consumption 90 μA @ shutdown
3.7 mA @ hibernate
TBD @ USB 2.0, idle
TBD @ USB 3.0, idle		 70 μA @ shutdown
4.0 mA @ hibernate
32 mA @ USB 2.0, idle
54 mA @ USB 3.0, idle		 80 μA @ shutdown
4.2 mA @ hibernate
39 mA @ USB 2.0, idle
54.5 mA @ USB 3.0, idle		 195 μA @ shutdown
4.7 mA @ hibernate
41 mA @ USB 2.0, idle
60 mA @ USB 3.0, idle		 173 μA @ shutdown
5.1 mA @ hibernate
51 mA @ USB 2.0, idle
69 mA @ USB 3.0, idle
FREQUENCY BAND
5G 5G NR - n257, n258, n260, n261
5G NR NSA n41, n78, n79 n41, n77, n78, n79 n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
5G NR SA n1, n28, n41, n77, n78, n79 n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48*, n66, n71, n77, n78, n79 n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
LTE LTE-FDD B1, B2, B3, B5, B7, B8, B20, B28 B1, B2, B3, B4, B5, B7, B8, B12(B17), B13, B14, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE-TDD B34, B38, B39, B40, B41 B34, B38, B39, B40, B41, B42, B43, B48
LAA - B46
UMTS WCDMA B1, B2, B5, B8 B1, B2, B3, B4, B5, B6, B8, B19 B1, B2, B4, B5, B8, B19
GNSS - GPS / GLONASS / BeiDou (Compass) / Galileo / QZSS (only supported by RM520N-GL and RM530N-GL)
DATA RATE
5G mmWave - downlink 4 Gbps;
uplink 1.4 Gbps
5G SA Sub-6 downlink 2 Gbps;
uplink 1 Gbps		 downlink 2.1 Gbps;
uplink 900 Mbps		 downlink 4.2 Gbps;
uplink 450 Mbps		 downlink 2.4 Gbps;
uplink 900 Mbps
5G NSA Sub-6 downlink 2.2 Gbps;
uplink 575 Mbps		 downlink 2.5 Gbps;
uplink 600/650 Mbps		 downlink 5 Gbps;
uplink 650 Mbps		 downlink 3.4 Gbps;
uplink 550 Mbps
LTE downlink 600 Mbps;
uplink 150 Mbps		 downlink 1.0 Gbps;
uplink 200 Mbps		 downlink 2 Gbps;
uplink 200 Mbps		 downlink 1.6 Gbps;
uplink 200 Mbps
UMTS downlink 42.2 Mbps;
uplink 11 Mbps		 downlink 42 Mbps;
uplink 5.76 Mbps




Application Scenarios

Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer
Laptops, Industrial PDAs, Rugged Industrial PCs, And Digital Signage...



Dimensions

What is the RM5x0N-GL module and what form factor does it use?
It is a 5G Sub-6 GHz module optimized for IoT and EMBB, built in an M.2 form factor and supporting 3GPP Release 16 with NSA and SA operation.
Which network modes and bands are supported?
The module supports 5G Sub-6 GHz in NSA and SA modes and provides LTE functionality with broad global band coverage for multiple networks.
What GNSS capabilities are included?
It includes a multi constellation GNSS receiver that supports GPS, GLONASS, BeiDou and Galileo for fast and accurate positioning.
What interfaces and software support are provided?
It includes USB and PCIe interfaces with drivers for Windows, Linux and Android, and supports features such as DFOTA and optional VoLTE.
Is the module compatible with other Quectel modules and suitable for migration from LTE to 5G?
Yes, it is designed to be compatible with Quectel RM50xQ 5G modules and with LTE use cases such as EM06, EM12 series and EM160R-GL, enabling migration from LTE to 5G.
