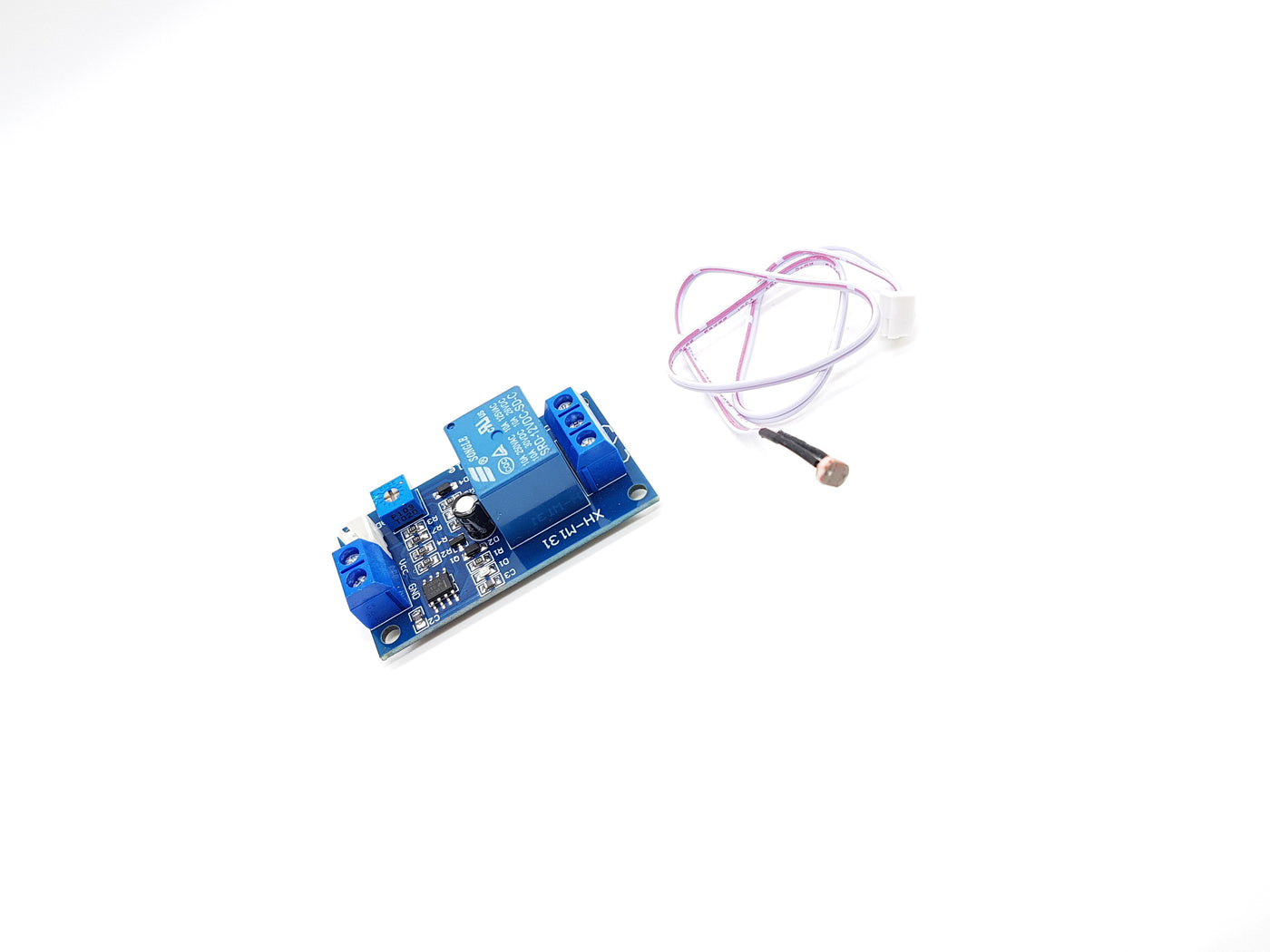

12V 10A Light Brightness Control Sensor Relay Module

SKU: ELC3021

₹ 169.00 ~~₹ 199.00~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

12V 10A Light Brightness Control Sensor Relay Module₹ 169.00

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

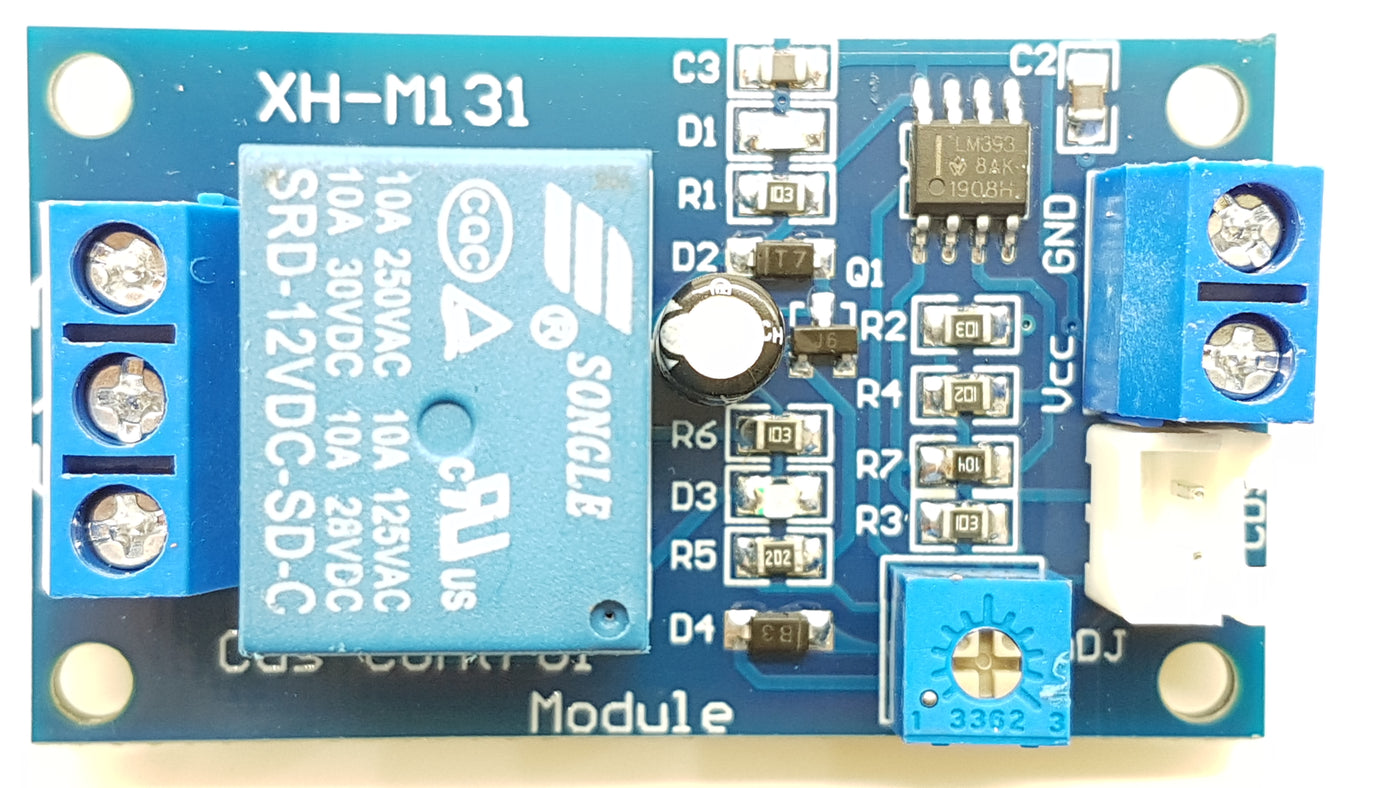

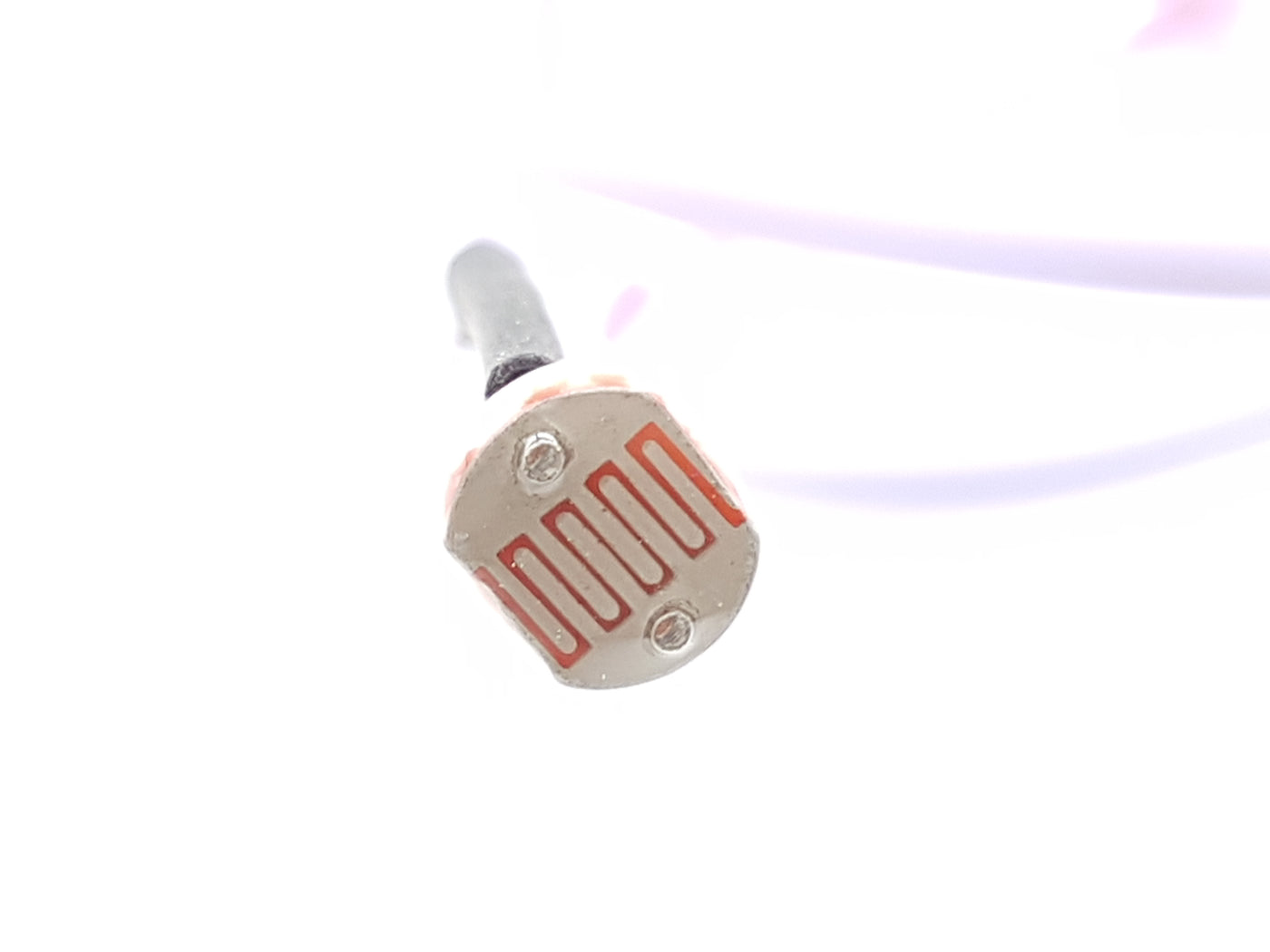

The light threshold can be adjusted by the potentiometer to set the relay to start.

Input: DC 5V / 12V

Load capacity: 10A / AC 250V or DC 30V

Red LED lights up: indicates power is on

Blue LED lights up: relay is working

Module output terminal has three ports

Normally open (NO)
Public terminal (COM)
Normally closed (NC)

Specifications

Resources

Datasheet

Sample Code

Tutorial

How do I set the relay activation threshold on this module?

Use the potentiometer on the module to adjust the light threshold for relay activation. The red LED indicates power is on and the blue LED indicates the relay is working. Tune until the desired load switches.

What input voltages does this module support?

The module accepts DC 5V or 12V input.

What load can be switched by the relay outputs?

The module supports up to 10 A at AC 250 V or DC 30 V.

What are the NO, COM and NC terminals used for?

The three output terminals are Normally Open NO, Public COM, and Normally Closed NC. Use them according to whether you want the circuit to connect when the relay is energized or not.

Are there any documentation resources available for this module?

Yes, the product listing notes datasheet, sample code, and tutorials to guide setup and use.

A

Admin

Welcome to the discussion thread for 12V 10A Light Brightness Control Sensor Relay Module
Feel free to ask questions, share tips or report issues.
