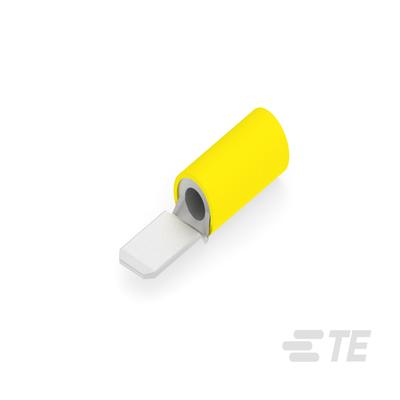

TE Connectivity AMP Brand PRC: AMP Part Number: 141085-2 Terminals TERMINAL TAB FASTON PIDG
Enhance your electrical connections with TE Connectivity's PIDG terminals, designed for durability and reliable performance in demanding industrial environments. Made from high conductivity copper and tin-plated for optimal corrosion resistance, these terminals ensure secure and efficient electrical contact.
Material and Plating: Copper body per ASTM B-152, tin-plated per ASTM B-545, with a copper metallic sleeve for added support.
Design Features: Copper sleeve provides vibration resistance and improved wire insulation support. Inner serrations on the body maximize electrical contact and tensile strength.
Insulation: Nylon (UL 94V-2) insulation sleeves are color-coded by wire size for easy identification and termination.
Operating Conditions: Operates at temperatures up to 105°C with a maximum voltage of 300V.
Certifications: Most PIDG terminals and splices are UL/CSA listed and Mil-Spec approved, meeting or exceeding SAE AS7928, Type II, Class 1 standards.
Product Applications: Suitable for instruments/control, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace, and appliances.
Business Unit: Industrial
Package Type: PKG (small packages or bulk quantities)
Part Number: 141085-2
Manufacturer: TE CONNECTIVITY/AMP BRAND
Country of Origin: France (FR)
UOM: EA (each)
ECCN: EAR99
For detailed specifications and application guidance, refer to the datasheet.
Note: Datasheet was not processed, please search the internet for the part number for more details.
