Product Description for TE CONNECTIVITY/AMP BRAND PRC: AMP Part Number 152651

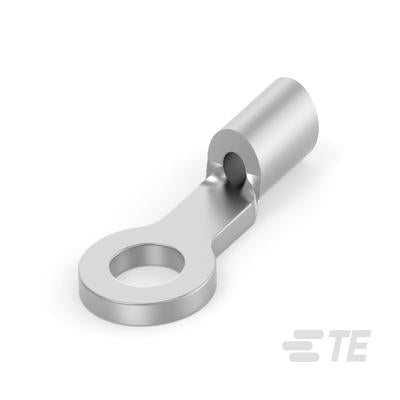

The TE CONNECTIVITY/AMP BRAND Part Number 152651 is a high-quality, uninsulated closed ring tongue terminal designed for reliable electrical connections in industrial applications. Manufactured in the USA, this terminal features tin plating for enhanced corrosion resistance and durability.
Key Features
Product Type: Closed Ring Tongue Terminal
Wire Size Range: 22 AWG (509 – 769 CMA)
Stud Size: #4 / M4
Stud Diameter: 3.02 mm [.119 in]
Barrel Type: Closed
Configuration: Straight
Insulation Support: Uninsulated
Retention Type: Non-Insulation Support
Material: Tin Plating
Quantity per Package: 500 EA
Packaging: Carton
Product Specifications
Stud Diameter: 3.02 mm [.119 in]
Barrel Inside Diameter: 0.84 mm [.033 in]
Thickness: 0.79 mm [.031 in]
Product Length: 13.79 mm [.542 in]
Compliance & Standards
RoHS Compliant: Yes
EU RoHS Directive 2011/65/EU: Compliant
EU ELV Directive 2000/53/EC: Compliant
China RoHS 2 Directive: Compliant
REACH Regulation (EC) No. 1907/2006: Does not contain REACH SVHC above threshold
