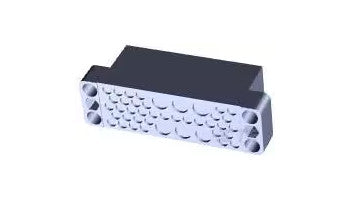

Introducing the TE CONNECTIVITY/AMP BRAND Rack & Panel Connectors 42 POS. BLOCK, a high-performance rectangular wire and cable connector designed for industrial applications. Manufactured in Mexico, this connector ensures reliable electrical connections with robust features suitable for demanding environments.
Key Features & Specifications
Product Type: Housing, Plug
Connector System: Cable-to-Cable / Cable-to-Panel
Number of Positions: 42
Centerline (Pitch): 4.11 mm, 7.36 mm [0.162 in, 0.29 in]
Contact Type: Pin
Housing Material: Phenolic
Electrical Characteristics: Operating Voltage up to 250 VAC, Max Current Rating 23 A
Mechanical Mounting: Panel Mount with Screw Mounting Type
Dimensions: Connector Height: 19.05 mm [0.75 in], Row-to-Row Spacing: 3.43 mm [0.135 in]
Operating Temperature Range: -65°C to 125°C [-85°F to 257°F]
RoHS & ELV Compliance: Yes
Package Type: BLK (Boxed)
UOM: Each (EA)
ECCN: EAR99
Additional Information
This connector is wave solder capable up to 265°C, ensuring compatibility with standard PCB assembly processes. It is designed to meet industry standards and is suitable for power and signal applications in various industrial environments.
Datasheet & Resources
For detailed technical specifications, CAD files, and assembly instructions, please refer to the product datasheet.
Product compliance information is provided based on supplier data and current regulations. The product is RoHS and ELV compliant. For more details, please review the full datasheet and supporting documentation.
