TE CONNECTIVITY / RAYCHEM RAY PRC: RAY Part Number: 215926-000 Heat Shrink Tubing and Sleeves
Optimize your wire and cable identification with the TE CONNECTIVITY / RAYCHEM RAY RAY Heat Shrink Tubing and Sleeves, designed for durability, flexibility, and high performance in demanding environments. Manufactured in the US, this product is compliant with RoHS standards and suitable for military, aerospace, industrial, and energy applications.
Product Features
Military grade performance with resistance to key aerospace and military fluids (defined by RW-2511)
Made from durable, flame-retarded, radiation cross-linked polyolefin

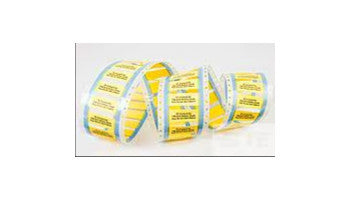

Supplied in ladder format for ease of printing and kitting
Thin wall, lightweight, fast recovery with a 3:1 shrink ratio (TMS-SCE) and rugged wall, 2:1 shrink ratio (TMS-SCE-2X)
Temperature rating from -55°C to 135°C (-67°F to 275°F)
Self-extinguishing and non-flame propagating
Resistant to various military and aerospace fluids
Laser markable for superior identification
Available in multiple sizes with diameters from 2.4mm to 57.15mm (0.093 to 2.25 inches)
Complies with EU RoHS 2 Directive (2015/863) and REACH regulations
Specifications & Approvals
Material performance meets AMS SAE DTL 23053/5 Class 1 and 3
Suitable for aerospace, military, industrial, and railway applications
Fire protection standards include EN45545-2, NFPA 130, and Federal Railroad Administration requirements
UL Certified as an insulating component
Shelf life details available in TE document 408-121006
Product Details
Part Number
215926-000
Manufacturer
TE CONNECTIVITY / RAYCHEM
Country of Origin
US
UOM
EA
ECCN
EAR99
Package Type
BOX
Product Category
Wire & Cable | Heat Shrink Tubing and Sleeves
Datasheet & Additional Information
For detailed specifications, installation guidelines, and compliance information, please refer to the product datasheet.
Note
Datasheet was not processed please search the internet for the part number 215926-000 for more details.
