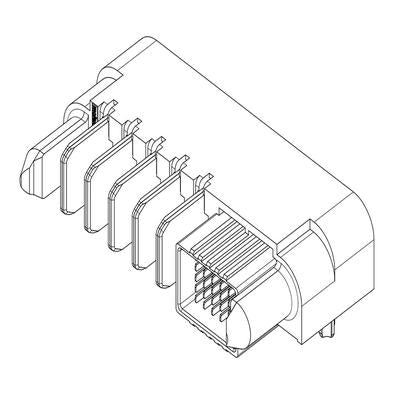

The MOLEX GUARDIAN HD PLUG RIGHT SIG G+4P+30S+G PF (Part Number: 219562-0019) is a high-performance board-to-board connector designed for reliable power and signal transmission in electronic applications. Manufactured in Malaysia, this connector features a robust design with a black liquid crystal polymer resin housing, ensuring durability and high-temperature resistance.
Key features include:
Series: 219562
Application: Board-to-Board, Power, Signal
Component Type: PCB Header
Orientation: Right Angle
Number of Circuits: 4 Power Circuits, 30 Signal Circuits (Total 34 Circuits)
Current Rating: Up to 130A per contact
Maximum Voltage: 125V
Durability: Up to 200 mating cycles
Material: High Conductivity Copper with Gold Plating for Mating, Tin Plating for Termination
Color: Black
Temperature Range: -40°C to +125°C (Operating)
Packaging: Tray
Guide Pins for secure mating
PCB Thickness Recommendation: 1.58mm
Pin Pitch: 5.78mm and 2.00mm
RoHS Compliant: Yes (EU 2015/863)
ECCN: EAR99
UOM: EA
Package Type: BLK
Additional details and technical specifications can be found in the datasheet.
